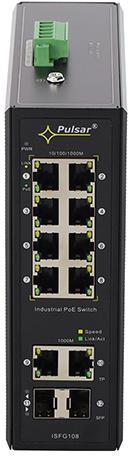

PULSAR ISFG108 Industrial PoE Switch 8xPoE 2xSFP 2xRJ45 Gigabit

PULSAR ISFG108 Industrial PoE Switch 8xPoE 2xSFP 2xRJ45 GigabitPULSAR ISFG108 Industrial PoE Switch 8xPoE 2xSFP 2xRJ45 GigabitPULSAR ISFG108 Industrial PoE Switch 8xPoE 2xSFP 2xRJ45 GigabitThe PULSAR ISFG108 industrial PoE switch provides reliable network connectivity and power transmission for compatible Ethernet devices. It features 12 ports, including eight PoE ports, two RJ-45 uplink ports and two 1000 Mb/s SFP uplink ports.

Ports 1–8 support 10/100/1000 Mb/s Ethernet communication and PoE power transmission. The two TP uplink ports support 10/100/1000 Mb/s connections, while the two SFP uplink ports are designed for 1000 Mb/s connections. All ports offer automatic speed negotiation and Auto MDI/MDIX.

8 × PoE RJ-45 ports supporting 10/100/1000 Mb/s data transmission and power delivery

2 × TP uplink RJ-45 ports supporting 10/100/1000 Mb/s

2 × SFP uplink ports supporting 1000 Mb/s

PoE standards: IEEE 802.3af / at

PoE power: 52 V DC, up to 30 W per PoE port

The switch supports IEEE 802.3, 802.3u, 802.3x, 802.3ab and 802.3z standards, as well as TCP/IP. Its switching capacity is 24 Gb/s. Store-and-Forward transmission enables controlled forwarding of network traffic.

Network management is supported by automatic MAC address learning and aging. The MAC address table stores up to 8,000 entries. Optical indicators show the switch power status, link status and PoE operation.

The PULSAR ISFG108 is designed for industrial operating conditions. It operates at temperatures from -30°C to +70°C and at relative humidity from 5% to 90%, without condensation. The switch is powered by 12–57 V DC, with a maximum current of 2.3 A. The PoE input supports 48–57 V DC and up to 2.3 A.

Self-consumption: up to 5 W

Dimensions: W 54 × H 176 × H1 10 × D 153 × D1 8 mm, tolerance ±2 mm

Net/gross weight: 0.9 / 1.1 kg

Protection class according to EN 62368-1: I

Storage temperature: -30°C to +70°C

Declaration: CE 99.53PULSAR
