Safety Warning
For indoor use only.
Keep away from water and fire.
Do not use in high temperature environment.
Do not cover the charger during charging.
Do not disassemble or modify the charger.
Unplug after fully charged.
Keep out of reach of children.
Use only for 48V lithium batteries.
When charging, first insert the connector into the battery, then connect it to the AC power source. Once fully charged, disconnect the AC power source first, then remove the battery. If you disconnect the battery first during charging-especially when the charging current is high (indicated by a red light)-you risk damaging the charger.
Please avoid charging the battery only after it has been completely drained, as this will prevent the battery from being protected and may even cause damage.

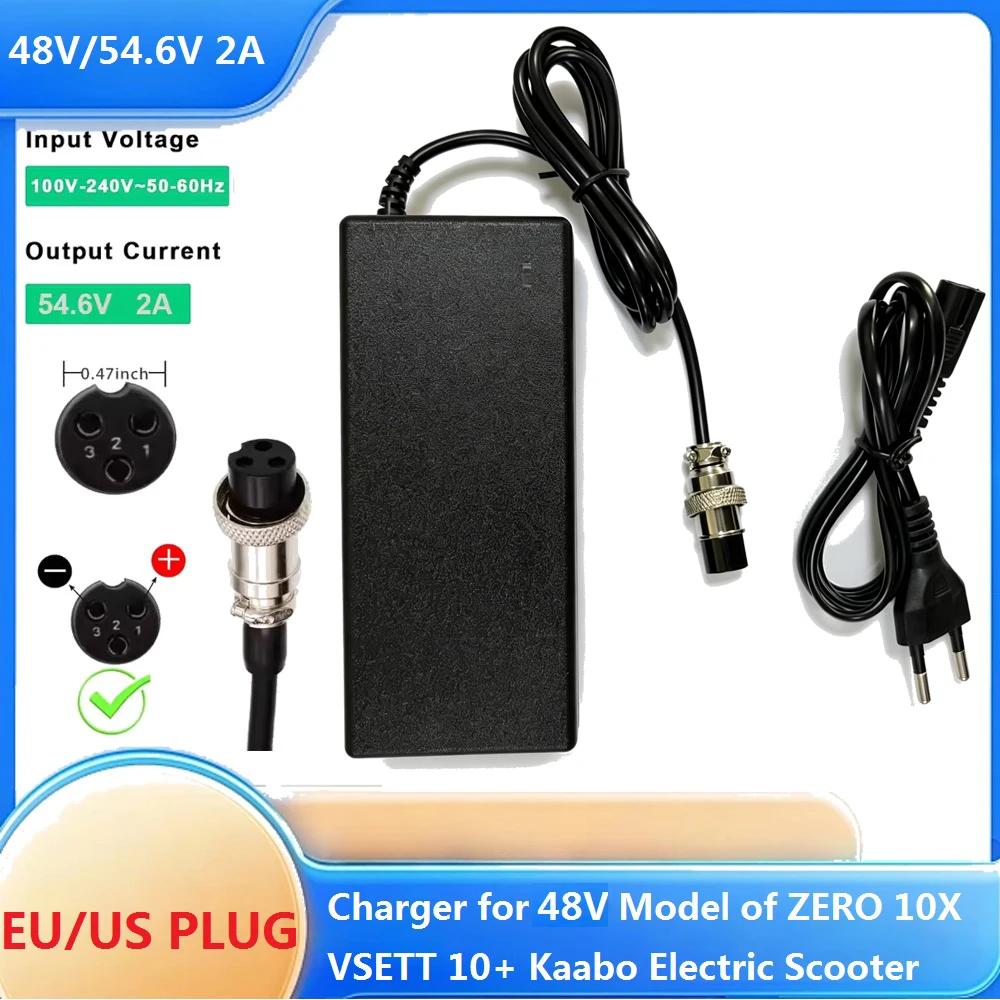

Specifications

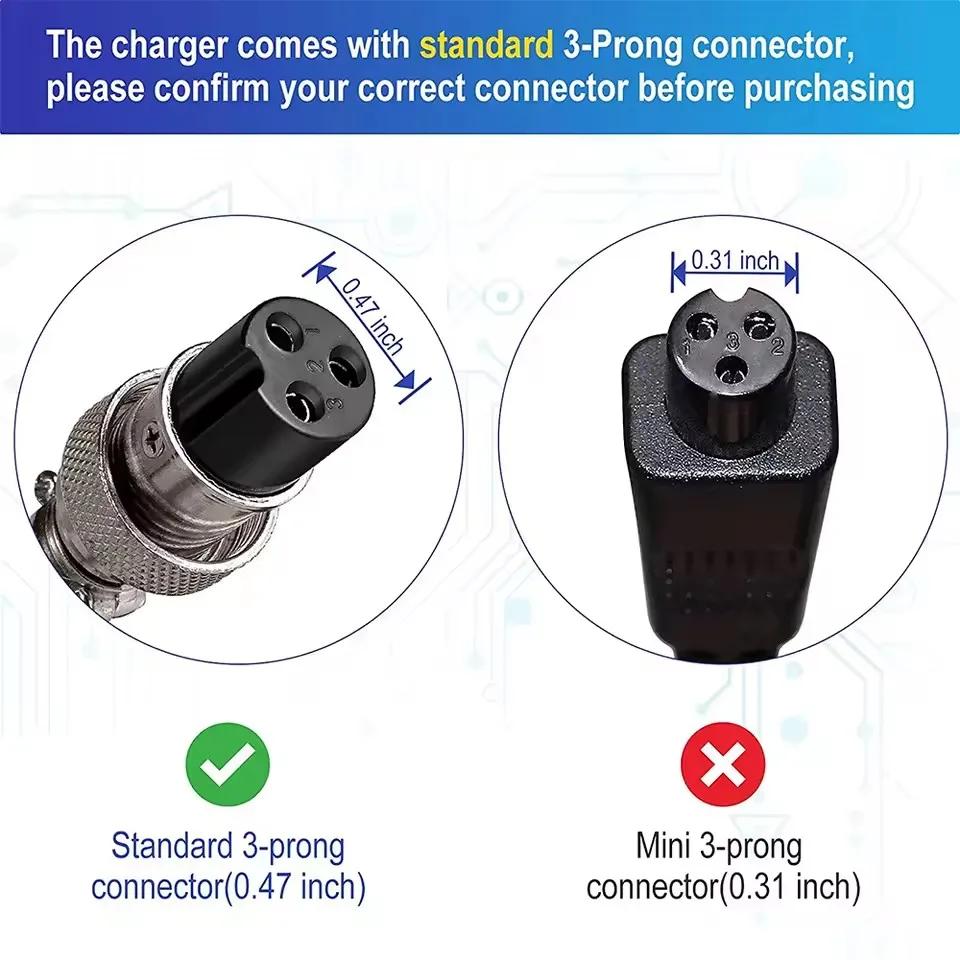

Connector Type: GX16-3 Pin
Input: AC 100-240V 50/60Hz
Output: 54.6V 2A

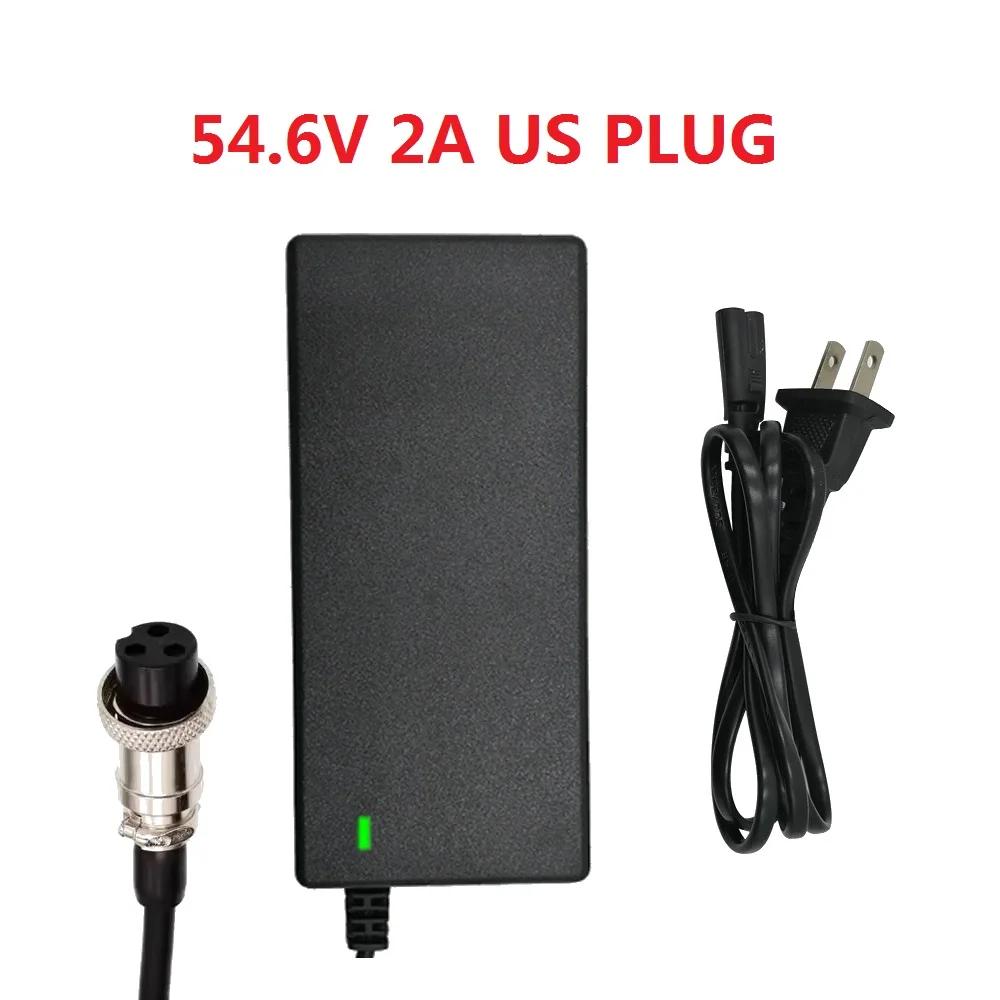

Plug Type: EU / US Plug
Pin Number: 3 Pin

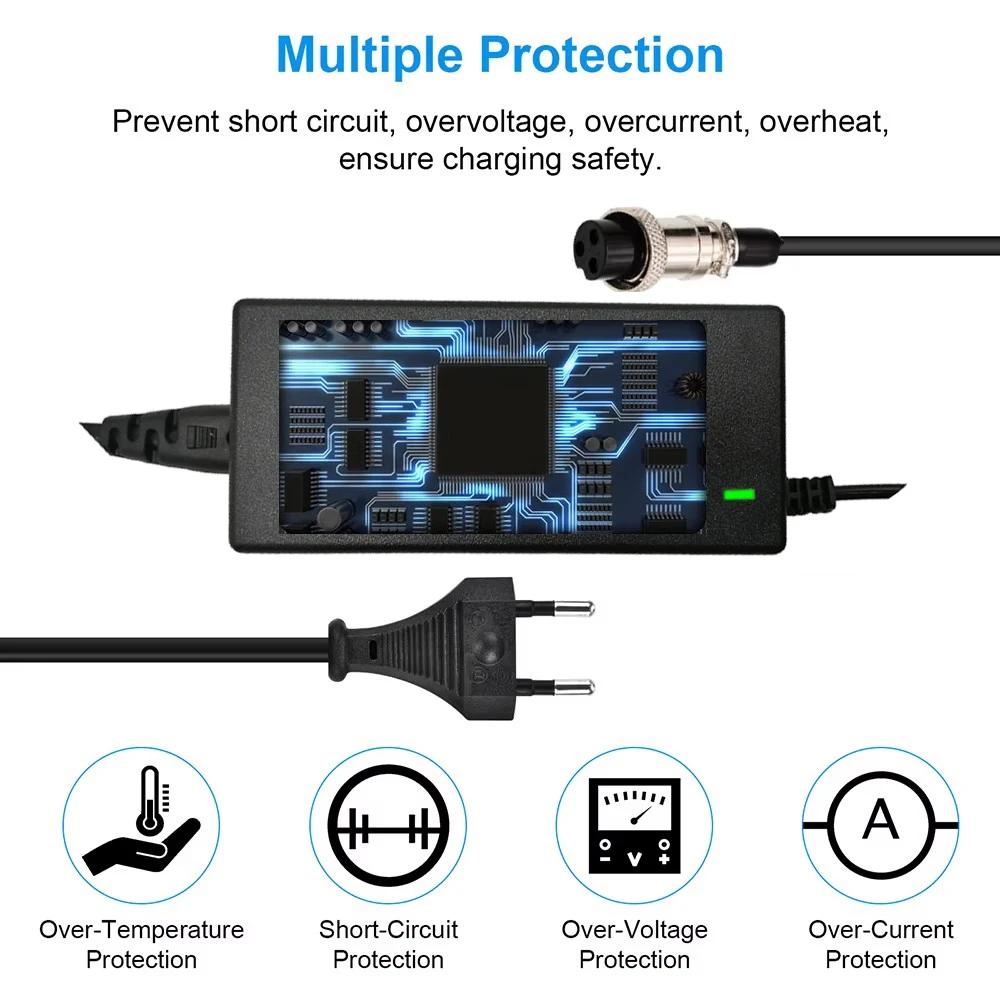

Protection: Over Voltage / Over Current / Short Circuit
Suitable For: 48V Lithium Battery Scooter
Compatible Models
This product is compatible with certain 48V electric scooters that use the GX16-3 connector:
Compatible With:
ZERO 8
ZERO 9
VSETT 8
VSETT 8+
VSETT 9+
Kaabo Mantis 8
Kaabo Skywalker 8S
Kugoo M4 Pro
Speedway Leger
Apollo City
Dragon GTR
and other electric scooters/e-bikes that use:
48V Lithium Battery
GX16-3 Connector
Important Compatibility Notice
Please confirm before purchase:
Output Voltage
Connector Type
Pin Configuration
Battery Specification
Although the connector is GX16-3, different brands may use different pin definitions.
Incorrect voltage or polarity may damage the battery or scooter.
