Feature:

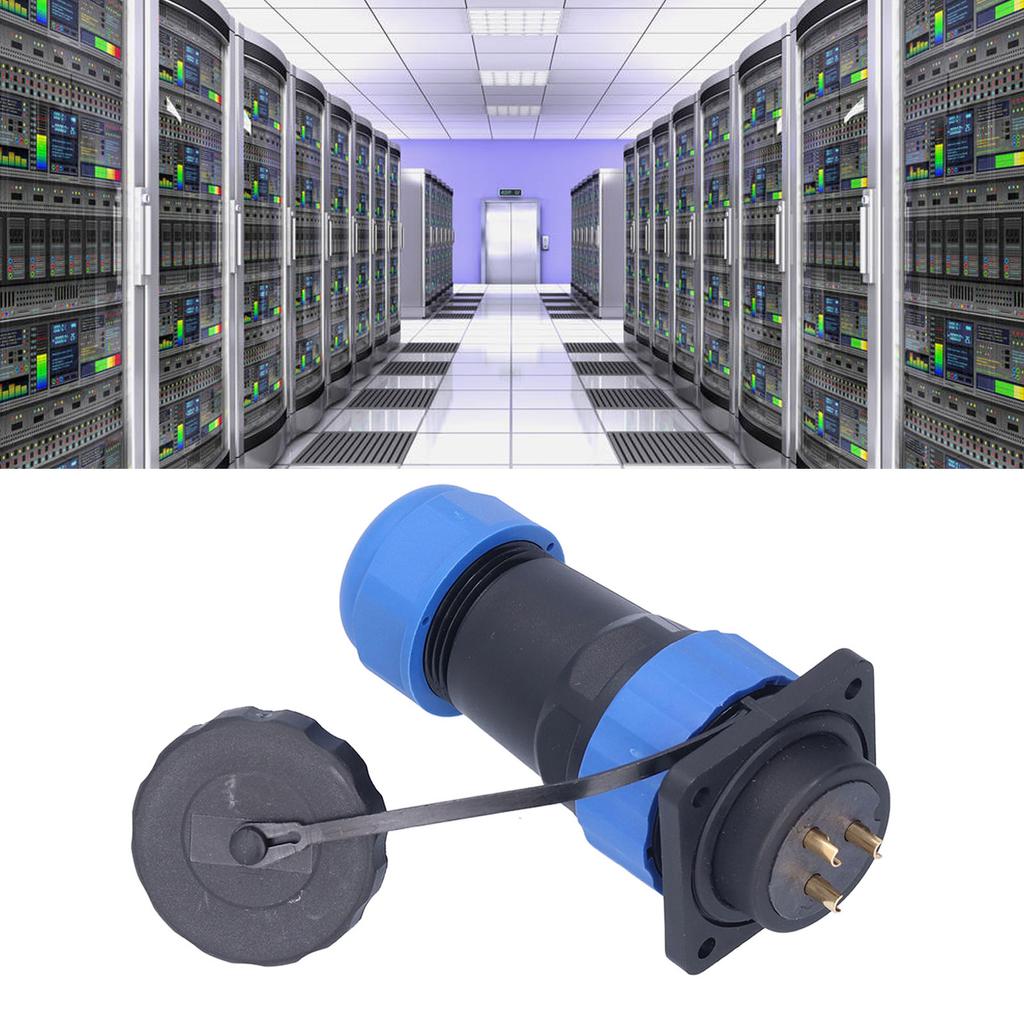

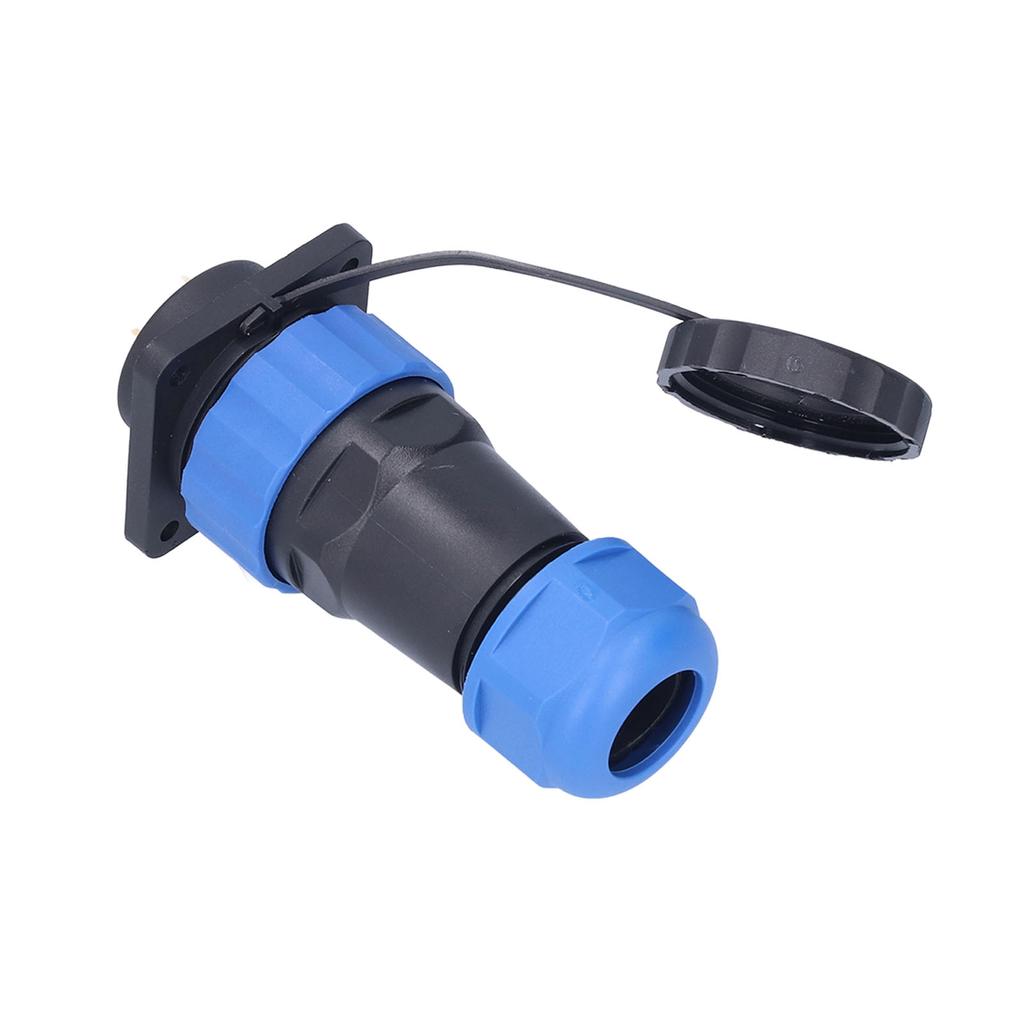

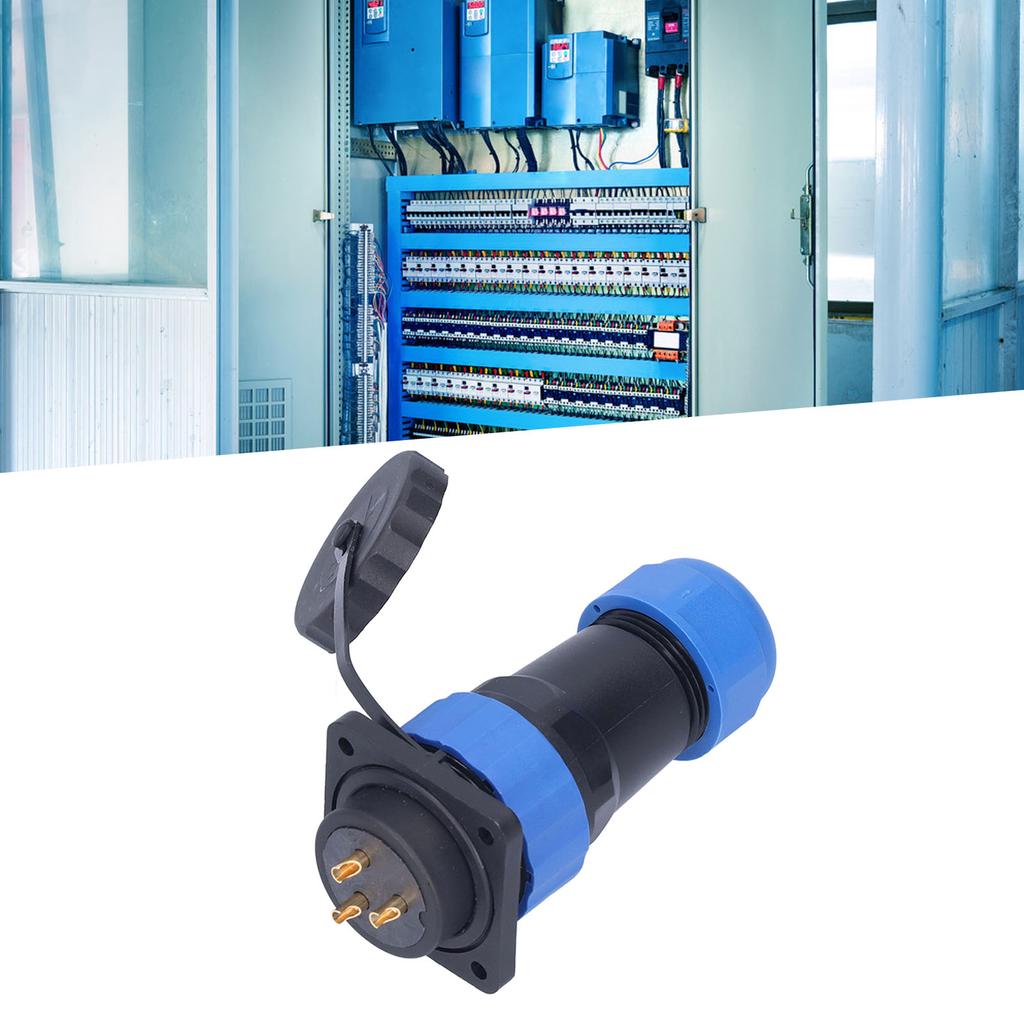

1. Product Specification: Square 4 hole installation waterproof plug socket, IP68 protection aviation connector, safe and durable.
2. Copper Contacts: With silicone waterproof sleeve, copper plated gold contacts, oxidation resistance and plugging resistance.
3. Durable Shell: The waterproof aviation connector shell is made of PA66 and PA6 materials, which has good corrosion resistance and flexibility.
4. Sturdy Soldering: Use an electric soldering iron to connect the conductive wires to ensure a firmer connection and no leakage.
5. Multiple Usages: Widely used in communication equipment, instruments, computers, alarms and electronic equipment, etc.
Specification:
Item Type: Waterproof Plug Socket
Material: PA66, PPS, silicone, copper
Uses: Widely used in communication equipment, instrumentation, computers, program controlled machines, alarms and electronic equipment, etc.
Shell Material: PA66, PA6
Insulator: Thermoplastic PPS (high temperature resistant 220℃)
Contact Material: Copper (gold plated)
Wiring Method: Soldering (if solder paste is used, it must be cleaned)
Connection Method: Threaded connection
Head Size: Approx. 28mm / 1.1in
Thread Specification: M28 x 1.5mm
Insulation Resistance: 2000MΩ
Contact Diameter: Approx. 2.8mm / 0.1in
Rated Current: 25A
Working Voltage: AC 380V
Withstand Voltage: 1500V
Contact Wire Gauge: ≤4mm²/12AWG
Shell Applicable Wire: 12-14.5mm²
Mounting Hole Distance: Approx. 30 x 30mm / 1.2 x 1.2in
Mating Times: More than 500 times
Operating Temperature Range: -25℃ to 85℃
Tightness: Comply with IP68
Package List:
1 x Male Plug
1 x Female Socket
Note:
For soldering with rosin, such as soldering with solder paste, it must be cleaned with related fluids.
