Feature:
1. [Easy To Use] KT LCD3 display meter can provide you with a variety of bike control and status digital display functions, using the button quick operation, easy to use.
2. [Multi Display] Electric bike display meter can display riding time, speed, mileage, power assist gear, power indication, fault prompt, headlight display, motor running power, etc.
3. [Clear Screen] The electric bike LCD display meter has a clear display interface, which makes it easy to read the data when riding and helps you to master the cycling dynamics at any time.
4. [Waterproof Interface] This bicycle display meter control panel is 5pin waterproof interface, with 1.5m/4.9ft SM adapter cable, waterproof and common controller can be matched.
5. [Application] 24V 36V 48V display meter, applicable to 22.2mm handlebars, can be used for electric bikes and scooters. The shell is made of premium PC material, sturdy and durable.
Specification:
Item Type: Electric Bike Display Meter
Material: PC
Model: KT LCD3

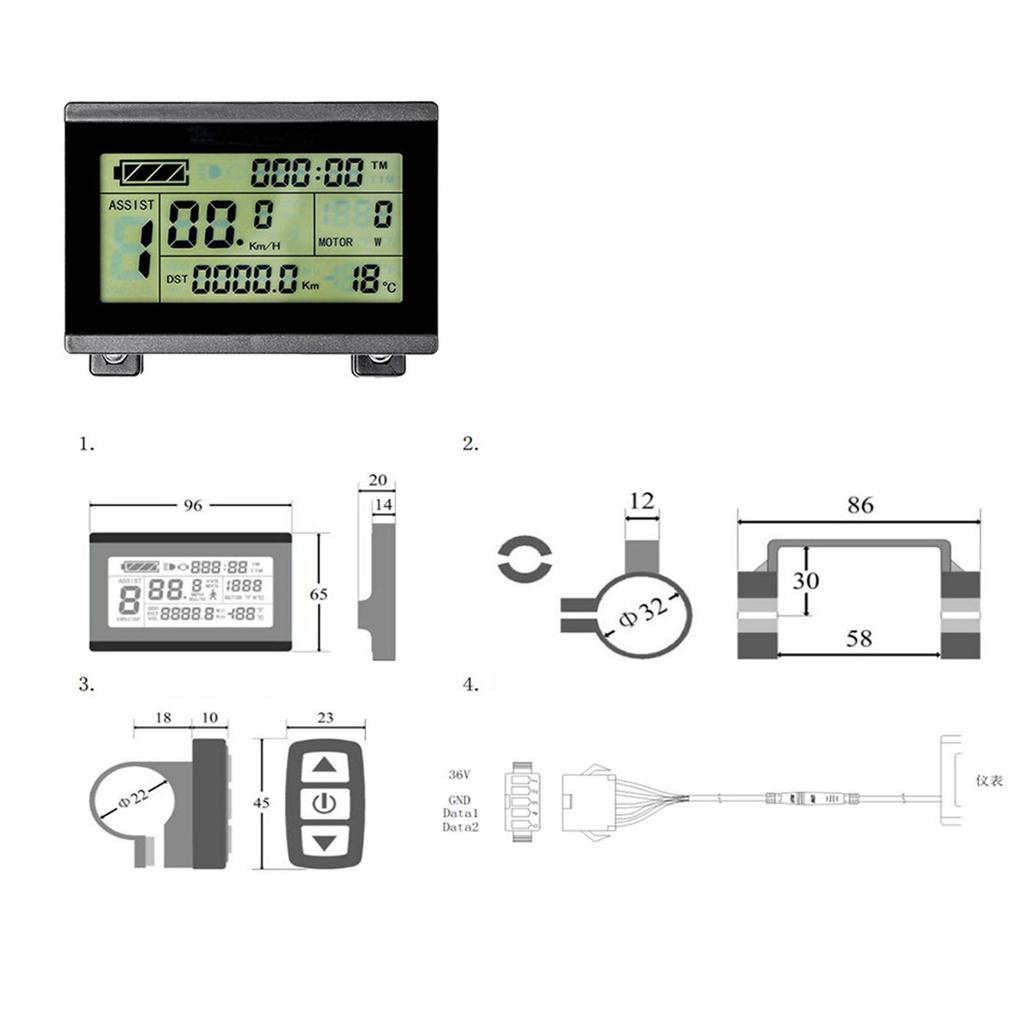

Applicable Handlebar Mount: 22.2mm/0.87in Diameter Handlebar
Voltage: 24V, 36V, 48V
Interface: 5pin
Meter Display Function Description: Riding Time Display, Riding Speed Display, Riding Mileage Display, Power Assist Gear Display, Power Indication, Fault Prompt, Headlight Display, Motor Running Power, 6Km/H Power Assist Push Function, etc.
How to Use:
Meter installation: Fix the meter on the handlebar and adjust the angle. In the case of bike power off, connect the meter connector with the corresponding connector of the controller. Turn on the power, the electric bike and the meter enter into normal operation, the installation of the meter is completed.
Package List:
1 xElectric Bike Display Meter
1 x Bracket
4 x Gasket
2 x Screw
1 x Instruction Manual
Note:
1. This meter is for KT meter and can only be used with for KT controllers
2. Manual measurement, please allow some errors.
