Feature:

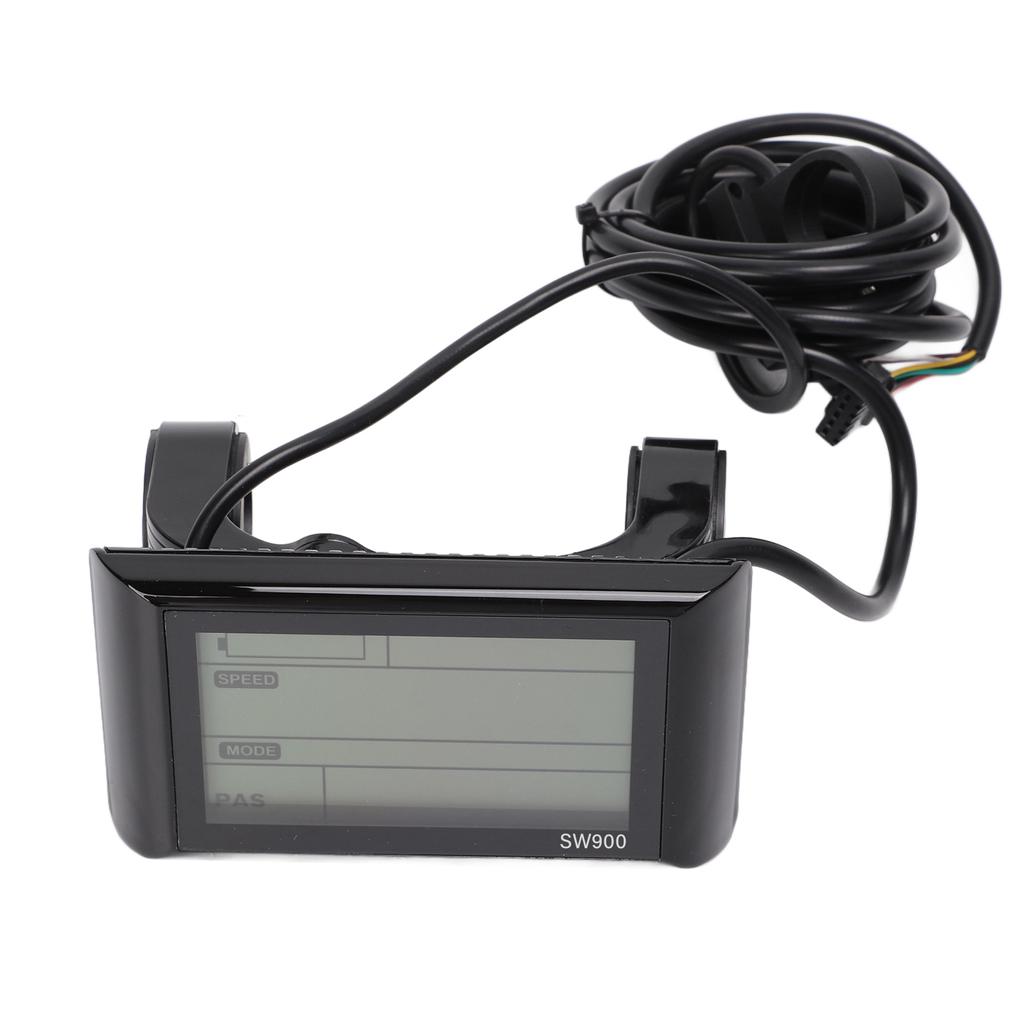

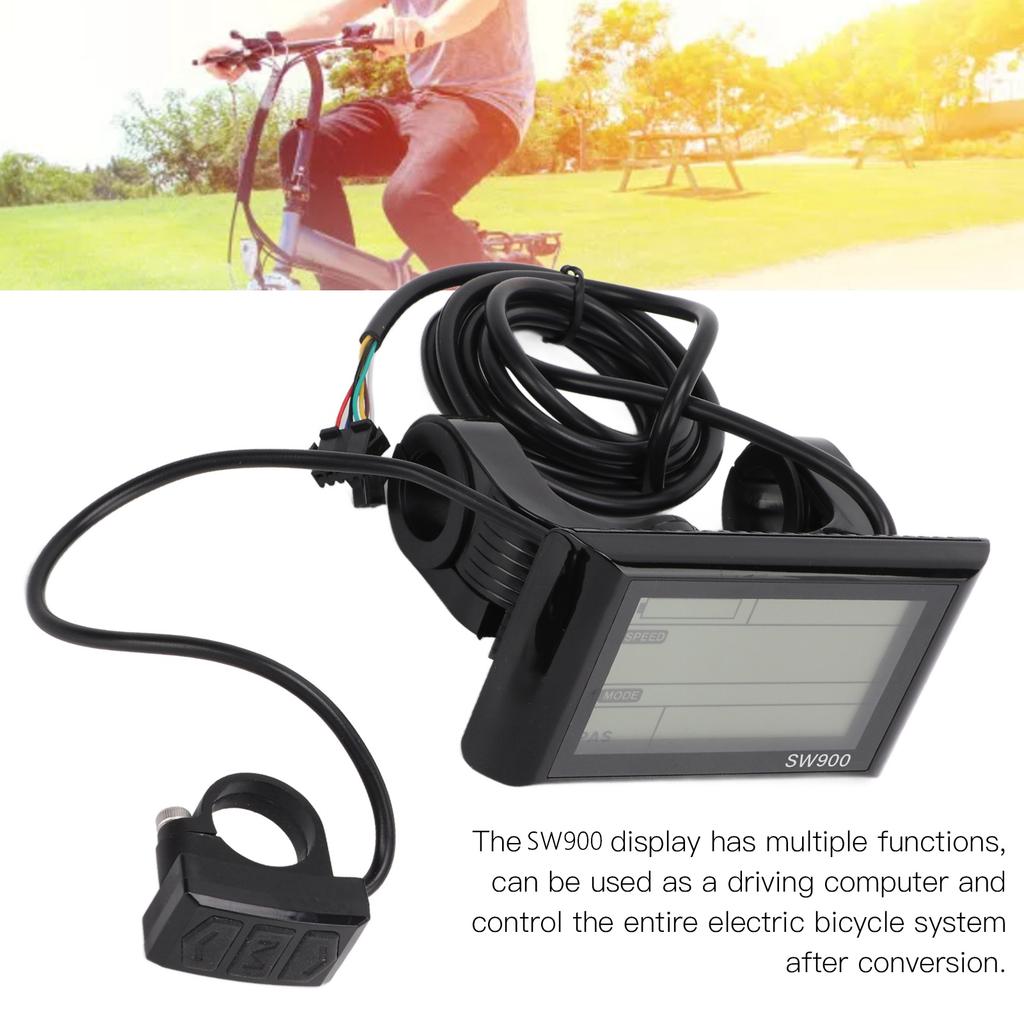

1. Multifunctional SW900 Display: The SW900 display has multiple functions, can be used as a driving computer and control the entire electric bicycle system after conversion.
2. Reflect The Battery Power: It is compatible with 36V and 48V voltages, which can truly reflect the battery power and record the power consumption in real time to ensure cycling mileage.
3. Colourful Display: The colourful display on the meter makes it easier for you to view the data on the panel.
4. Data Presentation: While riding the bike, the product will display a lot of useful data on your bike, such as the remaining battery, current speed, average speed, maximum speed, clock, total one way distance.
5. Alternative Assistance Level: If PAS is installed, the display allows riders to select the level of assistance they want.
Specification:
Item Type: Electric Bicycle Display
Weight: Approx.270g / 9.5oz
Material: Plastic

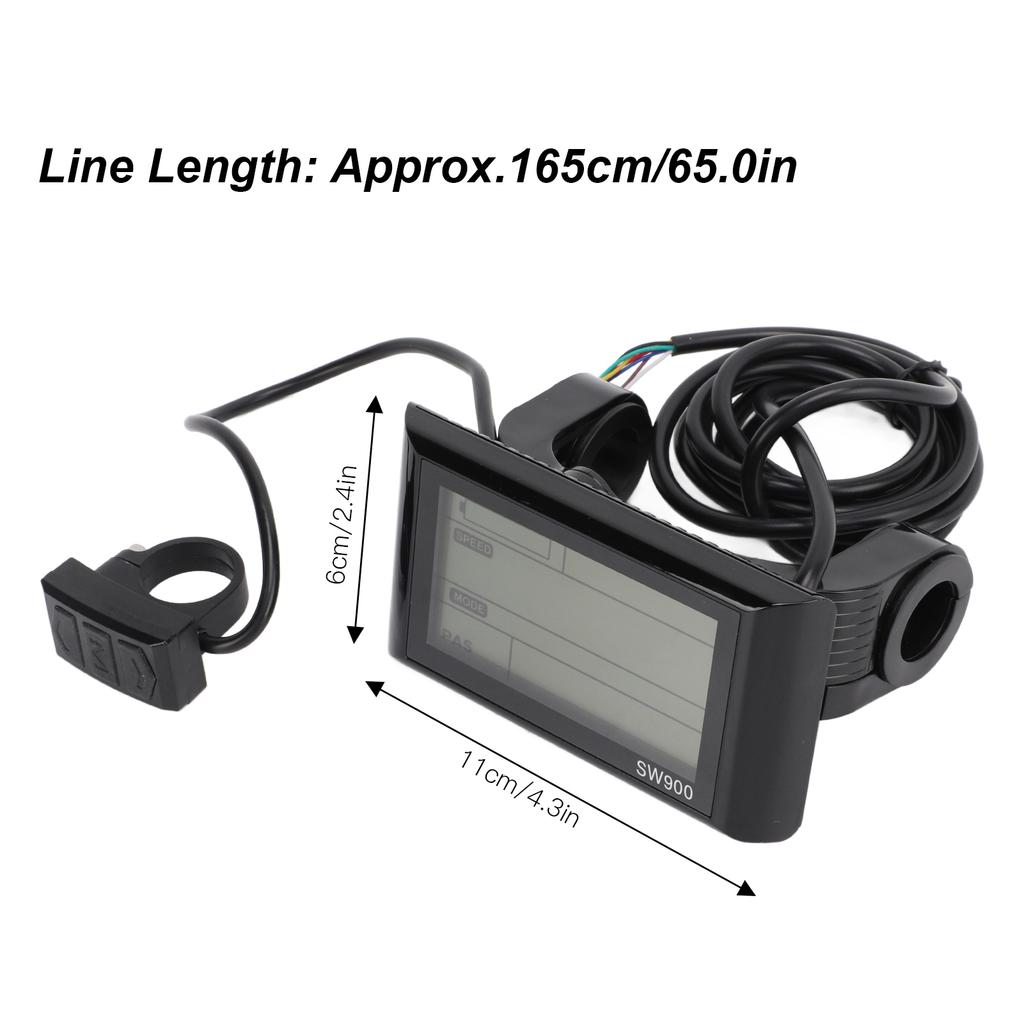

Product Size: Meter Approx.11 x 6cm / 4.3 x 2.4in, Line Length Approx.165cm / 65.0in
Applicable Handlebar Mounting Diameter: Approx.22.2mm / 0.9in
Voltage: 36V 48V
Socket: 5 Pin SM Waterproof Socket
Application: Suitable For JN Controller And Suitable For Pasion Electric Bicycle Motor Kit
Function Description:
1. Display Functions: Speed Display, Power Gear Display, Power Indicator, Fault Hint, Total Mileage, Single Mileage, Headlight Display, Single Driving Time Display.

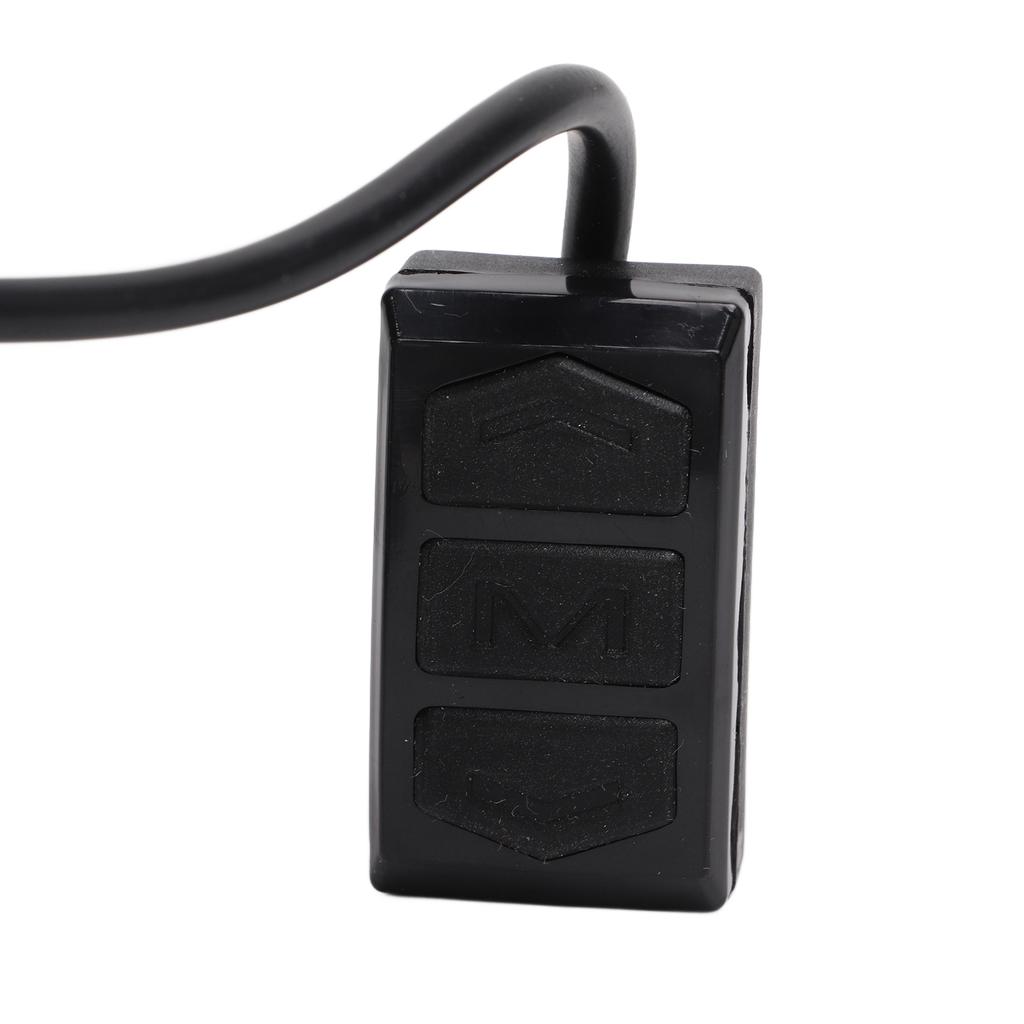

2. Control And Setting Functions: Power Switch Control, Headlight Switch Control, 6km/H Inching Control, Wheel Diameter Setting, Maximum Speed Setting, Idle Automatic Sleep Time Setting, Backlight Brightness Setting, Voltage Level Setting, PAS Connection.
3. Communication Protocol: UART
How to Use:
Wiring instructions:1. Wiring instructions of the controller connector:Red: Meter power cable.Blue: Power control cable of the controller.Black: Meter ground cable.Green: Data receiving line of the meter.Yellow: Data transmission line of meter.2. Expand the headlight function: Brown line (headlight positive), white line (headlight negative).Operation instructions: The display meter socket connected to the controller meter interface can achieve the function.
Package List:
1 x SW900 Meter
1 x Manual
Note:
It must be compatible with the controller that uses the same communication protocol.
