5pcs Soldering Iron Tip Black Solder Welding Tool Replacement Industrial

Details:

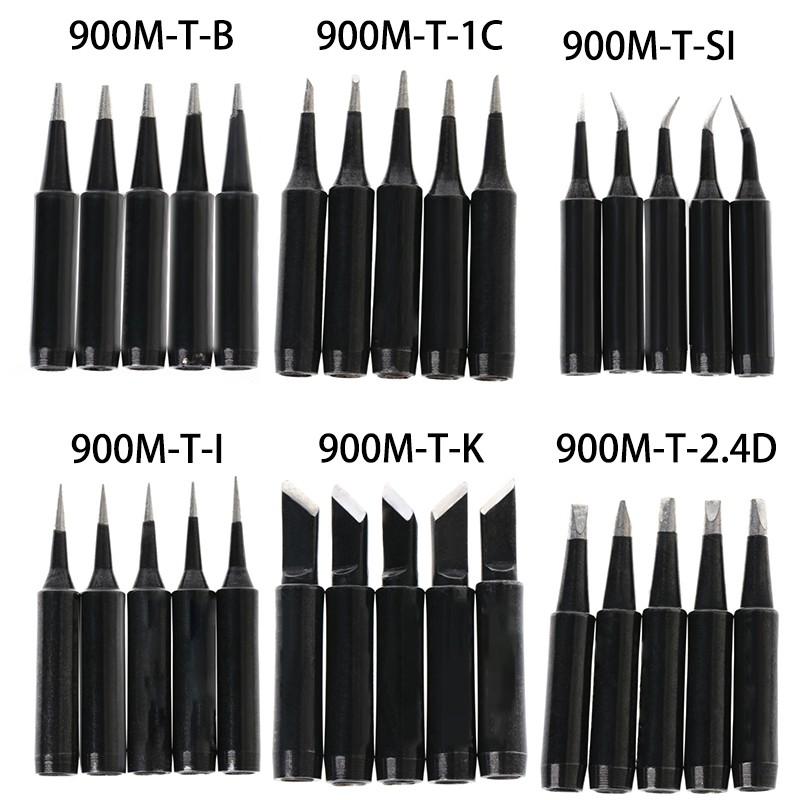

* and *Replacement Iron Tip for 936 Station, For 900M.933.376.907.913.951,898D,852D+ *- paint environmentally friendly soldering iron tip, high temperature resistance, more suitable for high melting point- soldering *Type B:(conical): Features: B-type soldering iron tip is non-directional, the entire tip of the soldering iron can be welded. Applications: Suitable for general welding, regardless of the size of the solder joints, you can also use a B-type soldering iron. *C type(beveled cylindrical): Features: Welding with the beveled part of the tip of the tip of the soldering iron, suitable for welding with a large amount of tin.

for Scope of application: Suitable for welding that require for multi-tin quantity, such as welding area with large welding area, thick terminal and large welding pad. *K type( shape): Features: use type part welding, vertical or for pull-welded welding can be a for multi-purpose tip. Applications: Suitable for SOJ. for PLCC. for SOP. for QFP. Power supply, grounding components, tin bridges, connectors, . * Tips for maintenance: 1: Try to use low temperature soldering High temperature will accelerate the oxidation of the tip and reduce the life of the tip. If the tip temperature exceeds 470° C, its oxidation rate is twice that of 380° C.

for 2: Do not apply too much pressure When welding, do not apply too much pressure, otherwise the tip will be damaged and deformed. As long as the tip can fully the solder joint, the heat can be transferred. Also choose the appropriate tip to help heat transfer. 3: Always keep tin on the iron head This can reduce the oxidation chance of the soldering iron tip and make the soldering iron head more. After use, the new solder should be added after the temperature of the soldering iron tip is slightly lowered, so that the tin plating layer has better effect. 4: Keep the tip clean and instantly clean the oxide If there is black oxide on the soldering iron tip, the soldering iron tip may not be tinned. At this time, it must be cleaned immediately. When cleaning, first adjust the temperature of the soldering iron tip to about 250° C, then clean the soldering iron tip with a cleaning sponge, and then on. Tin. Repeat the until the oxide is cleaned. 5: Select low-activity flux Highly active or fluxes will accelerate the of the soldering iron when heated, so low- fluxes should be used. *Color:Black(As Pictures Show) *Material:Metal *Optional type:900M-T-SI,900M-T-B,900M-T-I,900M-T-K,900M-T- for 2.4D,900M-T-(As Pictures Show) *Diameter: 5mm(Approx.)

Package Contents:

5*Soldering Iron Tips

Note:The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
