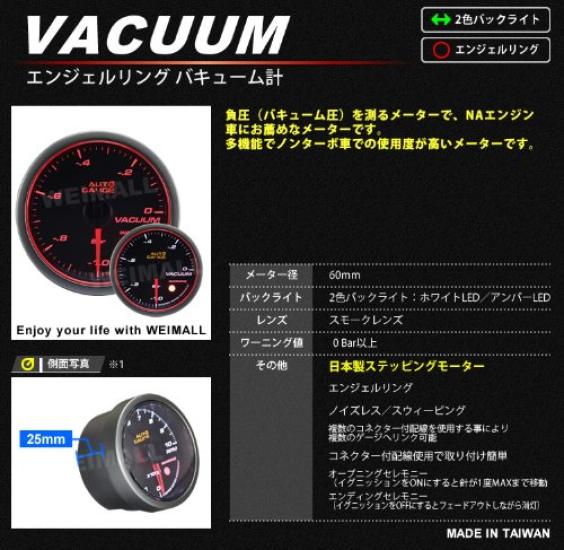

Autogauge Motor 60mm Vacuum Gauge with Backlight and Angel 458 Series Japanese-made 2-color Ring,

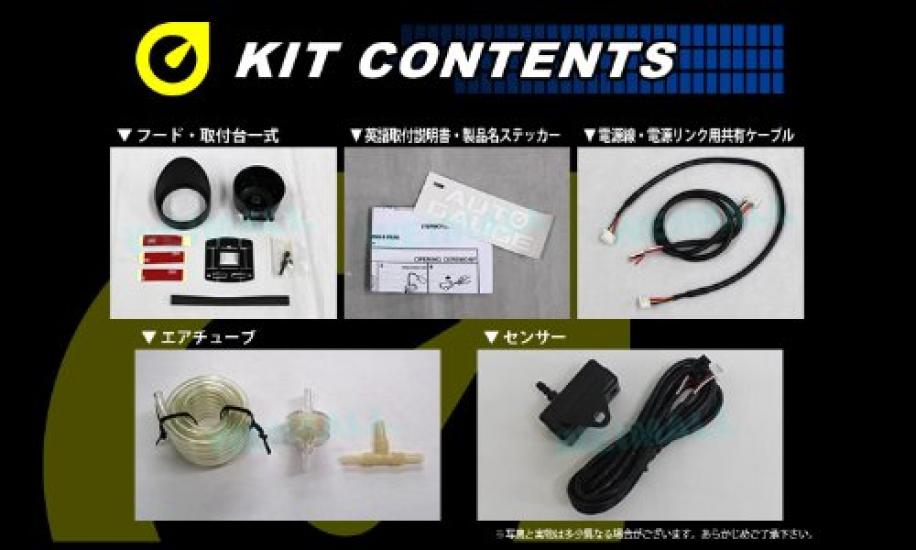

【specification】 ・ Meter diameter 60mm Japanese-made stepping motor ・Two-color backlight: White LED / Amber LED Angel Ring • Smoked lenses - Noiseless/Sweeping - Multiple gauges can be linked by using wiring with multiple connectors. - Easy installation with connector-equipped wiring. - Opening Ceremony (When the ignition is turned ON, the needle moves to the MAX position once) - Ending Ceremony (The lights fade out when the ignition is turned off) Warning level: LEAN or lower *Compatible with product codes 430/458/548/F50. 【accessories】 English instruction manual ・Power line ·sensor • Sensor wire with harness Wiring with multiple connectors Mounting base ・ Meter hood T-shaped connector and filtration device [How to turn on white LEDs/amber LEDs] ＜Daytime: White / Nighttime: White＞ Connect the white connector on the main unit to the power cord. - No need to connect the orange connector on the main unit. ＜Daytime: Amber / Nighttime: Amber＞ Connect the orange connector on the main unit to the power cord. - No need to connect the white connector on the main unit. ＜Daytime: White / Nighttime: Amber＞ Connect the white connector on the main unit to the power cord. Connect the orange connector on the main unit to the parking lamp. ＜Daytime: Amber / Nighttime: White＞ Connect the orange connector on the main unit to the power cord. Connect the white connector on the main unit to the parking lamp.
