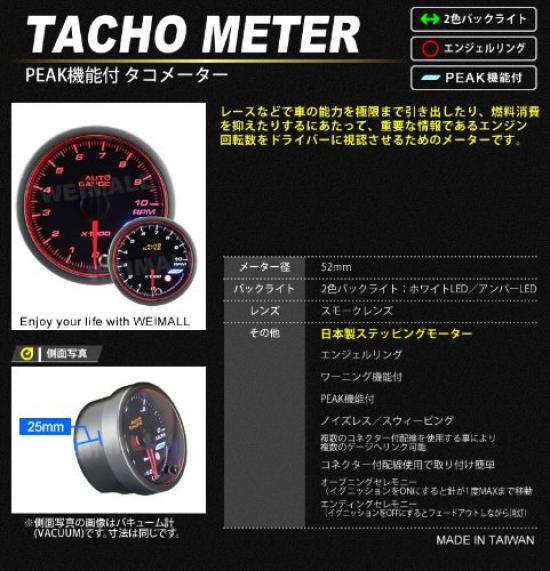

Autogauge Motor 52mm Tachometer with LED Peak Light Japanese-made 2-color (548 Series)

This product cannot be installed on vehicles that cannot obtain a rotation signal, such as the Hijet series. Because it uses a Japanese-made stepping motor, it is even quieter than conventional Auto Gauge models. ○White LED/Amber LED Lighting Method ＜Daytime: White / Nighttime: White＞ - Connect the white connector on the main unit to the power line. - No connection is required for the orange connector on the main unit. ＜Daytime: Amber / Nighttime: Amber＞ - Connect the orange connector on the main unit to the power line. - No connection is required for the white connector on the main unit. ＜Daytime: White / Nighttime: Amber＞ - Connect the white connector on the main unit to the power line - Connect the orange connector on the main unit to the parking lamp ＜Daytime: Amber / Nighttime: White＞ - Connect the orange connector on the main unit to the power line - Connect the white connector on the main unit to the parking lamp ○ How to light up the white LED/amber LED 1) Press the ＜set＞ button to enter PEAK mode. The PEAK light and text will light up in PEAK mode. 2) When the PEAK value is displayed, press the ＜mode＞ button to clear the previous PEAK value. 3) Leave it for 10 seconds or press the ＜set＞ button to return to normal mode. When the PEAK light is not lit, the gauge is in normal mode. Installation is not possible on vehicles that cannot obtain a rotation signal, such as the Hijet series. Because it uses a Japanese-made stepping motor, it is even quieter than conventional Auto Gauge models. ○ How to light up white LEDs/amber LEDs ＜Daytime: White / Nighttime: White＞ Connect the white connector on the main unit to the power cord. - No need to connect the orange connector on the main unit. ＜Daytime: Amber / Nighttime: Amber＞ Connect the orange connector on the main unit to the power cord. - No need to connect the white connector on the main unit. ＜Daytime: White / Nighttime: Amber＞ Connect the white connector on the main unit to the power cord. Connect the orange connector on the main unit to the parking lamp. ＜Daytime: Amber / Nighttime: White＞ Connect the orange connector on the main unit to the power cord. Connect the white connector on the main unit to the parking lamp. ○ How to light up white LEDs/amber LEDs 1) Press the ＜set＞ button to enter PEAK mode. The PEAK light and text will illuminate when in PEAK mode. 2) When the PEAK value is displayed, press the ＜mode＞ button to clear the previous PEAK value. 3) Leave it for 10 seconds or press the ＜set＞ button to return to normal mode. When the PEAK light is off, it indicates that the gauge is in normal mode.
