Features:
1. Automatic Measurement: Intelligent identification, automatically recognizes components.
2. Portable: Lightweight and compact design, easy to carry.
3. 1.14-inch High-Definition Color Display: Clear and intuitive interface.
4. Multifunctional Testing: Supports precise measurement of resistance, capacitance, inductance, and diodes.
5. Data Saving Support: Data is automatically saved to anfor Excelspreadsheet, and can be read from a USB flash drive via a data cable connection.
Specifications:
Part Name: LCR Bridge Tester Tweezers
Material: ABS
Color: Black
Size: As shown
Color Display Size: 1.14-inch TFT Color Display
Capacitance Range: 1pF-22mF
Inductance Range: 1μH-10H
Resistance Range: 10mΩ-10MΩ
Diode: 0.7V Forward Voltage
Frequency Testing: 100Hz, 1kHz, 10KHz
Parameter Display: for RS, D, Q, Z, X
Display: 1.14-inch Color Screen

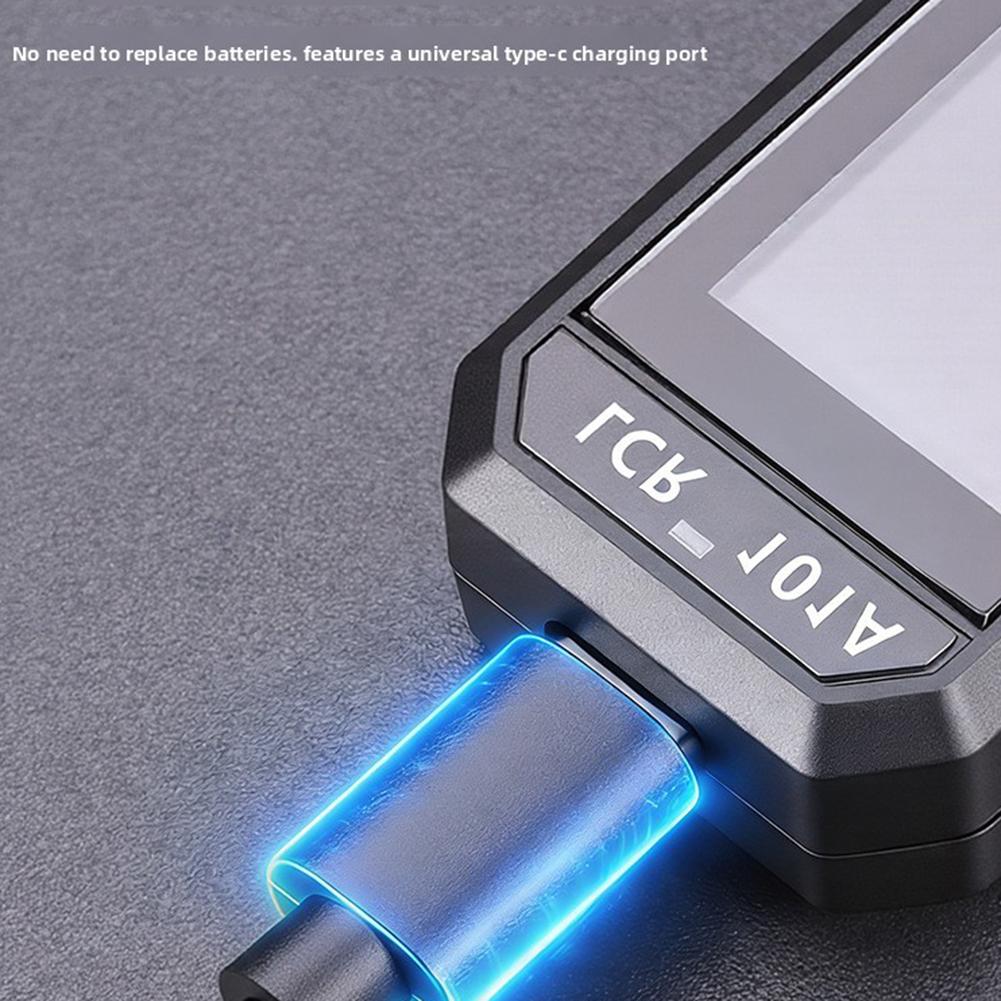

Charging Interface: Type-C, 5V/A
Power Supply: 250mAh Lithium Battery
Automatic Measurement Recognition: Supported
Replaceable Tweezers Tips: Stand
Automatic Power Off: Supported
Data Retention: Supported
Package Contents:
Intelligent Tweezers Bridge *1
Type-C Data Cable *1
Note:
1. Before measurement, for ensuregood contact between the tweezers and the object being measured to avoid measurement errors due to poor contact.
2. Do not measure voltage to avoid damaging the instrument.
3. Due to the connection characteristics of external PCBAs, this information is for reference only; therefore, online measurements are not recommended.
4. The automatic transfer function cannot measure diodes. Displaying a resistance value when a diode is short-circuited is normal.
Before measuring capacitance, the capacitor must be discharged first to avoid damaging the instrument.
