Reminder:
1.Due to the light, there is a slight difference between the actual color and the picture color, please take the received object as the standard.
2.Due to different measurement methods, there is a gap of 1-2cm between the measurement and the actual size.

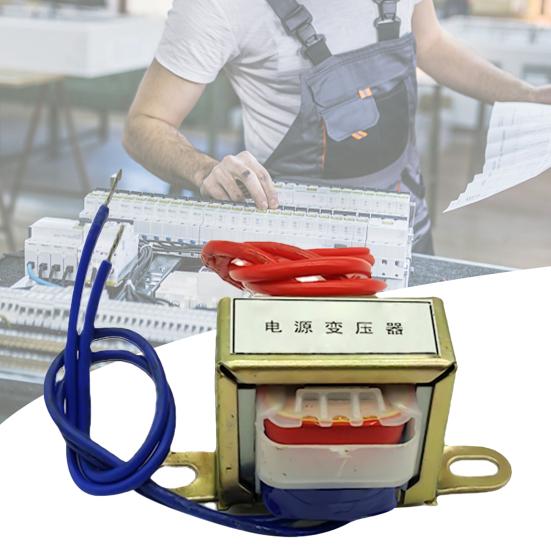

Item Name: Power Transformer
Material: Plastic_Metal
Power: 1W
Frequency: 50-60Hz
Input: AC 220V 50Hz
Specification: EI 28x12

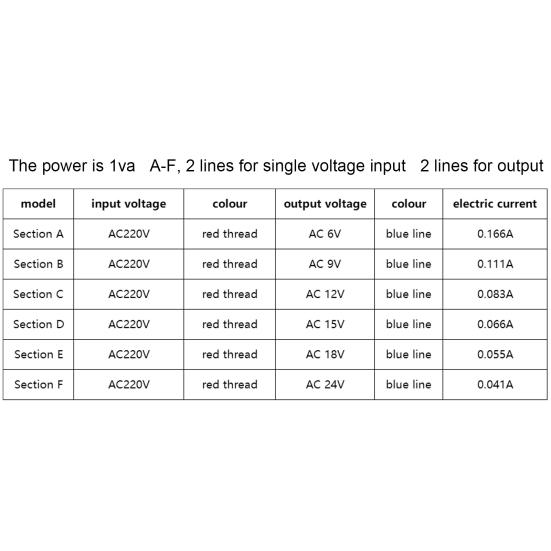

Output Voltage: 6/9/12/18/24V
Phase Type: Single Phase Isolation
Features: Safe Protection, Heat Resistant, Insulated
Size Details:
Power Transformer Size: 29mm x 13mm x 26mm
Lead Length: 13cm
Mounting Hole: 42mm
Specifications:
Safety of operation is ensured by the fact that the enamelled wire is fully soldered to the wire to avoid desoldering and that the insulating sleeving increases the strength of the insulation.
Designed to provide more stability, accurate voltage and current, and high work efficiency, the power transformer features wide voltage ranges and a wide range of input supply options.
Made of high-quality plastic, metal and copper core, the power transformer ensure safe operation.
The length of the power transformer is 29mm, the width is 13mm and the height is 26mm. The input and output lead are both 13cm long, and the mounting hole is 42mm.
It can be used for home security, household appliances, machinery, and industrial equipment, etc.
Package Includes:
1 x Power Transformer
