Luminous Flux : >82000
High-conrned chemical : None
Is Smart Devi : Yes
Power Generation : Switch
Is Batteries Included : no
Nominal Voltage : 4.5V
Model Number : WS2812B
LED Chip Model : SMD5050
Average Life (hrs) : More than 50000Hours
,,FCC,,UL
Power Sour : DC
: Mainland China
Strip type : SMD
Power Consumption (W/m) : 11.52W/m
Specifications (light beads / m) : 30/60/144LEDs/m
Item Type : Strip
nnTuu
Voltage : DC5V
LEDs Number/M : 30/60/144
LED Chip : Epistar
Waterproof : Yes
Color Temp(K) : 3000-6500k
attribute 1 : RGB
attribute 2 : DC5V
attribute 3 : IC Smart
attribute 4 : WS2812B
attribute 5 : Smart Pixel
attribute 6 : 5050 LED Strip
attribute 7 : RGB Tape Light
attribute 8 : IP30/IP67 Waterproof
attribute 9 : Individually Addressable
attribute 10 : IC 30/60/144Pixels/LEDs/m
attribute 11 : WS2812 Individually Addressable
stock : Support retail and
Pay attention
1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not pla order!
2. WS2812B Led strip can be cut buy every "one" led chip!

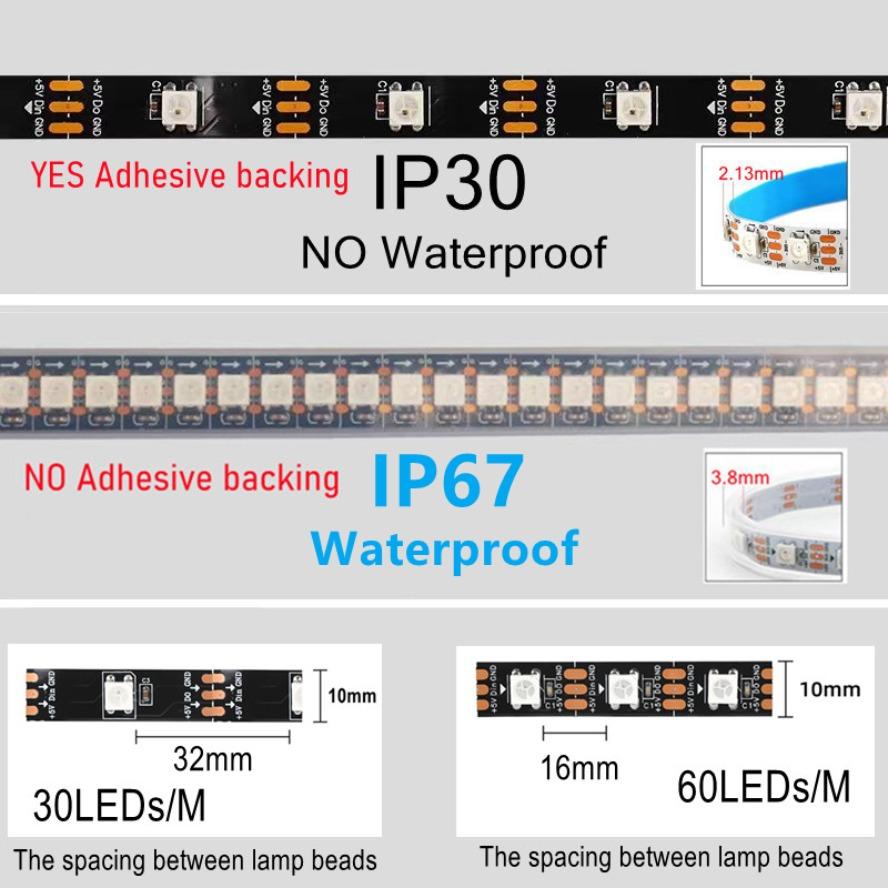

3. IP30: Non- Waterproof
IP67: Waterproof in SiliconTube
4. WS2812B Led Strip Work With DC5V(5V Power do not include),And it must need a WS2812B Led Controller(not include)Control it
Product Decsription:
1. WS2812B Led Strip is Powered By "5V Power Supply" (Not Included) And Is Controlled By ASingle Data Line From A Suitable Controller(Not Included).
2. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.
3. The Strip Has 3M Adhesive Tape On The Back(Expt Ip67). Installation Surfa Must Be Smooth, Clean And Dry.
4. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.
5. Do Not Bend Strip Sharply.
6. Longer Runs Should Be Powered From Both Ends To Redu Voltage Drop.
7. 3-Pin JST Connector Wire is 20AWG.
Products Application:
WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other Decoration.
Product Details:
Input Voltage: DC5V
Power: 30Leds/m----9Watt/meter
60Leds/m----18Watt/meter
144Leds/m----43.2Watt/meter
LED Resour: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)
LED: Each Led is Separately Controlled
IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)
Of IC: 1 IC Drives 1 Led Chip
Pixels: 30/60/144/Meters
Grey Scale: 256
Bits/Color: 8-Bits/Color

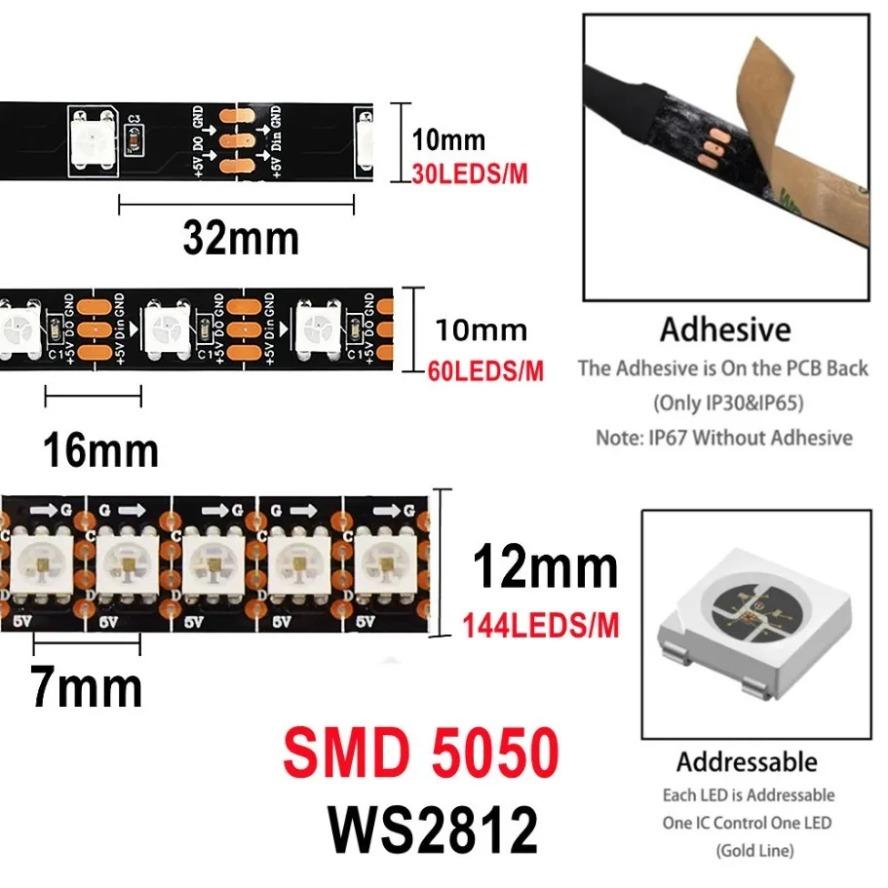

FPC Width: 30Leds/m----10mm
60Leds/m----10mm
144Leds/m----12mm
FPC color: Black
Protection Rate: IP30/ IP67

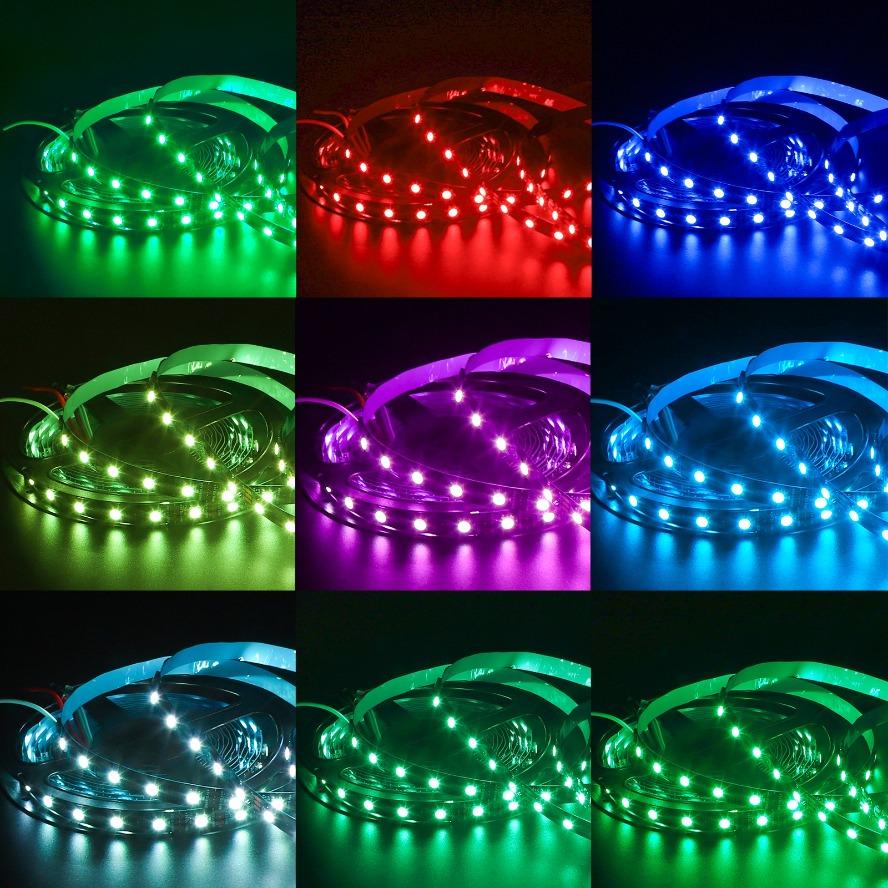

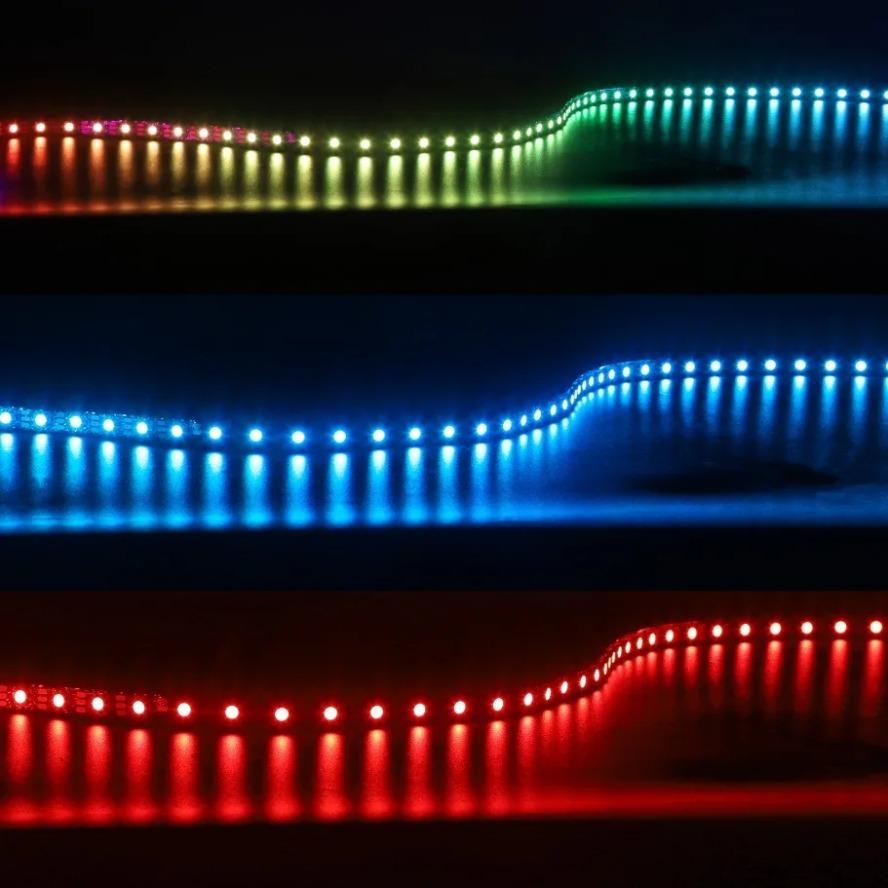

Colors: Full Color RGB, Dream Color Changing
Cuttable: Every LED is Cuttable
Package Include:
0.5m/1m/2m/3m/4m/5m WS2812B Led Strip
