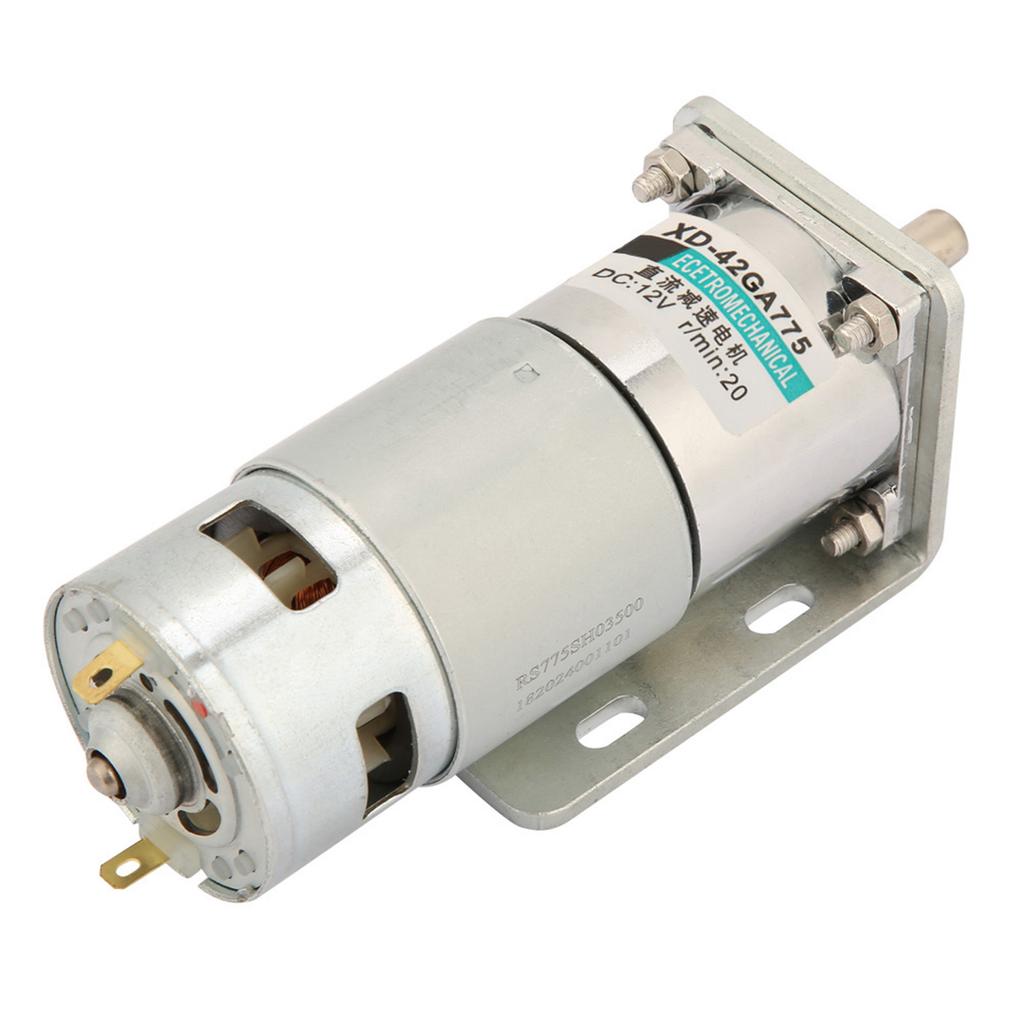

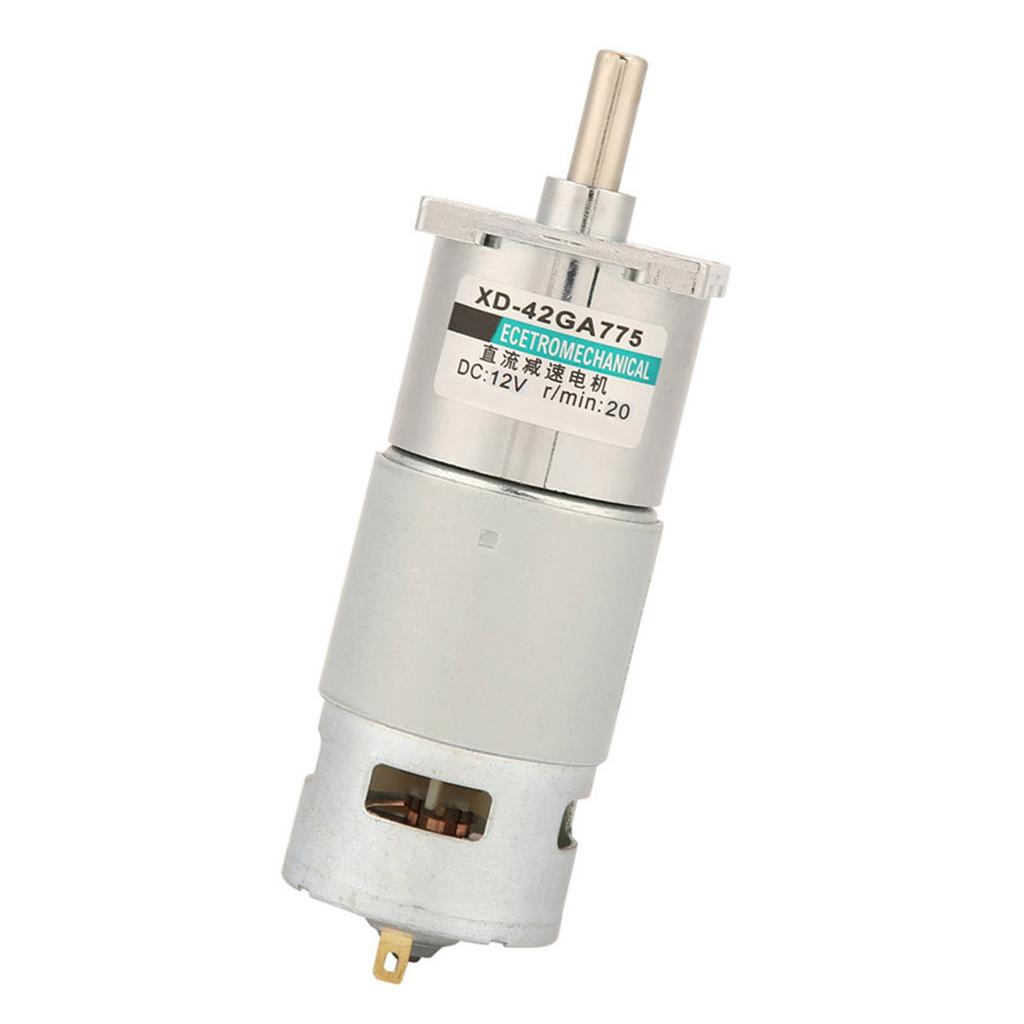

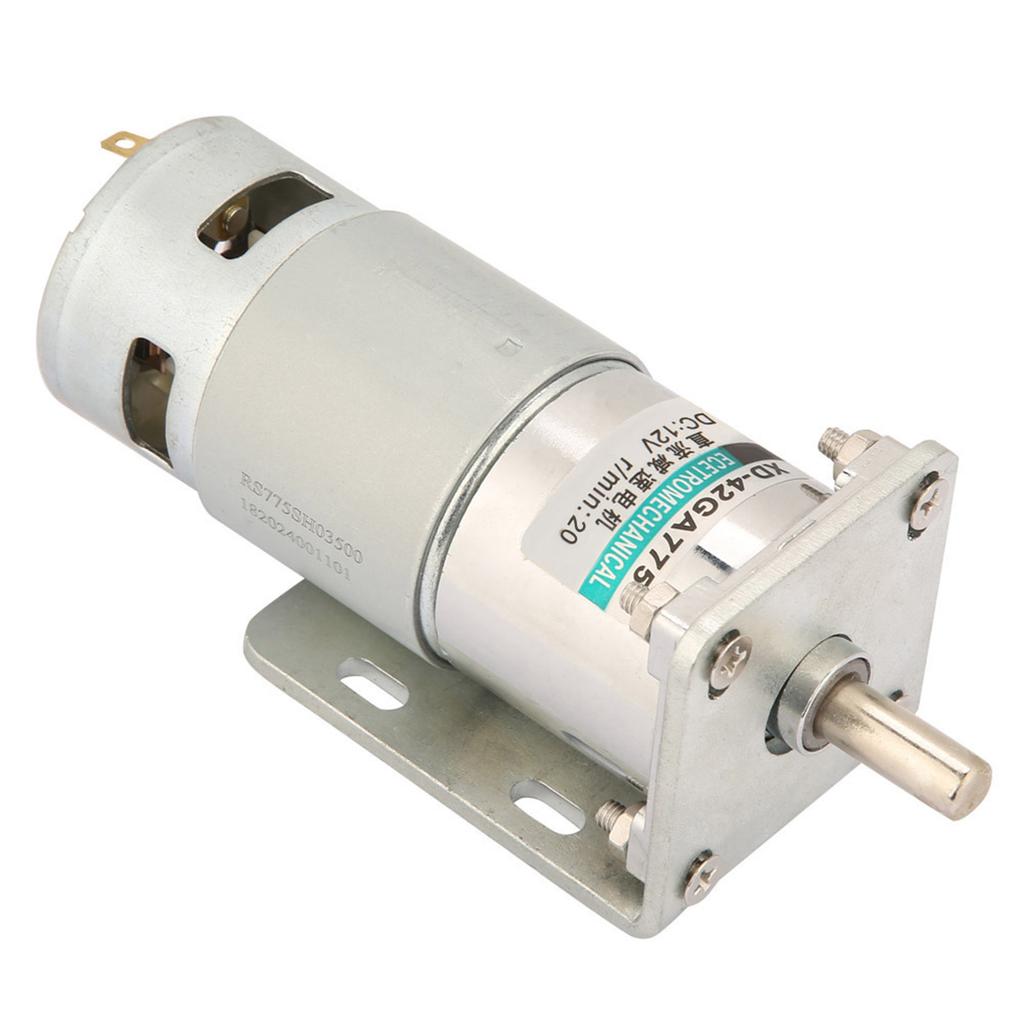

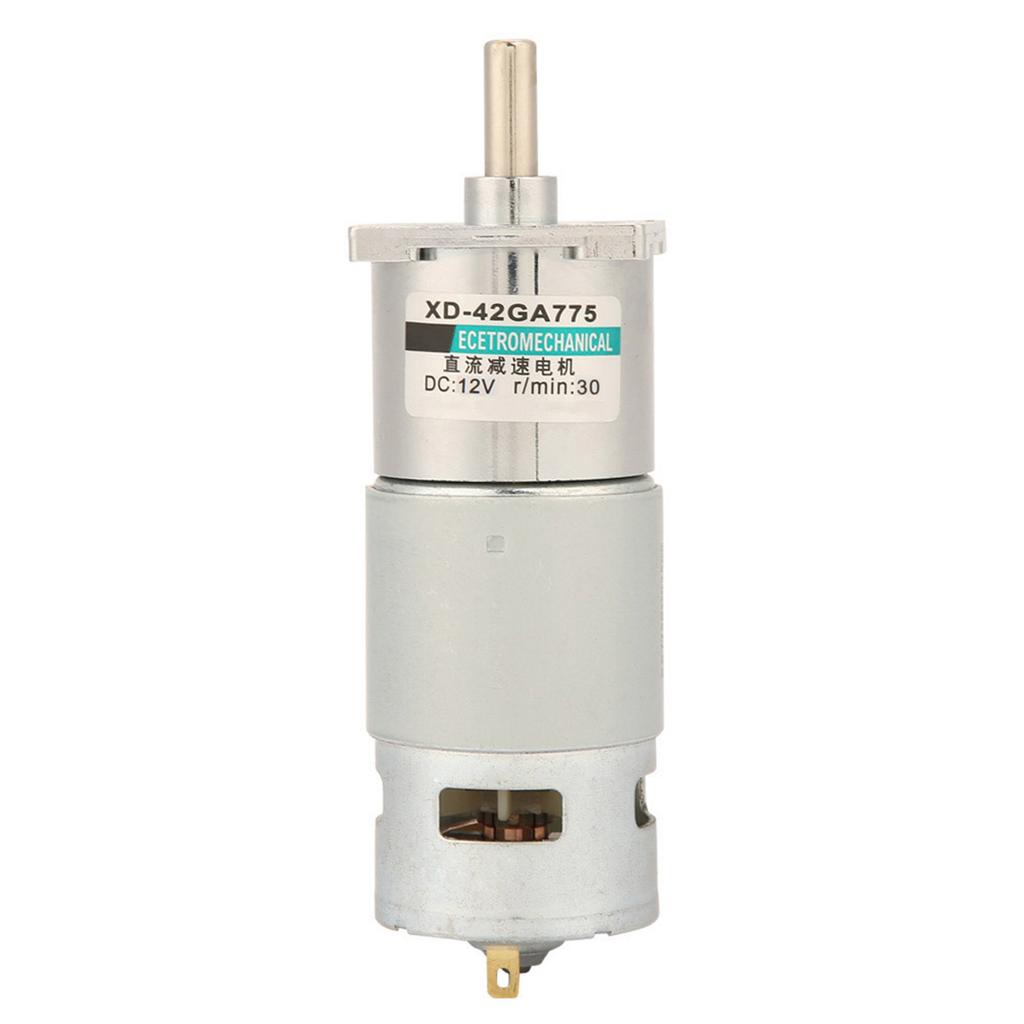

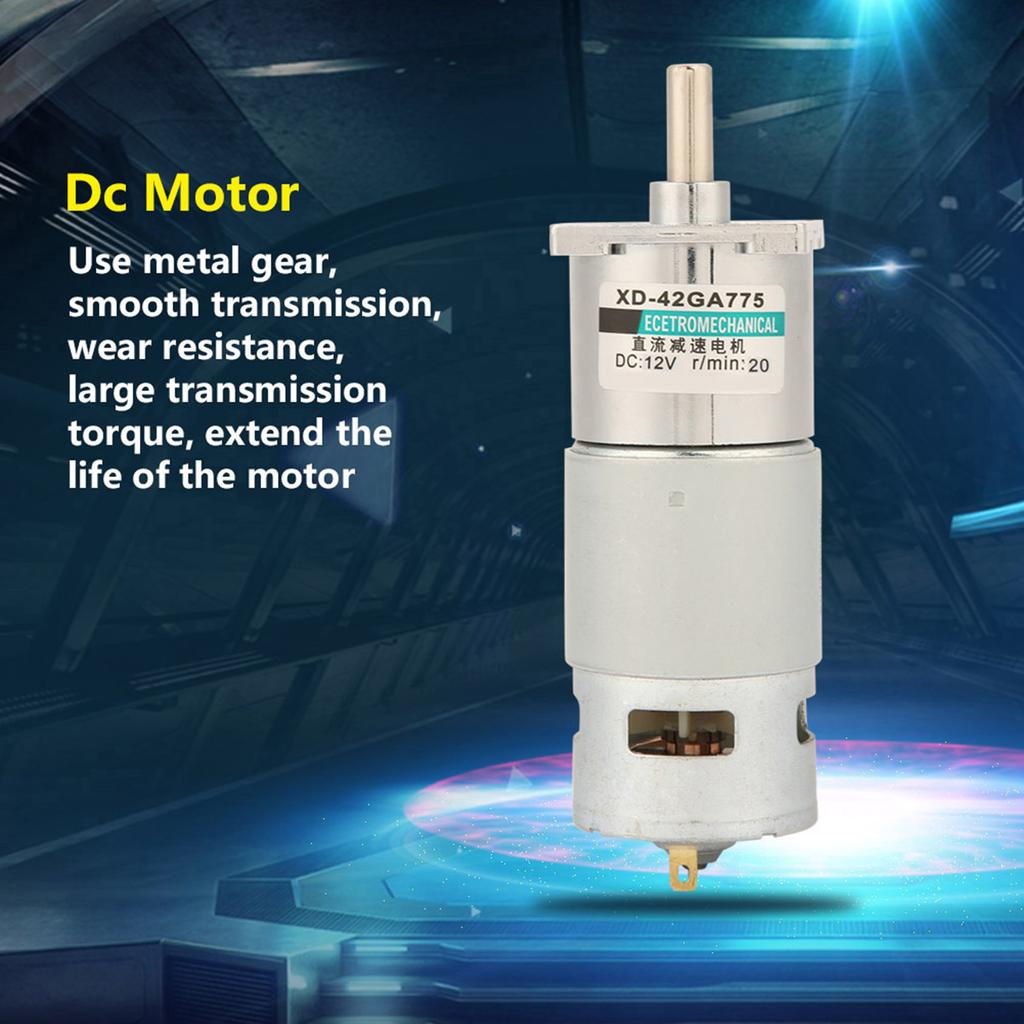

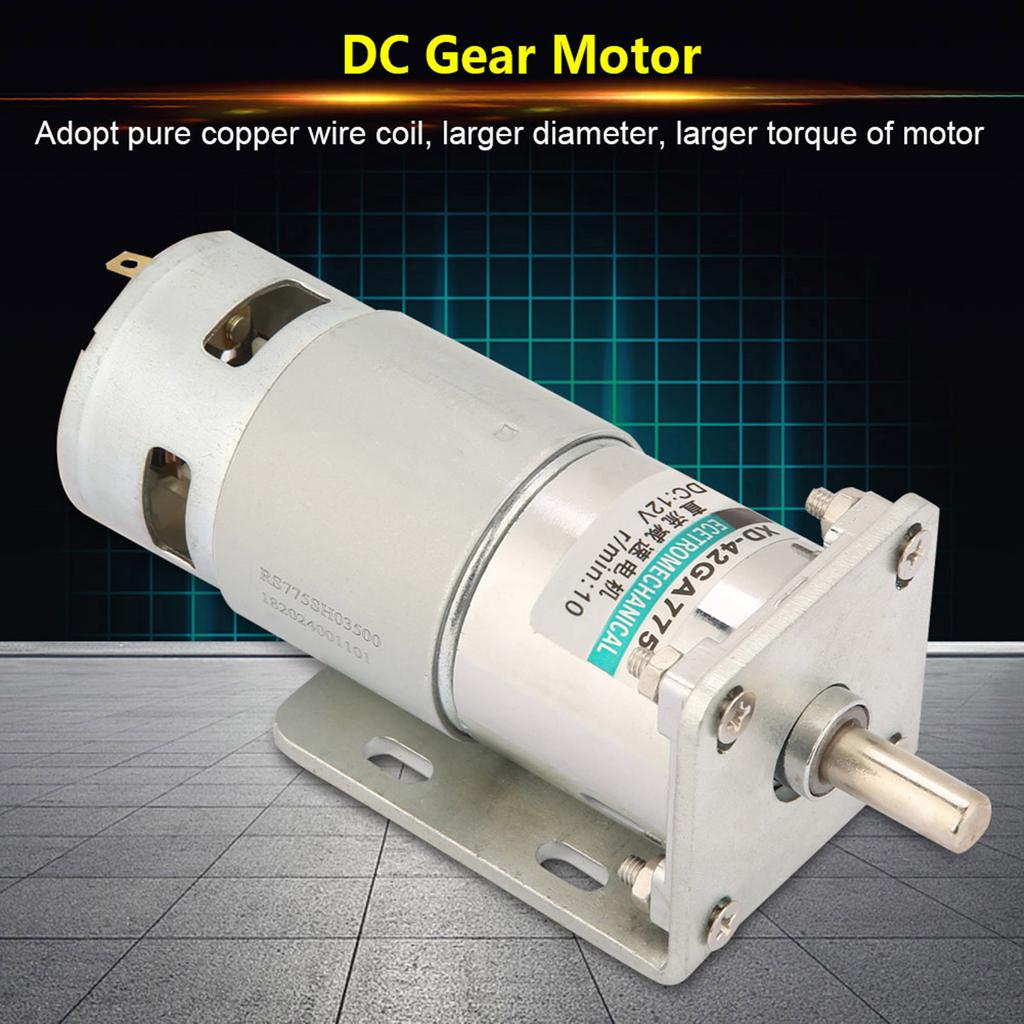

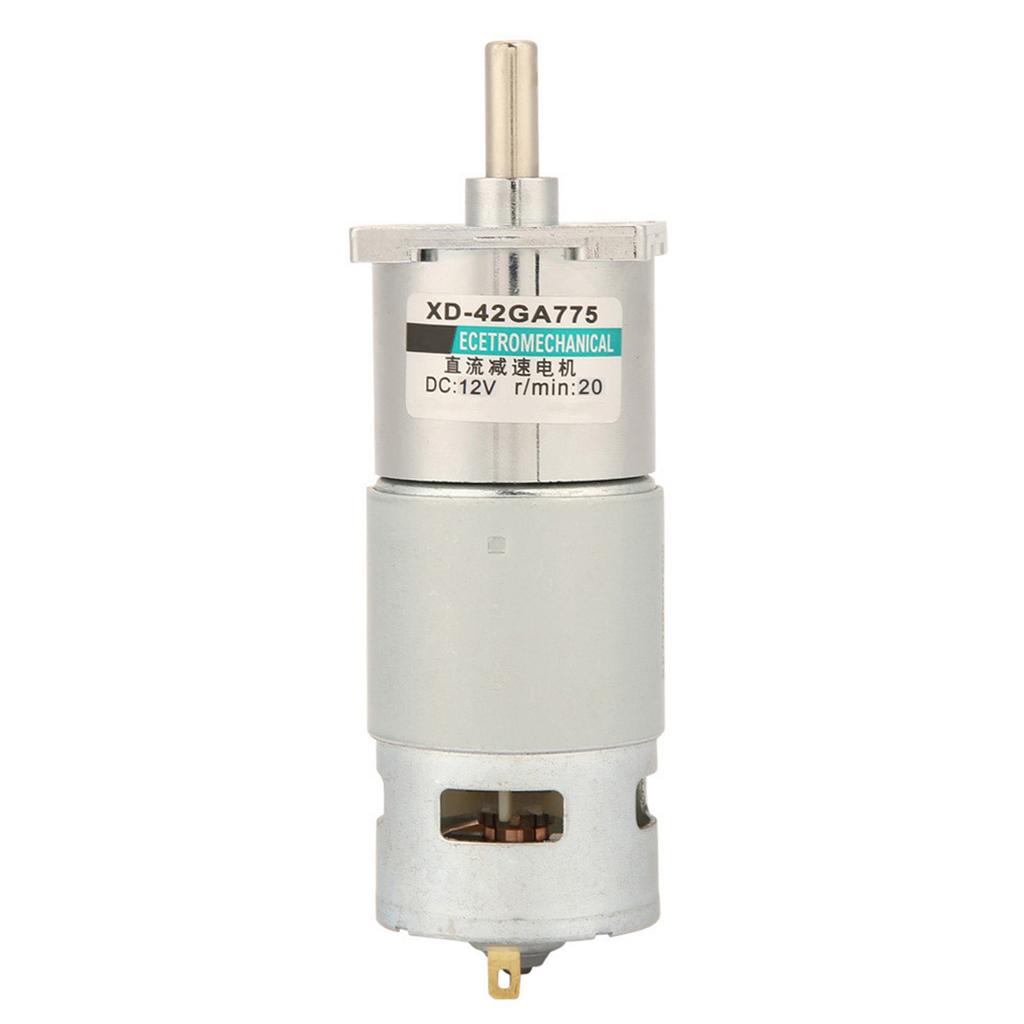

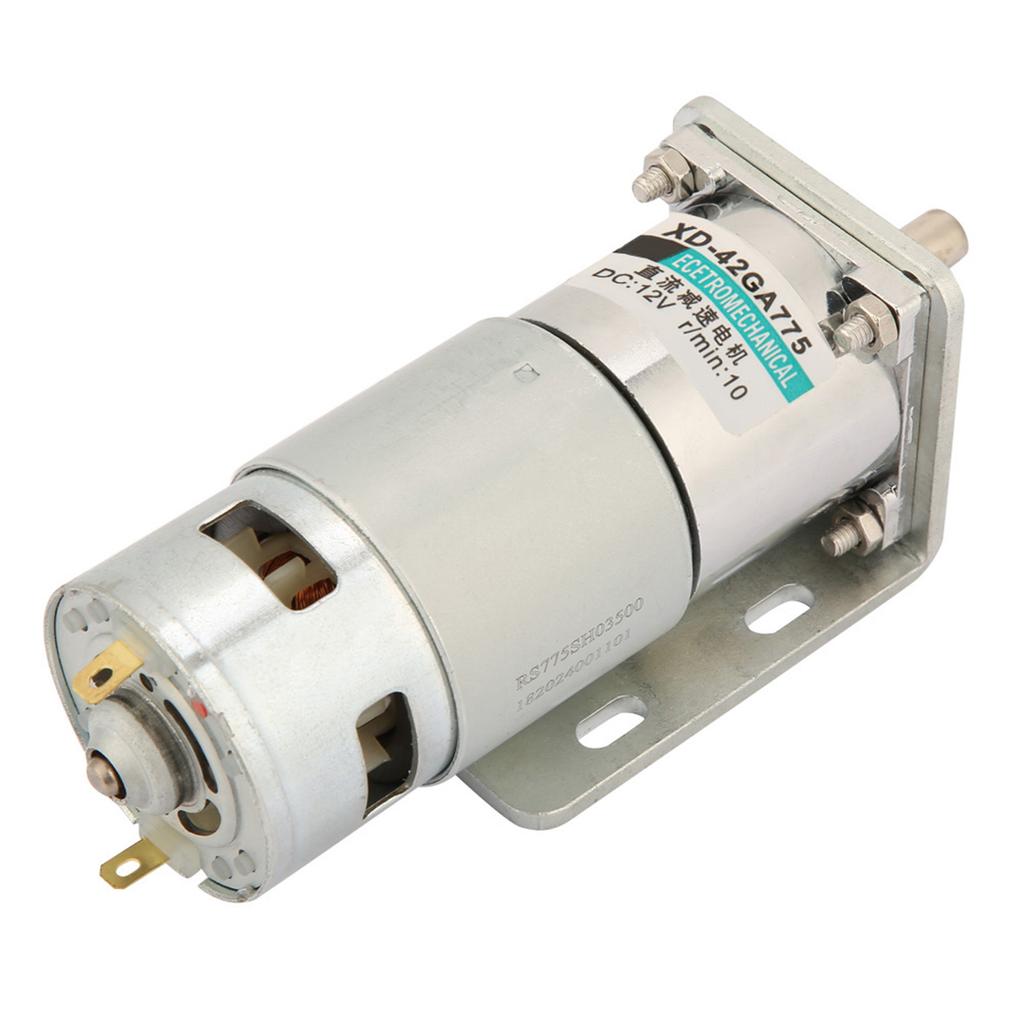

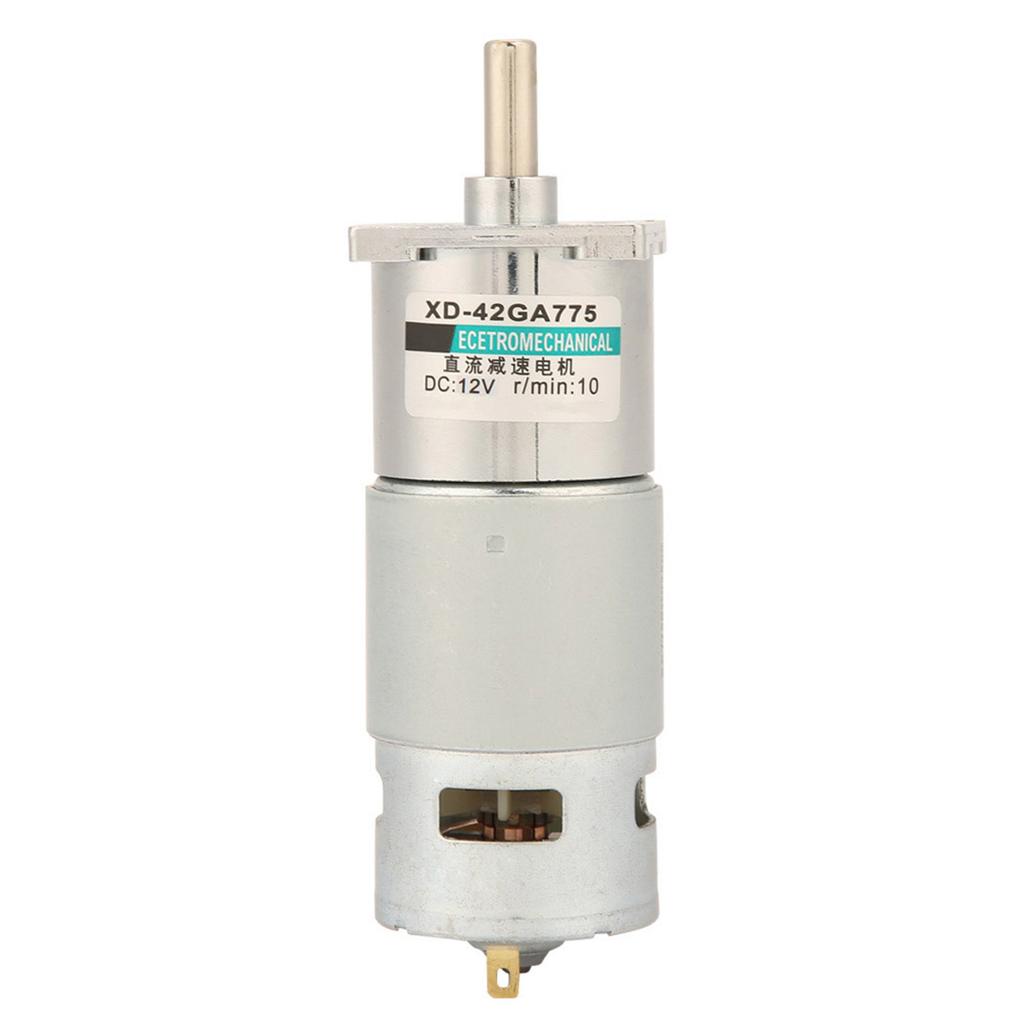

XD‑42GA775 Gear Motor Large Torsion Speed Motor with Bracket(10RPM12V)

Scope of application: automation, home automation, equipment, security equipment, consumer electronics, aircraft , automotive electronics fields. Use metal gear, , wear resistance, large torsion, extend the life of the motor Built‑in magnet, with high remanence, high magnetic energy product, high performance and other characteristics Features: Scope of application: automation, home automation, equipment, security equipment, consumer electronics, aircraft , automotive electronics fields. Use metal gear, , wear resistance, large torsion, extend the life of the motor Built-in magnet, with high remanence, high magnetic energy product, high performance and other characteristics Adopt pure copper wire coil, larger diameter, larger torsion of motor

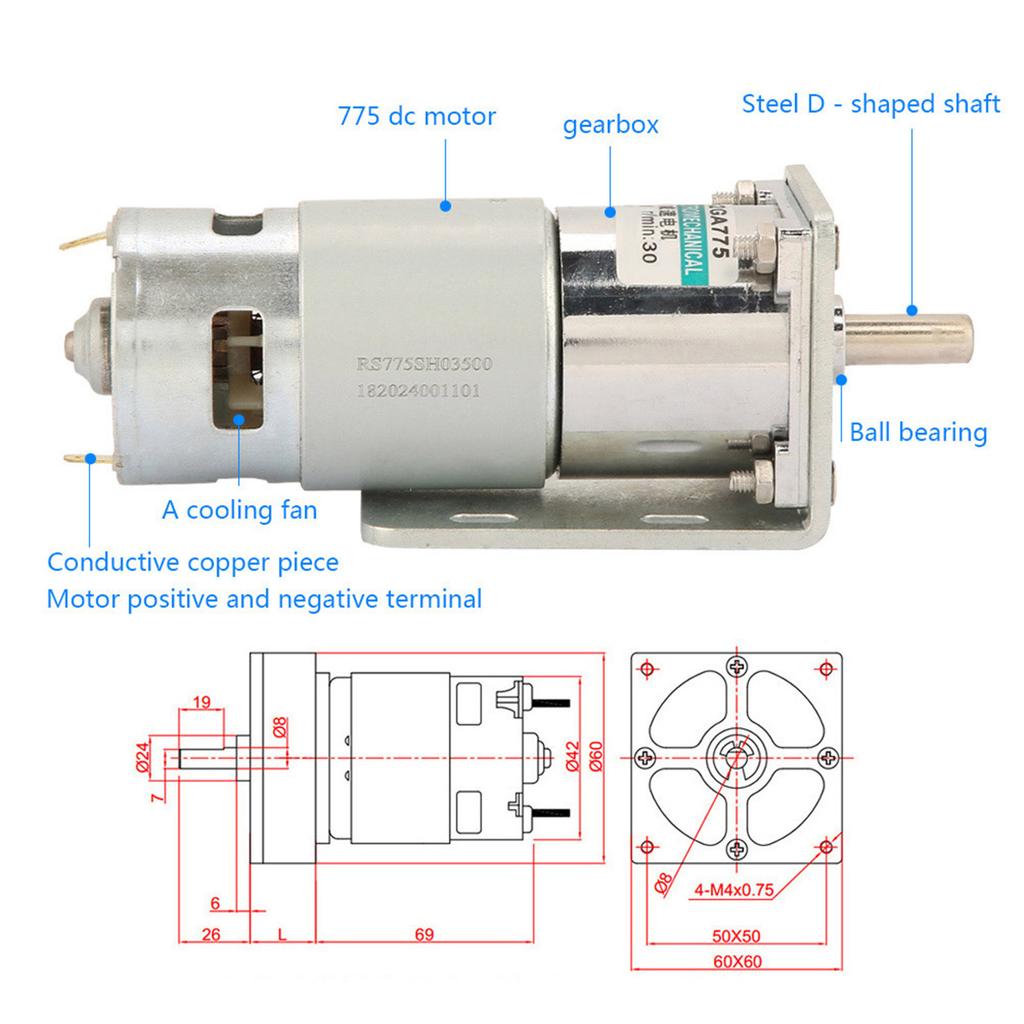

bearing: with hard mechanical characteristics, stability, high efficiency Specification: Product type: brush motor with bracket Model: XD-42GA775 Pole number: 2 Rated power :35W Rated voltage : 12Celsius24 (V) Type(Optional):10RPM12V, 20RPM12V, 30RPM12V, 50RPM12V, 100RPM12V, 150RPM12V, 200RPM12V, 300RPM12V, 400RPM12V, 500RPM12V, 600RPM12V, 10RPM24v, 20RPM24v, 30RPM24v, 50RPM24v, 100RPM24v,150RPM24v, 200RPM24v, 300RPM24v, 400RPM24v, 500RPM24v, 600RPM24v Shaft size: Approx. 8*19mmCelsius0.3*0.8in

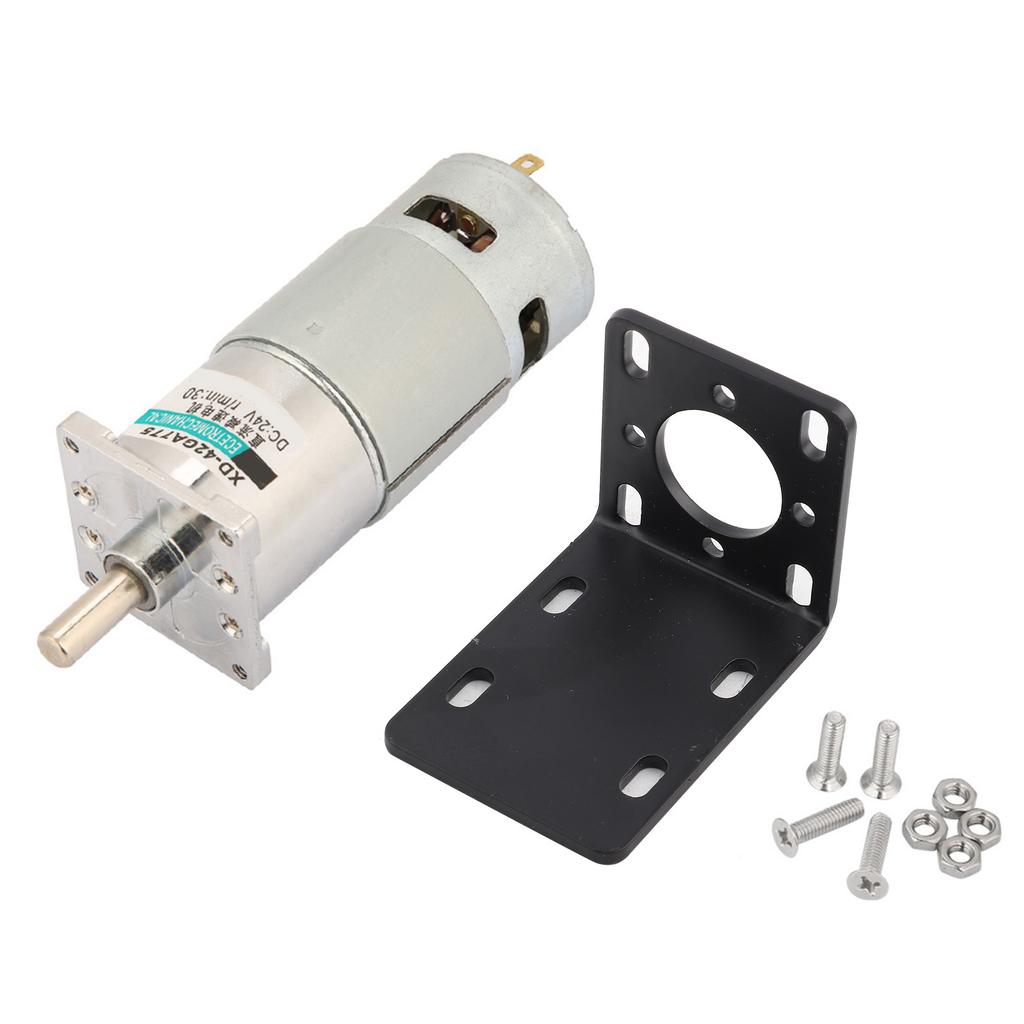

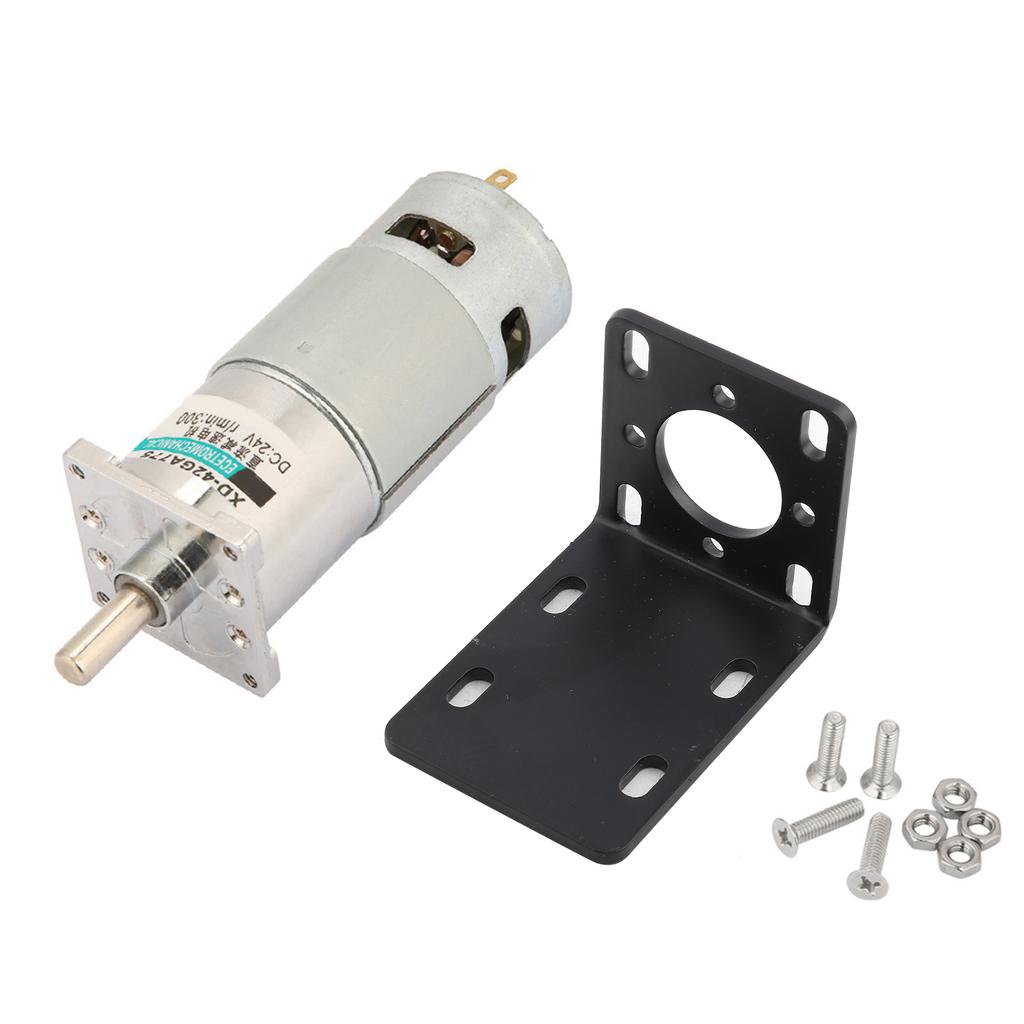

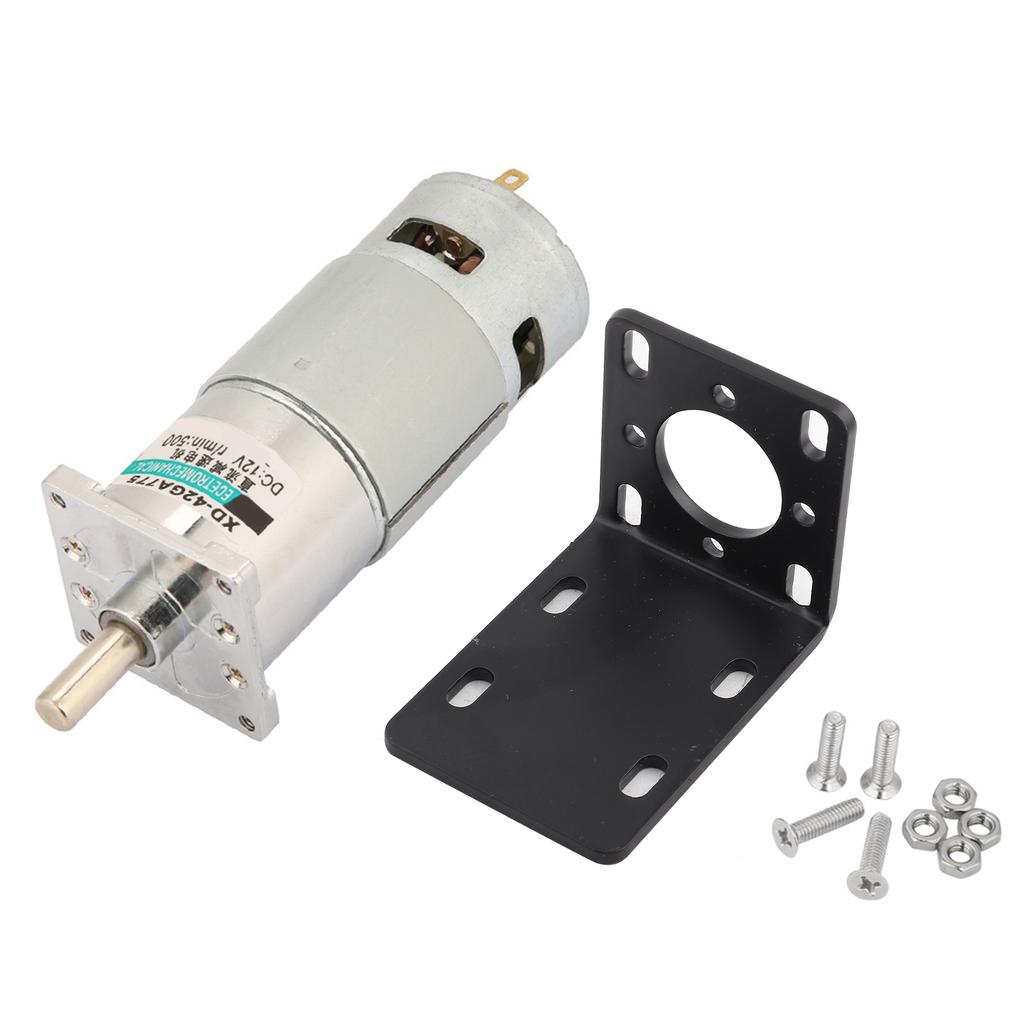

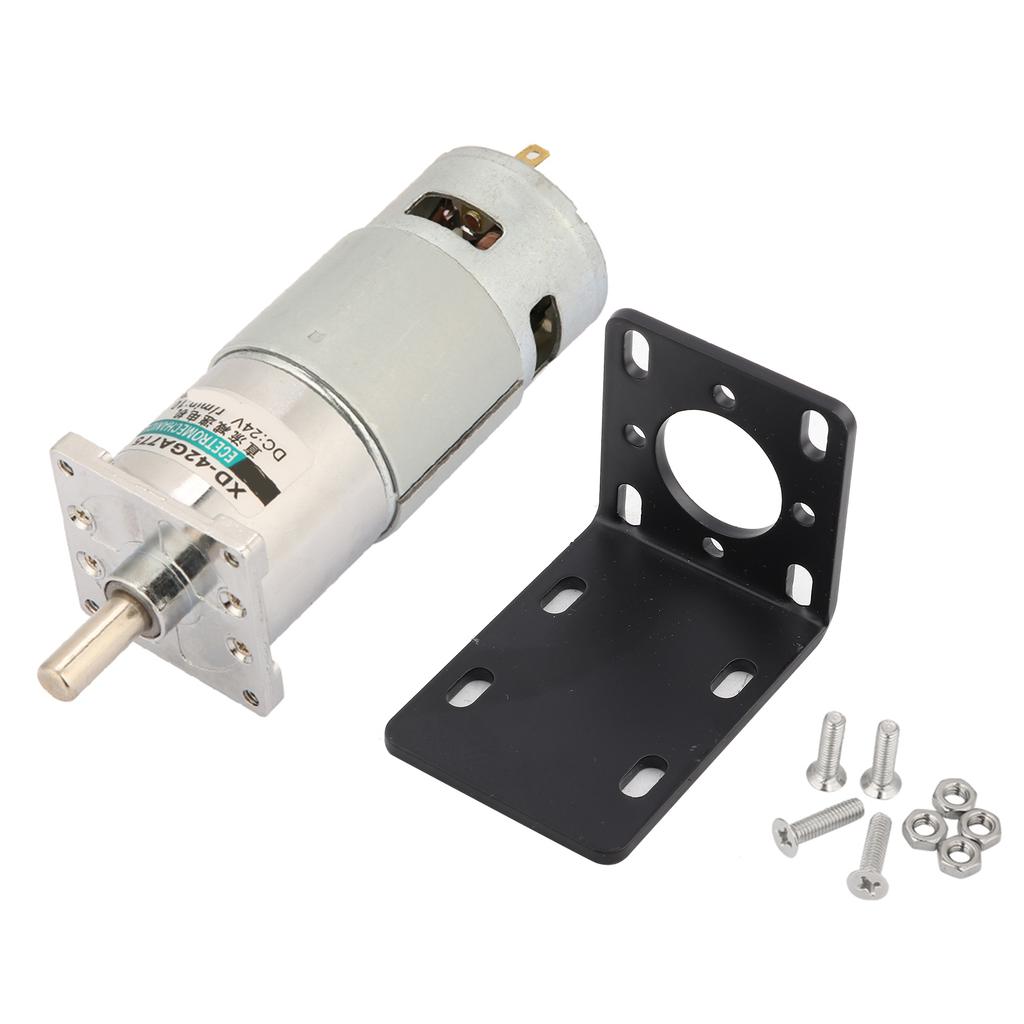

speed: yes CW CCW: yes Weight: Approx.662gCelsius23.4oz Voltage(V) 12V 12V 12V 12V 12V 12V 12V 12V 12V Current(A) 2 2 2 2 2 2 2 2 2 Speed(RPM) 10 30 50 100 150 200 300 400 500 Torsion(kg.fcm) 76.4 25.47 15.28 7.64 5.09 3.82 2.55 1.9 1.53 Voltage(V) 24V 24V 24V 24V 24V 24V 24V 24V 24V Current(A) 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 3.8 Speed(RPM) 10 30 50 100 150 200 300 400 500 Torsion(kg.fcm) 80 31.83 19.1 9.55 6.37 4.78 3.18 2.39 1.91 Package list: 1 x Gear Motor 1 x Stent 1 set x installation accessories

Note:
