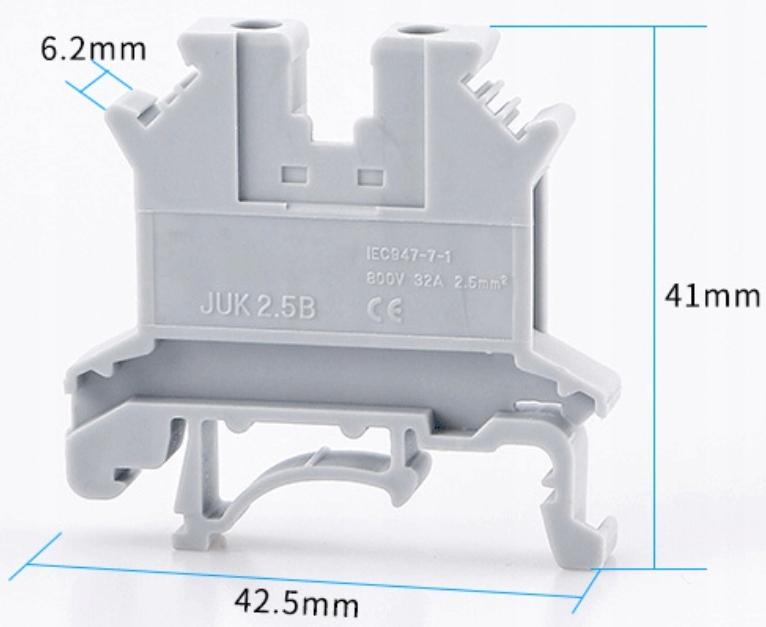

1-Tier DIN Rail Terminal Block Zug 2.5Mm

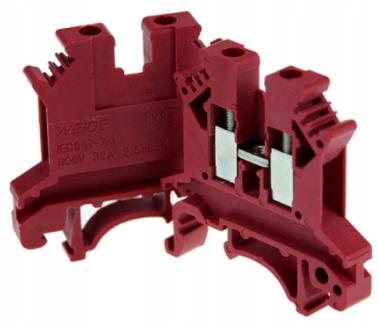

1-tier UK 2.5mm rail connector for DIN rail Symbol UK-2.5 red connector

1-tier 2-wire red busbar connector 2 terminals Number of potentials: 1 Required closing plate (cap):So Cross-section of the connecting cable from 0.2-2.5mm2 Rated current 800v / 32A Mounting method:DIN 35 mm Mounting Rail Connection Position:From the side Type of insulating material:Thermoplastic material The fitting is characterized by a very strong and stable connection of the cable via a screw clamp.

Available bridges:FBI 6 screw connection from the top EB 10 side connection with cable Example connection below.

Dedicated caps available: D UK 2.5 The correct termination of the connector row prevents uncontrolled short circuits.

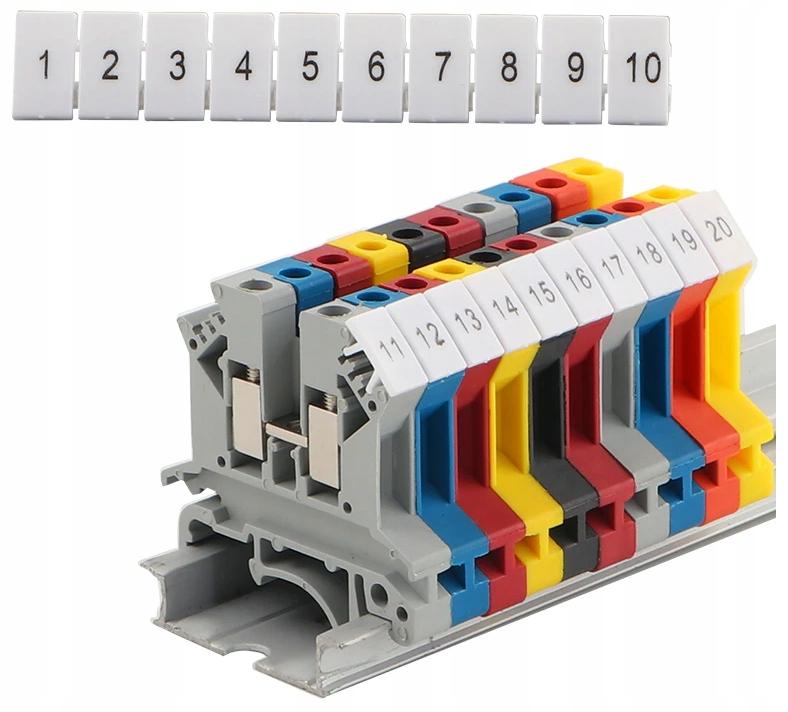

Dedicated markers:ZB6 Example of mounting numerical markers.

Other products and accessories are available on other auctions. ZUG rail connectors end caps / covers end terminal blocks locking a series of connectors quick connectors for joining wires in junction boxes numerical markers for connectors wire markers distribution blocks other
