Certifications: CE CSA 60950-1 CSA certified EN50178 EN 55022-B EN 60950-1 EN61000-3-2 (power factor correction) FCC Class B UL60950-1 UL508

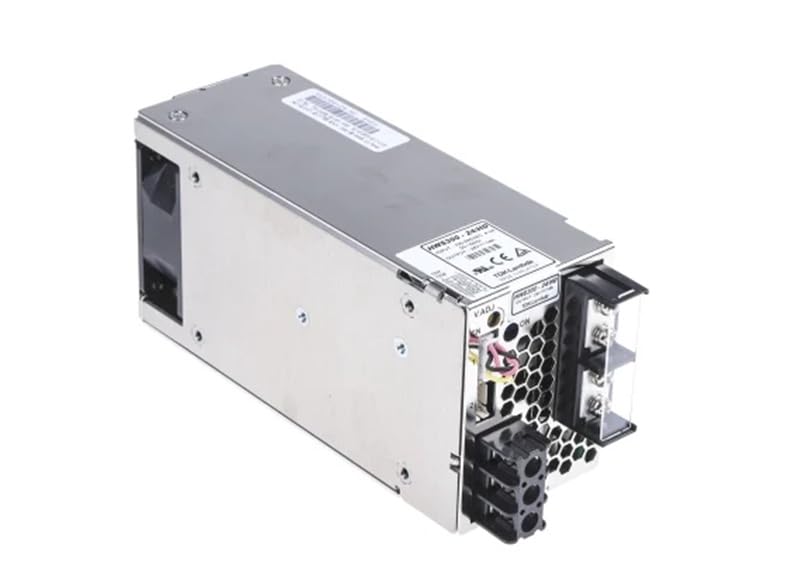

Output power (W) 336 Input voltage range (V) DC120-330, AC85-265 External dimensions (W x H x D) (mm) 61 x 82 x 165 Shape: Covered Weight (g) 1000 Specifications: RoHS compliant Width (mm) 61 Mounting chassis included (Unit) Height (mm) 82 Type: High environmental resistance type Depth (mm) 165 Applicable standards Noise terminal voltage, noise field strength: Compliant with EN55011/EN55032-B, FCC-B, VCCI-B Terminal shape: Screw Withstand voltage Input-FG/2.5kVAC (20mA), Input-Output/3kVAC (20mA), Output-FG/500VAC (100mA), Output-CNT/100VAC (100mA) Leakage current 0.75mA or less for 1 minute (at 100/230VAC: 0.2/0.44) Output current (A) () 14 Storage temperature (°C) -40 ~85 Cooling method Forced air cooling Function Overvoltage protection Overcurrent protection Remote sensing Remote ON/OFF Parallel operation Series operation Monitoring signal (PF/open collector output) Input instantaneous voltage drop protection (SEMI-F47 compliant/200VAC only)
Insulation resistance (MΩ) 100min (output-FG: 500VDC, 25℃, 70%RH), 10min (output-CNT: 100VDC, 25℃, 70%RH) Number of phases Single phase Power factor (100/200VAC) 0.99/0.95 Rated output power (W) 300 Input frequency (Hz) 47-63 Safety Standard Certification: Compliant with CSA60950-1, EN60950-1, UL60950-1, CSA62368-1, EN62368-1, UL62368-1, EN50178: Electrical Appliance and Material Safety Law Vibration Resistance 10-55Hz (sweep for 1 minute) 19.6m/s² constant X, Y, Z directions for 1 hour Input Current (A) (100/200VAC) 4.1/2.1 Output Voltage Variable Range (V) 19.2-28.8 Rated Output Voltage (V) DC24 Overcurrent Protection 16.7A- Operating Temperature (°C) -10 to 71 (-10 to 50/100%, 71/50%) ), Startup -40 to -10°C, Storage humidity (%) 10 to 95 RH (non-condensing), Ripple noise (mVp-p) 150 (0 ≤ Ta ≤ 70°C) / 200 (-10 ≤ Ta < 0°C), Holding time (ms) 20, Overvoltage protection DC 30.0 to 34.8V, Temperature fluctuation 0.02%°C, Efficiency (100/200VAC) 82% / 85%, Harmonic current regulation IEC61000-3-2 compliant, Precautions for use -, RoHS Directive (10 substances compliant) compliant, Input surge current (A) (100/200VAC) 20 / 40, Shock resistance 196.1 m/s² or less, MIL-STD-810F 516.5 Procedure I, VI Compliant Operating Humidity (%RH) 10 to 90 (non-condensing) Peak Current (A) - Recommended EMC Filters: RSEC-2006, RSEL-2006W, RSEV-2006 Peak Power - Load Regulation 144 Line Regulation 96 Storage Humidity (%RH) 10 to 95 (non-condensing)
