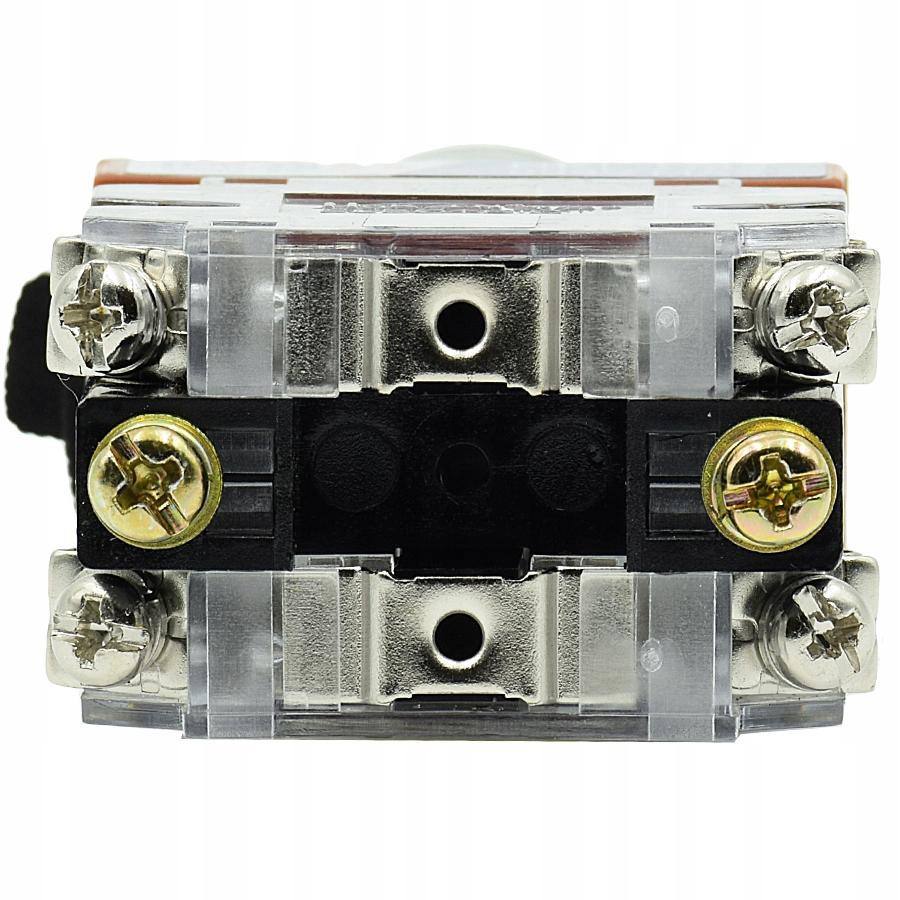

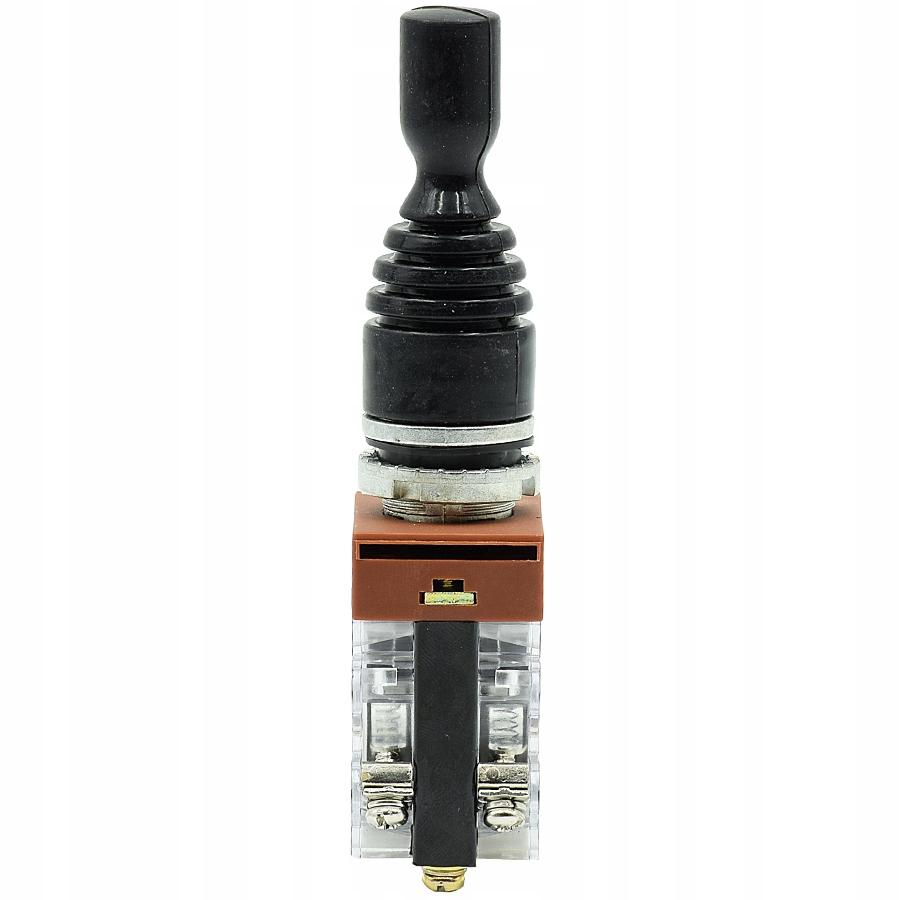

Joystick Manipulator 2-Position Electric 22Mm 10A600V

Electrical JOYSTICK/MANIPULATOR, 2-position, normally open, monostable (returns to neutral position when released) MAG: JOY_HKL-C22 Model:HKL-C22 Protection Rating:IP65 Max. Current:10A Maximum Voltage:600V Type:monostable, 2-position Mounting Hole:22mm Height Total:135mm Height above the desk:70mm Joystick switch, 2-position, NO, with spring-return (without mechanical lock).

Contacts mounted in the housing, no additional contacts possible.

Steel lever.

Designed for mounting in a Ø 22 mm hole. Installation is performed by unscrewing and disassembling the rubber lever cover, removing the rubber washers and unscrewing the metal ring, placing the switch in the mounting hole, and reassembling the remaining components in reverse order.
