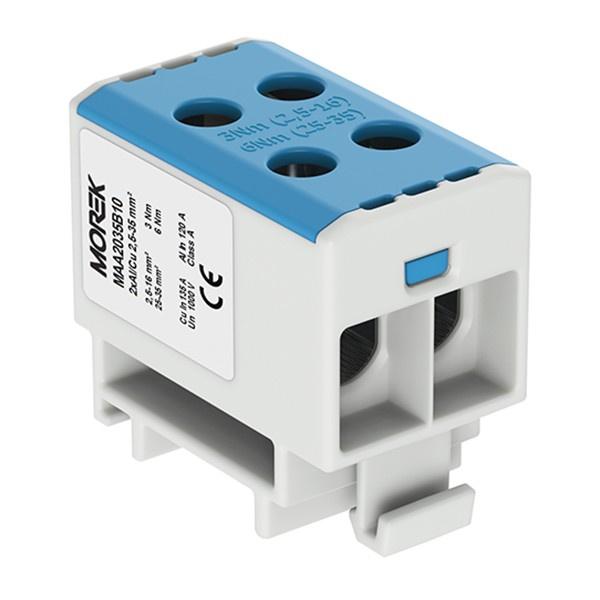

Current Distribution Rail Terminal Block Cable 2.5-35Mm2 1P Blue

Terminal block 2.5-35mm2 blue 4 clamping holes 1-row AL/CU threaded 1000V for TH35 rail 1-pole MAA2035B10 Morek

application simultaneous connection of aluminum and copper wires, or only aluminum, or only copper - in one terminal wire cross-section 2 x from 2.5 to 35 mm2 rated voltage

1000V AC/DC

rated current

2x Al - 120 A 2x Copper - 135 Amperes

moment obr. tightening

3 Nm (2,5 - 16mm2) 6 Nm (25 -35 mm2)

installation

- TH 35 rail or mounting plate - Allen key (IMBUS) size 4

connector material

insulating cover (body): polyamide PA66conductive parts: galvanized aluminium screw: galvanized aluminium joint contact surfaces: contact paste

External dimensions

h: 40mm IN: 27mm L: 46mm AV: 4mm

color

blue

Libra

44g

degree of protection

IP20

working temperature

from -25°C to +80°C

fire class (vertical smoking test)

UL 94 V-0

halogen-free

Yes

norms

EN 61238-1,EN 60947-7-1,EN 60998-2-1,CE

country of production

Finlandia

producer

Morek

product type

OTL 35-2

product code

MAA2035B10

EAN

4744397014047

type:OTL35-2kod:MAA2035B10

wire cross-section (mm2)/number of wires

0.75 1 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240

AL

1

1 1 1 1 1 1 1

CU

3 3 3 3 2 2 1 1
