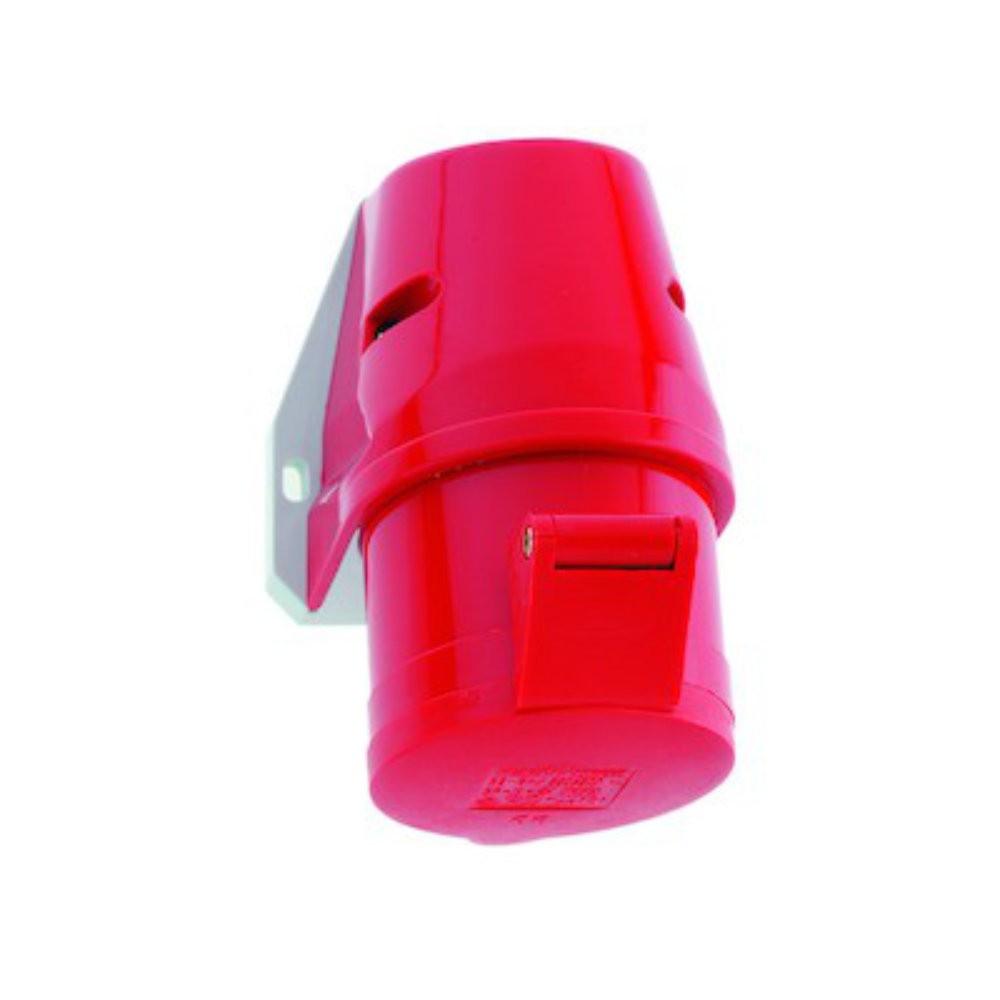

Wall Socket Power Steel Cee 5P 16A 400V Ip44 Construction

CEE Wall-mounted socket fixed power 5P 16A 400V IP44 Quick-Conne

⭐⭐⭐⭐⭐

➡️ Wall socket Quick-Connect 16A: ✔️ the number of poles of the socket is 5, ✔️ voltage 200/346 to 240/415V, ✔️ The socket's degree of protection is IP44, ✔️ cable entry from the top M25, ✔️ brass contacts polyamide insulator, brass contacts, ✔️ cable max 4 mm2, polyamide housing.

rated current

16A

rated voltage

from 200/346 to 240/415

Protective contact position indicator [h]

6 hours

frequency

50-60Hz

number of poles

3 Phase + Neutral + Protective Earth

type

Quick Connect,

degree of protection

IP44

color

red RAL 3000

max. wire diameter

4 mm²

type of clamps

screwless clamp

housing material

polyamide

contacts

brass contacts

dimensions

90x87 mm (HxW)

Libra

0.199kg

manufacturer's designation

112001
