Armed construction distribution board HL-S 32A 16A 2x230VGerman Schuko socket systemDoktorvolt
⭐⭐⭐⭐⭐
➡️Advantages of the distribution board HL-S 32A 16A 2x230V DV-5361-D Schuko Doktorvolt®:
✔️ Compact and small housing made of the highest quality materials,✔️ equipped with two 230V 16A IP54 sockets, one 400V 32A IP54 and 400V 16A IP54,✔️ wiring and sockets from renowned manufacturers of electrical equipment,✔️ IP 44 degree of protection,✔️ ready for connection,✔️ 2 years manufacturer's warranty.
➡️Application of the construction distribution board HL-S 32A 16A 2x230V DV-5361-D Schuko Doktorvolt®:
✔️ On squares and construction sites, and during road works,✔️ to industrial plants,✔️ in workshops and garages where it is necessary to connect devices to a power socket,✔️ during self-build of a house,✔️ for supplying electricity to green areas and mass outdoor events.
32A and 16A socket protected by a single C 16A circuit breaker!
➡️ Doktorvolt® company has implemented a management system certified by TÜV SÜD in the production process of switchboards:
✔️ high quality guarantee,
✔️ transparent flow of information,
✔️ safety guarantee,
✔️ good customer service provided.
Distribution board enclosure
number of rows
1
number of modules
4
installation
surface-mounted
door material
polycarbonate
transparent door safety seal
foamy
impact resistance of the casing
IK09
housing heat resistance
test of heated wire 650°C
rated voltage of the housing
750 V AC
housing dimensions
240.5 x 180 x 110mm
(exact dimensions of the housing below)
housing material
technopolymer
color of the front panel of the case
grey RAL 7035
color of the rear housing panel
black
screw material
stainless steel
case certificates and standards
EN 60670-1
EN 60670-24
Sockets and modular equipment:
number of sockets
4
power sockets

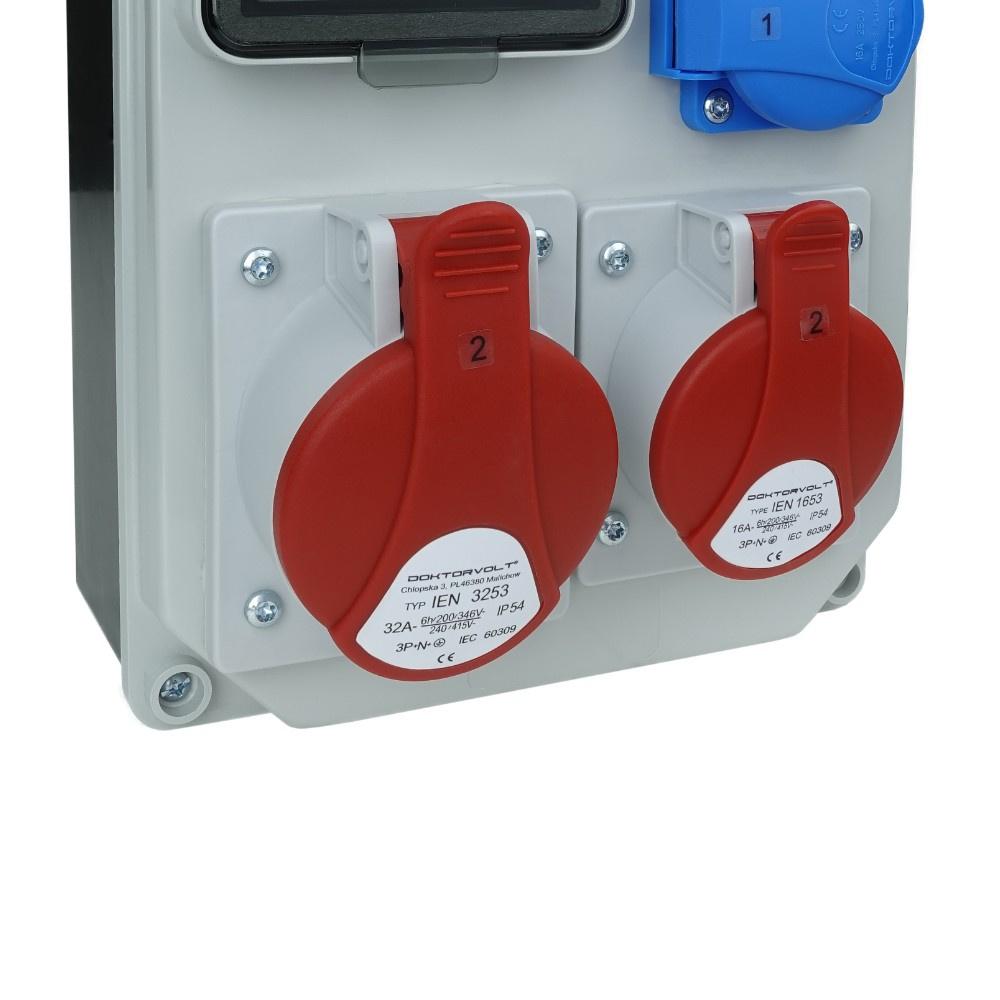

1x 400V 32A IP541x 400V 16A IP54
red
230V sockets
2x 230V 16A IP54
system Schuko (German)

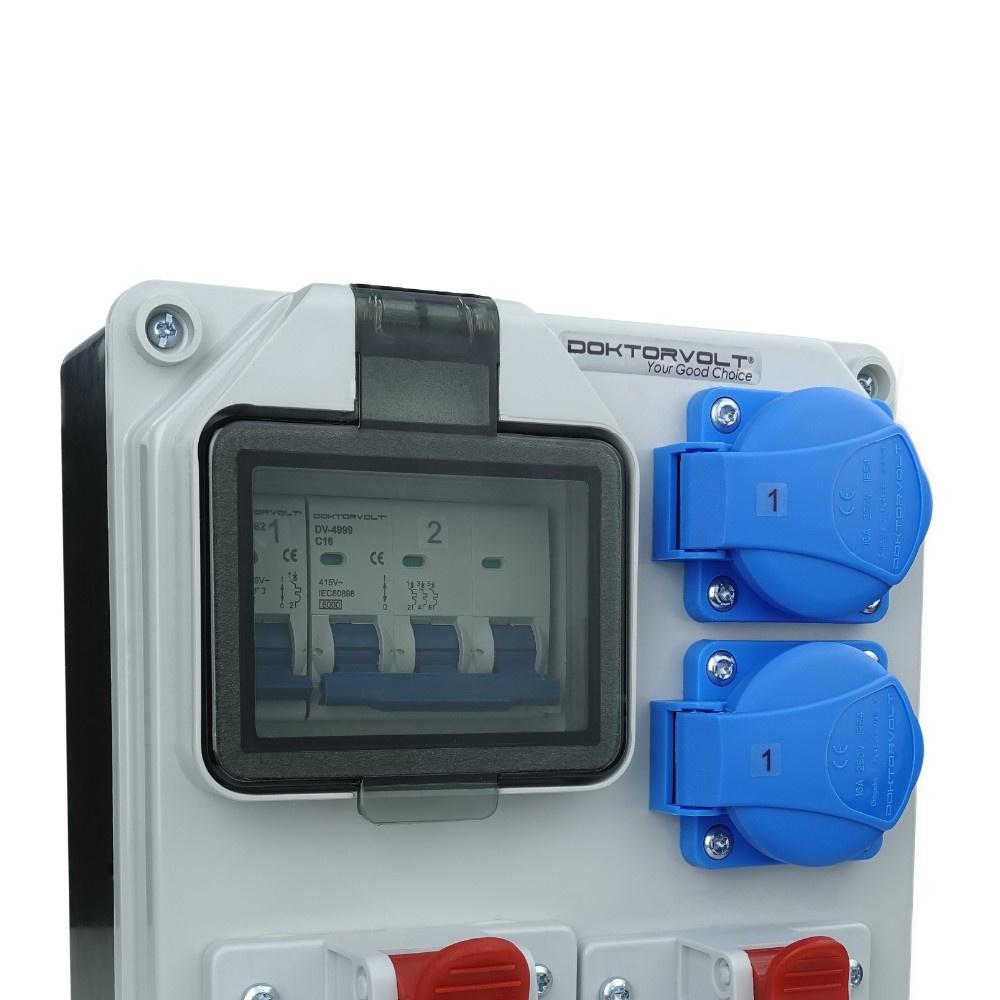

overcurrent protection
1x circuit breaker C 16A 6kA 3P
1x overcurrent switch C16A 6kA 1P

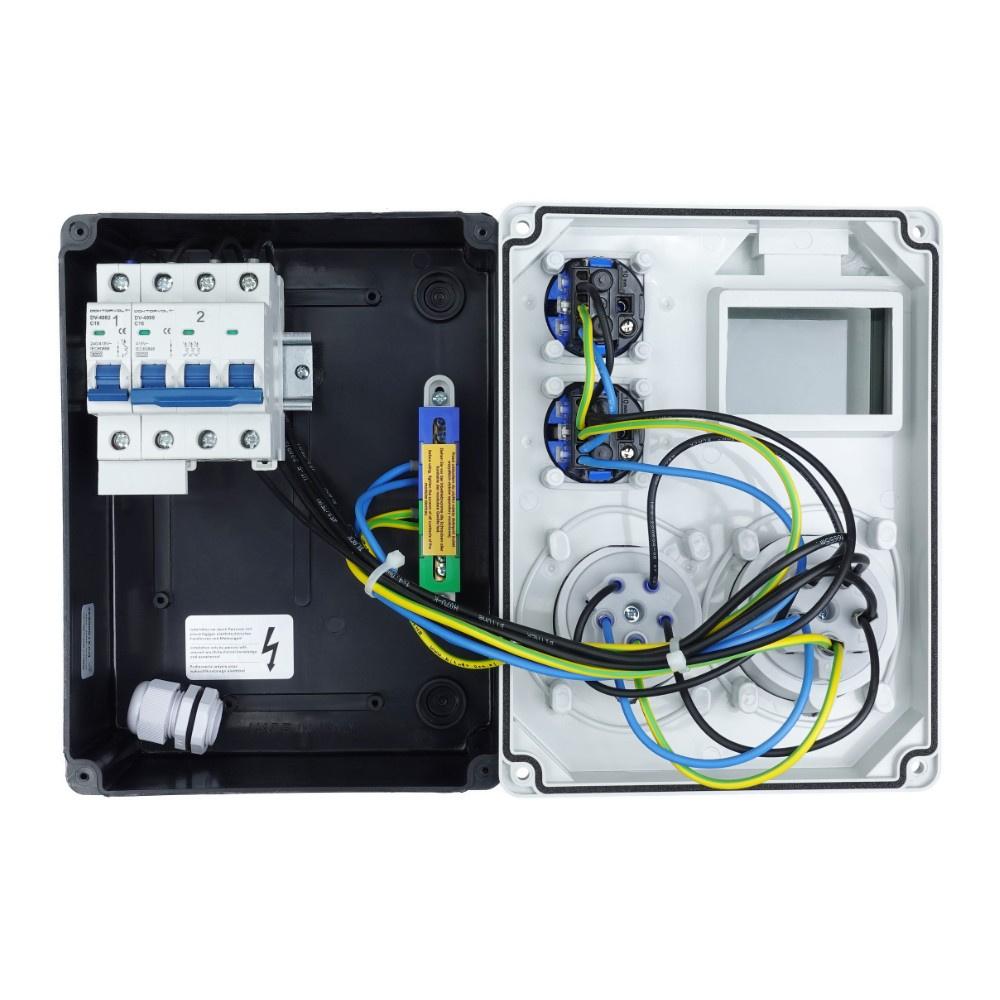

Wiring
wiring
Yes
General information about the distribution board:
working temperature
from -25°C to +60°C
enclosure protection rating
IP44
Accessories
cable gland PG-16terminal block LZ-4
Manufacturer information:
manufacturer's certificates and standards
TÜV SÜDISO 9001:2015CE
producer
Doctorvolt
manufacturer's designation
DV-5361-D
EAN
5907589335361
exact dimensions of the housing:
