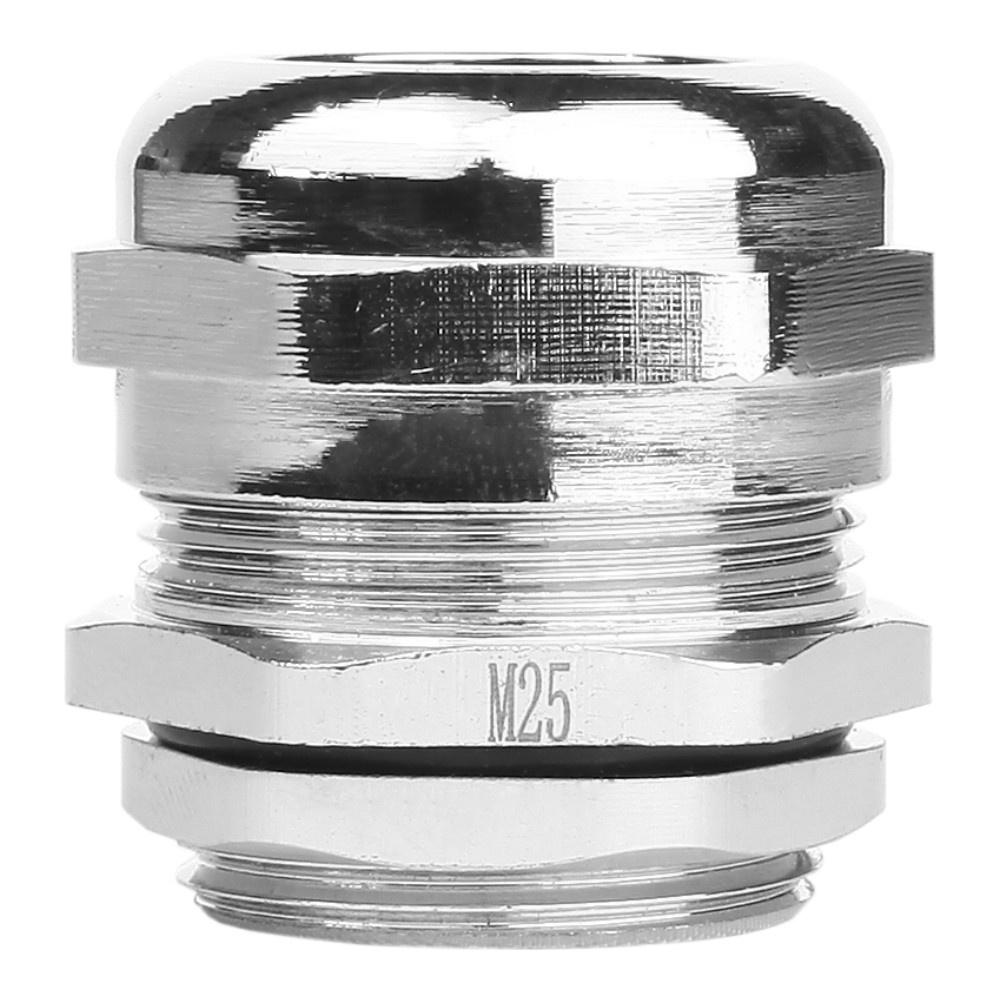

Cable Gland Strain Relief M25 10.5-18Mm Ip68 Nickel-Plated Brass Metal

Metric cable gland M25 nickel-plated brass The DEGSON company is one of the leading "Hi-Tech" enterprises, it has an authorized laboratory both by UL (CTDP) as well as VDE. The DEGSON company is distinguished by many years of experience, a spirit of pragmatic improvements, responsibility, and harmonious development, which translates into modern and innovative products of the highest quality, meeting all required standards.. The DEGSON company laboratory is equipped with advanced equipment and testing devices, allowing all terminal blocks tests to be carried out in accordance with standards UL1059, UL486E, IEC60998, IEC61984, IEC60947, GB13140, CSAC22 2NO 158. The DEGSON company has created a quality management system compliant with the ISO9001, ISO14001, ISO80079-34 standards. The products have been authorized by UL, VDE, EX, CE, EAC, COC and are also compliant with RoHS and REACH standards.. The DEGSON company supplies its products to enterprises operating in fields such as: industrial automation, renewable energy sources, instruments, elevators, power plants, public transport, protection, and shipbuilding industry.

A metric cable gland is an element of an electrical installation that seals the passage of wires through the housings of electrical devices, prevents twisting and kinking of cables inside installation boxes, and ensures high resistance to cable pull-out.. The DEGSON gland is made of the highest quality materials. The brass cable gland will work perfectly in harsh weather conditions and in water.. Brass cable glands are characterized by high strength and temperature resistance - the material melts at approximately 1000°C, additionally the glands are nickel-plated - resistant to corrosion. The gland seal made of oil-resistant NBR rubber is distinguished by very high tensile strength, shows thermal resistance up to 105°C. The gland has been authorized by CE, EAC and is compliant with RoHS standards.

symbol M25 application

- sealing the passage of cables through the housings of electrical devices - prevents the cable from twisting inside - ensures high tensile strength

for cables with a diameter 10.5-18 mm color nickel plated degree of protection IP68 working temperature -40 do +100°C body material brass gasket material oil-resistant NBR rubber clamp material PA plastic o-ring seal material gum producer Degson certificate CE, EAC, RoHS EAN 5907589333190 catalog number DDL-M25M-10AH

Dimensional drawing

GL 8 mm h 3mm SW1 30 mm SW2 30mm SW3 27 mm
