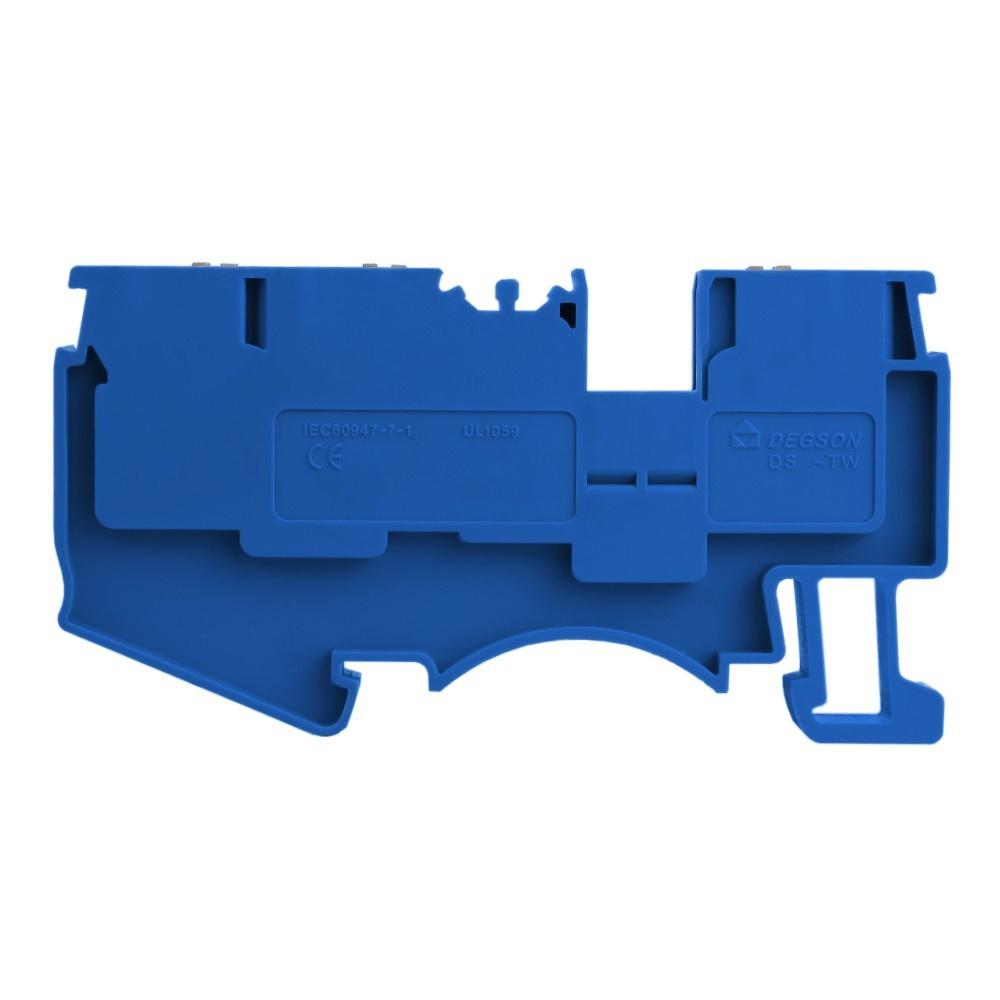

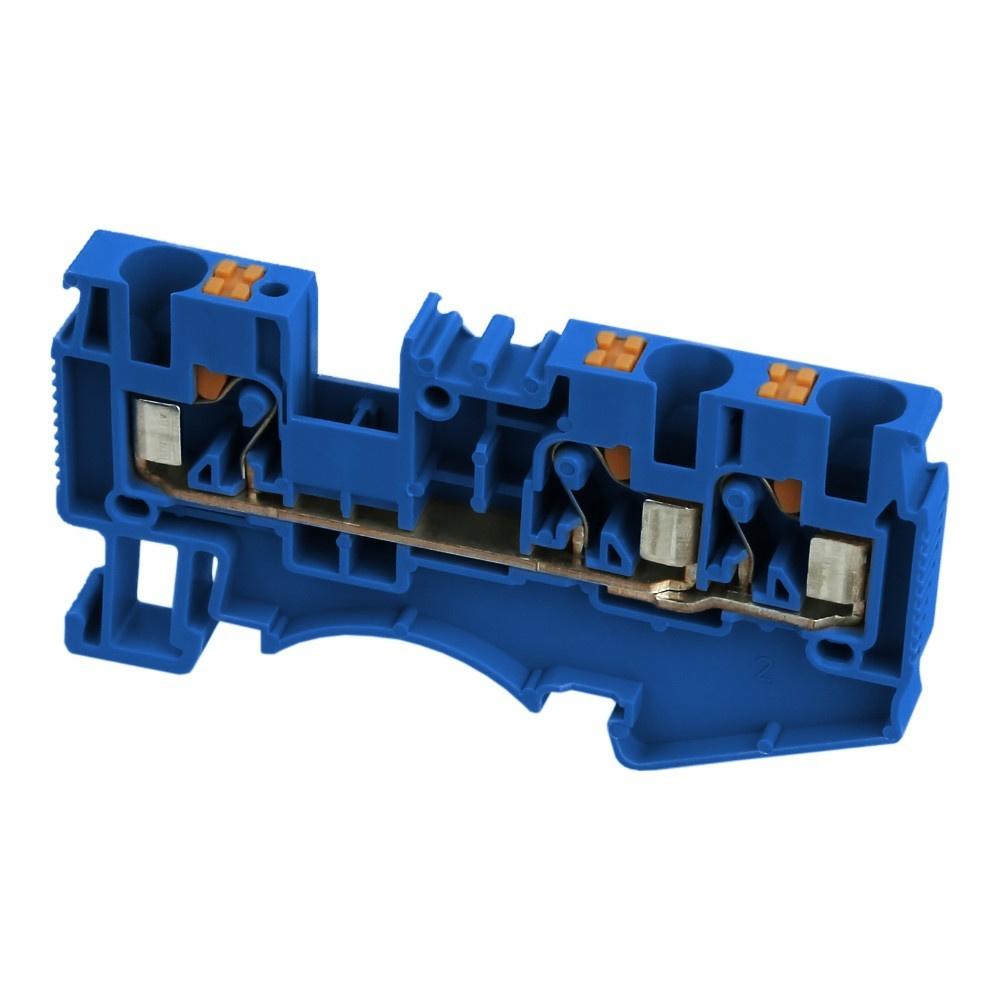

Busbar connector 1.5mm2 DS1.5 3-wire blue, Push-in terminal
⭐⭐⭐⭐⭐
An electrical installation consisting of many wires must ensure the continuity of current flow in the circuit.. Through connectors are mounted on the DIN TH/TS 35 rail and enable connecting and bridging wires. DS1.5 TW series rail connectors allow connecting wires with a cross-section of 0.2 - 1.5mm2 (26 - 16 AWG)using Push-in terminals. The connector housings were made of high-quality PA66 and UL94V-0 plastics. All metal elements in the connector were made of a coated copper alloy. The rail connectors have undergone many tests confirming their quality and durability. The 3-wire, 1-tier busbar connector allows connecting three wires on one pole.
➡️ Features of the DS 1.5 TW terminal block:
✔️ Push-in spring terminals
✔️ enables connecting three wires to one pole
✔️ rated voltage 500 V
✔️ rated current 17.5 A
✔️ cross-section of wires 0.2 - 1.5 mm2 (26 - 16 AWG)
✔️ blue color
✔️ high-quality material
Properties of terminal clamps
with Push-in lock
connection
plug connector
connector type
railway
number of tracks
1P
number of clamps
3
mounting on DIN 35 rail
Yes
electrical installation
spring clamp
execution
cage made of high-quality steel
maximum cross-sectional area of the flexible cable
1.5mm2
rated voltage
500V
rated impulse voltage
6 kV
rated current
17.5A
wire range
26 - 16 AWG
0.2 - 1.5mm2
stripping length
8-10 mm
working temperature
from -40℃ to + 105℃
dimensions
basic connector color
blue
CE declaration of conformity
Yes
RoHS directive
Yes
accessories
Terminal markers - ZB3,5-10PEnd plate - D-DS1.5-TW-01Plug-in bridge - DFB1.5-02P
AVAILABLE ON OUR AUCTIONS
Symbol
DS1.5-TW-01P-12-00AH
EAN
5907589335668
