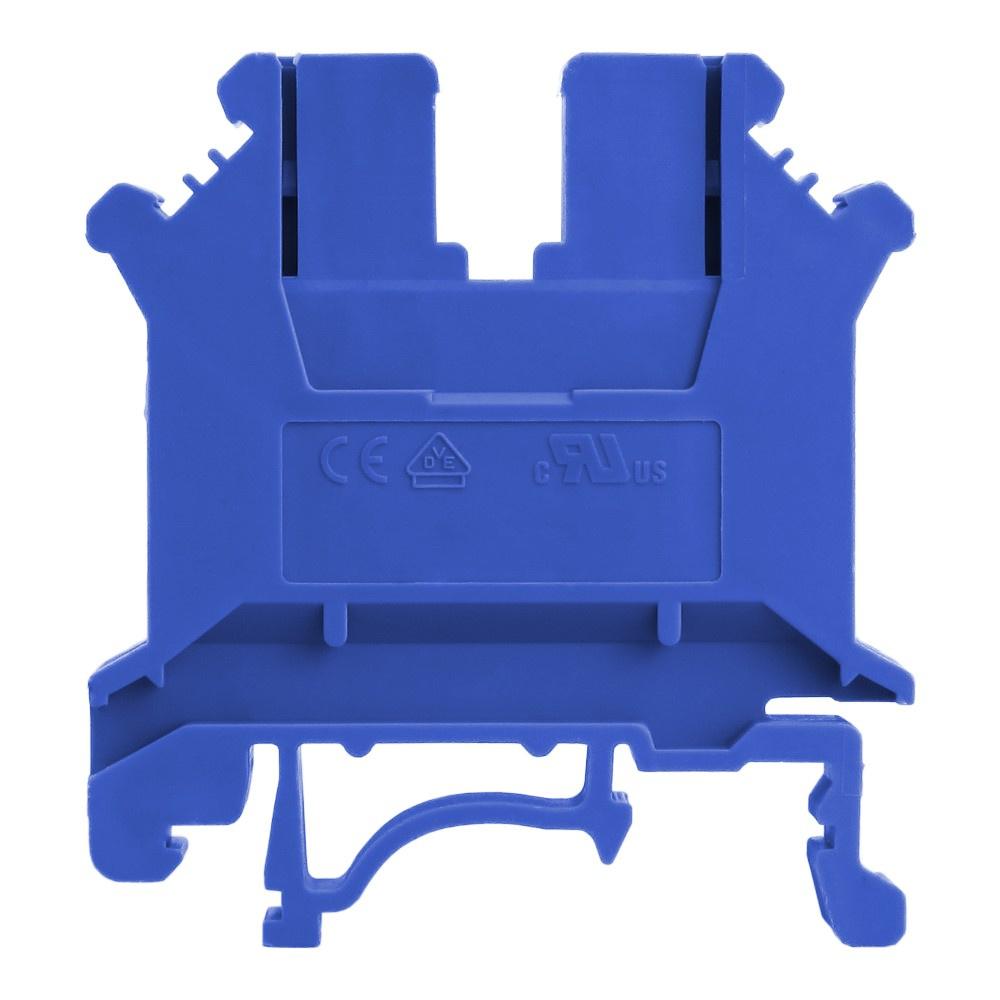

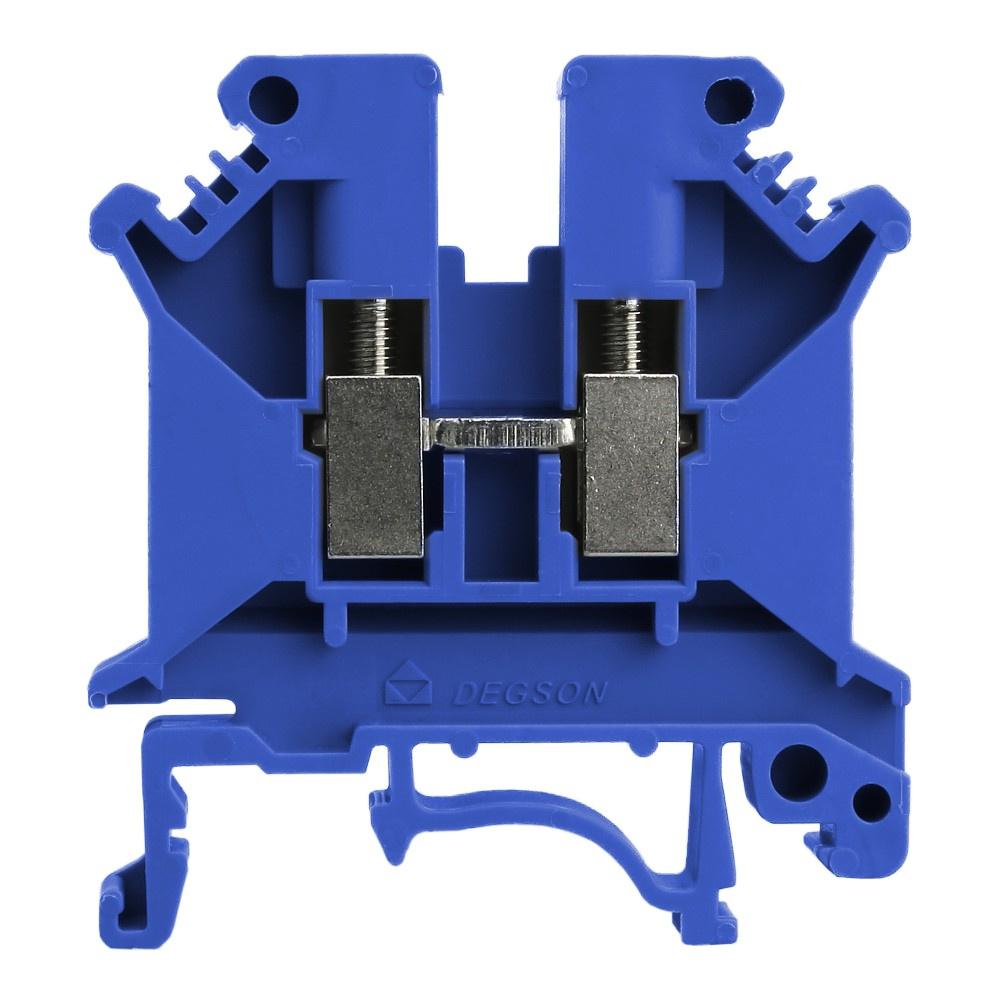

Through Terminal Block Blue Screw 6Mm2 1P On Din Rail Th35

6 mm2 PC6 busbar connector blue screw terminal ⭐⭐⭐⭐⭐ An electrical installation consisting of many wires must ensure the continuity of current flow in the circuit.. Through connectors are mounted on the DIN TH/TS 35 rail and enable connecting and bridging wires. PC series terminal blocks allow connecting wires with a cross-section of 0.2 - 6mm2 (24 - 8 AWG) using screw terminals. The connector housings were made of high-quality PA66 and UL94V-0 plastics. All metal elements in the connector were made of a coated copper alloy. DEGSON rail connectors have passed many tests confirming their quality and durability. The connectors have been awarded UL and VDE certificates. ➡️ Features of the PC6 DIN rail connector: ✔️ screw clamps ✔️ rated voltage 800 V ✔️ rated current 41 A ✔️ conductor cross-section 0.2 - 6 mm2 (24 - 8 AWG) ✔️ VDE certification (no. 40024764) i UL (no. E228872) ✔️ color blue ✔️ high-quality material

symbol PC6-01P-11-00A(h) type busbar connector type screw color blue application wire connection rated voltage 800 V rated current 41 A for cables with cross-section 0,2 - 6 mm2 certificates UL, VDE, CE testing standard EN60947-7-1： UL1059 spade 8.2 mm number of poles 1P data regarding tests EN60947-7-1 VDE certificate NO. 40024764 data regarding UL1059 research UL E228872 overvoltage category III degree of pollution 3 material group AND pulse voltage 8 kV material group AND moment of tightening screws 1.2 Nm material group AND application in groups B, C, D nominal voltage for groups (B, C, D) 600, 600, 600 V nominal current for groups (B, C, D) 50, 50, 5 A rated connection capacity 24 - 8 AWG permissible sustained pressure 4.76 kg type of screws M4 UL94 flammability class V-0 permissible ambient temperature -40~ +105 relative humidity 5% - 95% inspection standard MIL-STD-105E II AQL 0.65 housing material PA66, UL94V-0 screw material nickel-plated copper connector material tin-plated copper recommended stripping of the wire 9 - 10 mm attachment for wire stripping the wire to the desired length, then tightening with the nominal torque. attachment for the rope strip the wire to the desired length, then apply the insulating end cap and tighten with the nominal torque available accessories

side coverD-PC2.5 Marking labelsZB8End holderE-PCConnecting bridgeEB2-8EB3-8EB10-8(in our offer)

producer DEGSON EAN code 5907589335729

Dimensional drawing
