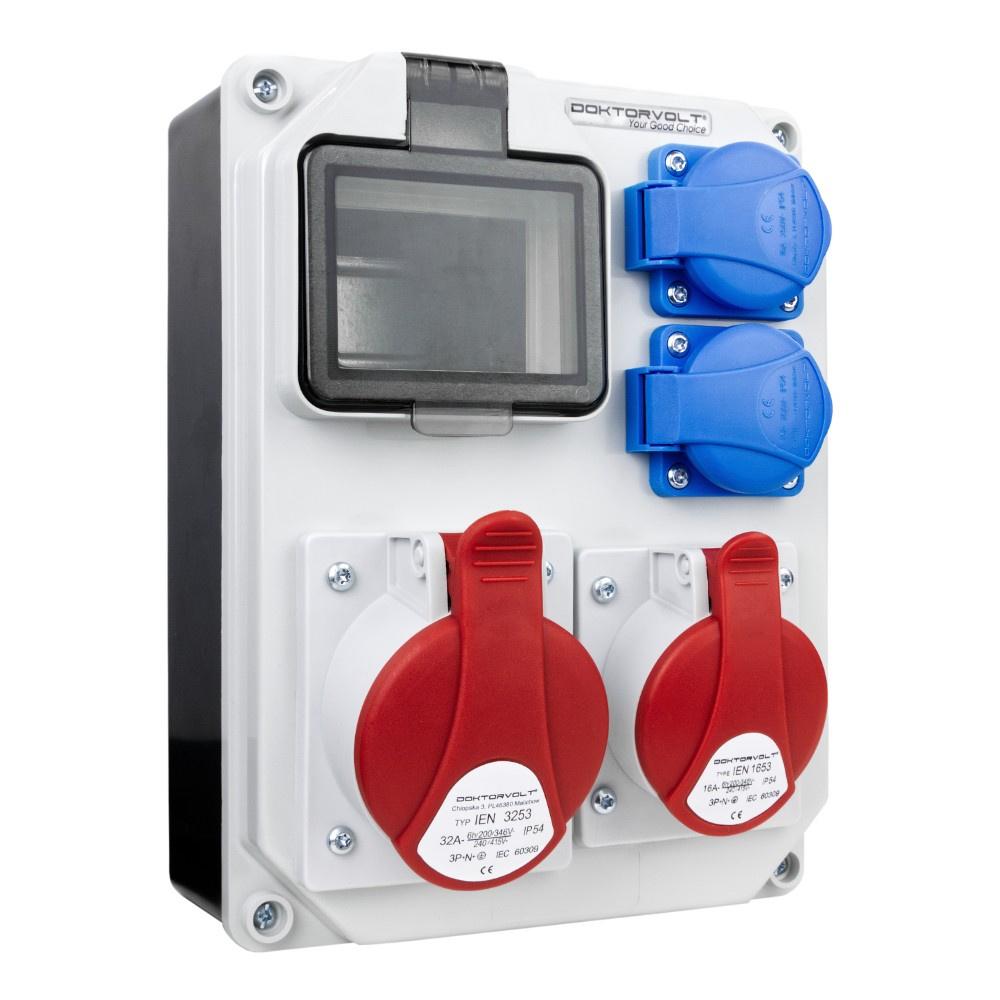

Construction distribution board HL 32A 16A 2x230V DV-5347-D Schuko Doktorvolt 5347
⭐⭐⭐⭐⭐
➡️ Application of the construction distribution board HL 32A 16A 2x230V DV-5347-D Schuko Doktorvolt® 5347:
✔️ On construction sites and building areas, and during road works,✔️ to industrial plants,✔️ in workshops and garages where it is necessary to connect devices to a power socket,✔️ during self-build of a house,✔️ for powering green areas and mass outdoor events.
➡️ Advantages of the distribution board HL 32A 16A 2x230V DV-5347-D Schuko Doktorvolt® 5347:
✔️ Compact and small housing made of the highest quality materials, ✔️ equipped with two 230V 16A IP54 sockets, one 400V 32A IP54 and 400V 16A IP54, ✔️ wiring and sockets from renowned manufacturers of electrical equipment, ✔️ IP 44 degree of protection, ✔️ ready for connection, ✔️ 2 years manufacturer's warranty.

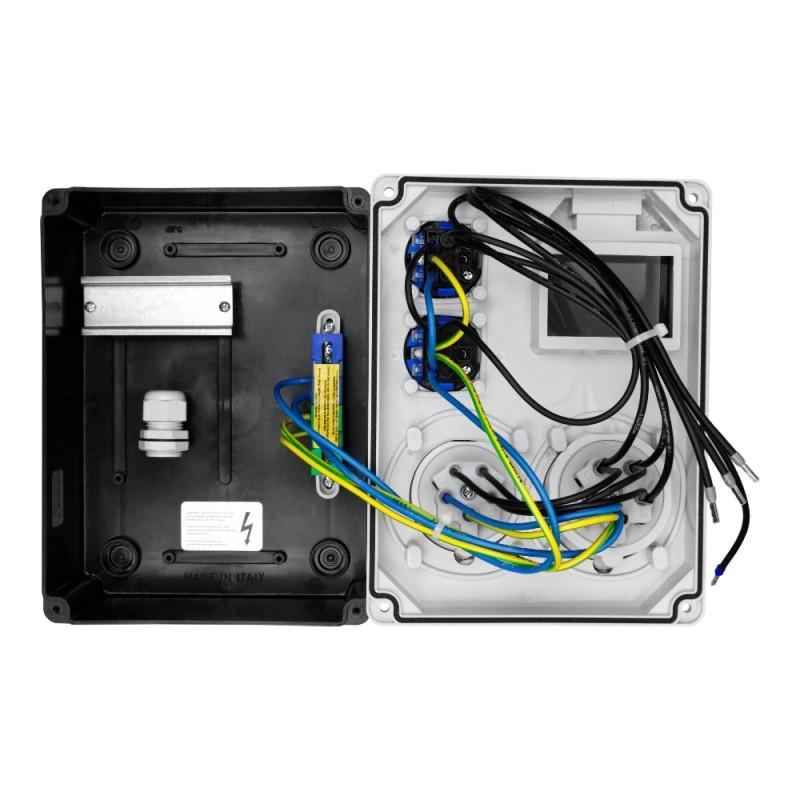

➡️ The presented construction distribution board has been equipped with:
✔️ two sockets 2x 230V 16A IP54,
✔️ sockets: 1x 400V 32A IP 54 and 400V 16A IP54,
✔️ wiring.
➡️ Doktorvolt® company has implemented a management system certified by TÜV SÜD in the production process of switchboards:
✔️ high quality guarantee,
✔️ transparent flow of information,
✔️ safety guarantee,
✔️ good customer service provided.
Distribution board enclosure
number of rows
1
number of modules
4
installation
surface-mounted
door material
polycarbonate
transparent door safety seal
foamy
impact resistance of the casing
IK09
housing heat resistance
test of heated wire 650°C
rated voltage of the housing
750 V AC
housing dimensions
240.5 x 180 x 110mm
(exact dimensions of the housing below)
housing material
technopolymer
color of the front panel of the case
grey RAL 7035
color of the rear housing panel
black
screw material
stainless steel
case certificates and standards
EN 60670-1
EN 60670-24
Nests:
quantity
4
type
2x 230V 16A IP54 - Schuko system (German)1x 400V 32A IP541x 400V 16A IP54
Wiring
wiring
Yes
General information about the distribution board:
working temperature
from -25°C to +60°C
enclosure protection rating
IP44
Accessories
terminal block LZ-4
Manufacturer information:
manufacturer's certificates and standards
TÜV SÜDISO 9001:2015CE
IEC 61439
producer
Doctorvolt
manufacturer's designation
DV-5347-D
EAN
5907589335347

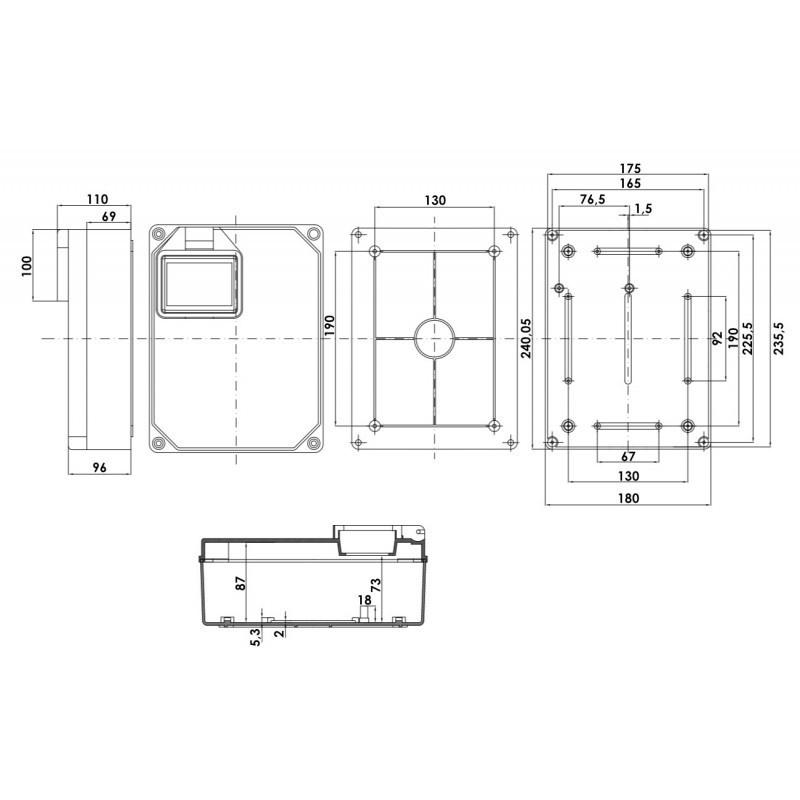

exact dimensions of the housing:
