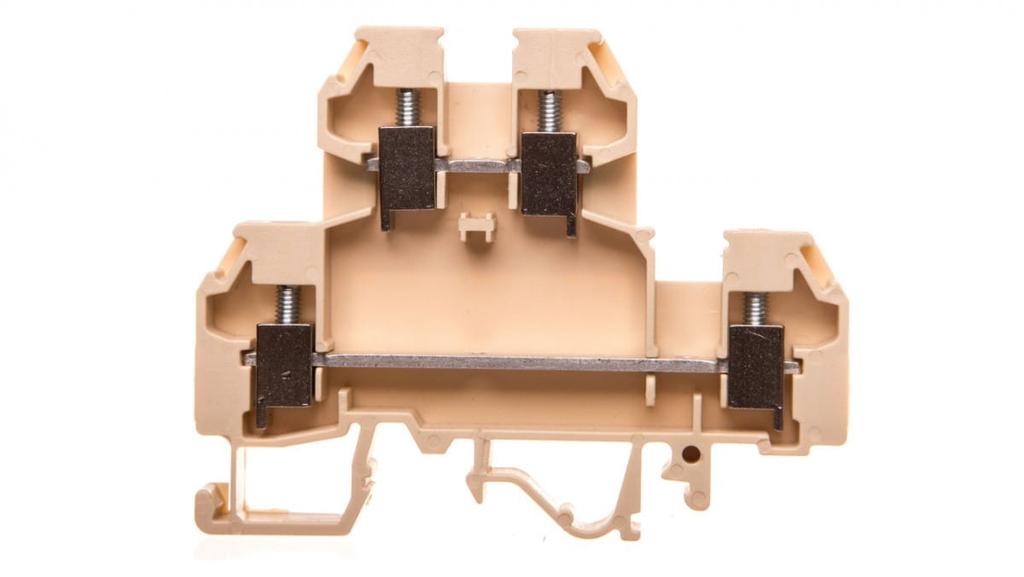

Threaded 2-Tier Busbar Connector 4Mm2 Beige Vs 4 On 003901277

CN: 85369010Length: 70EAN: 5904722915725Function N: NotFunction PE: NoManufacturer's index: 003901277Number of potentials: 2Rated voltage [V]: 440PKWiU: 27.33.13.0Connection point: From above / at the topRated current In [A]: 32Cross-section of the single-core wire to be connected [mm2] to: 6Cross-section of the single-core cable to be connected [mm2] from: 0.3Cross-section of the stranded wire to be connected without a ferrule end: 4Cross-section of the connected stranded wire with a ferrule terminal: 4Cross-section of the connected multi-core cable [mm2] to: 4Cross-section of the connected multi-core cable [mm2] from: 0.3Type of insulating material: Thermoplastic materialElectrical connection type 1: Screw connectionType of electrical connection 2: Screw connection series: SMSAssembly method: DIN 35 mm Mounting RailWidth: 55Grid width / size [mm]: 7Weight: 0.0100Required cover plate: NotHeight: 5Height at the lowest mounting method [mm]: 55.5000Z with N slide switch: Not with the test switch: NO
