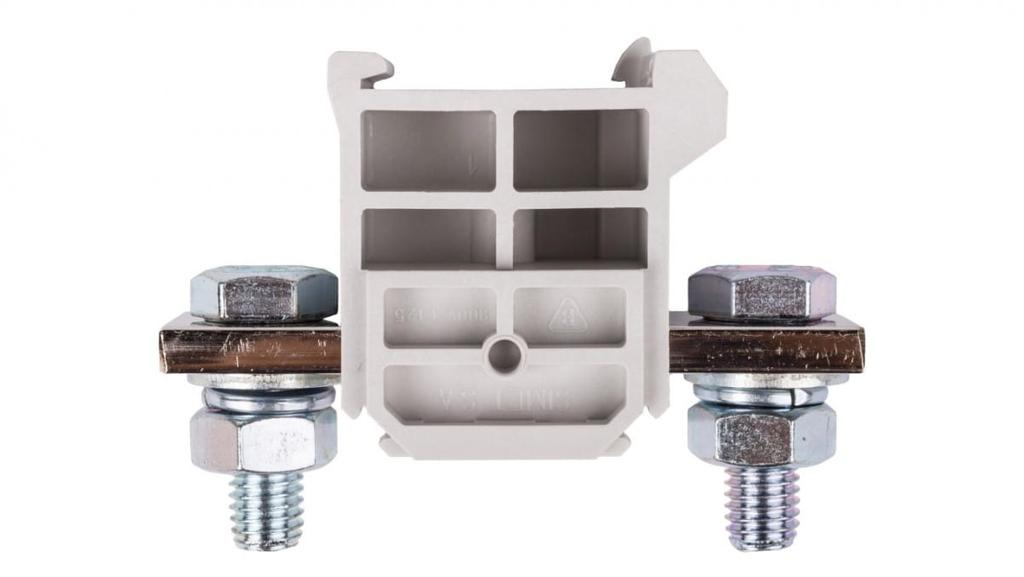

2-Wire Gray Busbar Connector 120Mm2 Zsg 1-120.0S 12903312

CN: 85369010Length: 90Length [mm]: 61EAN: 5907813209833Manufacturer index: 12903312Flammability class of the insulating material according to UL94: V0Color: GrayNumber of levels: 1Number of terminals per level: 2PKWiU: 27.33.13.0Connection point: From the side / sideRated current In [A]: 269Cross-section of the single-core wire to be connected [mm2] to: 120Cross-section of the single-core wire to be connected [mm2] from: 35Cross-section of the connected multi-core cable [mm2] to: 120Cross-section of the connected multi-core cable [mm2] from: 35Type of insulating material: Thermoplastic materialElectrical connection type 1: Screw connectionType of electrical connection 2: Screw connection series: ZSGSsembly method: DIN 35 mm Mounting RailWidth: 68Grid width / size [mm]: 41Weight: 0.2200W Explosion-proof version „EEx e”: Non-internal bridged floors: Closing plate not required: NotHeight: 42Height at the lowest mounting method [mm]: 86Operating temperature range from/to [°C] to: 125Operating temperature range from/to [°C] from: -25
