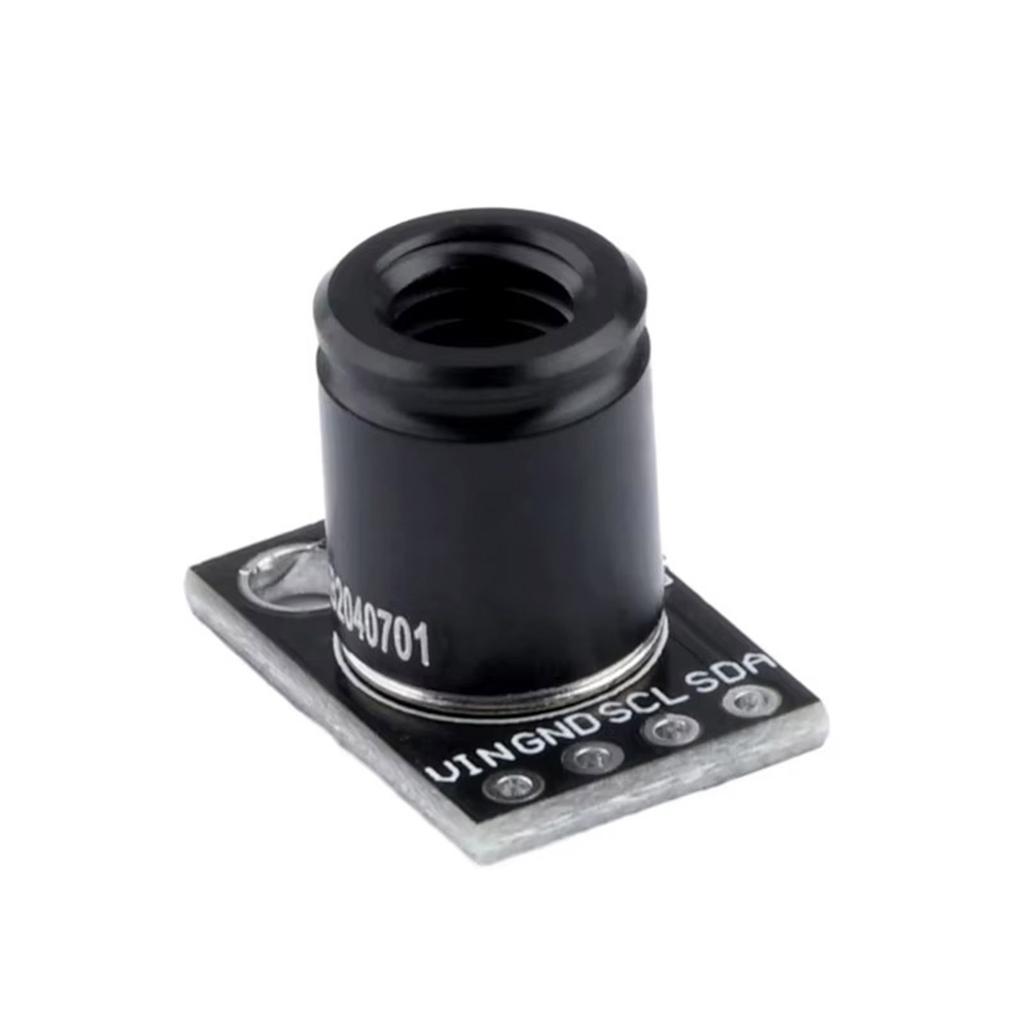

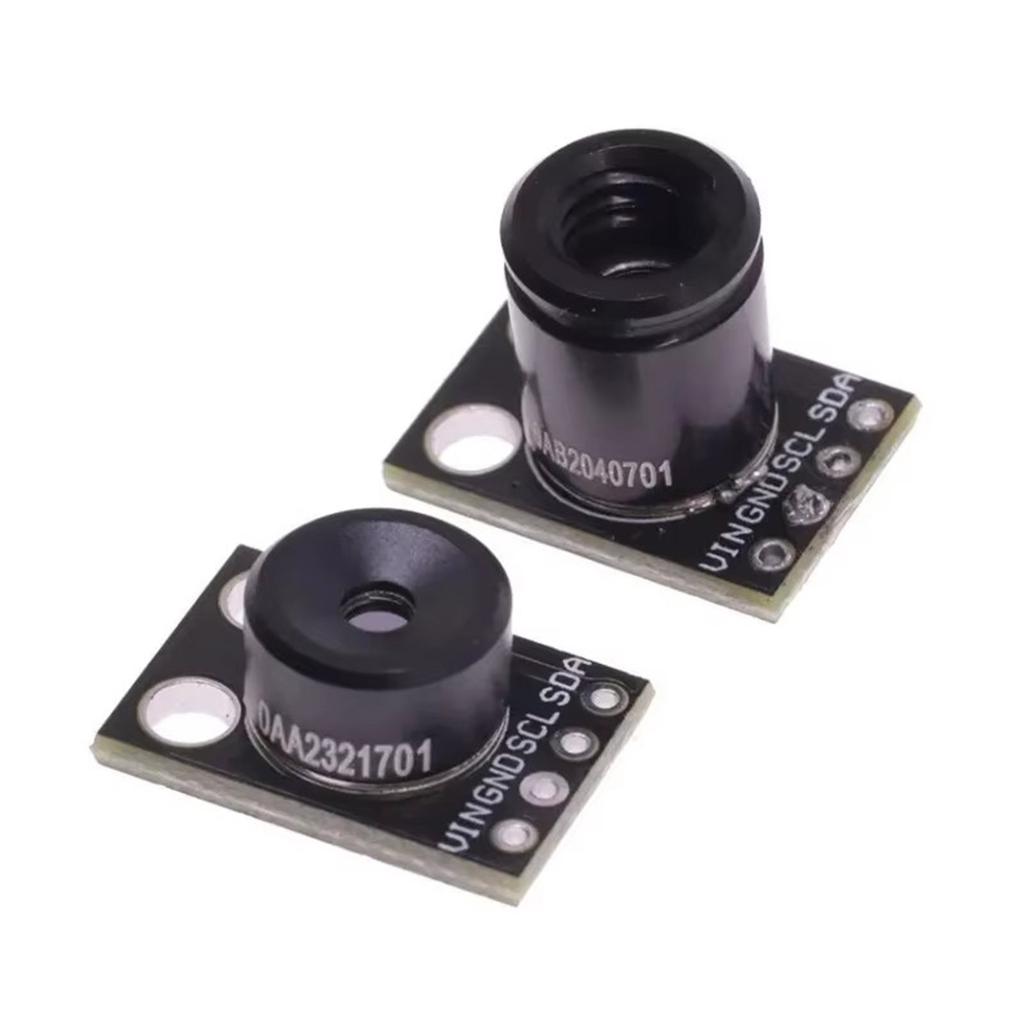

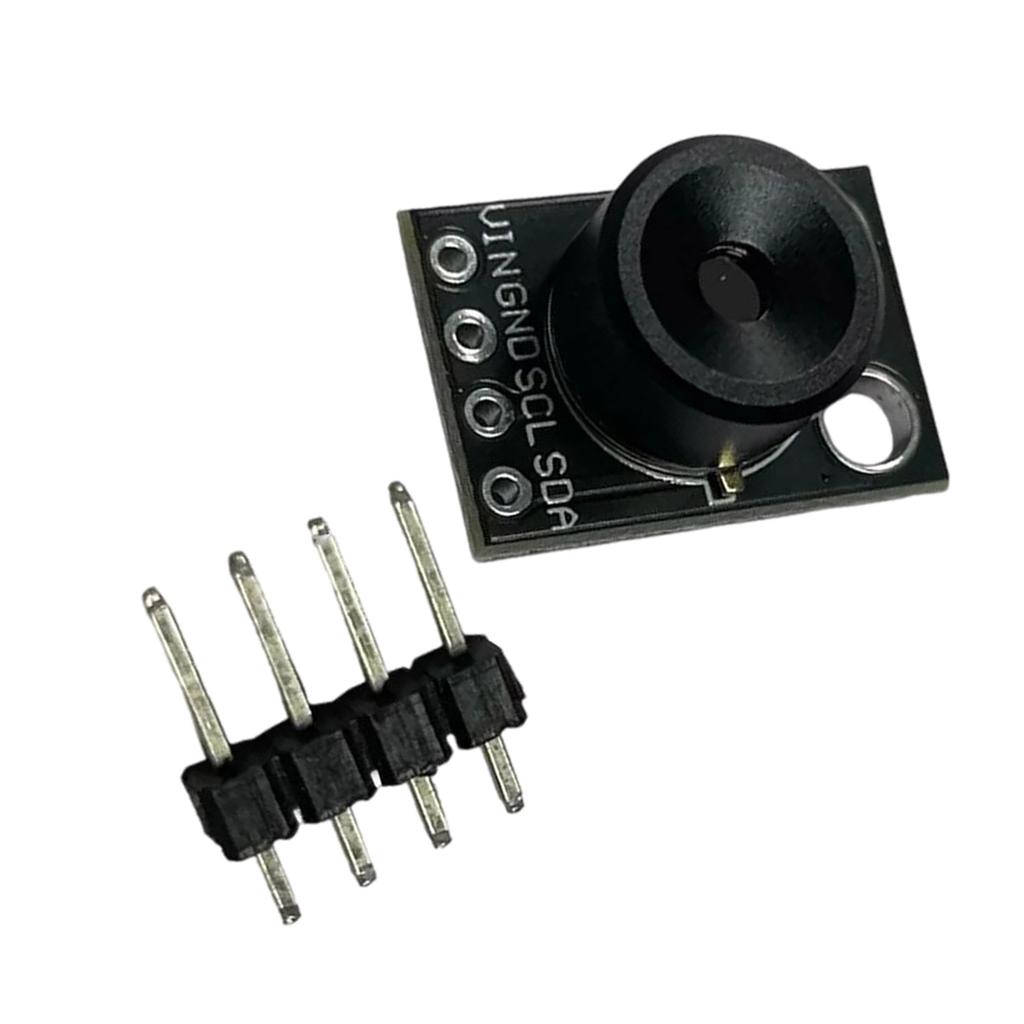

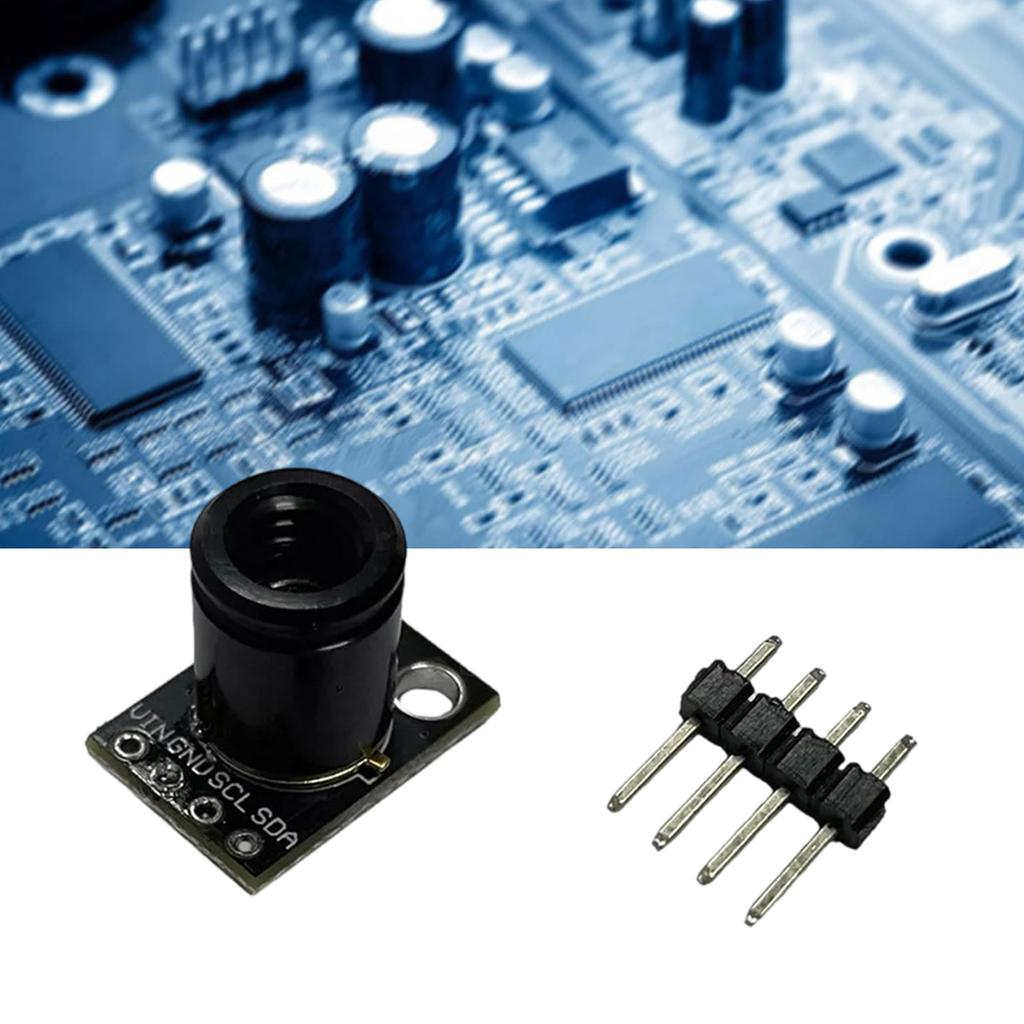

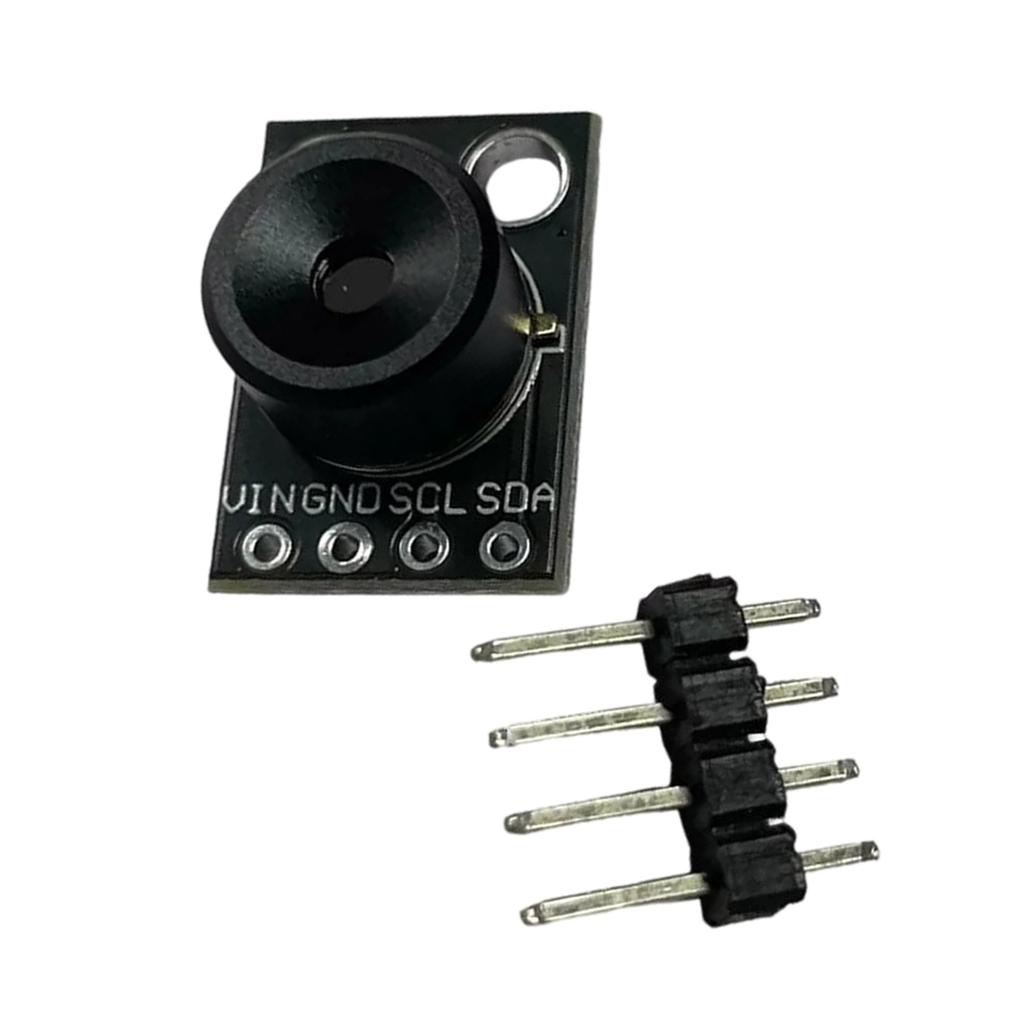

MLX90640ESF-BAA MLX90640ESF-BAB Sensors Module Temperature Sensors Imager Industrial Monitoring Applications

Features: MLX90640 far thermal Sensors array, 32x24. Support communication, which can be set to fast modes (rate up to 1MHz). The noise equivalent temperature difference (NETD) is only 0.1KRMS@1Hz rate, and the noise performances is good. Onboards level conversion circuit, suitable 3.30V/5V working level. Programmable frame rate is 0.5-64Hz(0.25-32FPS).

Specifications: Type:MLX90640ESF-BAA/MLX90640ESF-BAB Current size: < 23mA Working voltages: 3.30V/5V Field of view (FOV): 55× 35. Absolute accuracy: 2℃ (room temperature 0~50℃) Rate: 0.5~64Hz(0.25~32FPS) Working temperature: -40~300℃ Product size: Approx.17x11mm/0.67x0.43inch Fixing hole size: 2.0mm

Package Includes: 1Pc Temperature Sensors

note: 1.Please allow 1-2cm errors due to manual measurement, making sure that you not mind before order. 2.Due to the differences between different monitors, the picture may not reflect the actual of the item.
