Techrebal HQ 180x Digital Microscope for Soldering – with 16MP 4K Camera, 56x LED Lighting, and Adjustable ArmThe Techrebal 180x Digital Microscope is a reliable tool designed for electronics technicians, hobbyists, and those involved in precision soldering. Equipped with high-quality optics and adjustable LED lighting, it allows for precise observation of even the smallest details. Stable construction and adjustable arm guarantee comfort and precision of work. The device requires connecting the camera to an external monitor, which provides flexibility in adapting the set to the user's individual needs.

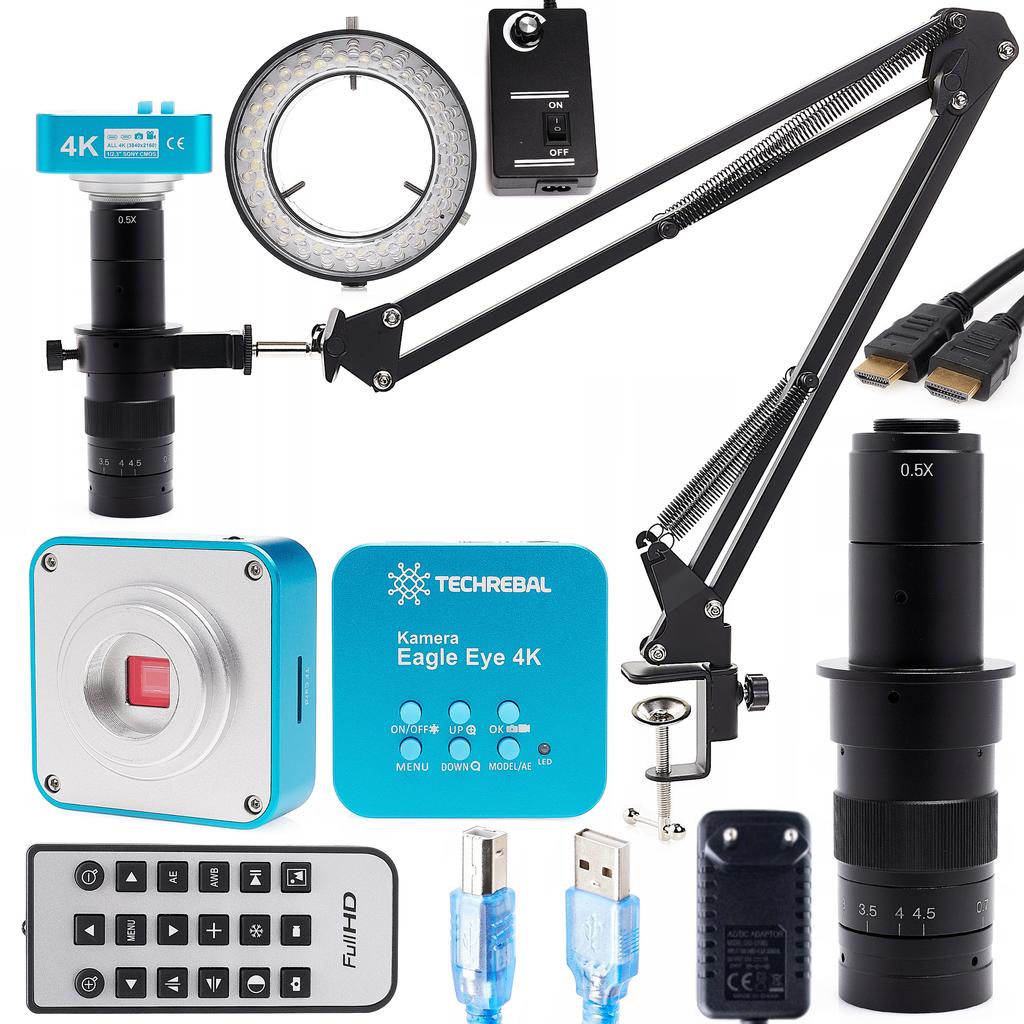

✳️ The set includes:1️⃣ C-Mount Zoom 180x Digital Microscope Objective 2️⃣ Economical Microscope Stand, 50mm Diameter Hole 3️⃣ Techrebal Eagle Eye 4K Camera with:HDMI cableUSB cableRemote controlPower adapter 4️⃣ 56x LED illuminator for microscope 60mm 8W
Digital Microscope Lens C-Mount Zoom 180xA professional microscope, designed for any type of work where magnification is needed, and working space between the lens and the observed object. This type of solution allows for long observations without unnecessary muscle tension and eye strain, compared to eyepiece microscopes. The optical system of this model is made of high-quality glass coated with a special coating, thanks to which the image is sharp, and the colors are natural.. Highest quality optical glass elements.
❇️ Field of view (camera with a 1/1.8" sensor):At maximum magnification: 3.0x1.7 mmAt minimal magnification: 31x17 mm❇️ Working distance:At maximum magnification: 100 mmAt minimum magnification: 200 mm❇️ Specification:Camera mounting thread: C-Mount (25mm)Diameter of the ring for mounting on the holder: 57.6mmLens height: 170mmOptics with liquid magnificationThe lens fits our cameras with a C-Mount thread❇️ The optics can be expanded with a Barlow lens to increase or decrease magnification (lens diameter 42mm - available on our other auctions)

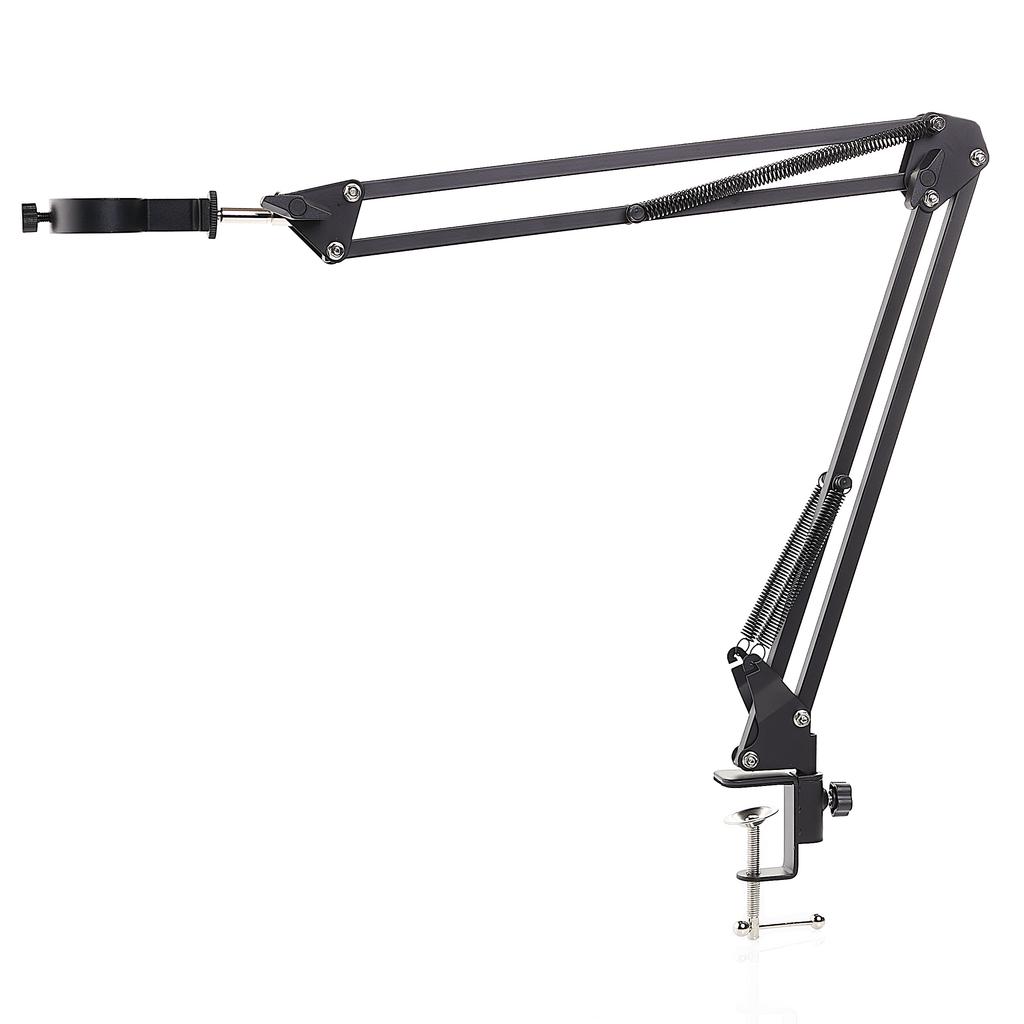

Economical microscope arm, 50mm diameter holeThe economical microscope arm has been designed with efficiency and versatility in mind. It features a central hole with a diameter of 50 mm, which allows for easy mounting of various types of microscopes, including those used in laboratories, schools, or for hobby applications. The arm is made of a durable yet lightweight material, ensuring stability and long-term usability while maintaining mobility.❇️ In this:✔️Holder with a 32 cm long arm,✔️Holder with a 50 mm diameter hole,✔️Mounting element for table installation.
❇️ Versatile table mount, designed with a focus on comfort, stability, and flexibility to meet diverse user requirements.❇️ The table model, equipped with scissor arms, is an ideal solution for those seeking optimal comfort and versatility in arranging their workspace.❇️ Possibility of installing the camera on the screw itself(diameter 6mm)❇️ Technical parameters:✔️ arm length: 32+32cm,✔️ spring stiffening: double✔️ diameter of the screw end: M5,5✔️ maximum table/worktop thickness: 50mm✔️ handle diameter: 50mm✔️ thread length: ok 10mm✔️ handle adjustment left-right: yes✔️ vertical adjustment of the threaded tip: Yes

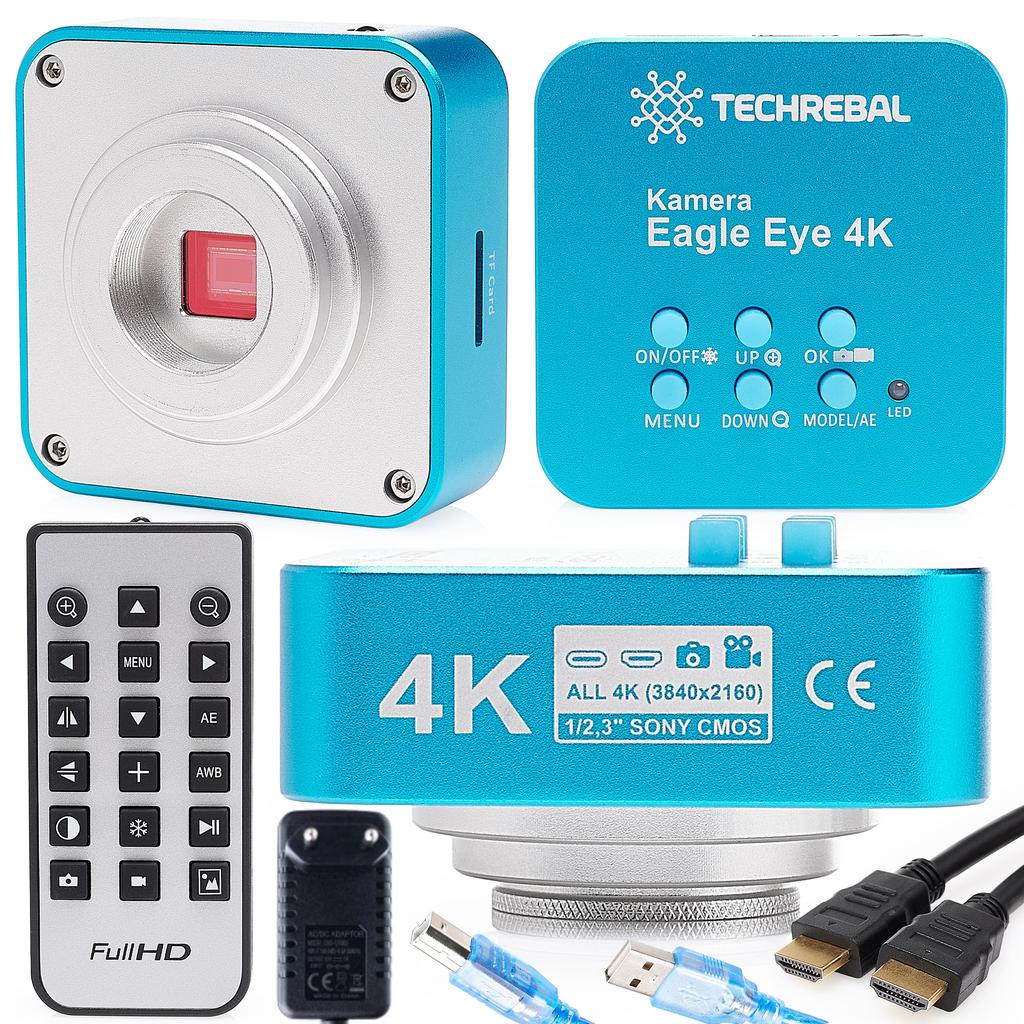

Professional Camera for Techrebal Microscope "Eeagle Eye" 4K 8MP✅ Sony Brand SensorProvides high image quality, which translates into extremely precise visualization of details necessary when working with electronics.✅ High Resolution 3840x2160Allows capturing every detail with impressive accuracy, significantly increasing efficiency during circuit inspection and diagnosis.✅ Smooth Real-Time OperationAt 30 frames in 4K and 60 frames in Full HD, it enables dynamic tracking of processes without delays, which is crucial e.g. during soldering.✅ Digital 5x magnificationProvides the ability to zoom in on the image without losing clarity, which facilitates the analysis of even the smallest components.
✅ Pixel size 2.0µm × 2.0µmAllows you to obtain a clear, sharp image without noise, which improves comfort during prolonged work for an electronics technician/service technician.✅ Dual-band USB/HDMI interfaceProvides freedom of choice for the transmission method, making it easier to adapt the device to various workstations.❇️ Technical specification:Sensor – 8MP, Sony brandEffective pixels – 3840x2160 (30 frames/s), 1920x1080 (60 frames/s)Interface – USB / HDMIOperating temperature – 0–60°CMicroSD card support – up to 64GBMenu – in EnglishMagnification – 5x digital zoomPhoto recording resolution – 3840x2160, 2560x1440, 1920x1080, 1280x720, 640x480, 424x240, 320x240Mounting thread – C-mount (25mm)Pixel size – 2.0µm × 2.0µm
56x LED Illuminator for Microscope 60mm 8W✅ Microscope light source with 56 LEDs and a dimmer.✅ Adjustable intensity using a potentiometer on the power supply.✅ Provides cool, uniform, intense, and focused illumination without shadows.✅ The ring diameter is 60mm internally and 95mm externally (it is adjusted by pressing using screws)✅ Equipped with a power supply plugged directly into the mains.✅ Ideal light source for microscopes.
✳️ Specification:✔️ Working distance: 40-160mm✔️ Maximum illumination 60,000 luxes✔️ LEDs x 56 (Very long-life diodes)✔️ Each LED with the brightness of the beads: X3500 mcd✔️ Color temperature: 5500k - 6500k✔️ Brightness continuously adjustable✔️ Bright white color✔️ Effective optical distance: 75mm✔️ Effective optical diameter: 30mm✔️ Moc: 8W✔️ Voltage: AC input 90V-240V, DC output 12V✔️Luminaire connected directly to the mains.✳️ Luminaire dimensions:✔️ External dimensions: 95 mm✔️ Inner dimensions: 60 mm✔️ Adapter thread 48 * 0.75
