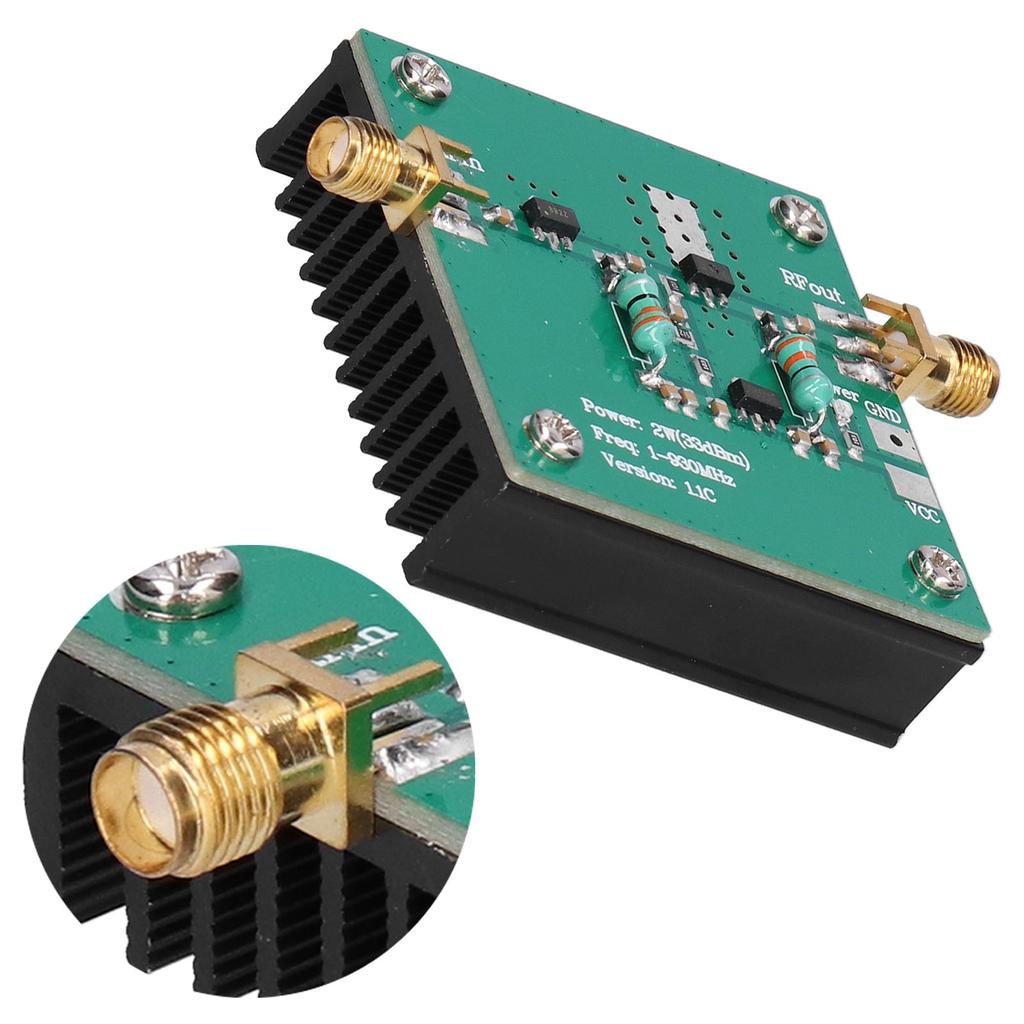

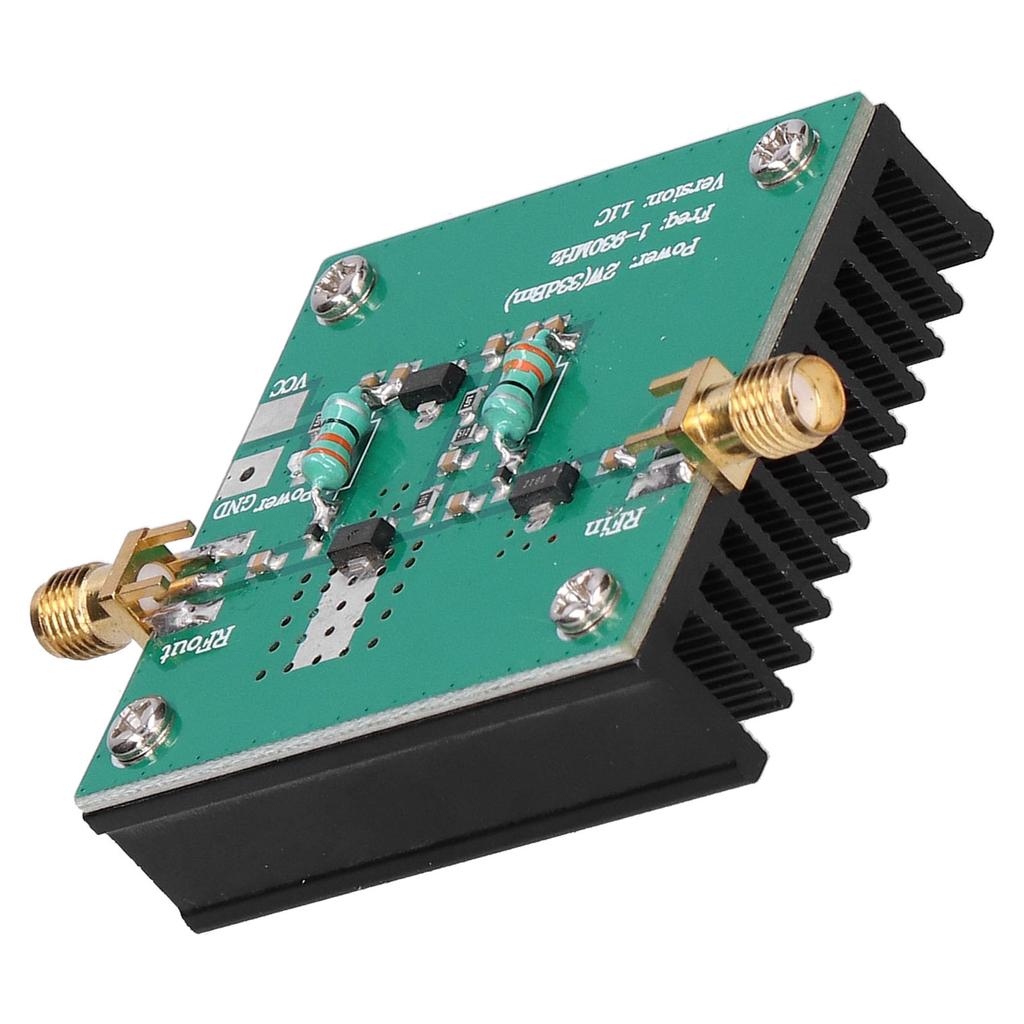

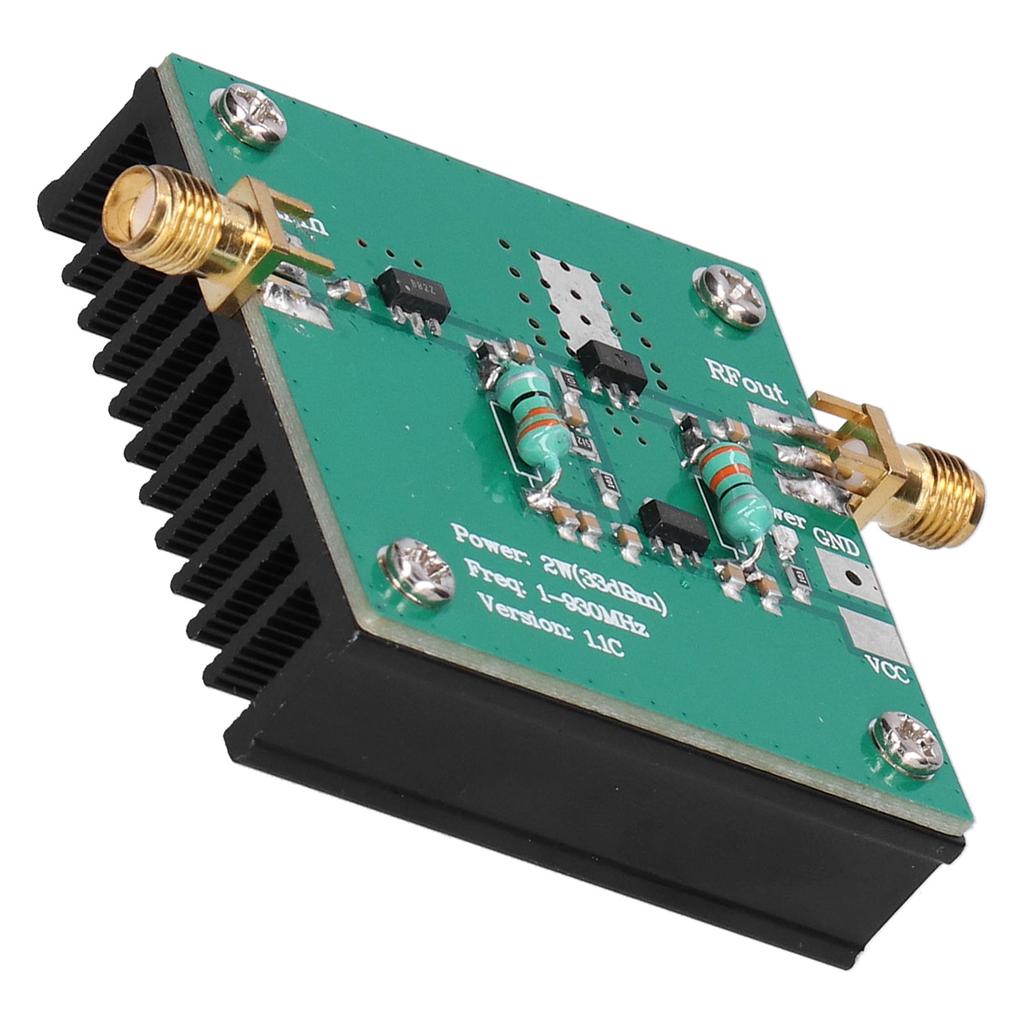

12VDC RF Power Wideband Amplifier Amplification Module 1 930MHz Working Frequency 2.0W

Feature: 1. Professional RF amplifier module, features 1‑930MHz working frequency, stable performance. 2. PCB adopts 1.6mm thick double‑sided board, full tinning process, ensures good passing of large and small currents. 3. Large heat dissipation area can better maintain long‑term operation, not easy to be damaged. 4. One‑piece molding without burrs, the surface is smooth, and the installation is convenient. 5. Manufactured according to the original production specifications, in line with strict quality standards. Specification: Item Type: Amplifier Module Material: PCB Working Frequency: 1 930MHz Input Power: 1mW (0dBm) Maximum Output: 2.0W (33dBm) Low Frequency End (10 MHz) 1.6W (32dBm) IF Frequency End (512 MHz) 1.0W (30dBm) High Frequency End (930 MHz) 0.8W (29dBm) High Frequency End (1000MHz) Working Voltage: 12V (DC) Working Current: 300 400mA (determined by output power) RF Connector: Standard SMA female. Package List: 1 x Amplifier Module Note: 1. Don t use overload.2. Do not use over‑voltage.3. Do not use over current.
