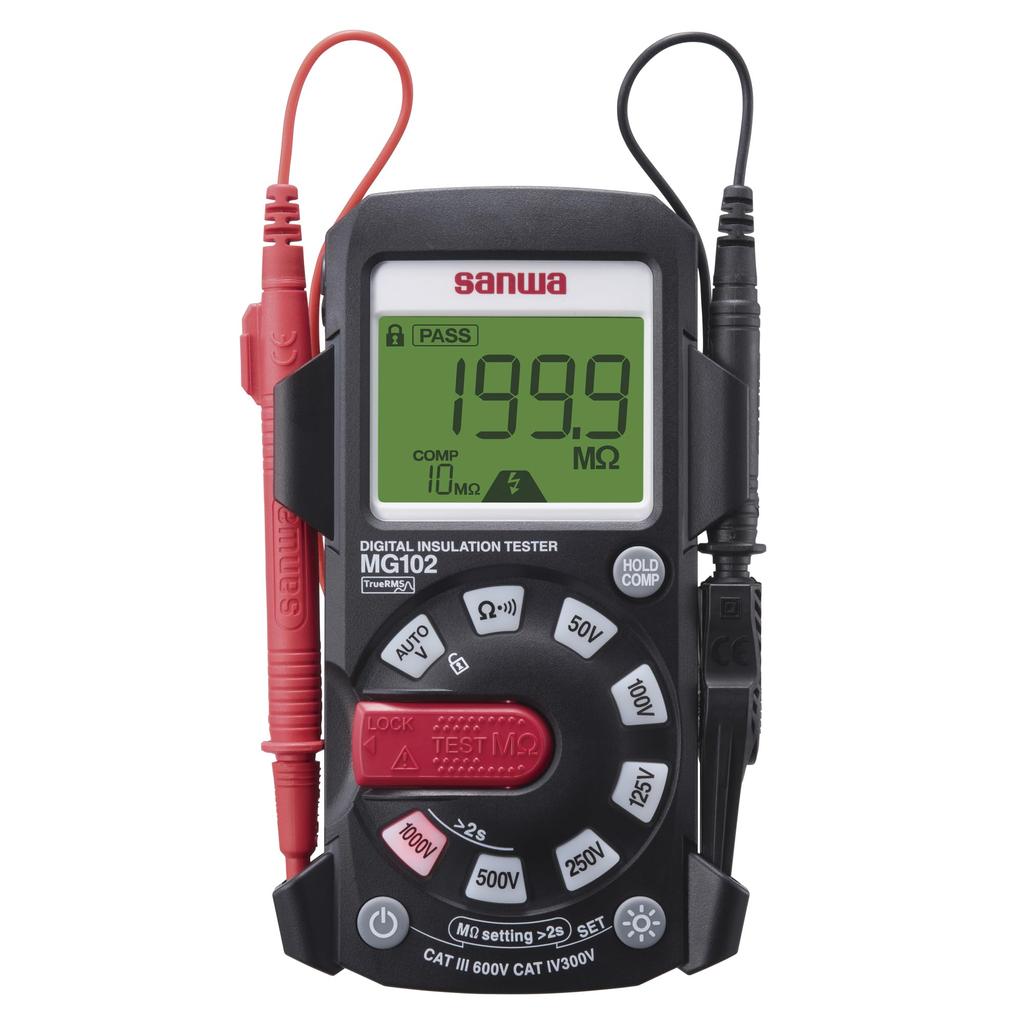

Sanwa Electric Instrument Digital Insulation Resistance Meter, 6-Range (50V / 100V / 125V / 250V / 500V / 1000V) MG102

●This instrument measures the insulation resistance of power lines and electrical equipment within the CAT.IV 300 V and CAT.III 600 V ranges. ●Used for identifying leakage circuits and managing the insulation of electrical equipment.

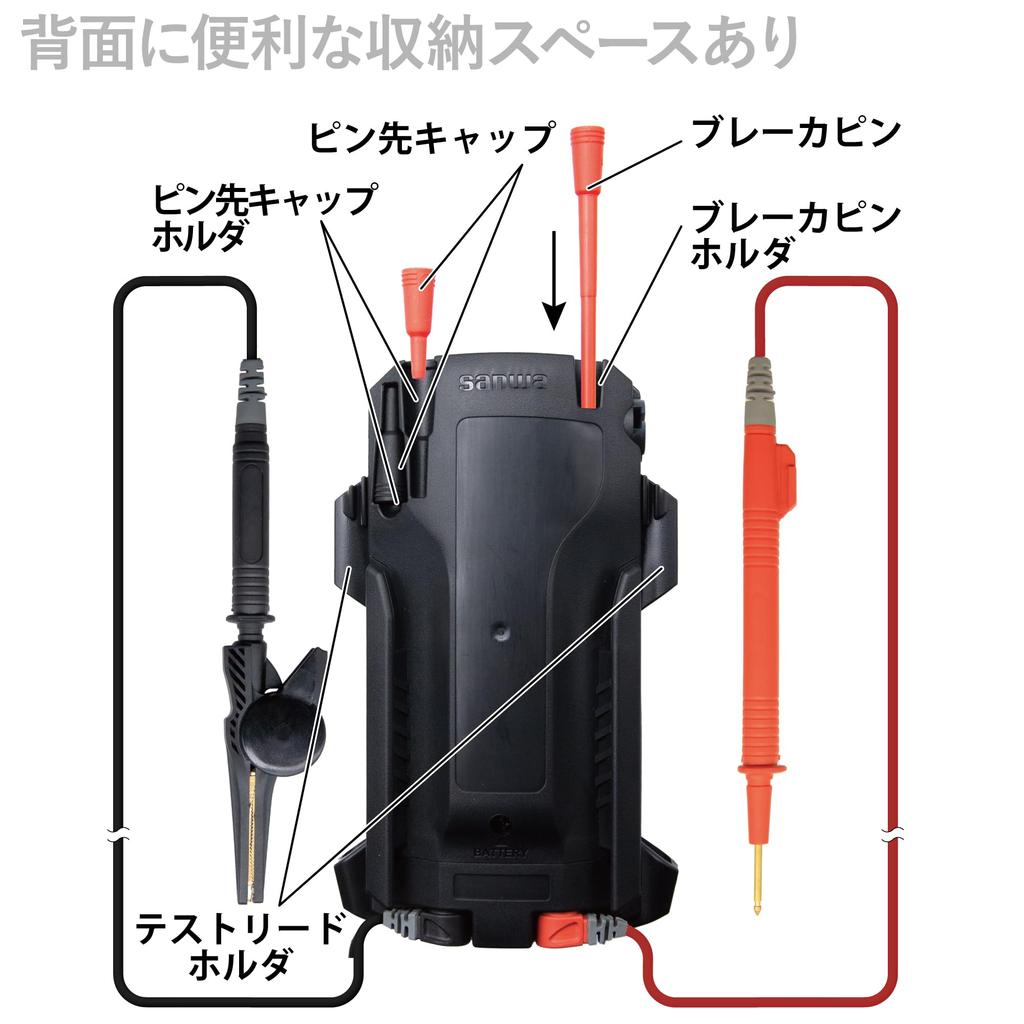

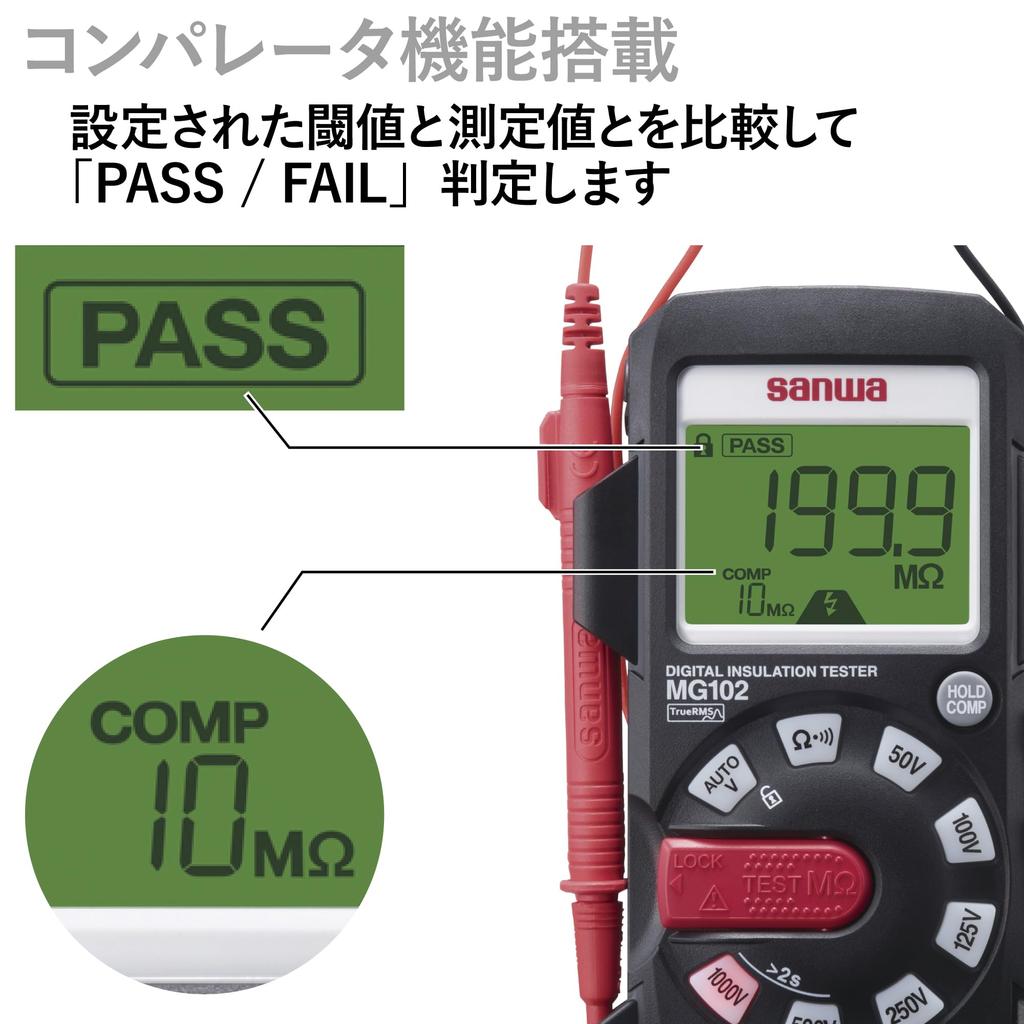

●Rated Voltage (6 ranges): 50V / 100V / 125V / 250V / 500V / 1000V ●MΩ (measurement range): 0.000M to 4000MΩ ●Rated Current: 1.0 to 1.2mA ●ACV/DCV: 600V (AC/DC automatic detection) ●AC detection method: True RMS method ●Frequency: 1999Hz ●Continuity: Sounds when approx. 30Ω or less ●Ω: 999.9kΩ ●Display: Liquid Crystal Display (LCD) ●Display: 4000 counts (MΩ), 9999 counts (V, Ω, continuity) ●Dimensions/Weight: H147 x W68 x D33 mm / Approx. 336g (excluding protrusions, including battery) ●Safety design compliant with IEC61010/IEC61557 ●Rated current 1mA when measuring insulation resistance Maintains the above specifications ● Equipped with auto-hold function (during insulation resistance measurement) ● Breaker pins are included as standard ● Equipped with comparator function (during insulation resistance measurement) ● Equipped with auto power-off function (can be disabled) ● Automatically switches to voltage measurement mode when detecting 30V or higher ● Equipped with auto-discharge function ● Automatically detects AC/DC voltage ● Unnecessary test voltage buttons can be disabled
