RF Demonstration Kit Board for NanoVNA with Vector Network Analyzer and Antenna Analyzer Test Calibration Functions

Features: This board fully integrates 18 functional modules. Comes with two UFL cables for easy use. The board is compact and lightweight, making it suitable for portable use. Each module is carefully to for ensurehigh quality and reliability. RF Demonstration Kit, RF test board, demonstration and calibration board, used for learning vector network analyzers and antenna analyzer test calibration.

Specifications: Part Name: RF Demonstration Kit Color: Blue size: As shown Material: ABS ◆ Shortwave Low-Pass Filter (LPF): 30MHz ◆ FM High-Pass Filter (HPF): 100MHz ◆ Common SAW Bandpass Filter (BPF): 433MHz ◆ BSF Video Trap: 6.5MHz, RLC series and parallel circuits ◆ Includes R, L, C, and combination circuits. Open/short circuit and load calibration. Dimming circuit.

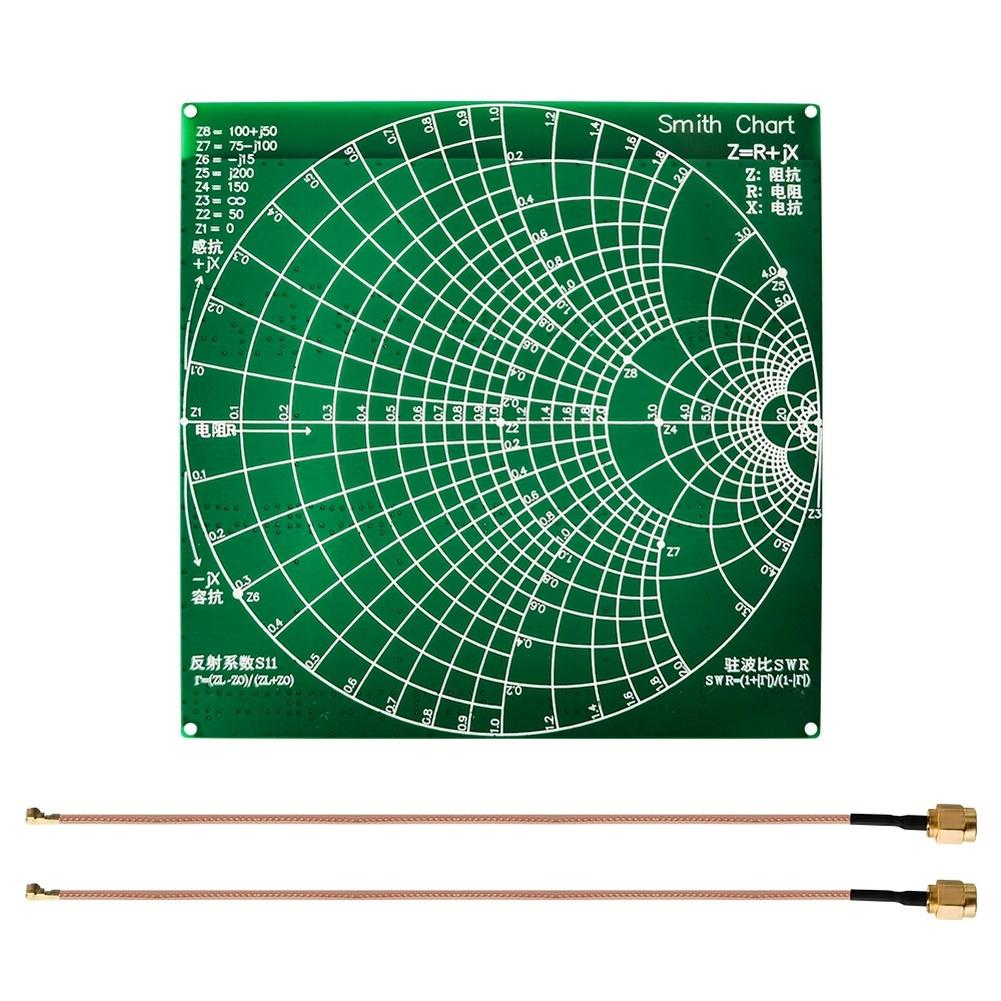

Package Contents: 1 x RF Demonstration Kit Board 2 x UFL for JumperWires

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
