Detail:
1. Built-in dual ICs detect the voltage of each battery. And remember the number of uses.
2. Each battery can be detected and protected. Overheating protection, overvoltage protection, undervoltage protection, overcurrent protection, overload protection.
3. Stable quality and shock resistance. It is the best for Partner for torque wrenches, drills and angle grinders.
4. Color: Green
5. Suitable for bl1815 5-cell lithium battery pack, bl1830 10-cell lithium battery pack and bl1860 15-cell lithium battery pack
Specifications:
(1). High discharge rate: 15A
(2). Maximum discharge current: continuous 60A, pulse a
(3). Discharge termination voltage: 13.75V
(4). Overcharge protection voltage: single cell 4.25v±0.025v
(5). Overcharge protection recovery voltage: 4.1V±0.025v
(5). Over-discharge protection voltage: single cell 2.7V±0.08v
(7). Over-discharge protection recovery voltage: single cell 3.0V±0.08v
(8). High temperature charging protection: >60℃±2℃
(9). Discharge overcurrent protection 1: ≥100A/1s delay protection
(10). Discharge overcurrent protection 2: ≥180A/100ms delay protection
(11). Short circuit protection: ≥200A
Preparation before assembly:
1. If using a new kernel, please note:
A. Must choose power lithium battery,
B. A set of six iron cores must be equipped with resistors and capacitors to for MAKe their voltages equal.
2. If the old battery is repaired, please test the voltage of each battery. If the voltage is different, charge each battery to the same voltage value.
Very important:
Before soldering the PCB, for MAKe sure each battery has the same voltage.
Package Included:

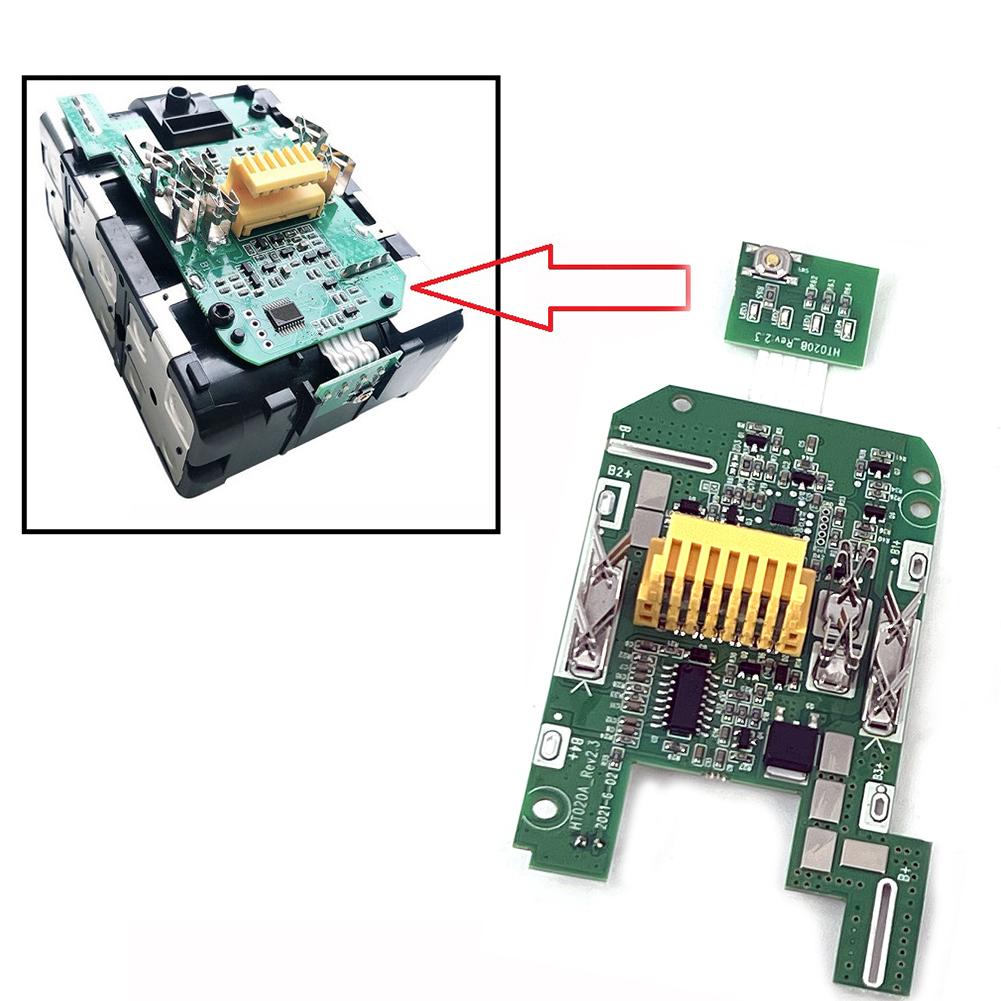

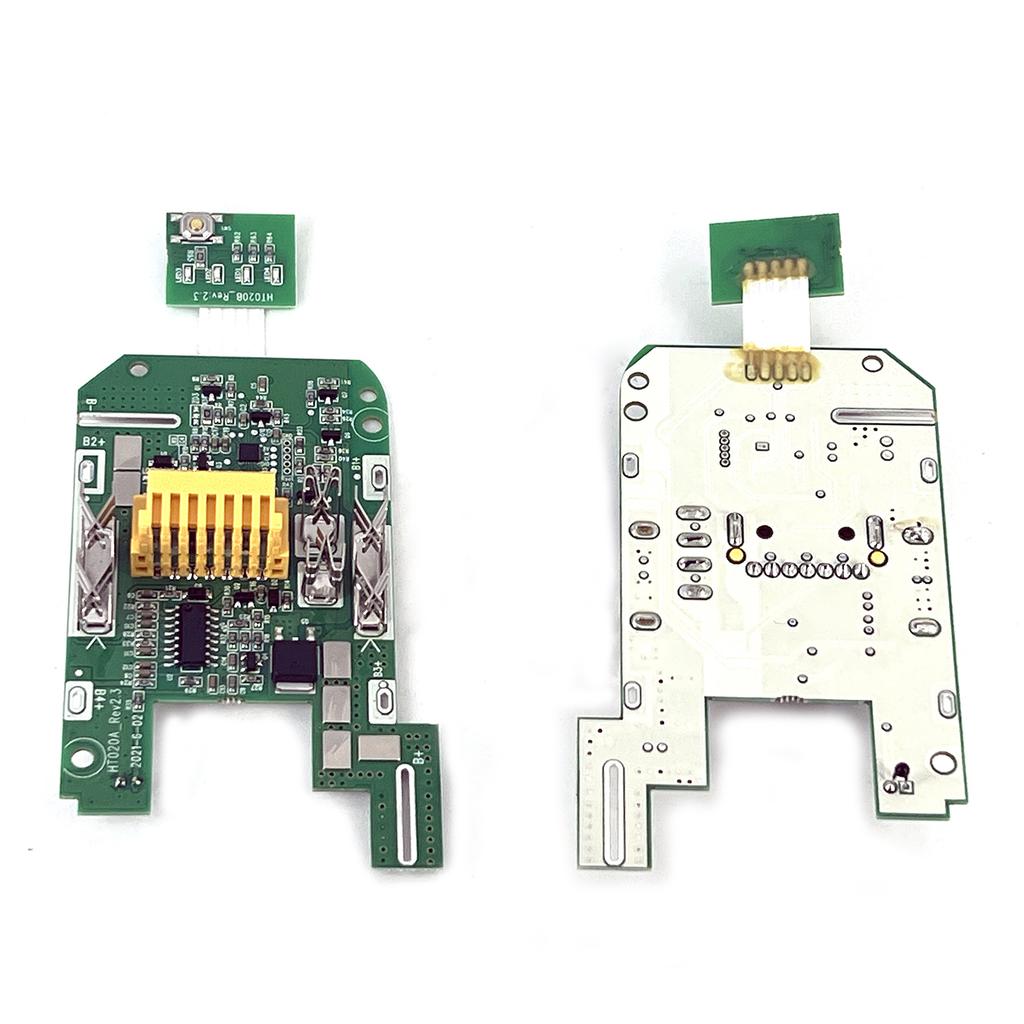

1 x PCB circuit board（Only PCB board, other accessories not included）
Tips:
Conversion: 1inch = 2.54cm, 1cm = 0.393inches
All pictures are professional colors, but due to different ambient light and display device settings, there may be some deviations between the pictures you see and the project itself. Please understand.
The data is manually measured, there may be some deviations, but it does not affect the use
