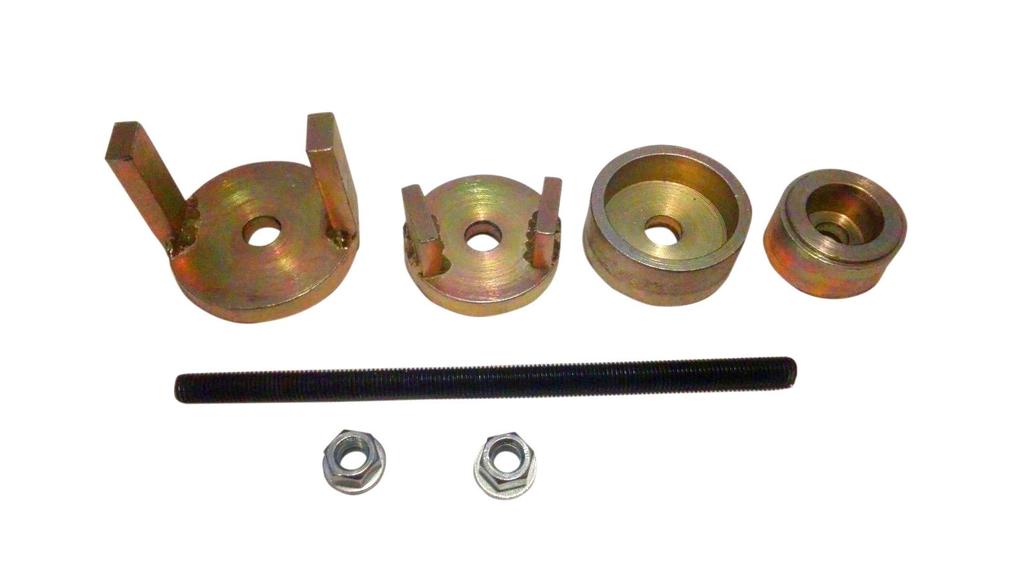

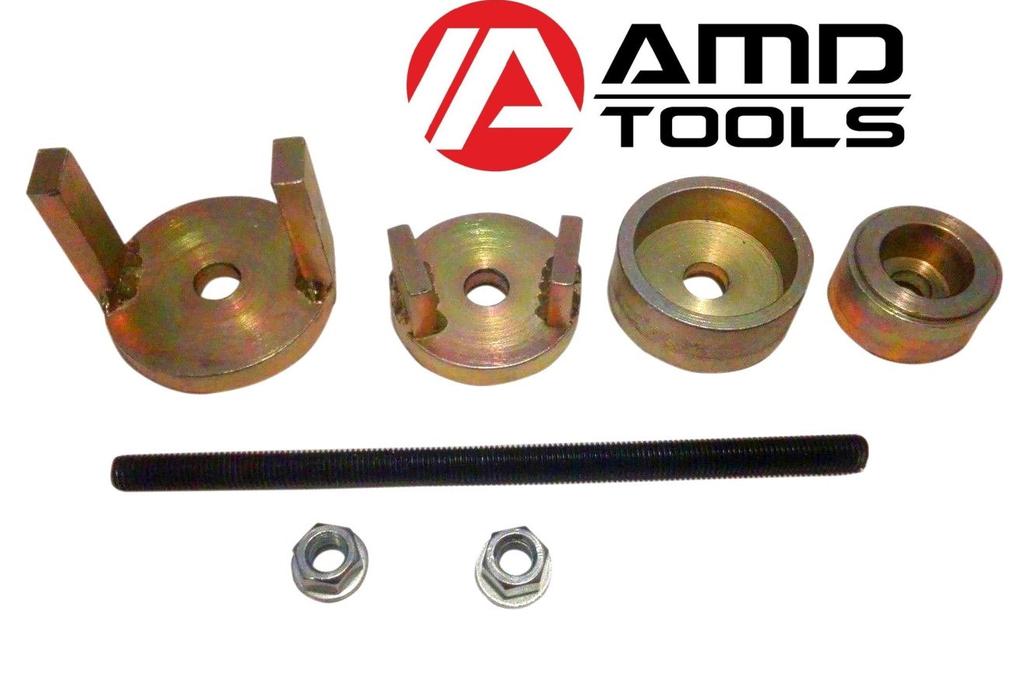

Puller for Mounting and Dismounting the Rear Control Arm Bushing TOYOTA YARIS ECHO PLATZ

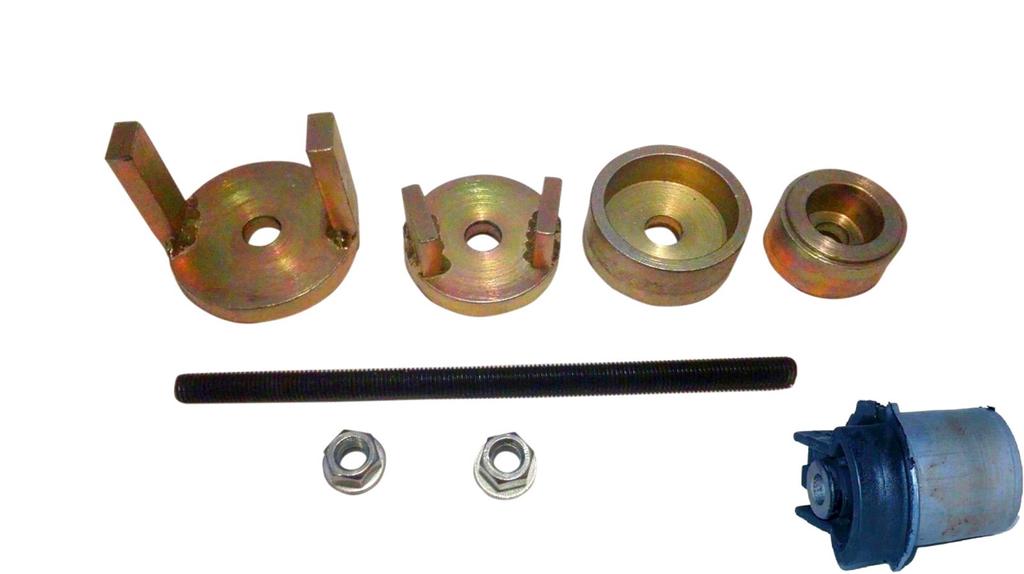

TOYOTA REAR CONTROL ARM BUSHING PULLER Puller brandAMD TOOLSUsed for installing and removing the rear control arm bushing. APPLICATION: TOYOTA ECHO NCP13 1999-2005 TOYOTA ECHO NCP12 1999-2005 TOYOTA ECHO NCP1# 1999-2005 TOYOTA ECHO SCP10 1999-2005 TOYOTA PLATZ SCP11 1999-2005 TOYOTA PLATZ NCP12 1999-2005 TOYOTA VITZ NCP1# 1999-2005 TOYOTA VITZ SCP1# 1999-2005 TOYOTA WILL VI NCP19 2000-2001 TOYOTA WILL CYPHA 2002-2005 TOYOTA YARIS SCP10 1999-2005 TOYOTA YARIS NCP1# 1999-2005 TOYOTA YARIS NLP10 1999-2005 TOYOTA IST NCP60/61 2002-2007 TOYOTA PASSO 2004-2010 GEELY MK 2006-2014 GEELY MK CROSS 2006-2014 FITS THE FOLLOWING NUMBERS BUSHINGS: TOYOTA48725-52010 GEELY 1014001675; TOYOTA 48725-52010; TOYOTA 48725-52011 TAB-433 BUSHING SHOWN FOR ILLUSTRATIVE PRESENTATION - NOT INCLUDED LUBRICATE THREADS AND WASHERS WITH GREASE Before removing the old bushing, cut off the collar of the old bushing, then use the largest and smallest adapters to remove the bushing. Use the two middle adapters to install the bushing.

Do not use electric wrenches, impact wrenches, or pneumatic wrenches. Before removing the bushing, it is necessary to remove the bushing protection. The bushing in the control arm is often very seized, so before using the puller, it is recommended to use various methods to loosen the bushings, e.g., using a torch, an impact hammer, chemicals, etc. The new bushing must be correctly seated in all directions. Make sure the socket in the control arm is free of corrosion and dirt.
