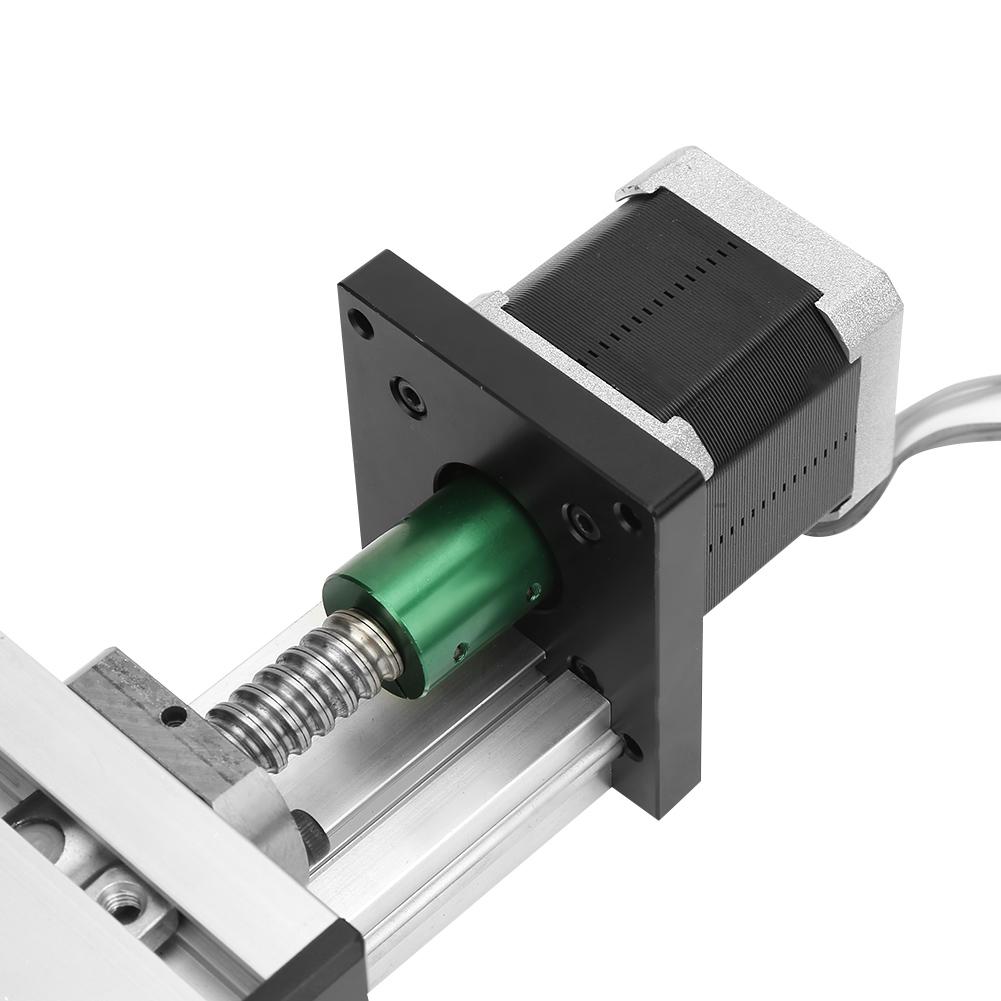

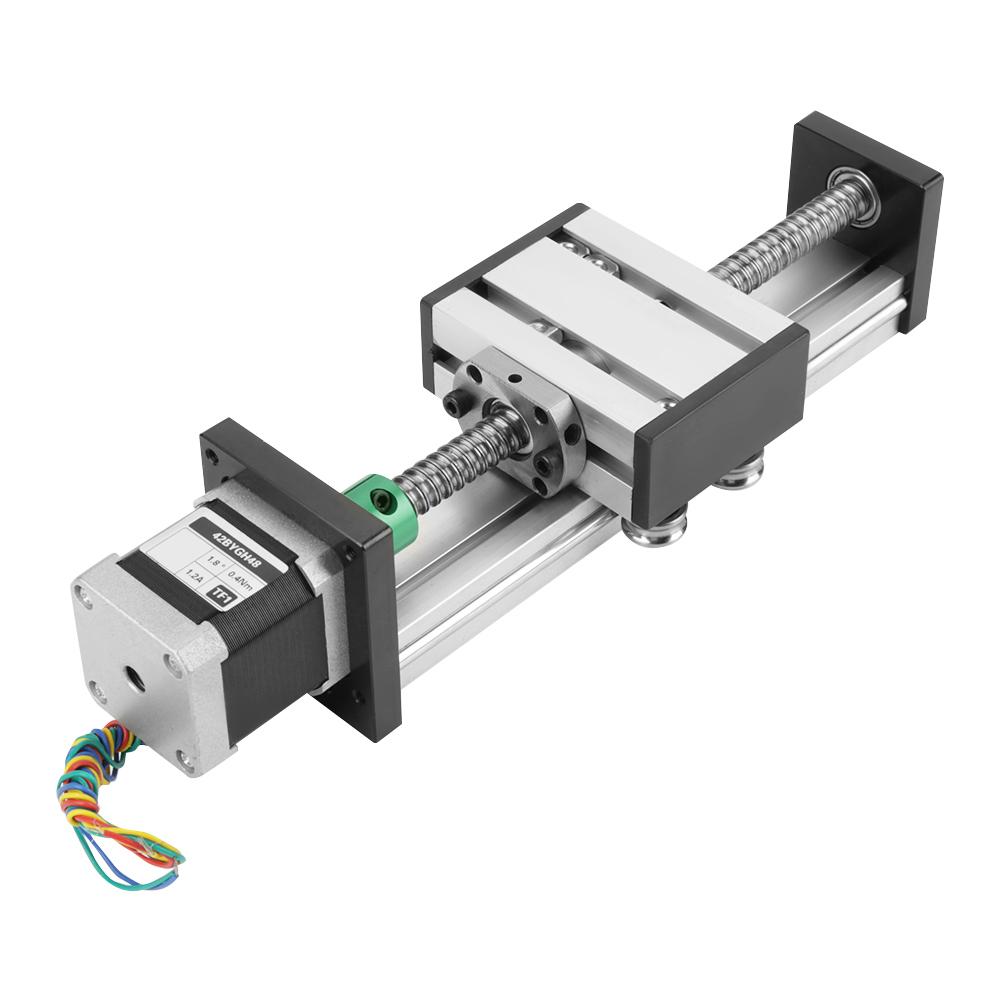

Linear Slide, Screw Slide Linear Stage Effective Stroke Single 100MM with Stepper Motor, Linear Motion Screws

Made of high quality metal with construction High , exquisite craft,

life, low coefficient of friction, high versatility Features: Made of high quality metal with construction. High , exquisite craft, .

life, low coefficient of friction, high versatility. Linear motion, with a small frictional resistance. Linear shaft Diameter is 12mmCelsius0.47inch, and the effective stroke is 100mmCelsius3.9inch. Specifications: Material: Aluminum Boundary dimension: 40mm Shaft diameter: 12mm Celsius 0.47inch Rated vertical load: 40KG Rated horizontal load: 60KG Accuracy: 0.01mm Effective stroke: 100mm Celsius 3.9inch

screw length: 165mm Sliding block: 60 x 80 x 30mm Celsius 2.36 x 3.15 x 1.18inch Pitch-row width: 68mm ( ) Pitch-row length: 60mm Screw: M6 Slide table size: 190 x 40 x 20mm Celsius 7.48 x 1.57 x 0.79inch Weight: Approx. 1432g Package Included: 1 x Screw Slide with a Stepper Motor
