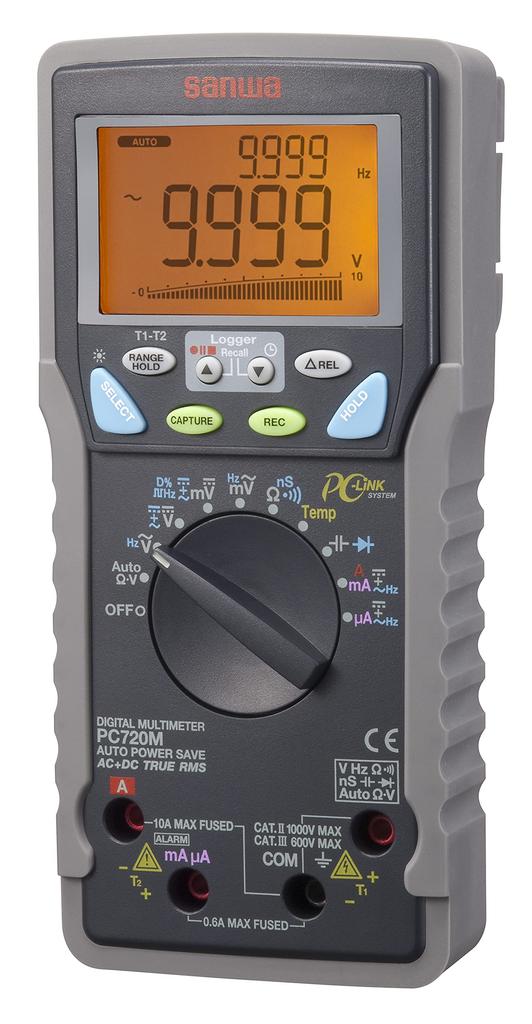

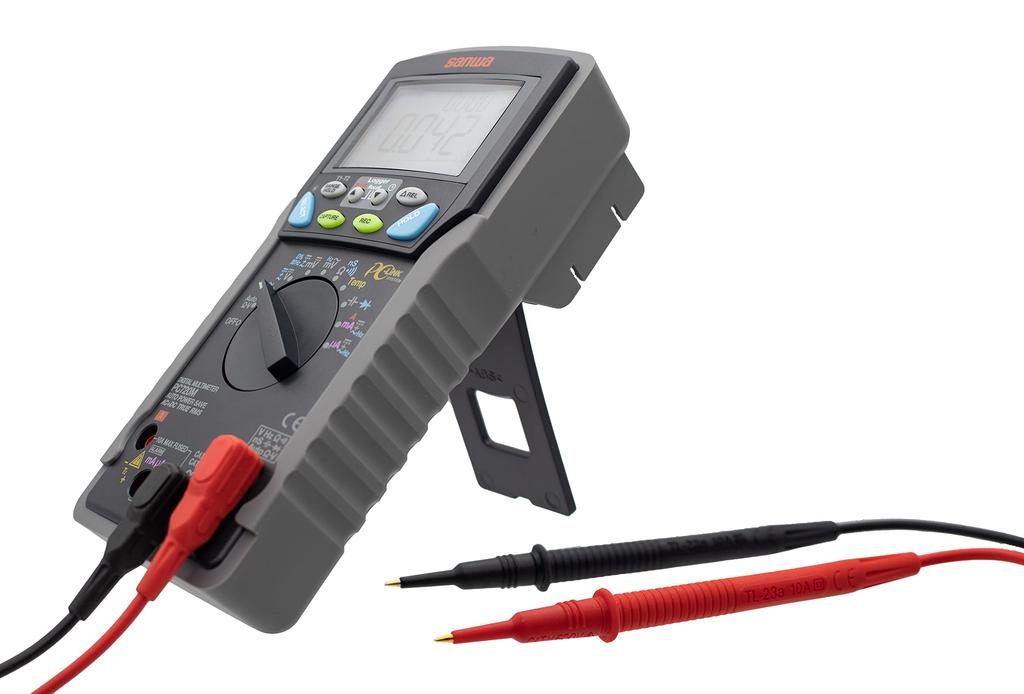

Sanwa PC720M High-Accuracy Digital Multimeter True RMS

[Product Infomation] Brand : Sanwa Materials : Plastic, Metal

[Product Description]

This digital multimeter is designed for measuring low-voltage circuits. It supports PC connectivity (optional). It has internal memory (up to 87,328 data points). It supports 6000 and 9999 counts. It supports true RMS (True RMS).

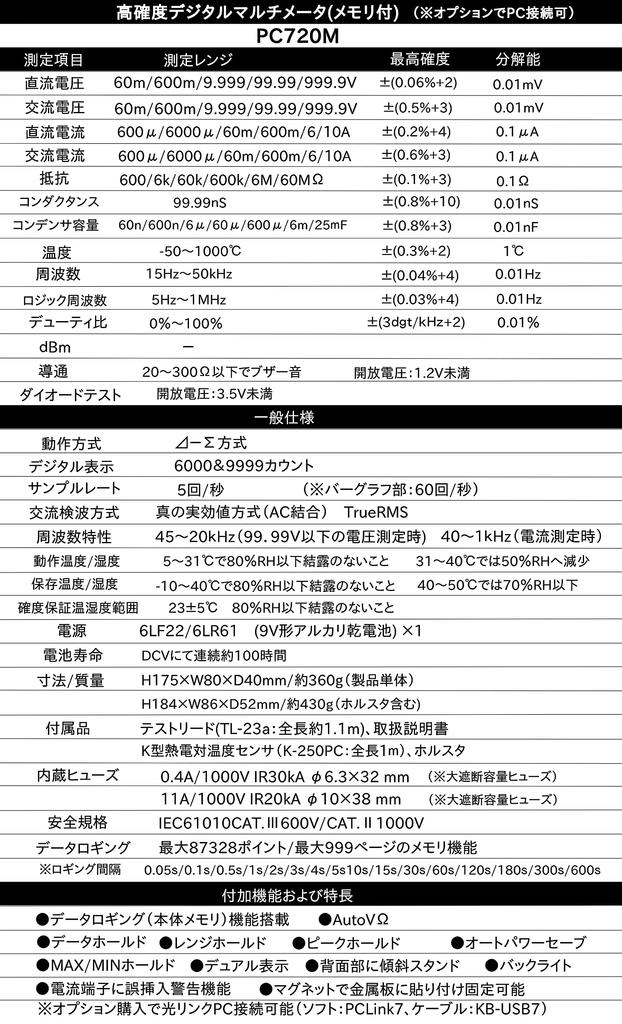

[Measurement Specifications] DCV: 60m/600m/9.999/99.99/999.9V ACV: 60m/600m/9.999/99.99/999.9V DCA : 600μ/6000μ/60m/600m/6/10A ●ACA: 600μ/6000μ/60m/600m/6/10A ●Resistance: 600/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ●Conductance: 99.99S ・●Capacitance: 60n/600n/6μ/60μ/600μ/6mΩ/25mF ●Temperature: -50 to 100 0°C ● Frequency: 15Hz to 50kHz ● Logic Frequency: 5Hz to 1MHz ● Duty Cycle: 0% to 100% ● Continuity: Buzzer sounds at 20Ω to 300Ω or less, Open-Circuit Voltage: Approx. 1.2V ● Diode Test: Open-Circuit Voltage: Approx. 3.5V ・[General Specifications] ● Display: LCD ● 6000 & 9999 counts ● AC Detection: True RMS method ● Sample Rate: Approx. 5 times/second ● Built-in Fuse: 11A/1000V 20kA φ10 x 38mm, 0.4A/1000V 30kA φ6.3 x 32mm ● Power Supply: 1 x 6LF22/6LR61 (9V alkaline battery) ● Battery Life: Approx. 100 hours (DCV continuous) ・● Dimensions/Weight (Product Only): H175 x W80 x D40mm / Approx. 360g Dimensions/Weight (with holster): H184 x W86 x D52 mm / Approx. 430 g

Product Introduction

This high-accuracy digital multimeter features built-in memory. Ideal for a variety of applications, including electrical work, electrical maintenance, and electronic circuit measurement. Connectable to a Windows PC with a separately sold option.

From Amazon

● Digital multimeter with memory designed for measuring low-voltage circuits ● Not only is it ideal for measuring small communication devices and home appliances, but its versatile additional functions make it ideal for a variety of circuit analysis and on-site stationary measurements. ● Safety design compliant with IEC 61010 ● True RMS detection (AC coupled) ● Maximum/minimum value recording function ● Peak hold function (1 ms sampling, +-250 dgt accuracy) ● Data logging function allows recording of each measurement (up to 87,328 data points/999 pages, selectable intervals: 0.05 s, 0.1 s, 0.5 s, 1 s, 2 s, 3 s, 4 s, 5 s, 10 s, 15 s, 30 s, 60 s, 120 s, 180 s, 300 s, 600 s) ● *PCLINK7 software required for data transfer to a PC

[Important Notes - For International Customers]

Thank you for purchasing this product. Please read the following important notes carefully before using this product overseas.

1. Legal and Safety Standards This product complies with Japanese safety standards. Before using this product in your country, please verify compliance with local legal and safety standards. Certain product categories (electronic devices, cosmetics, food, etc.) may require importing country certification.

2. Regarding Electrical Products [Voltage Compatibility] When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V). Using them with a different voltage may cause malfunction.

[Plug Type] Our products use Japanese plug types (Type A or Type B). Please use a conversion adapter if necessary.

[Important Notes Regarding Transformers and Adapters] A transformer adjusts the voltage to match the device's requirements. A conversion adapter only modifies the plug shape; it does not adjust the voltage. Using a conversion adapter without a transformer may damage the product.

[Liability] We are not responsible for any malfunctions or damage caused by improper use, such as operating the product without a transformer.

3. Language and Manual Product instructions and labels may only be in Japanese. You can download the English manual from our website.

4. Product Returns and Exchanges Please note that if you wish to return or exchange a product, you must submit a video of the product being unpacked.
