High bearing acity, withstand current range: 30A-300A.
device for ignition conservation, safe to use, small in size, and can greatly save installation space.
The main body of the base is made of PPS with thermal properties, which is temperature resistant and wear-resistant. The stainless steel of the studs and nuts has good conductivity and strong oxidation resistance.
Features:
High bearing acity, withstand current range: 30A-300A.
device for ignition conservation, safe to use, small in size, and can greatly save installation space.
The main body of the base is made of PPS with thermal properties, which is temperature resistant and wear-resistant. The stainless steel of the studs and nuts has good conductivity and strong oxidation resistance.
Insulating can prevent accidental short circuit, prevent dust, reduce environmental on holder performance, compact, isolation stud design.
Terminal Block is widely used in new energy vehicles, recreational vehicles, ships, cranes, batteries, charging piles, etc.
Specifications:

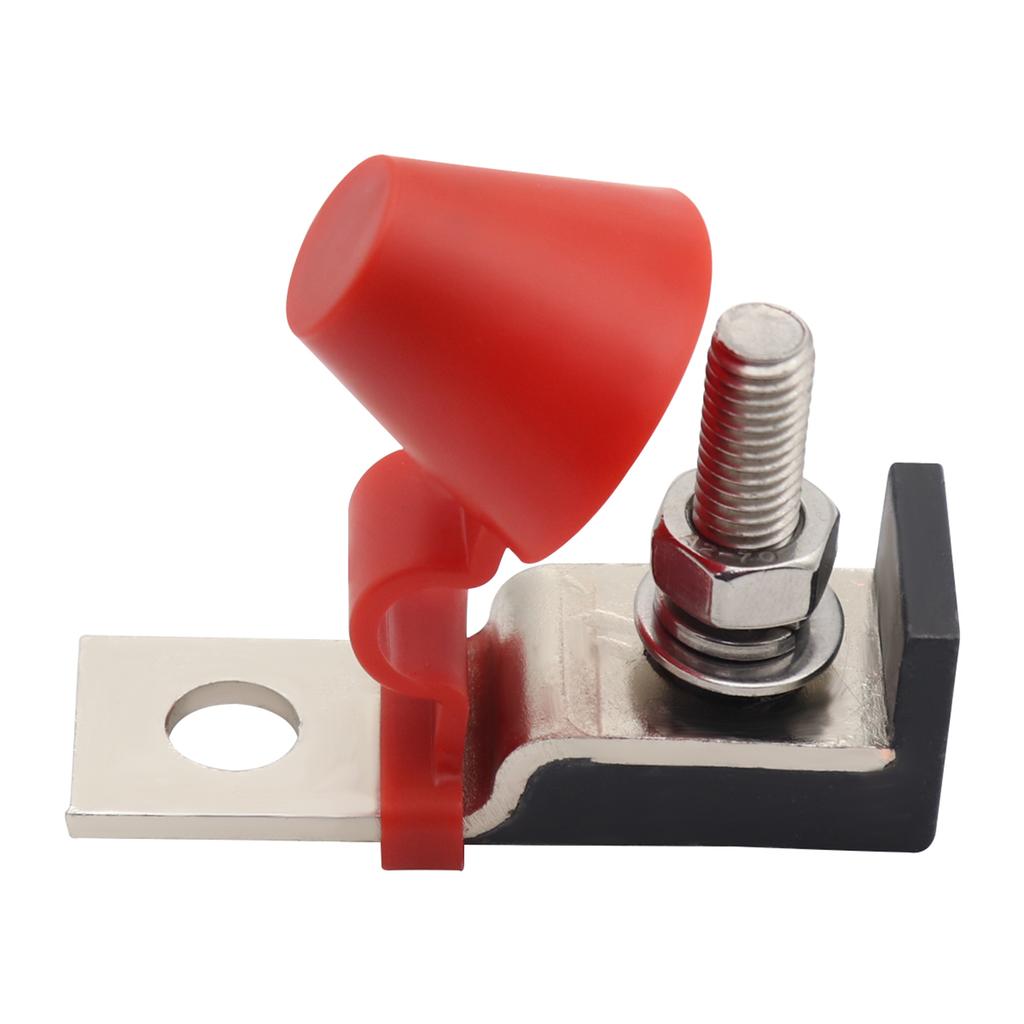

Item: Terminal Block
Color: Red, Silver
Material: by PVC, 94V0 Grade
Base by PPS, 94V0 Grade
Stud by Stainless Steel
Conductive by Red , Copper Tin Plating
Voltage Maximum Operating: 58Vdc
Amperage Maximum Operating: 300A
Maximum : 75 in-lbs (8.47Nm)
Terminal Stud Size: M8 (5Celsius16inch)
Type: Cerlmlc Termlnal
Hi-amp Battery Available 50-300Amps
Size: 6.2*2*4.5cm
Package Size: 7*5*3cm
Package Weight: 65g
Package List:
1* Terminal Block
