Voice Dance Smart Robot for Kids Children Gifts ALEXA Interactive Education Programable Wifi AI Electron Robots English Version

1. Robot appearance specification

（1）Height: 111*188*94mm

（2）Color: main part white + gray;

（3）Weight: 0.35kg

（4）Shell material: ABS

2、Audio

（1）Speaker: a total of 1, 3W

（2）Microphone: 1 in total, supporting voice wake-up and interrupt wake-up

3、Lighting: 2 sets of eye lights, red, green and blue, which can be combined into powder, green, yellow and white, with a total of 7 colors

4、CPU:XR872kernel ARM Cortex-M4F frequency 384MHz

5、WIFI: IEEE 802.11b/g/nOnly 2.4G frequency is supported

1、Kinematic parameters of joint mechanism (a total of 8 degrees of freedom):

（1）Neck joint:

A、 1 degree of freedom

B、Torque angle range: left and right 180 °

（2）Arm joints: 1 degree of freedom on the left and 1 degree of freedom on the right

A、Forward arm lifting: 0-145 °, backward arm swinging: 0-145 °

（3）Lumbar joint: 1 degree of freedom A、Range of waist twisting angle: left and right 60 ° （4）Hip joint: 1 degree of freedom on the left and right A、Torsion angle range: left and right 40 ° （5）Bare joint: 1 degree of freedom A、Angle range of rollover feet: 90 degrees inward and 20 degrees outward

2、Charging interface:：

（1）USB TYPE-C

（2）Charging parameters：5V 800mA

3、Battery parameters:

（1）Voltage: 3.7V

（2）Rated capacity: 1700mAH

4、Working hours:

（1）Working time: ≥ 2H

（2）Standby time: ≥ 8H

（3）Charging time: 3H

Ⅱ、Product functions:

1、Programming Education: visual graphic programming, DIY various movements and dance music, teaching aids suitable for steam Education

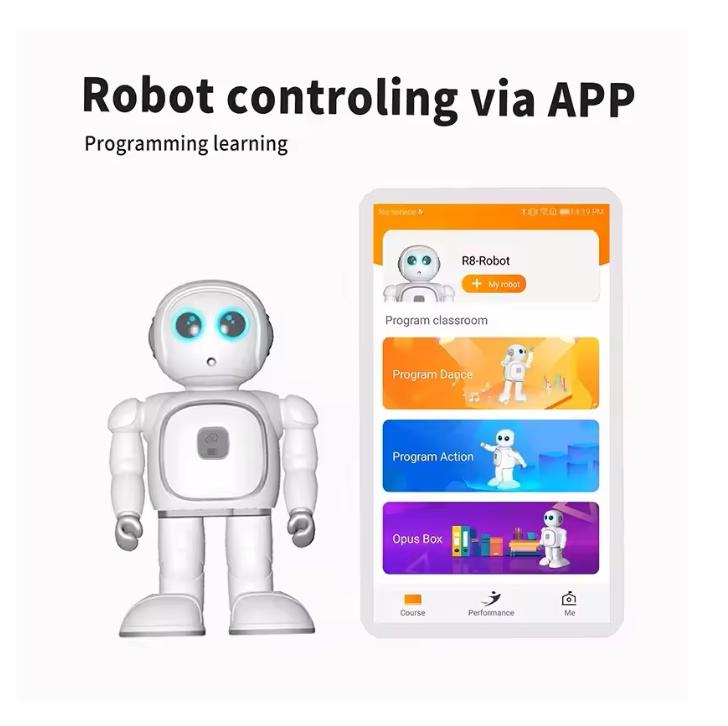

2、Mobile phone control: it can realize dance programming, action programming, group dance control and product publicity through robots

3、Intelligent dialogue: a full voice intelligent interactive system based on artificial intelligence, deep learning, big data and other cutting-edge technologies, which realizes human-computer interaction and issues relevant instructions for robots to execute

4、Intelligent companionship: intelligent enlightenment, learning guidance, intelligent micro chat, understand children's ideas, and be children's good friends

5、Group dance: more than 10 (including 10), group dance control can be realized through robot app, and dance can be switched at will

6、intelligent voice control: voice wake up, voice control, at any time to switch to listen to the content, such as singing and telling stories. Optimize child speech recognition for children, understand what the child says, and give interesting responses

7、Intelligent reminder: parents can set time and intimate reminders of events to help children develop good work and rest habits and become their intimate life partners

8、Multilingual translation: it can be translated into different languages
