Description:
- Made of high quality material ensures high pressure resistance and a long service life.
- Recommended tubing material: Polyurethane, Nylon, Polyethylene, Polypropylene.
- Quick and simple installation, no special tools required.
- All tube thread pre-coated polytef leakproof gum, with excellent sealing property.
- One-touch release button(blue parts on each side), easy to assemble and disassemble.
Specification:
- Materies: polyvinyl chloride for body part, stainless steel for clamp spring.
- Working Pressure: 0-1MPa
- Pressure Resistance: 1.5Mpa
- Size:
- 4mm Size(L×Outer Dia.×Inner Dia.): approx.32×11×4mm/1.26×0.43×0.16inch
- 6mm Size(L×Outer Dia.×Inner Dia.): approx.33×13×6mm/1.30×0.51×0.24inch
- 8mm Size(L×Outer Dia.×Inner Dia.): approx.37×15×8mm/1.46×0.59×0.31inch
- 10mm Size(L×Outer Dia.×Inner Dia.): approx.42.5×18×10mm/1.67×0.71×0.39inch
- 12mm Size(L×Outer Dia.×Inner Dia.): approx.48×21×12mm/1.89×0.83×0.47inch
- 14mm Size (L×Outer Dia.×Inner Dia.): approx.49.5×25.5×14mm×/1.95×1×0.55inch
- 16mm Size (L×Outer Dia.×Inner Dia.): approx.48×26×16mm/1.89×/1.02×0.63inch
Package Includes:

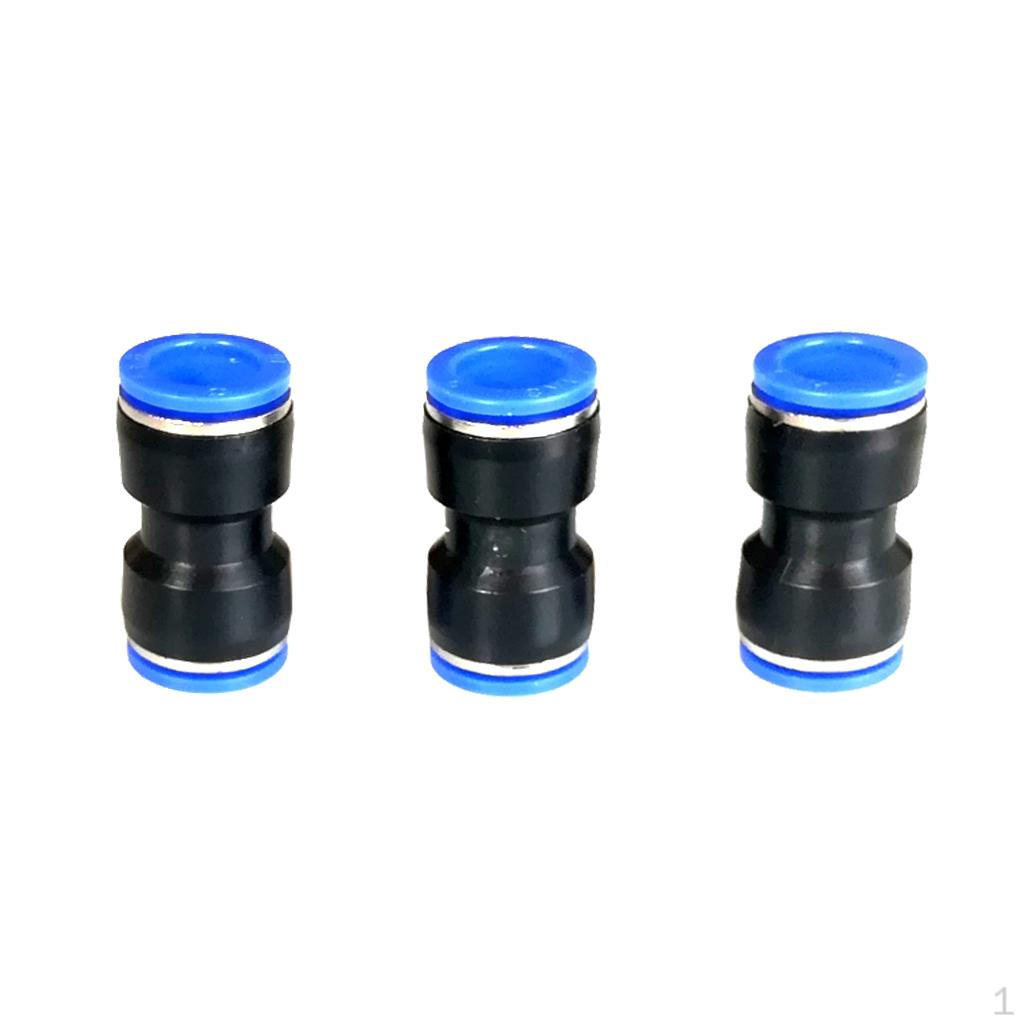

3pcs pneumatic connectors
Note:
Color maybe slightly different due to different monitor.
The above size is measured by hand, please allow slightly difference.
No-delivery refund
