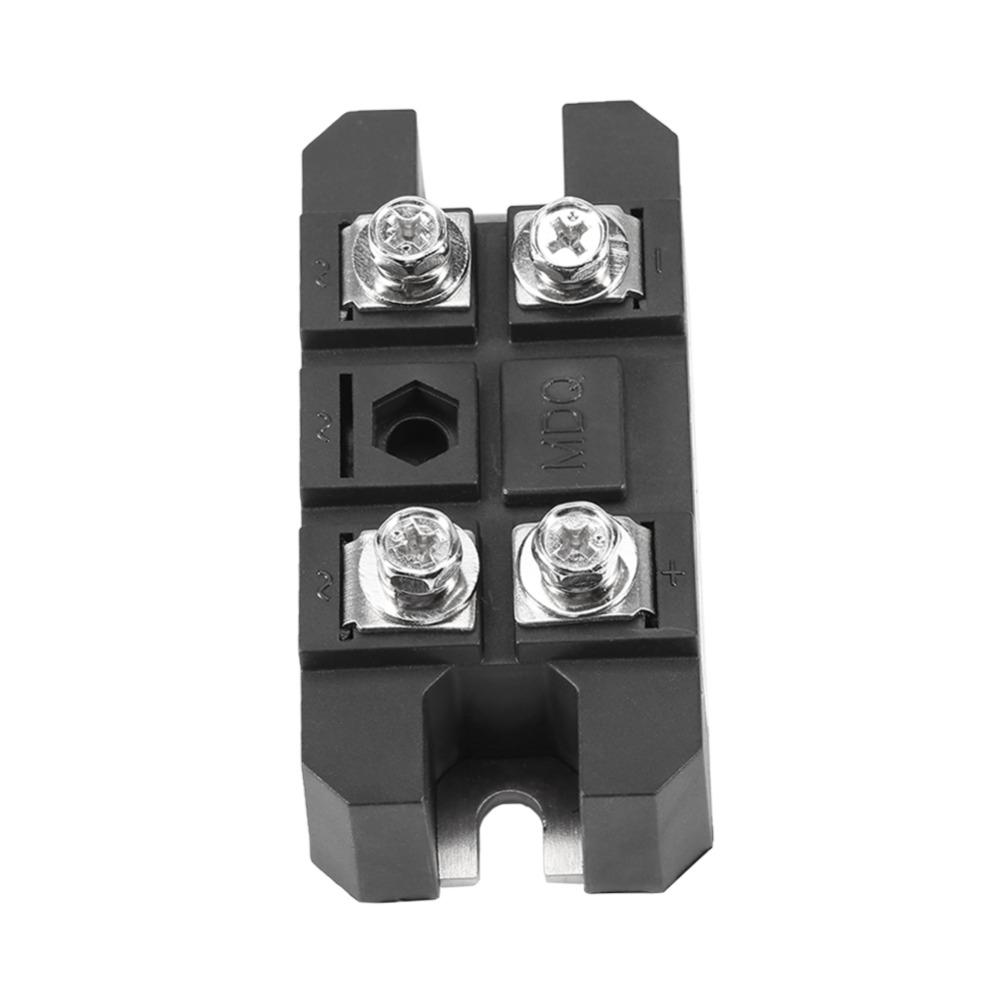

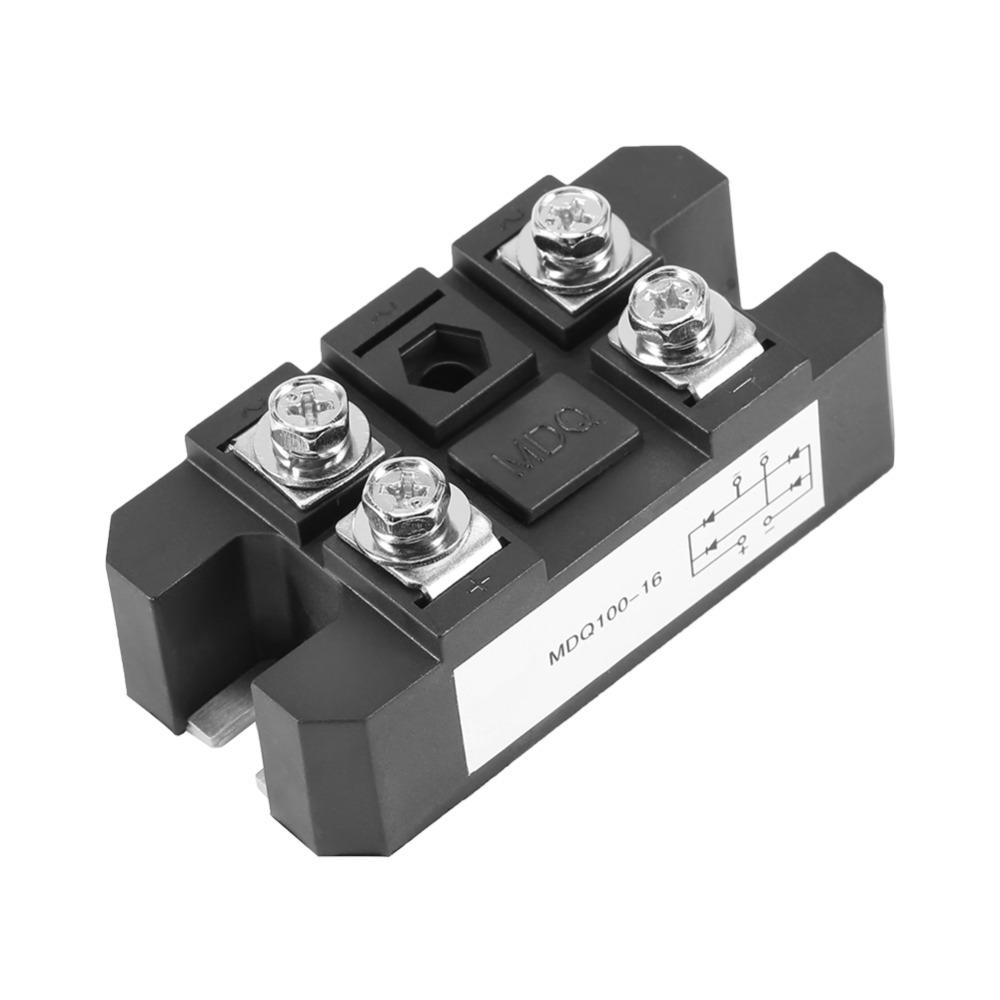

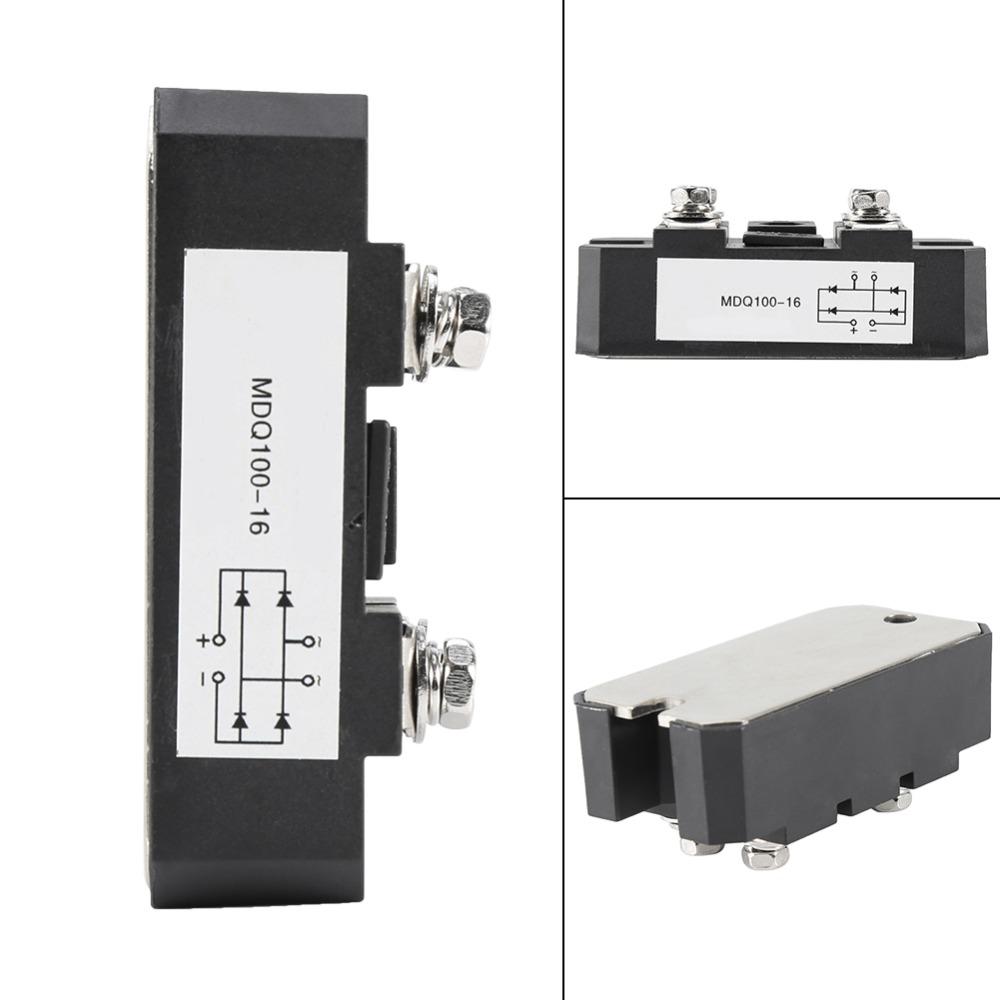

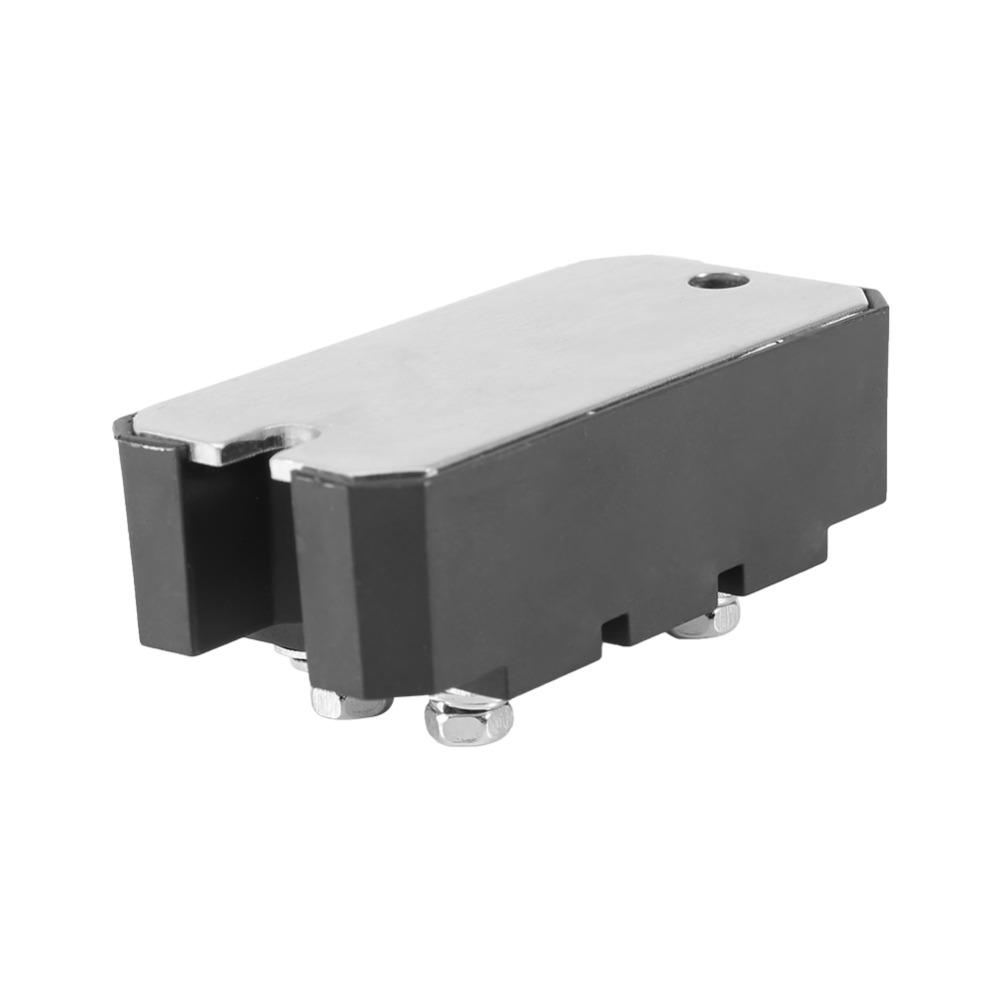

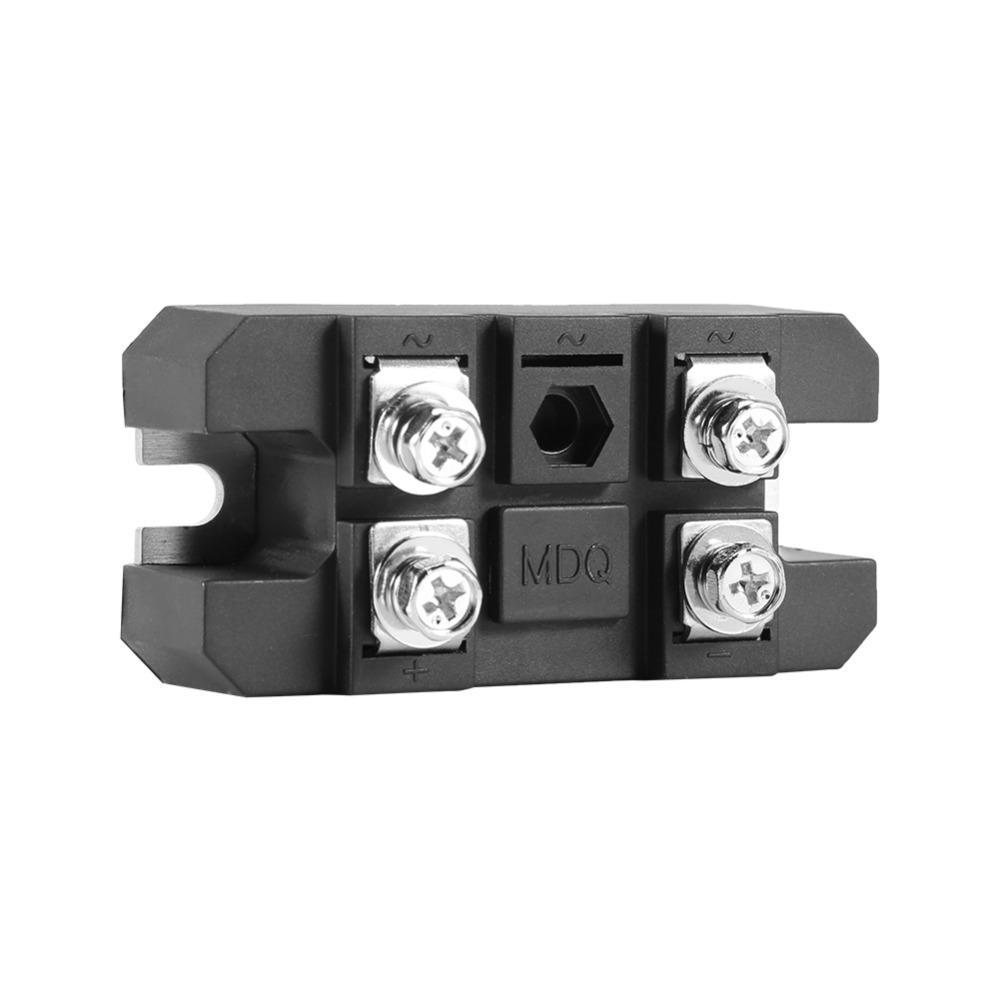

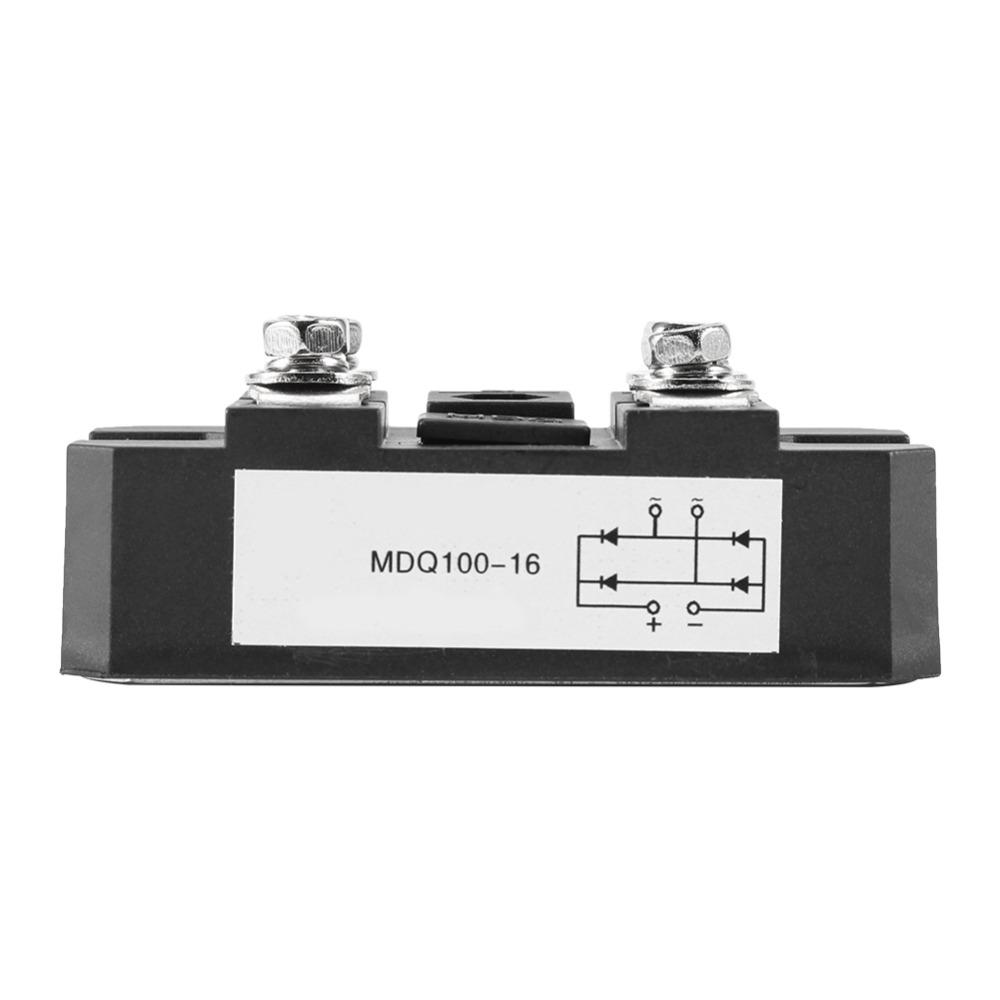

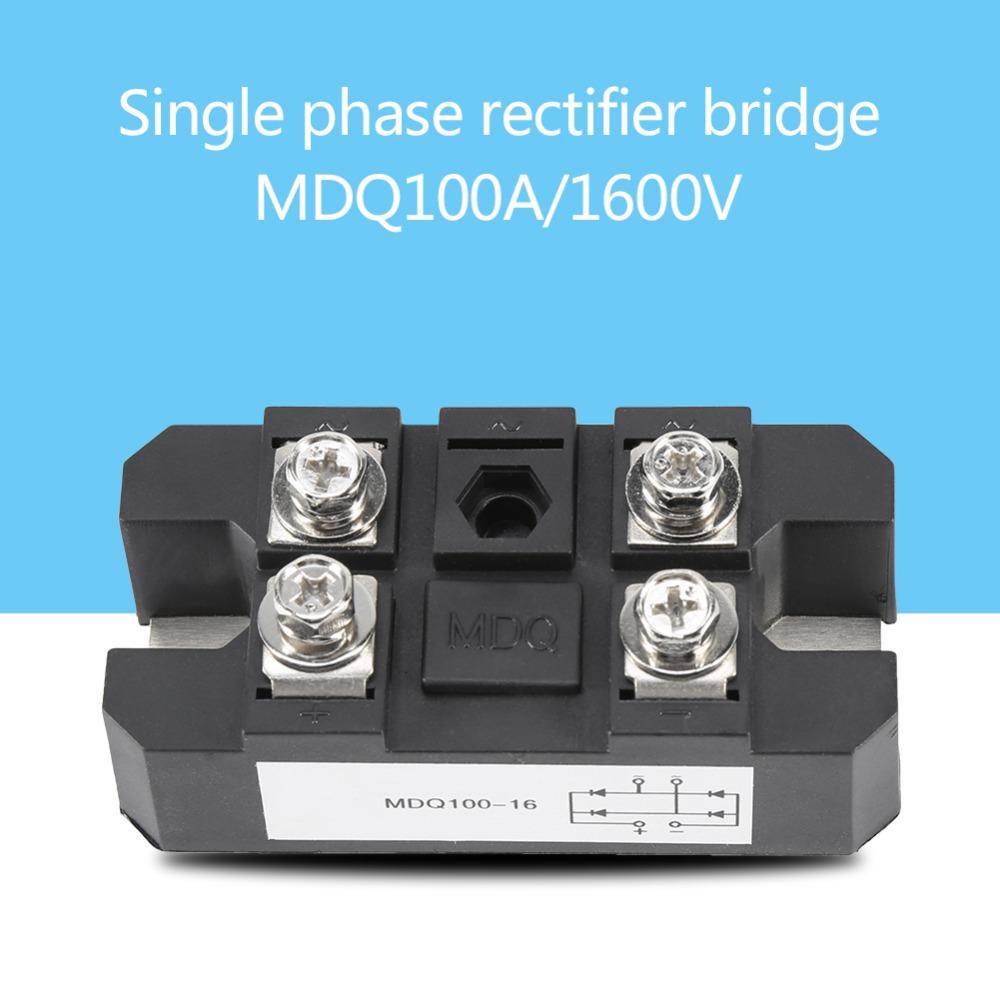

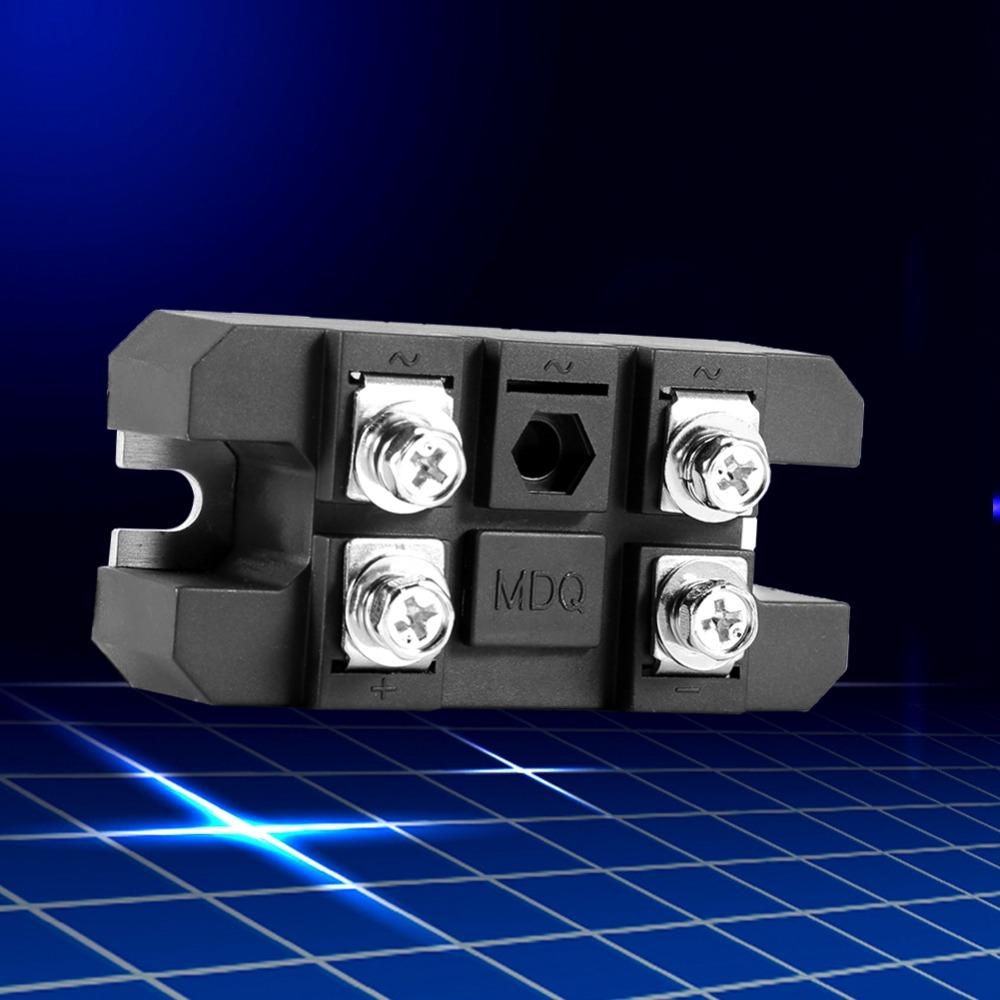

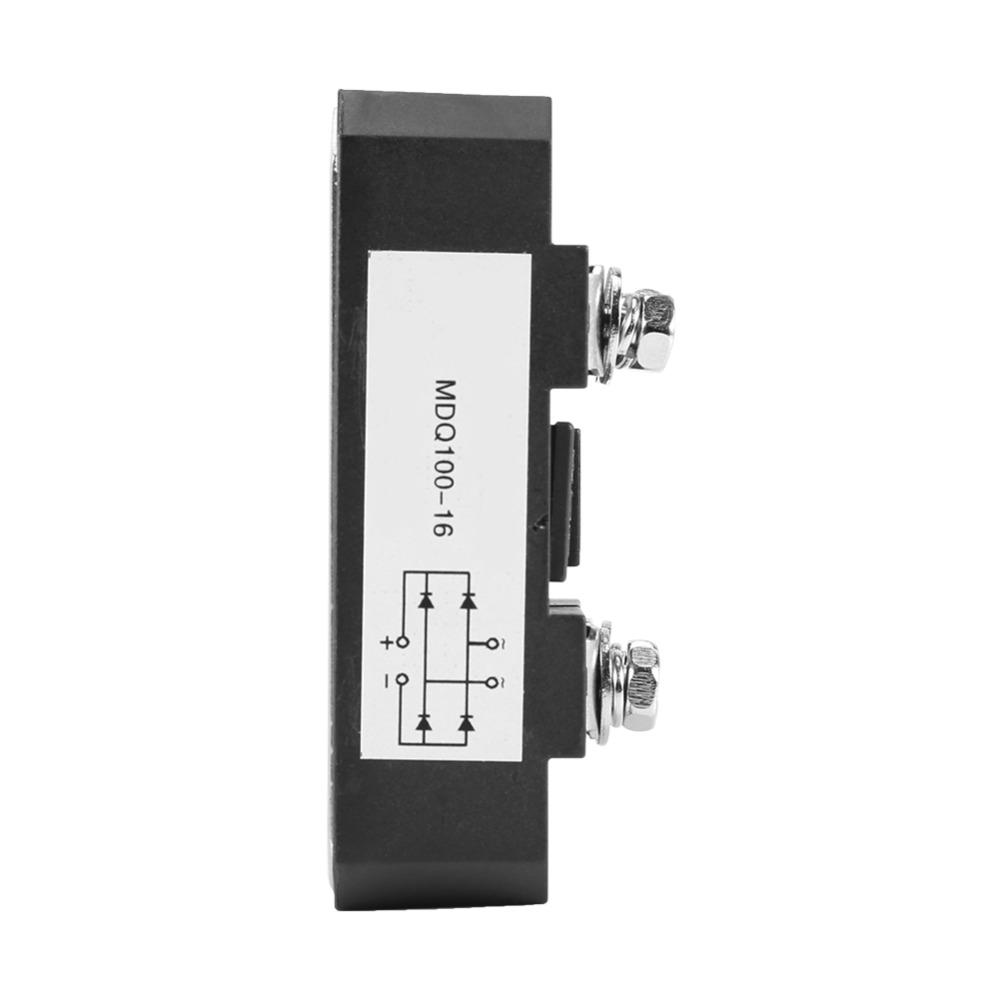

High Power Diode Bridge Rectifier MDQ100A/1600V Commutator Module Electronic Circuits

Label:Yes 3. Performance Features:It offers a high over-current capacity, efficient heat dissipation, and a low forward voltage drop. 4. High-Power Component:Built as a high-power bridge rectifier, it is suitable for various power supply applications. 1. Function & Construction:This bridge rectifier is designed to convert alternating current (AC) input into direct current (DC) output. Its welded structure is engineered to withstand repeated temperature and power cycling for stable operations. 2. Electrical Specifications:Designed for single-phase rectification, it has a DC output current rating of 100A. 5. Typical Applications:Commonly used in power supply circuits and other applications requiring AC-to-DC conversion.

Specifications: Output Current: 100A Phase: Single Phase Terminals: 4 Three PhaseInput PositiveAverage Current: 35A Isolation Voltage(Viso): 2500VAC Repetitive Maximum Reverse Voltage(VRRM): 1600V Repetitive Maximum Inverse Current(IRRM): 9mA VTM: 1.45V ITM: 100A Maximum Junction Temperature: 150℃ Size: 78x 40 x 35mm/ 3.07 x 1.57 x 1.37" Color: Black

Package Includes: 1 x Bridge Rectifier

Note: 1. Due to the difference between different monitors, the picture may not reflect the actual color of the item. 2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
