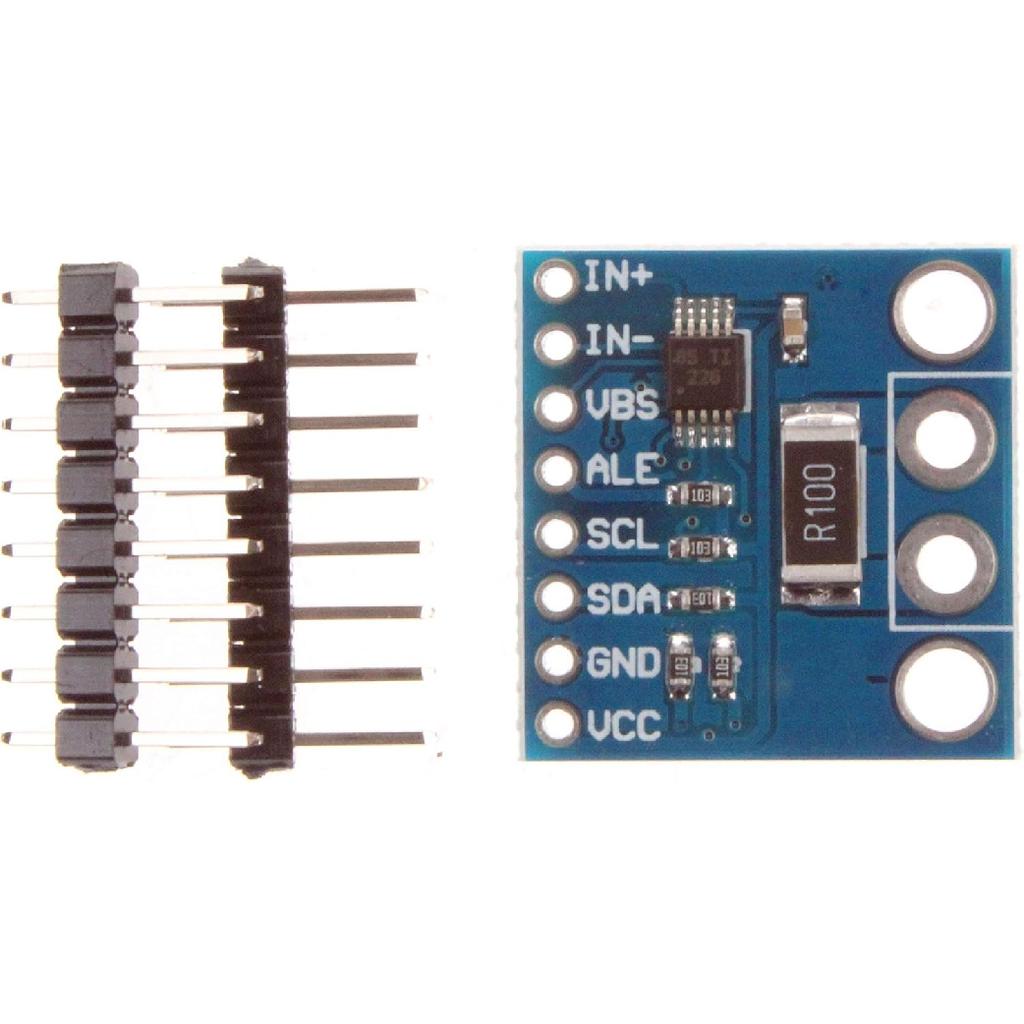

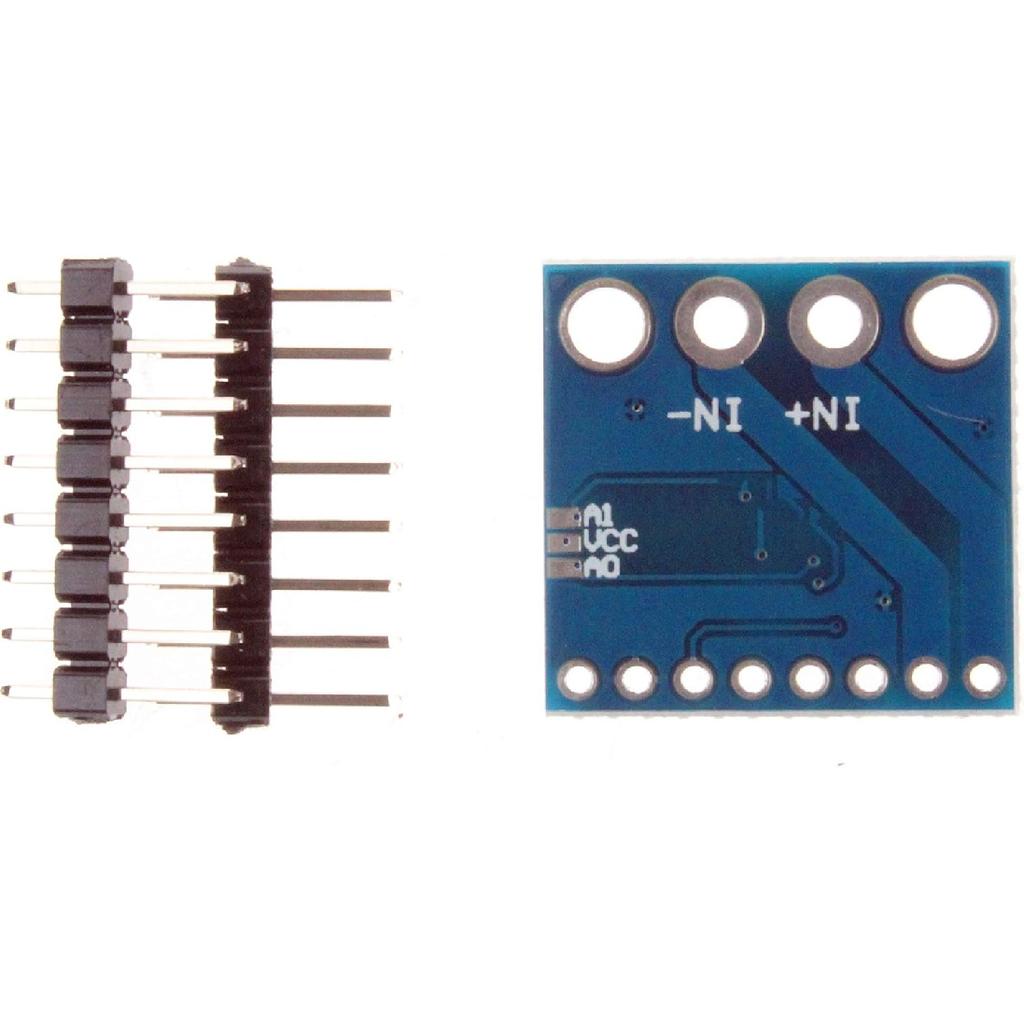

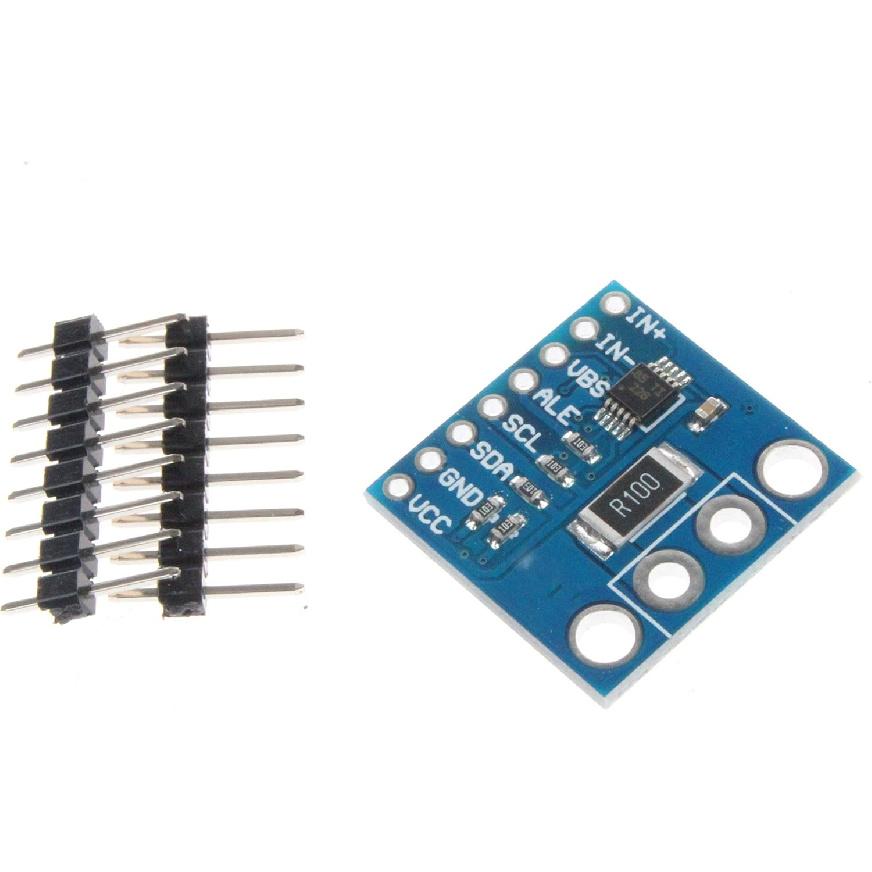

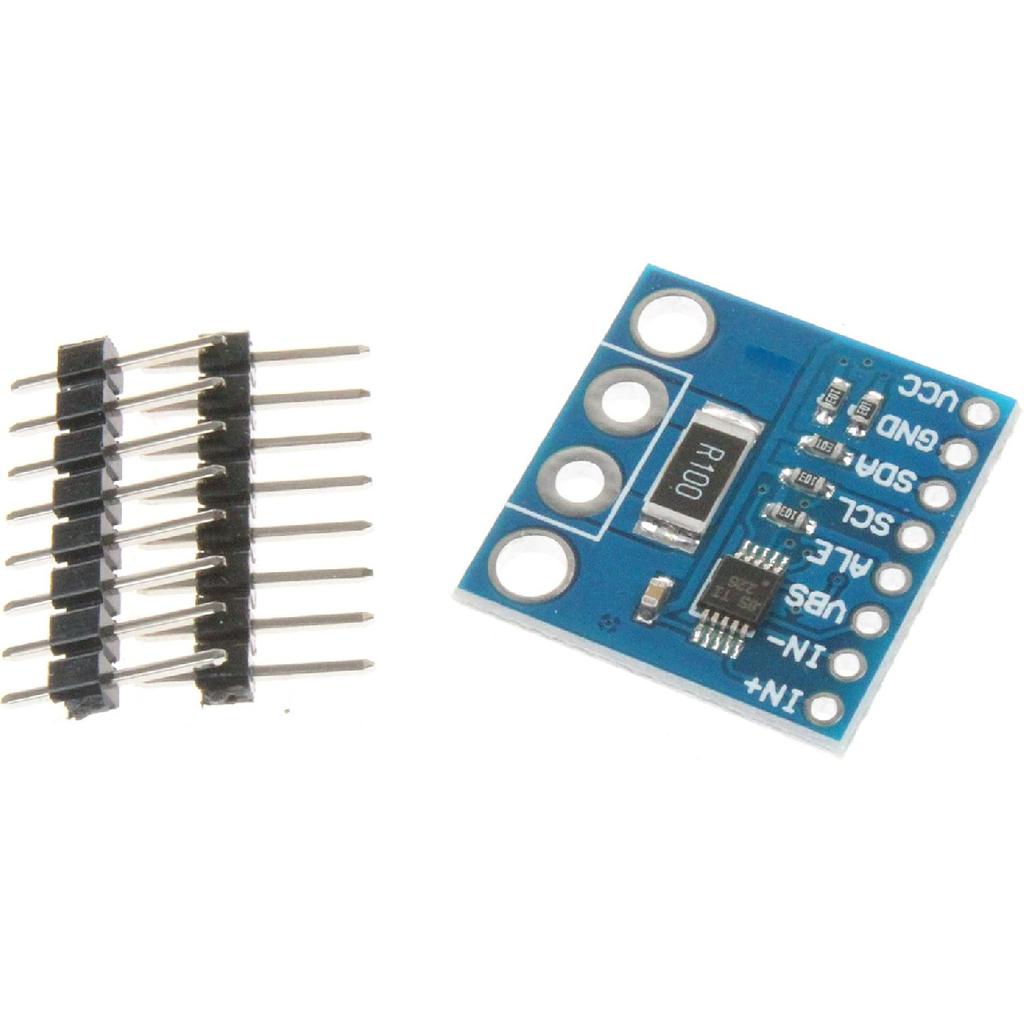

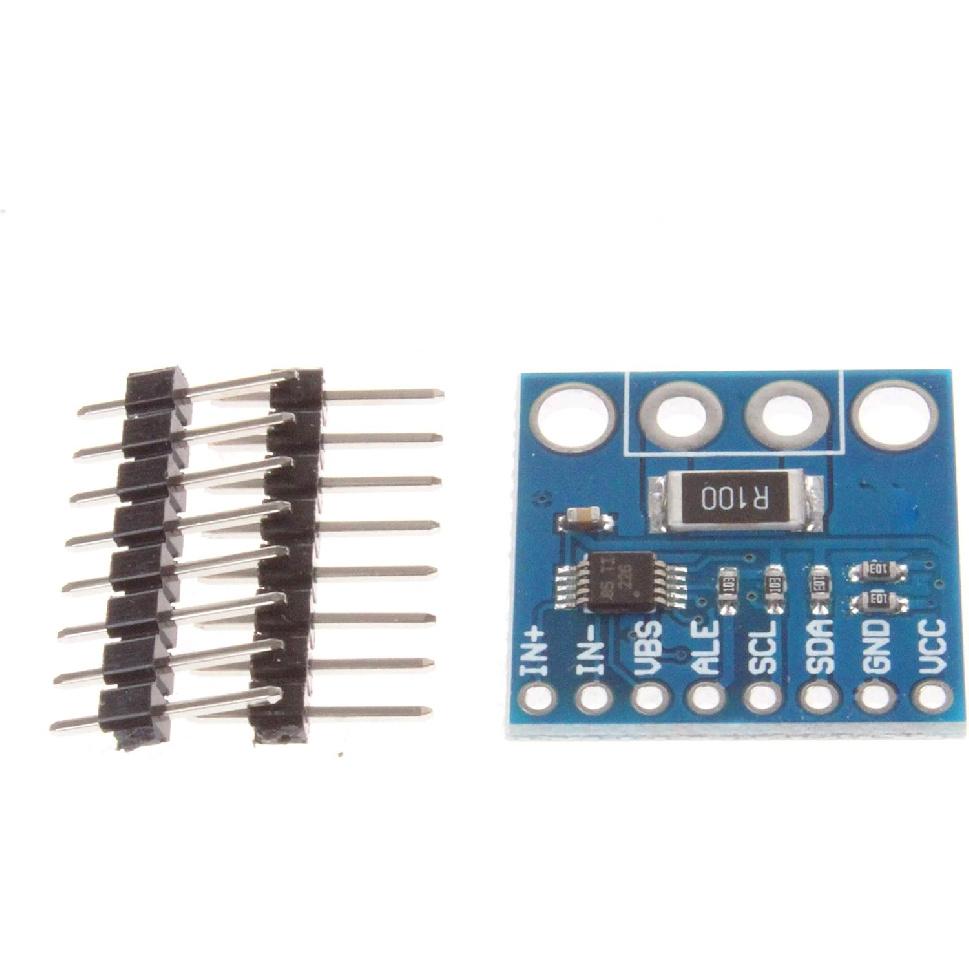

NOYITO INA226 Bi-Directional Current and Power Monitor Module High-Side or Low-Side Measurement with IIC Compatible Interface Senses Bus Voltages

The INA226 is a current shunt and power monitor with an IIC or SMBUS-compatible interface. The device monitors both a shunt voltage drop and bus supply voltage. Programmable calibration value, conversion times, and averaging, combined with an internal multiplier, enable direct readouts of current in amperes and power in watts. The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V, independent of the supply voltage. The device operates from a single 2.7-V to 5.5-V supply, drawing a typical of 330 μA of supply current. The device is specified over the operating temperature range between –40°C and 125°C and features up to 16 programmable addresses on the I2C-compatible interface. Senses Bus Voltages From 0 V to 36 V ，High-Side or Low-Side Sensing . Reports Current, Voltage, and Power . High Accuracy: – 0.1% Gain Error (Max) – 10 μV Offset (Max) NOYITO INA226 Bi-Directional Current and Power Monitor Module Document Download https://1drv.ms/b/s!AlzQUCOyZQhKgTDgLVSLOCzfCxLd?e=x51HcD

Product Dimensions: 0.83 x 0.83 x 0.12 inches Item Weight: 0.176 ounces ASIN: B07PMNQ2DQ Item model number: INA226 Customer Reviews: 5.0 out of 5 stars Date First Available: March 15, 2019 Manufacturer: NOYITO
