12V to 24V DC/AC 15m safety beam Infrared Sensor Photo Eye Photocells infrared photocells door gate opener motor

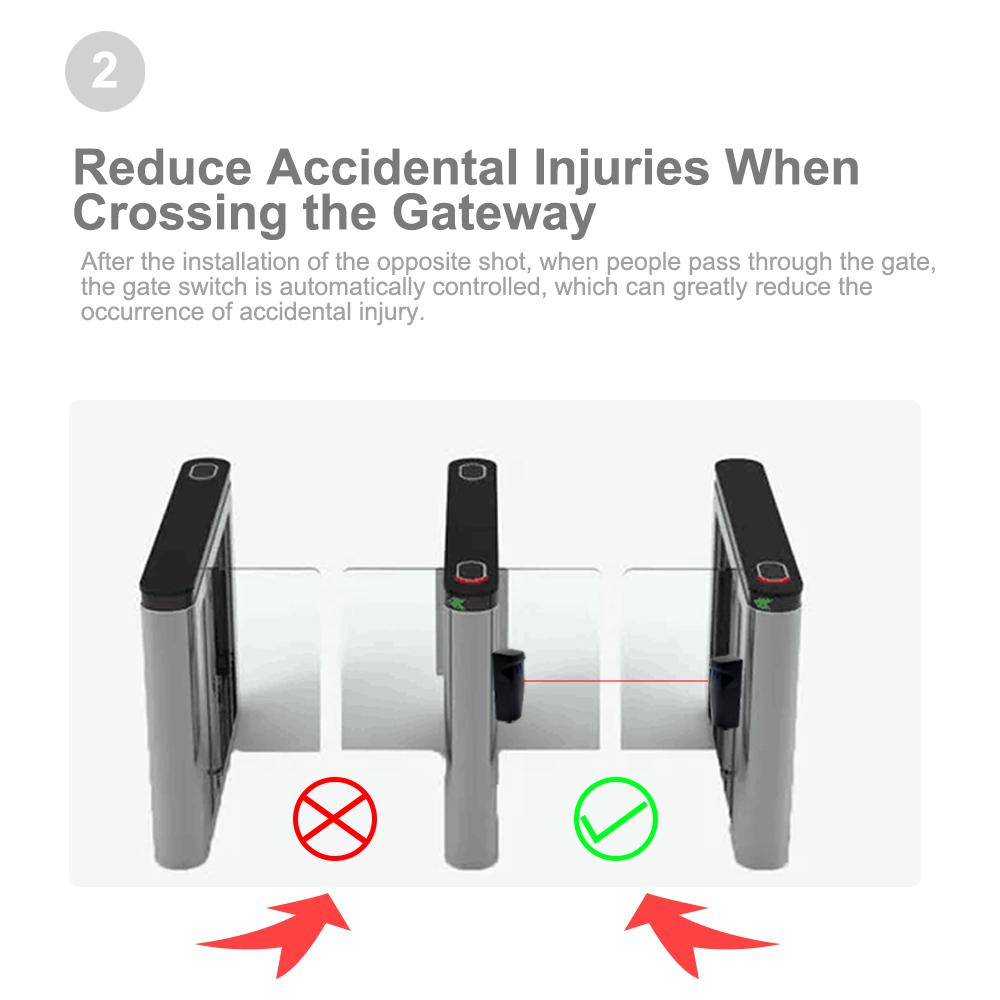

Single beam photocell sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

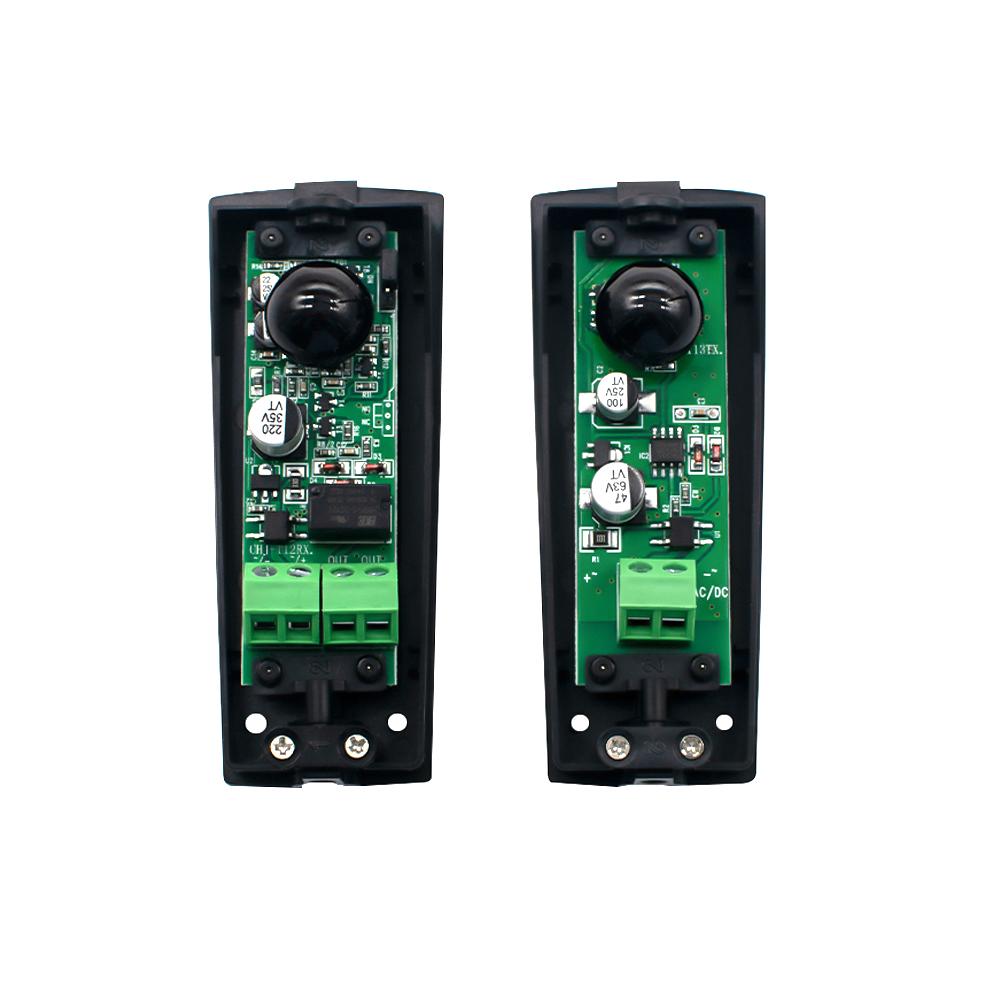

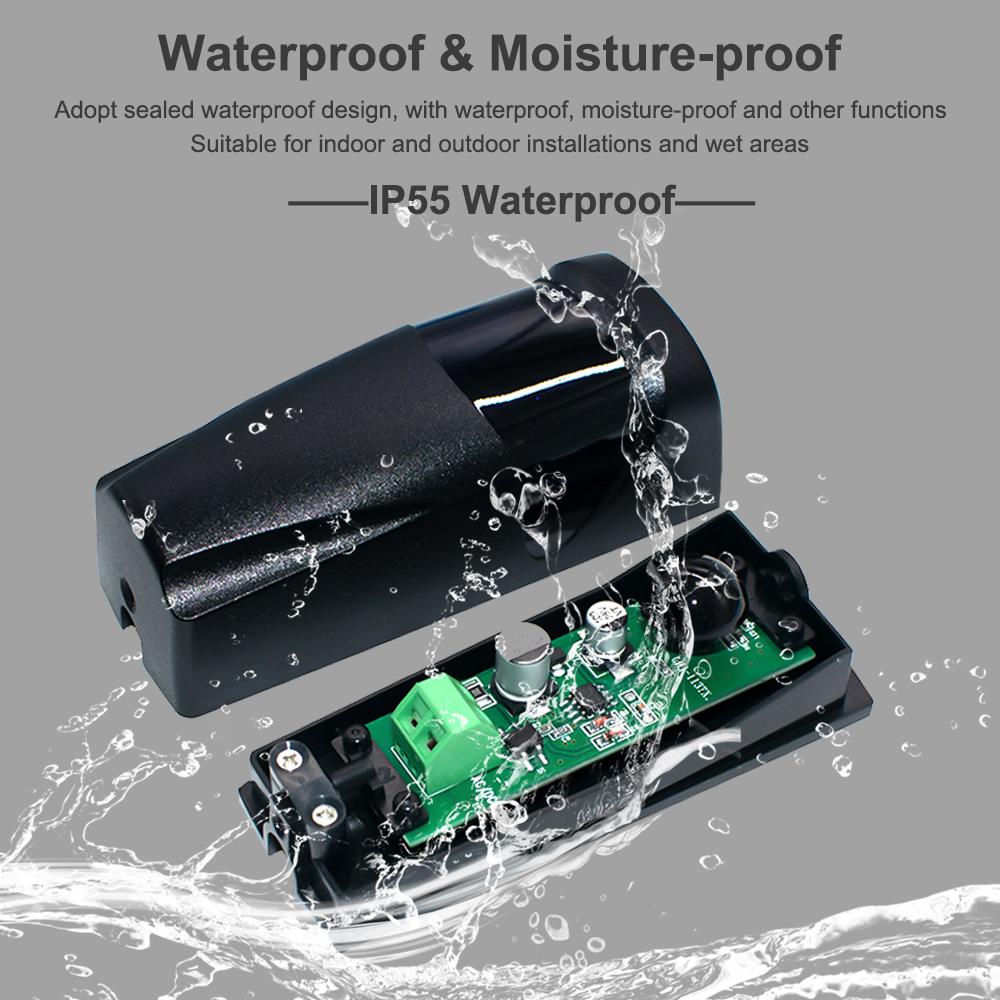

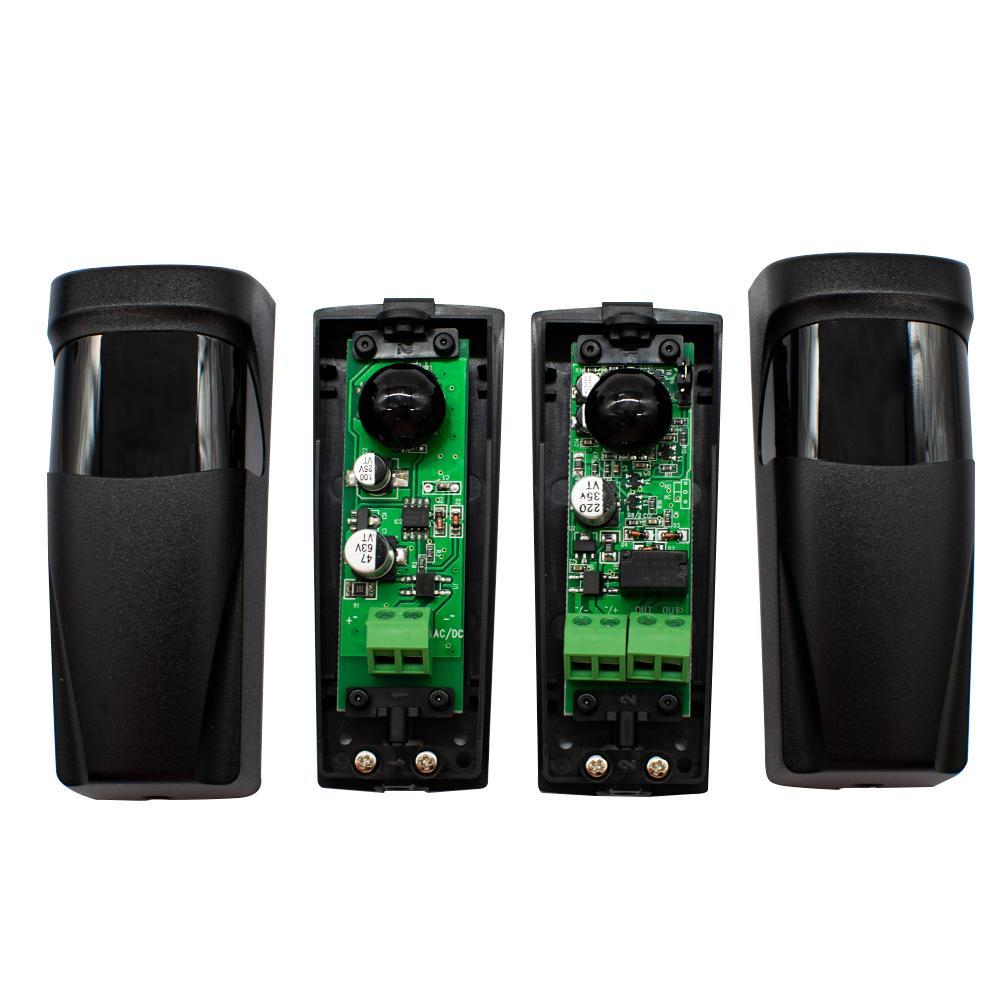

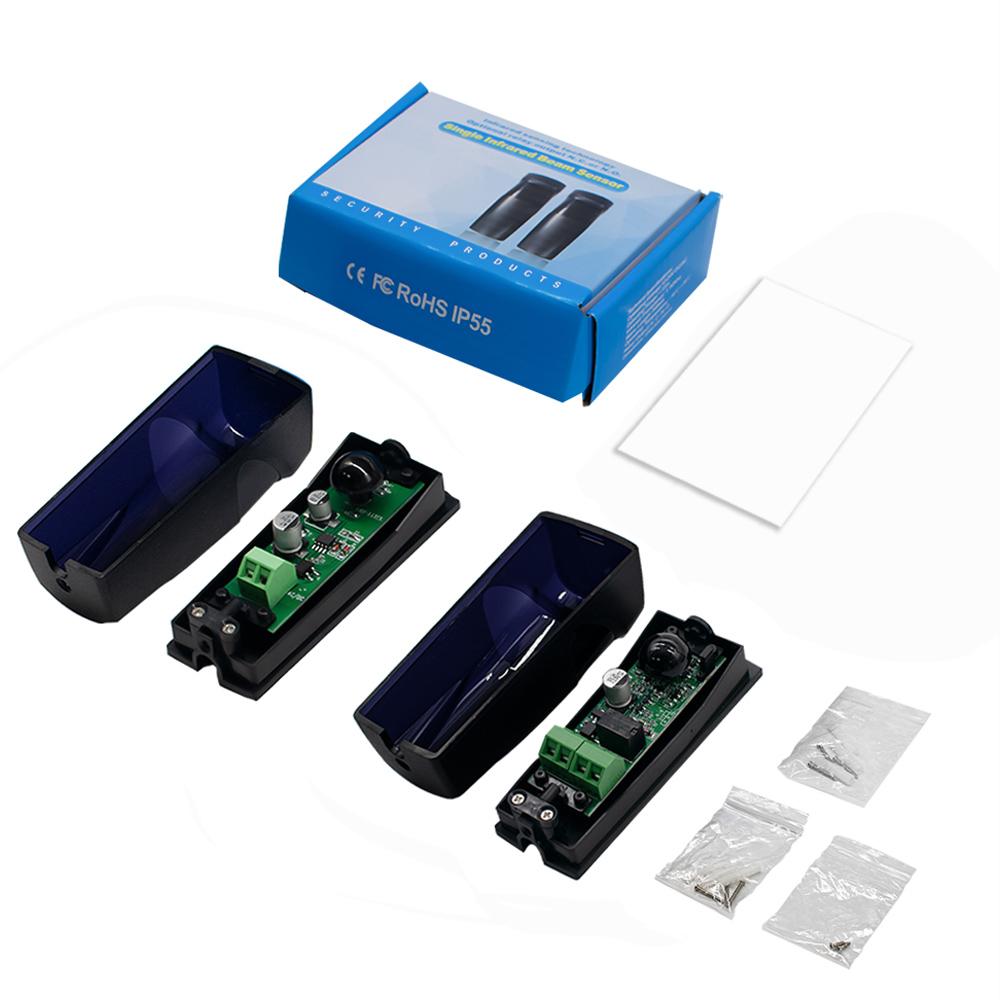

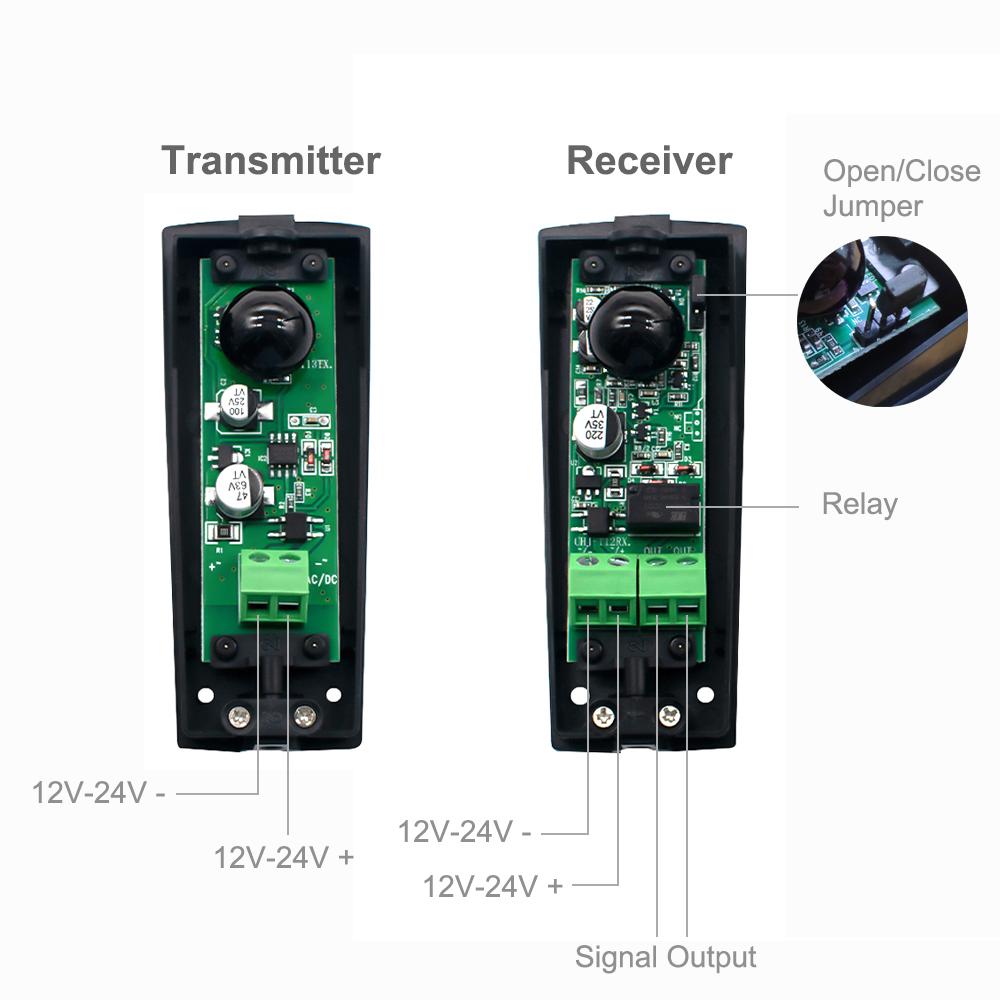

Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.
Narrow infrared beam (I or II) can avoid interruption by external light.
Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-10meters).
The beam produced by SCIMAGIC provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.
Technical Specification
Technology: Infrared

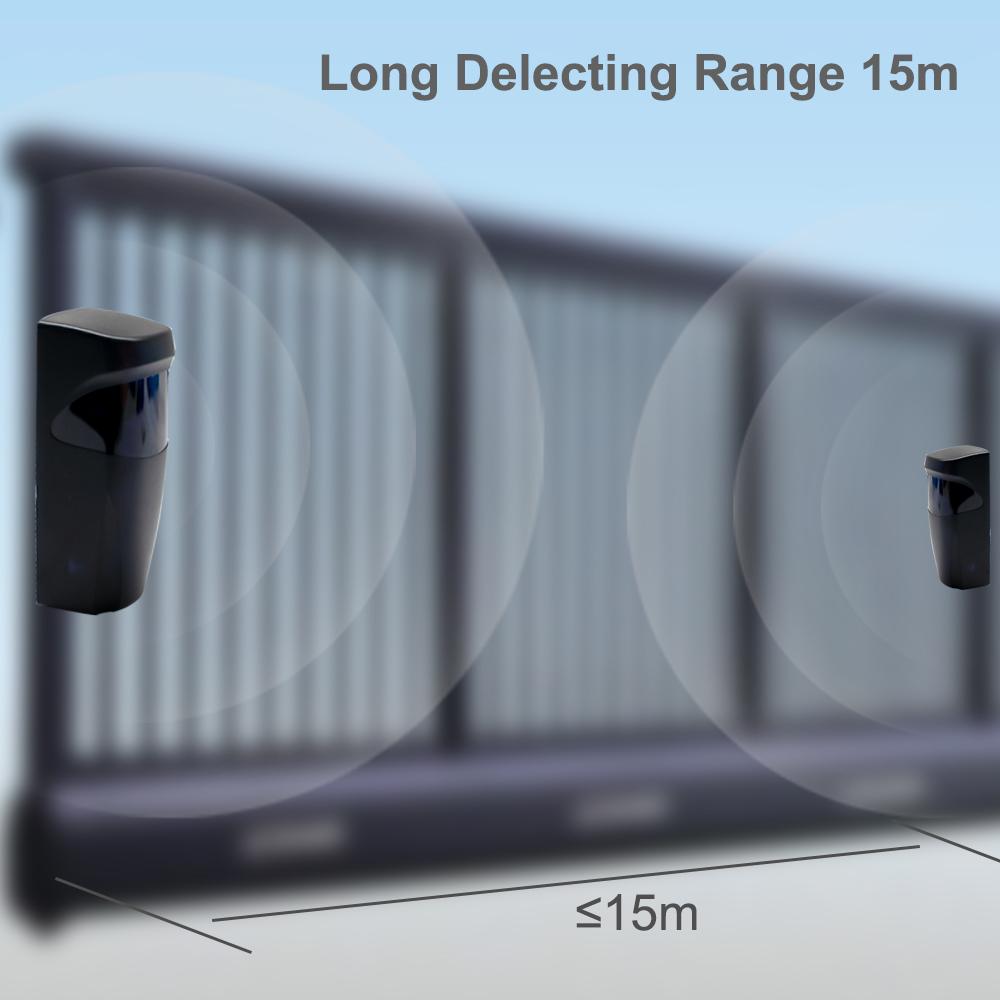

Receiving: ≤ 15m
Range: Range can be reduced to 30% in bad weather conditions:for,rain,dust,etc.
Infra-red frequency: 1.92KHz
Power supply: 12V to 24V DC/AC
Wave length: 940nm
Input: RX15 ma-TX 30 ma
Operating temperatuer: -10°C to +70°C
Relay contact loading capacity: 1A max 36V
Size:100*40*35mm
Installation:
The best Install height should big in 20 cm,Install distance to be no smaller than 2 meters.Install should make red outside the protection equip perpendicularity to place,and is on-line at same level.Install should Install first to recelve part,Install blast off part again.When together at always line.receive the OFF light in the machine In order to put out,then fix,connect the line to Install completion namely.
Attention:
Because this product shoot power compare big, so when shoot machine with receive the machine distance too near hour will appear have no the phenomenon of the reaction,at this time should draw back them one meter at least behind again try.When install dlstance very near,discover not intellgent phenomenon,can shoot and recelve medlum of the condensing lens remove,can Immedlately ralse an intelligent degree.
Rotation through 180°
Rotation through 180° llows the alignment of the photocells irespectiveof the way they are fixed to the base
