Product Description
Specifications:
Storage Temperature Range: -30°C to 80°C
Operating Temperature Range: -25°C to 70°C
Humidity Range: 65% ±10%

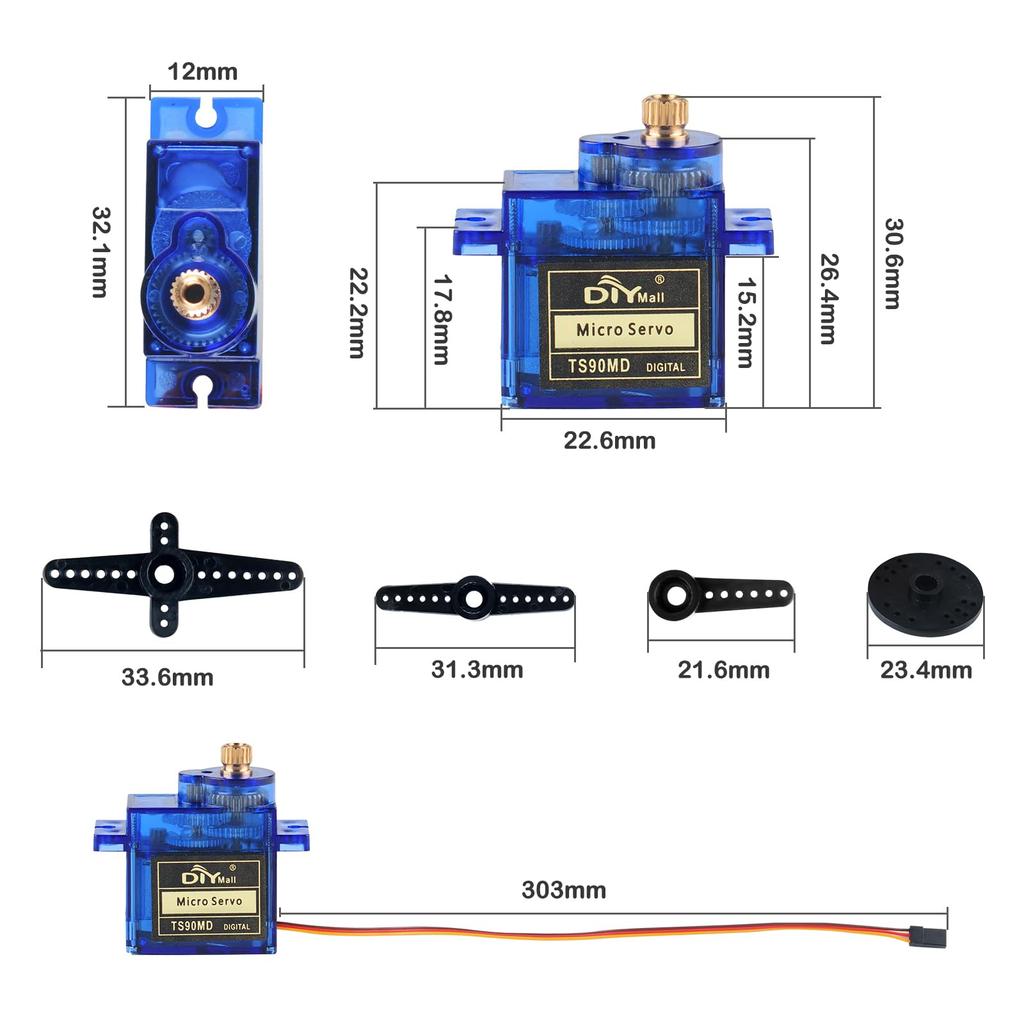

Dimensions: 22.7*12.2*26.8
Gear Type: 5 Metal
Angle Limit: 360°
Bearing: None
Horn Gear Spline: 20T
Horn Type: Plastic, POM
Case: Engineering Plastic (PBT)
Connector Wire: 250mm ±5mm
Motor: Carbon Brush Motor
Splash Waterproof: No
Operating Voltage: 4.8V-6.0V
Idle Current: ≤40mA (4.8V), ≤40mA (6.0V)
No-Load Speed: 0.11 sec/60° (4.8V), 0.09 sec/60° (6.0V)
Operating Current: ≤200mA (4.8V), ≤300mA (6.0V)
Peak Stall Torque: 1.6kg.cm (4.8V), 1.8kg.cm (6.0V) )
Traction Torque: 1.2 kgf/cm/60° (4.8V), 1.4 kgf/cm/60° (6.0V)
Stall Current: Max. 580 mA (4.8V), Max. 800 mA (6.0V)
Command Signal: Pulse Width Modification
Amplifier Type: Digital Controller
Pulse Width Range: 500-2500 μsec
Neutral Position: 1500 μsec
Traction Angle: 360°
Deadband Width: 5 μsec
Rotation Direction: Counterclockwise (1000-2000 μsec)
Output:
Red Wire: Positive (+)
Black Wire: Negative (-)
Brown Wire: Signal S

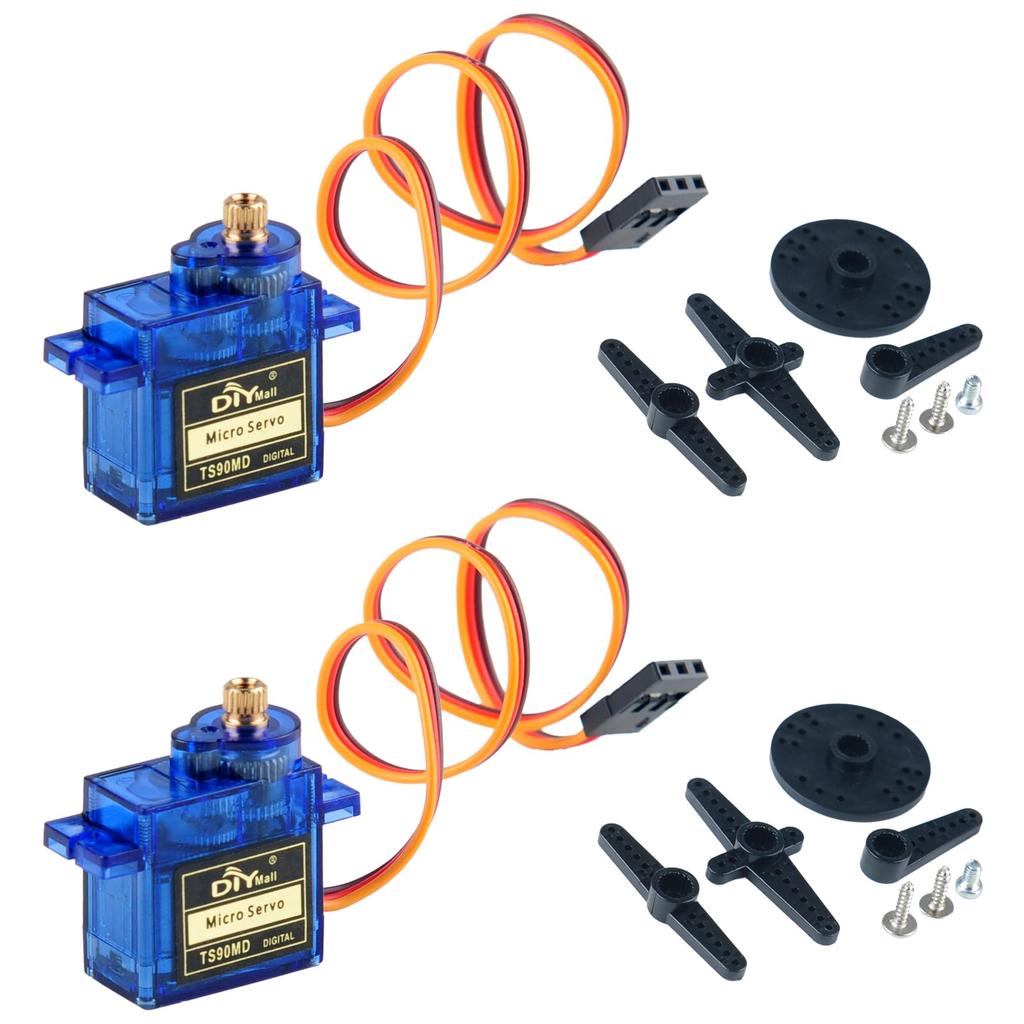

Package Contents:
2 TS90MD Metal Gear Digital Servo Accessories.
Safety Warning
/

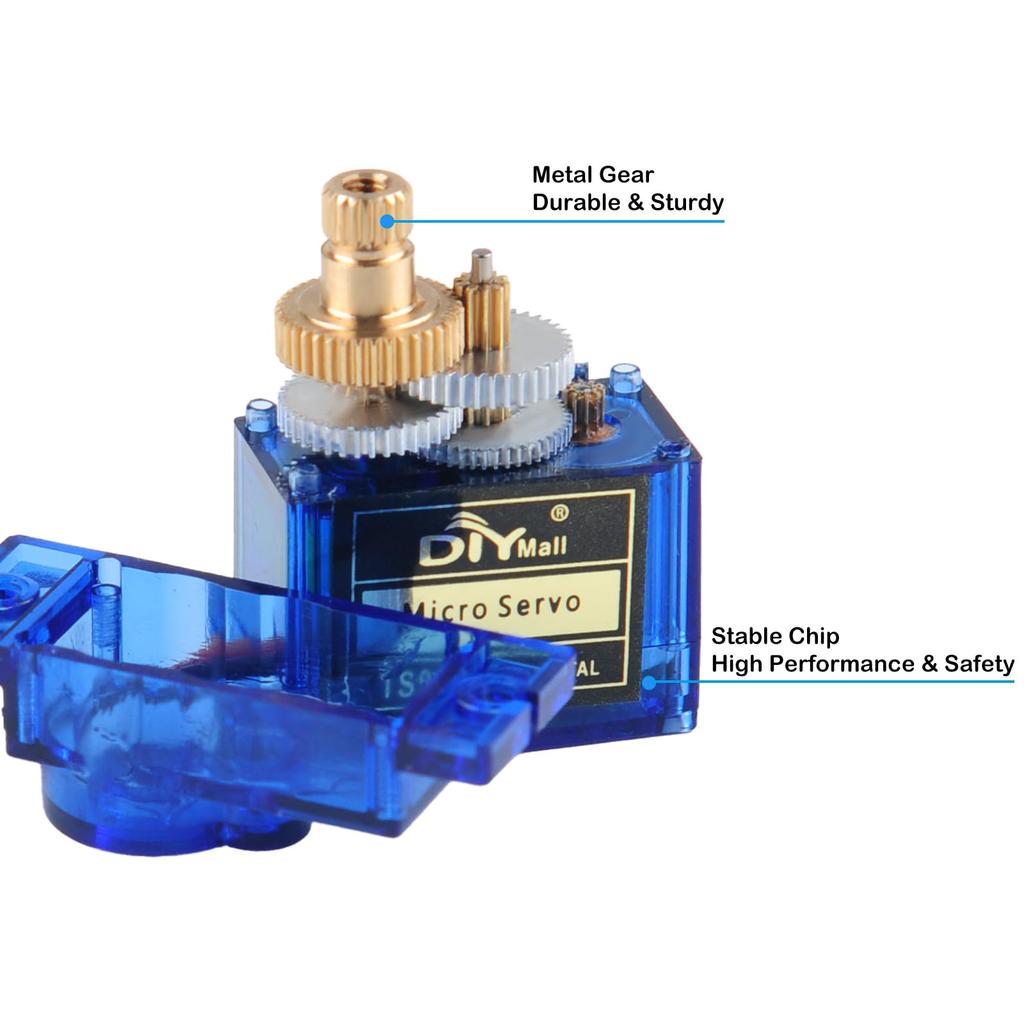

Metal Gear Micro Servo, PWM 500-2500 μsec Mini Digital Servo
Widely used for micro:bit, helicopters, smart cars, robots, etc.
Travel: 360°; Note: 360° is continuous rotation; angle and speed cannot be controlled.
Operating Voltage: 4.8V-6.0V; No-Load Speed: 0.11 sec/60° (4.8V), 0.09 sec/60° (6.0V); Travel Torque: 1.2 kg.cm/60° (4.8V), 1.4 kg.cm/60° (6.0V)
Required: Two TS90MD metal gear digital servos
