Product Description
Product Specifications:
Product Name: TD-8140CLS Digital Servo Motor
Applicable Environmental Conditions:
Storage Temperature Range: -30°C to 80°C
Operating Temperature Range: -25°C to 70°C
Standard Test Environment:
Temperature Range: -25°C to 70°C
Humidity Range: 65% ±10%
Mechanical Specifications:
Dimensions: 40.0*20.5*40.5mm
Weight: 65g ±5%
Gear Type: 5 Metal
Angle Limit: 360°
Bearings: 2BB
Horn Gear Spline: 25T Diameter: 5.9mm
Horn Type: Plastic, POM
Case: Engineering Plastic (PBT) + Aluminum Alloy

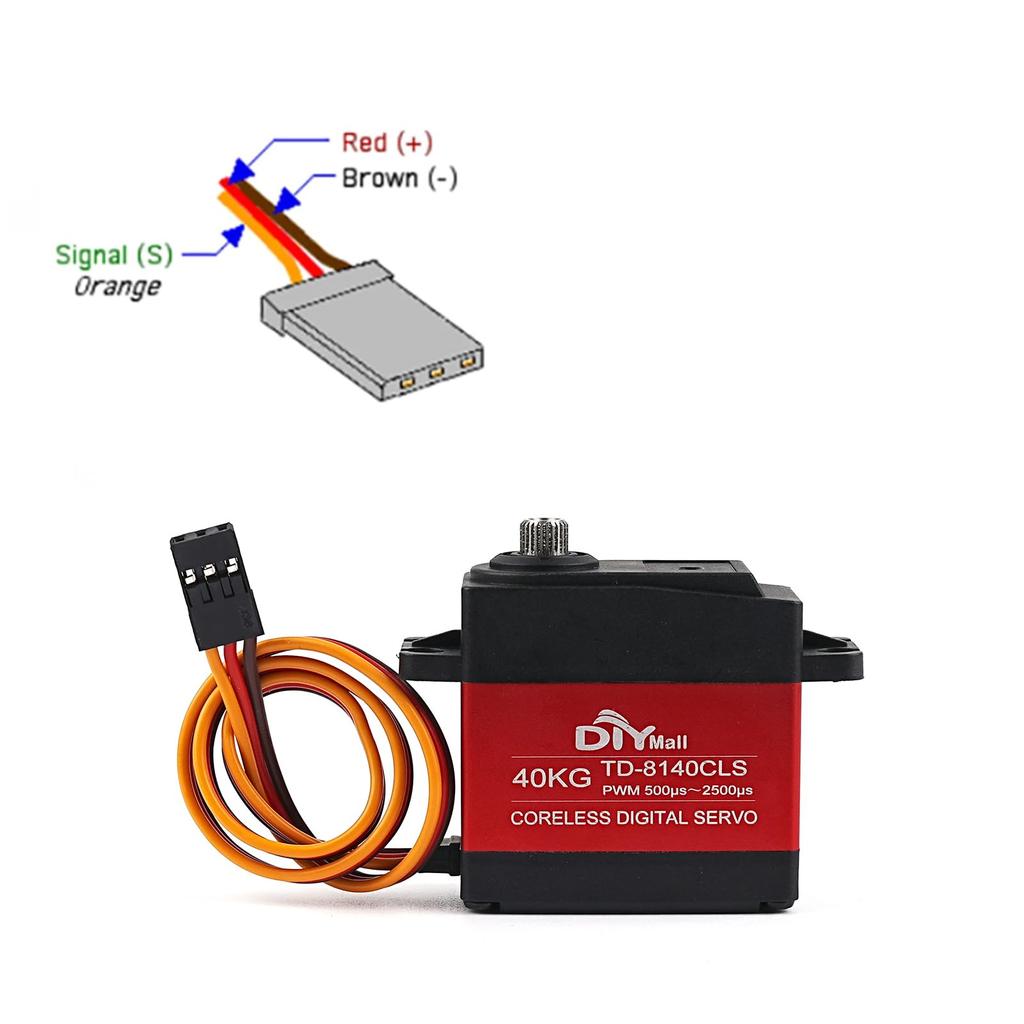

Connector Wire: 300mm ±5mm
Motor: Coreless
Water Resistance: IP65
Electrical Specifications
Operating Voltage: 4.8V-8.4V
Idle Current: <40mA
No-Load Speed: 0.20 sec/60° (4.8V), 0.12 sec/60° (8.4V)
Operating Current: 300mA (4.8V), 500mA (8.4V)
Peak Stall Torque: 32kg.cm (4.8V), 43kg.cm (8.4V) Stall Current: 3000mA ±10% (4.8V), 5500mA ±10% (8.4V)
Control Specifications
Command Signal: Variable Pulse Width
Amplifier Type: Digital Controller
Pulse Width Range: 500-2500µs
Neutral Position: 1500µs
Travel Angle: 360° (500-2500µs)
Deadband Width: 3µs
Rotation Direction: Counterclockwise (1000-2000µs)
Package Contents:

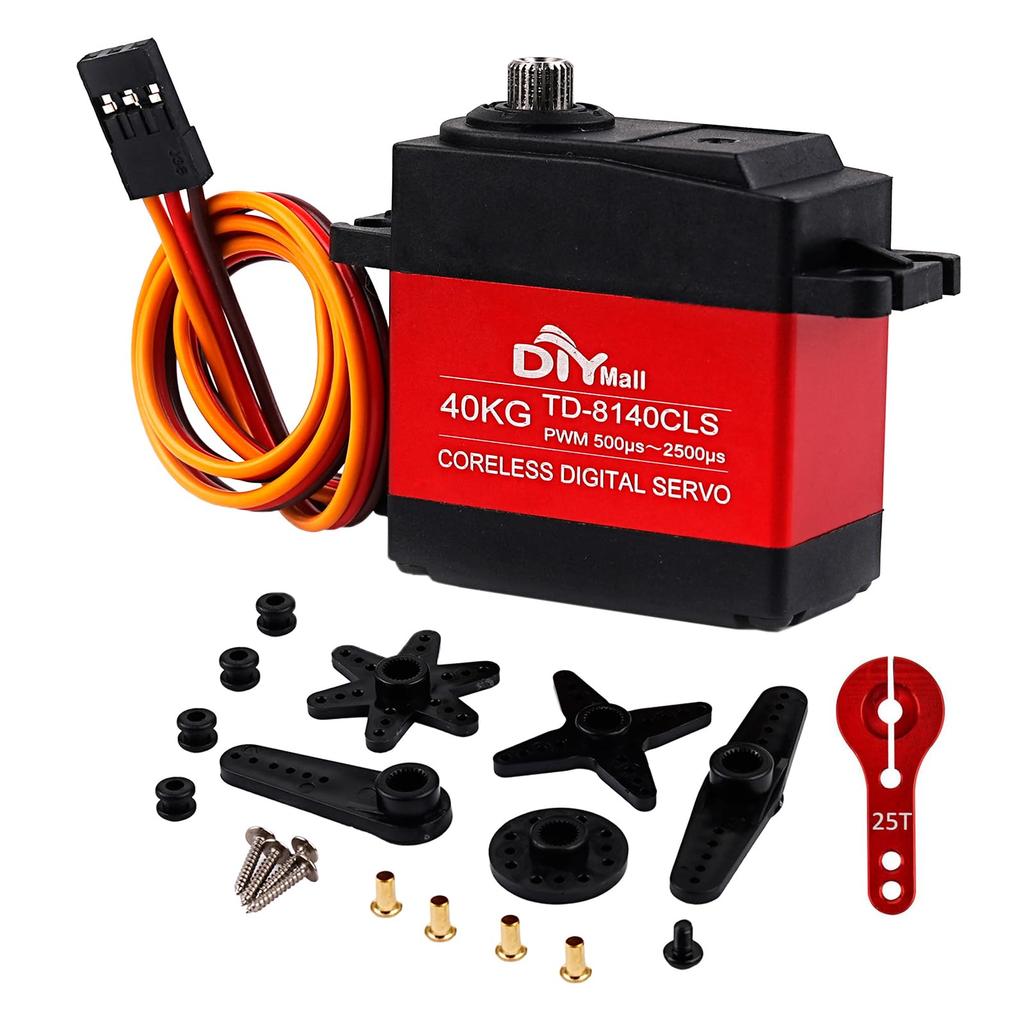

40kg Digital Servo with 360° Continuous Rotation and 25T Metal Servo Arm.
Safety Warning
/
Coreless Motor Metal Gear Digital Servo with 25T Metal Servo Arm.

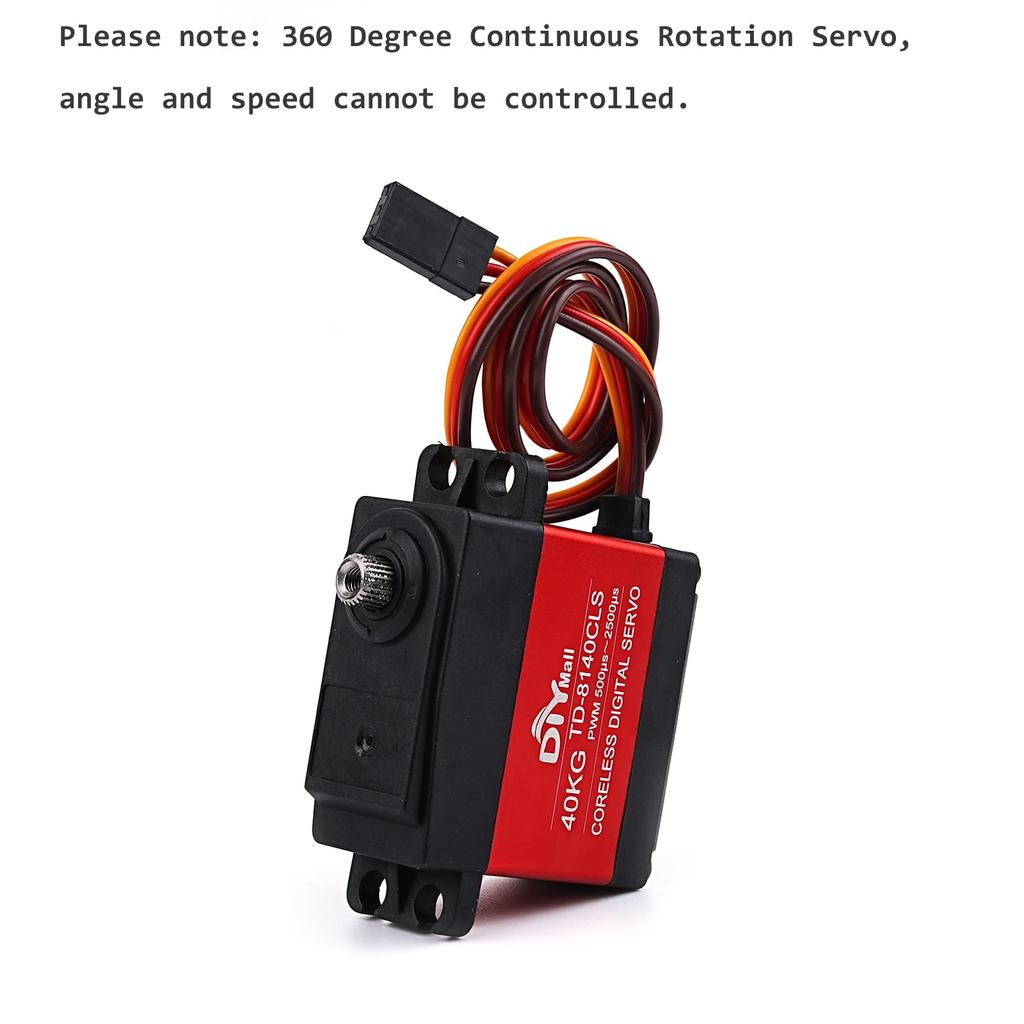

360° Continuous Rotation Servo; Angle and Speed are not controllable.
Operating Voltage: 4.8V-8.4V
No-Load Speed: 0.20 sec/60° (4.8V), 0.12 sec/60° (8.4V)
Peak Stall Torque: 32 kg.cm (4.8V), 43 kg.cm (8.4V)
Command Signal: Variable Pulse Width
Amplifier Type: Digital Controller
