Description
ASME-MRB 380kg.cm Magnetic Encoding Digital Servo, 360-Degree High Power, High Torque, Alloy Steel Gear, DC 12-24V, Servo Steering Gear for Large Robot Manipulators and RC Car Robots
Description:

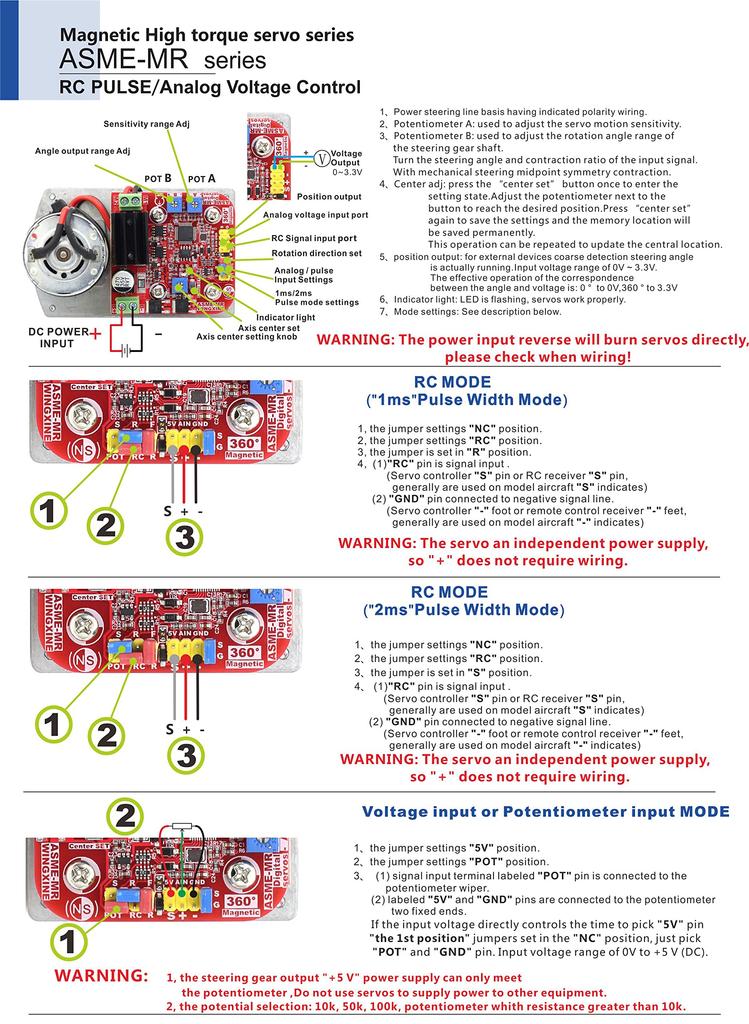

Fully compatible with Futaba, JR, SANWA, Hitec, and other remote systems.
Unique technology ensures stable power steering gears continue to operate with fuse protection, unlike other servos. If the fuse blows, the servo will not continue to operate. Our stable control servo rudder operates at a safe torque and will never fall off.
Directly reads sensor data using the digital port and returns true angle information. A true 360-degree controllable range.
User-configurable origin setting. No need to consider the installation location first. Simply adjust the steering gear's origin setting knob after installation to complete the origin setting. The origin can be memorized by the servo and will not be lost.
Applications
Robots, mechanical arms, production lines, camera control robots.
Features:
Wireless remote control and analog voltage control.
Metal gear for high torque output.
Current limiting control.
Easy to install, durable and sturdy.
Package Includes:
1 x ASME-MRB 380kg.cm Magnetic Encoding Digital Servo.
1 x Cable.
Fully compatible with Futaba, JR, forSANWA, Hitec, and other remote systems.
Directly reads sensor data using the digital port and returns true angle information. True 360-degree controllable range, angle limits: ±180° or 0°~360° (max).
Operating voltage: 12-24V/DC (11V/min-30V/max); No-load current: <500mA (current limit: 5A; switching power supply or 5A or higher battery recommended)
Starting torque: 380kg.cm max; Holding torque: 340kg.cm max; Rated speed (24V power): 0.5s/60° max
Applications: Heavy-duty movement control of large arm and leg joints in robotic joints; industrial automation and production line robot control; precise valve angle control; large camera and remote control
