Feature:
1. The vector inverter can automatically increase the torsion, has PID automatic adjustment function, and is more convenient to use.
2. With protection functions such as overvoltage, overcurrent, inverter overload, motor overload, CPU failure, etc.
3. The frequency converter is small and compact, simple operation and wiring, quick start and stop response.
4. The shell is made of ABS material, and uses high‑quality electronic components, has stable and reliable performance.
5. Widely used in the fields of automation equipment such as motors, mixers, water pumps, CNC machine tools, etc.
Specification:

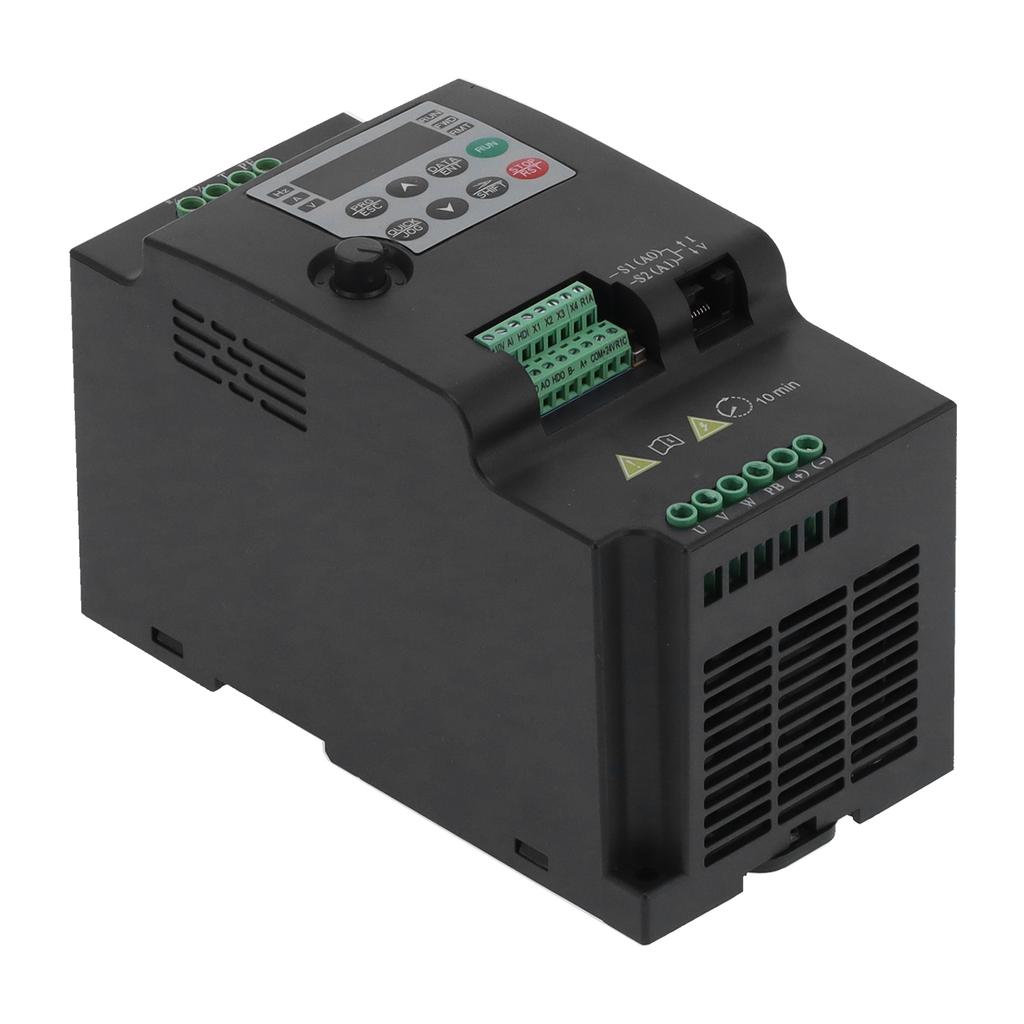

.Item Type: Frequency Converter
Material: ABS
Model
AC Input Voltage
Power (KW)
Rated Input Current (A)
Rated Output Current (A)
Adapted Motor (KW)
SC100 004G 4TB
3 Phase AC380V 480V
4.0
10
9
4.0
SC100 5R5G 4TB
3 Phase AC380V 480V
5.5
15
13
5.5
Package List:
1 x Frequency Converter1 x Screwdriver
1 x English User Manual
Note:
1. The ambient temperature is ‑5 celsius ‑40 celsius , avoid high temperature and humidity, and the humidity is less than 90percent (no condensation).2. Prevent electromagnetic interference and stay away from the source of interference.3. Prevent the intrusion of water droplets, steam, dust, cotton wool, and fine metal powder, and prevent the intrusion of oil, salt, and corrosive gases.4. It is forbidden to install in the environment containing flammable and explosive gas, liquid and solid.5. Do not install air switches, contactors and related capacitors or varistors on the output side, otherwise it will cause the inverter to malfunction.Trip protection or damaged components.6. The inverter must use an independent power source, and avoid sharing the same power source with electric welders, otherwise it will cause protection or damage to the inverter.7. In order to facilitate cooling and maintenance, the inverter must be installed vertically with enough space around to ensure smooth air circulation.8. Non‑combustible materials such as iron plates should be used on the installation wall to avoid damage to the inverter caused by vibration.9. When multiple inverters are installed in the same cabinet, when they are installed up and down, pay attention to the spacing and add a baffle in the middle.
