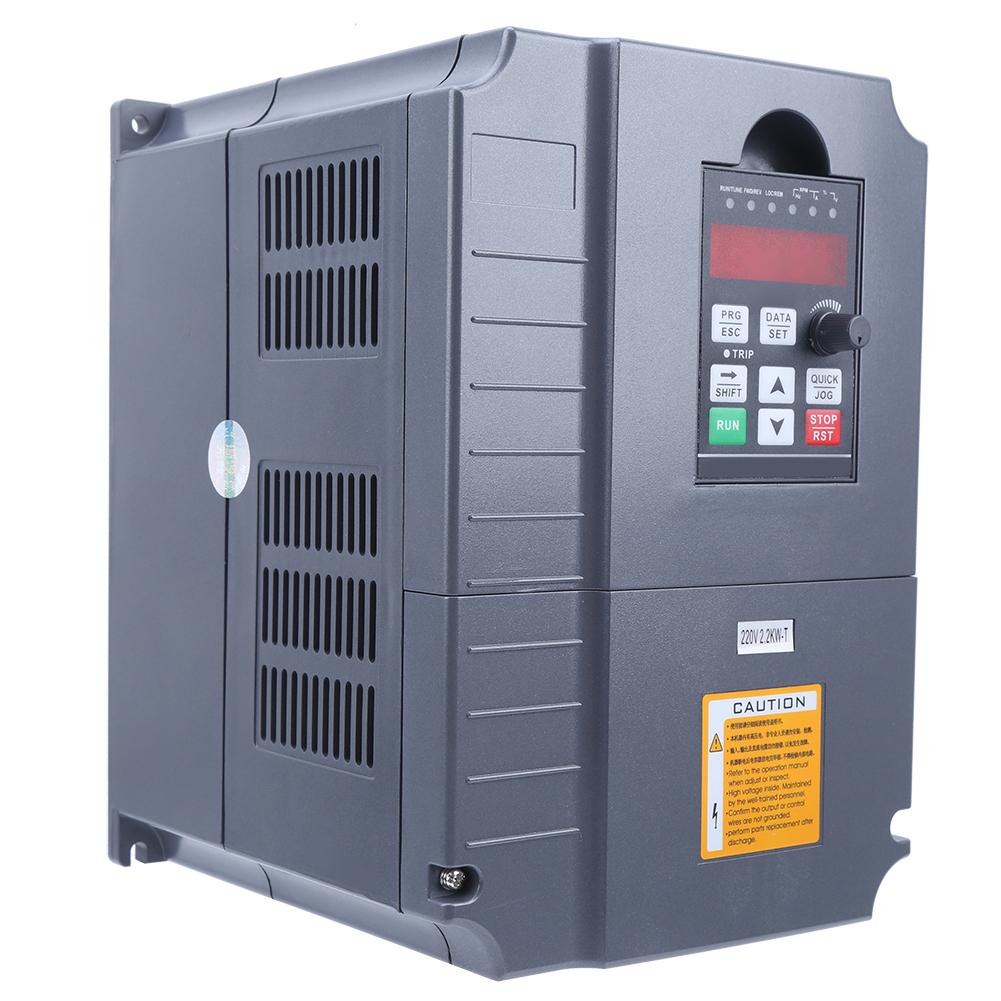

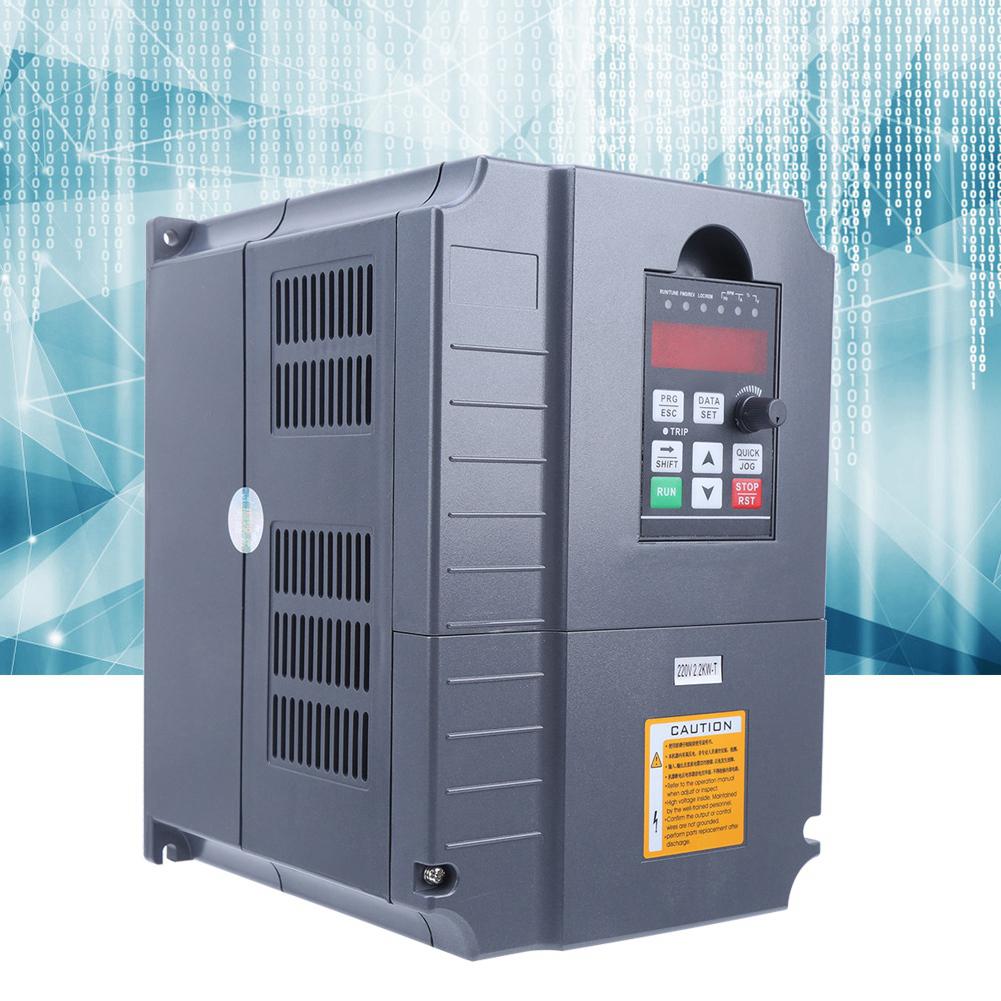

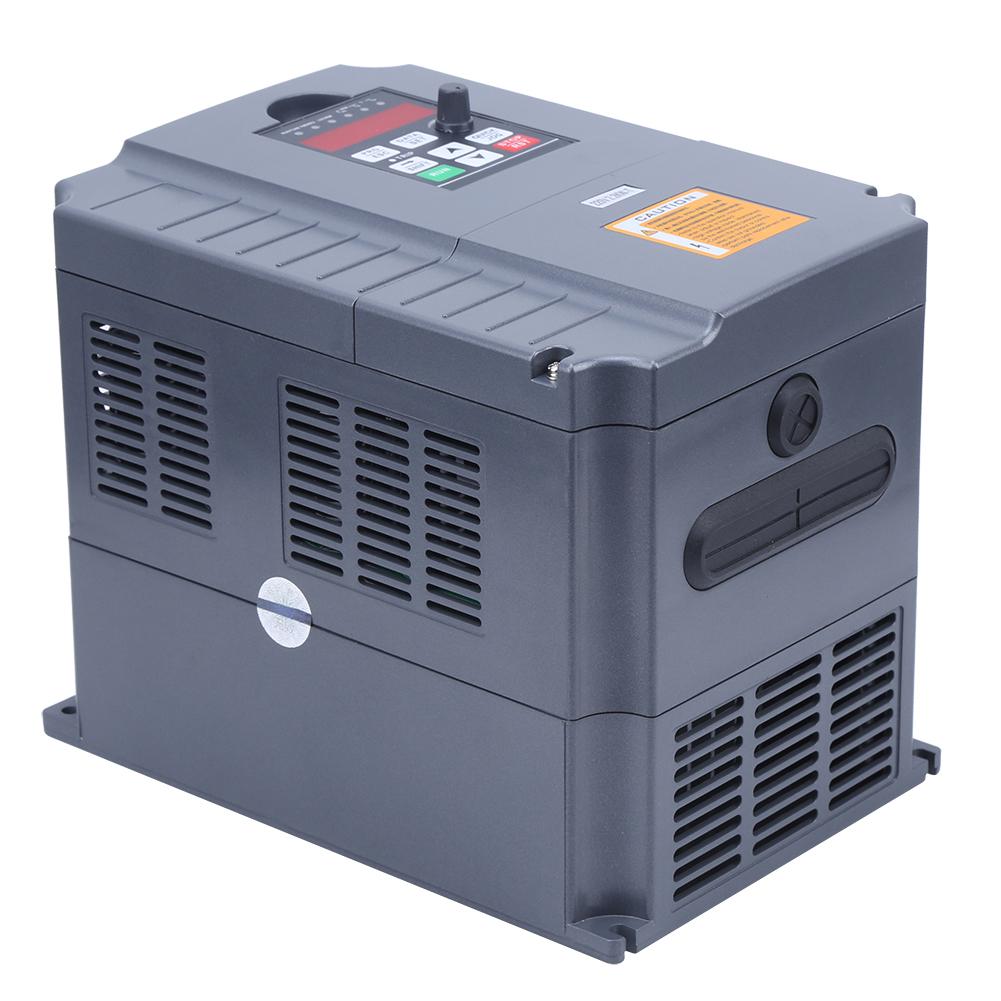

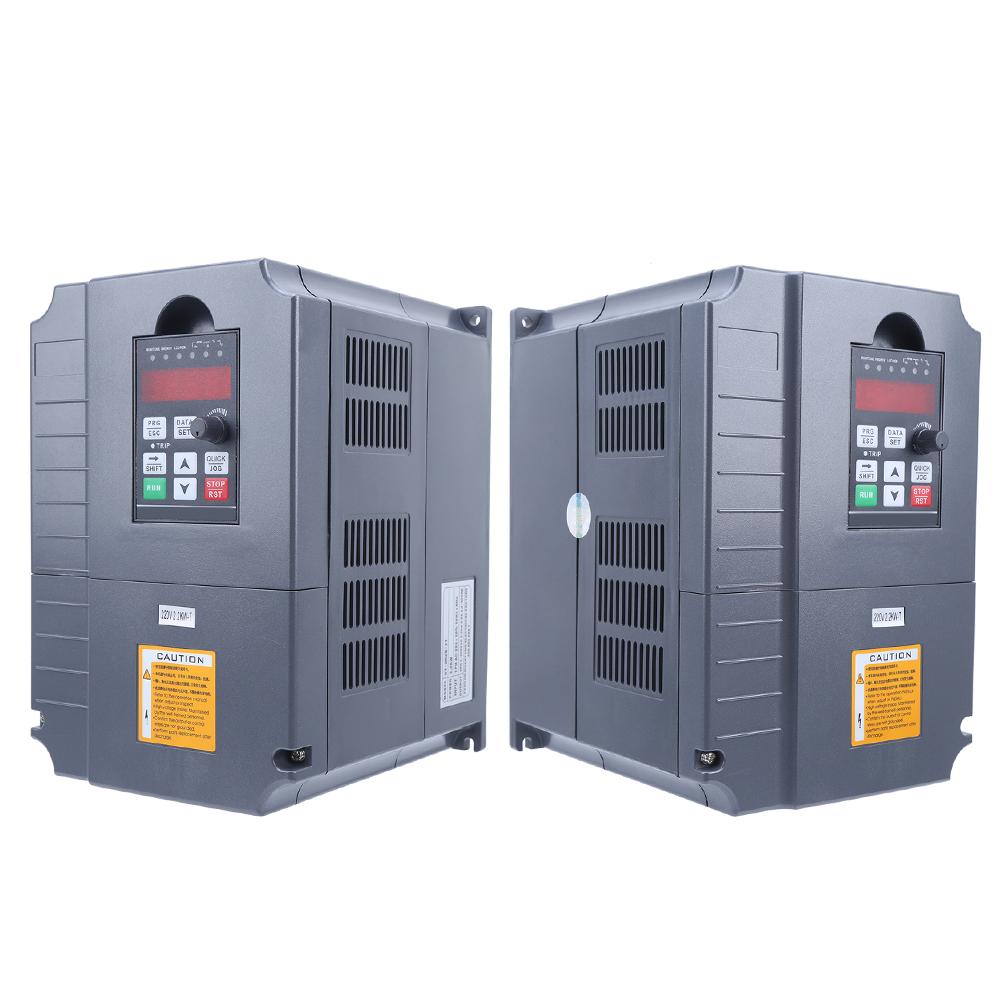

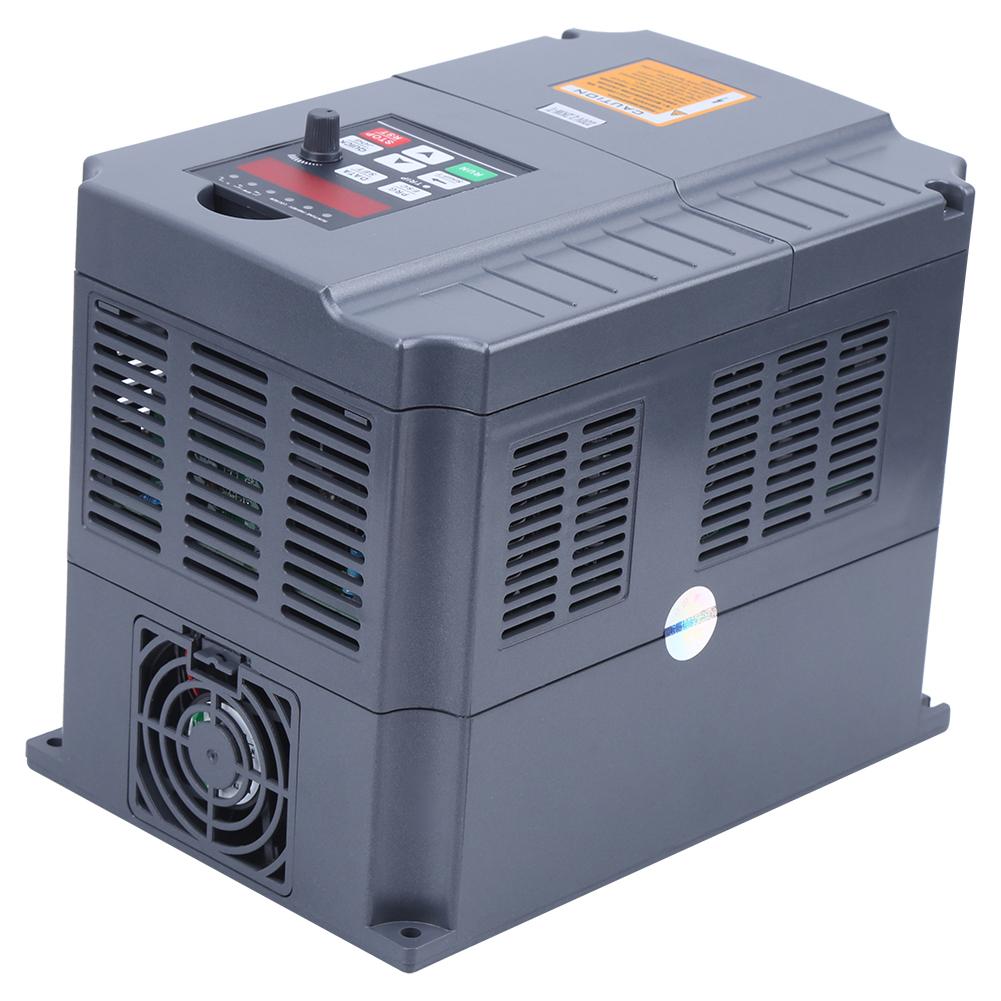

Feature:
1. Single‑phase input 220V ,3phase output 380V, frequency is 0‑50hz 60hz. 0.5‑400hz.

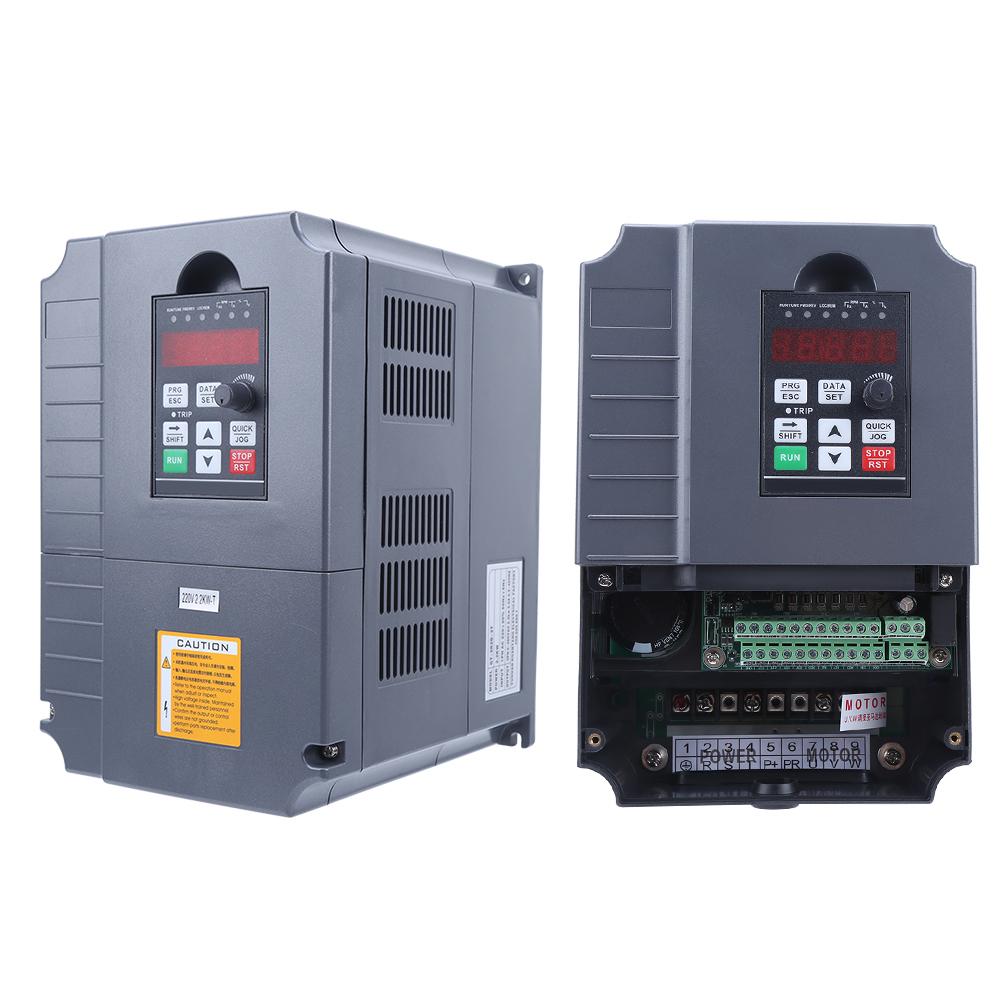

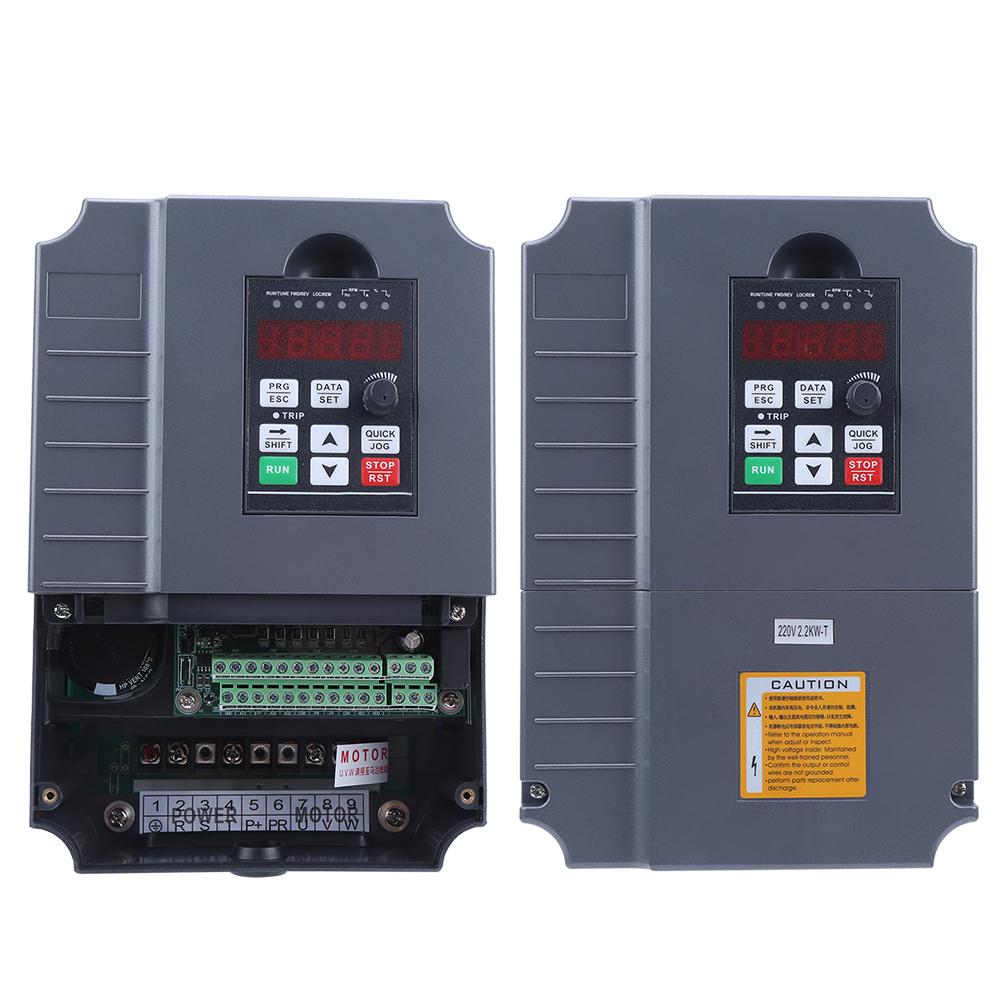

2. Simple to use, just connect L1 L2 to any two of VFD input R S T.
3. Used in conjunction with the for Mach 3 controller, it can be used as a motor speed control and phase converter.
4. This product can use sine waving PWN (SPWM) for the control system.
5. No experience in driving VFD, please refer to the instructions before operating the VFD.

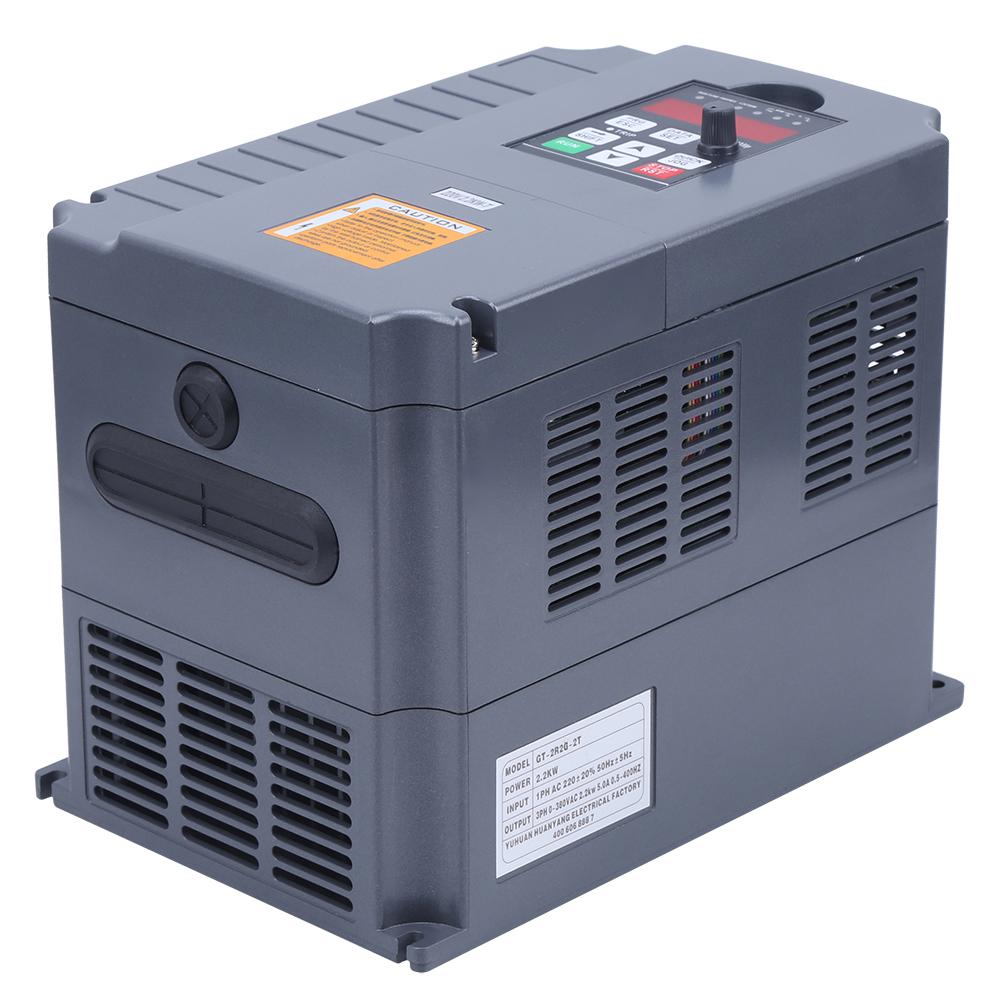

Specification:
Item Type: Inverter Material: ABS
Matching Motor Power: 2.2KW
Model: GT 2R2G 2T
Single Phase Input: 220V
Three phase Output: 380V
Control Way
SPWM
Input power
220V

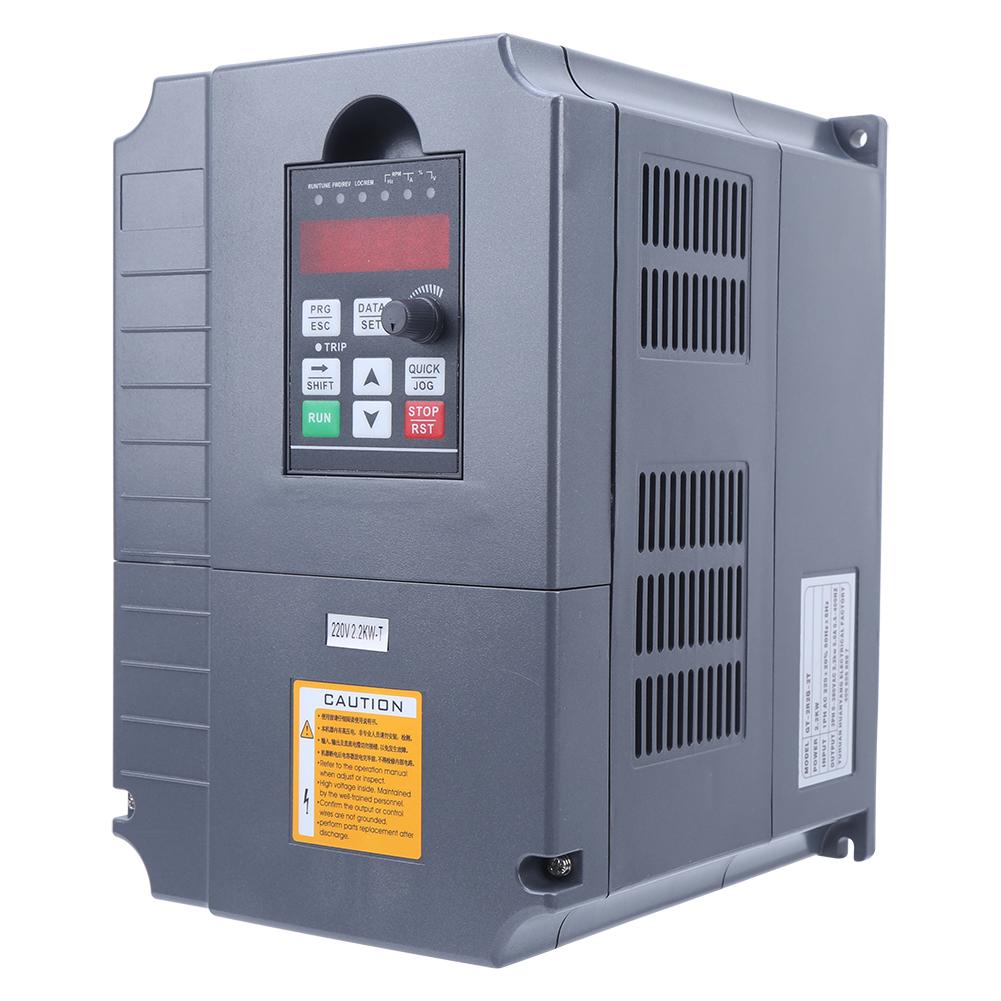

5 digit digital display and status indicator
Display frequency, current, speed, voltage, counter, temperature, forward and reverse status, fault, etc.
Communication control
RS 485
Operating temperature
10 40 celsius
humidity
0 95percent relative humidity (no condensation)
vibration
Below 0.5G
Frequency control
Range
0.5 400.00Hz
Accuracy
Digital type: 0.01percent ( 10 40 celsius ); analog type: 0.1percent (25+ 10 degrees C)
Set the resolution
Digital: 0.01Hz; Analog: 1percent of the maximum operating frequency
Output resolution
0.01Hz
Keyboard setting method
Can be set directly with ←∧∨
Analog setting method
External voltage 0 5V, 0 10V, 4 20mA, 0 20mA.
Other functions
Frequency lower limit, start frequency, stop frequency, three jump frequencies can be set separately
General control
Acceleration and deceleration control
Acceleration and deceleration time (0.1 6500 seconds) arbitrary choice
V F curve
V F curve can be set arbitrarily
Torsion control
The torsion can be set to increase, the maximum 10.0percent start torsion can reach 150percent at 1.0Hz
Multi function input
6 multi function input terminals, realize 8 stage speed control, program operation, 4 stage acceleration deceleration switching, UP, DOWN function, counter, external emergency stop and other functions
Multi function output
There are 5 multi function output terminals, which can realize the indication and alarm of running, zero speed, counter, external abnormality, program running, etc.
Other functions
Automatic voltage regulation (AVR), deceleration stop or free stop, DC brake, automatic reset and restart, frequency tracking, PLC program control, traverse control, adjustable carrier, up to 20KHz, etc.
Protective function
Overload protection
Electronic relay to protect the motor, driver (constant rotation short 150percent 1 minute, fan 120percent 1 minute)
FUSE protection
FUSE melts new, the motor stops
Overvoltage
220V line: DC voltage> 400V; 380V line: DC voltage> 800V
Undervoltage
220V line: DC voltage <200V; 380V line: DC voltage <400V
Restart after instantaneous power failure
After Shun stops, it can be restarted in frequency tracking mode
Stall prevention
Stall prevention during acceleration deceleration operation
Short circuit at output
Electronic circuit protection
Other functions
Heat sink overheating protection, reverse rotation limit, function parameter lock for direct start after power on and fault recovery, etc.
.
Package List:
1 x Inverter1 x User Manual
Note:
1.This VFD is ONLY applicable to three phase 110V asynchronous motor2.Dont support external resistor(the function needs to be customized by notifying the seller before purchase).3.Fan runs all the time even though the motor stop.4.If your motor is 50 60hz, you need to change the for Hertz parameter of the VFD to be consistent with the motor
