Characteristics

Resolution

800×480

Description

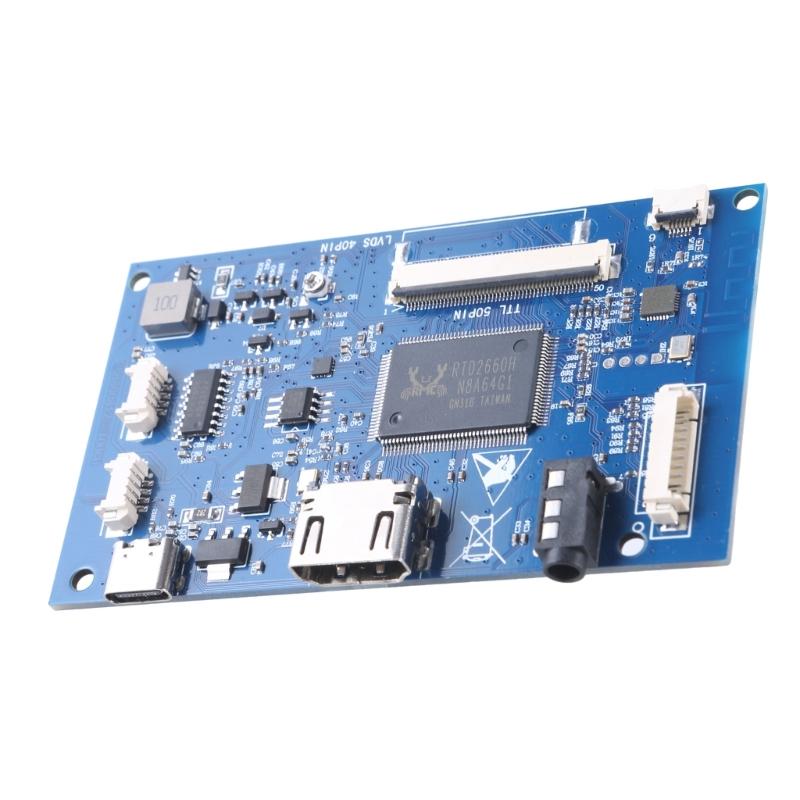

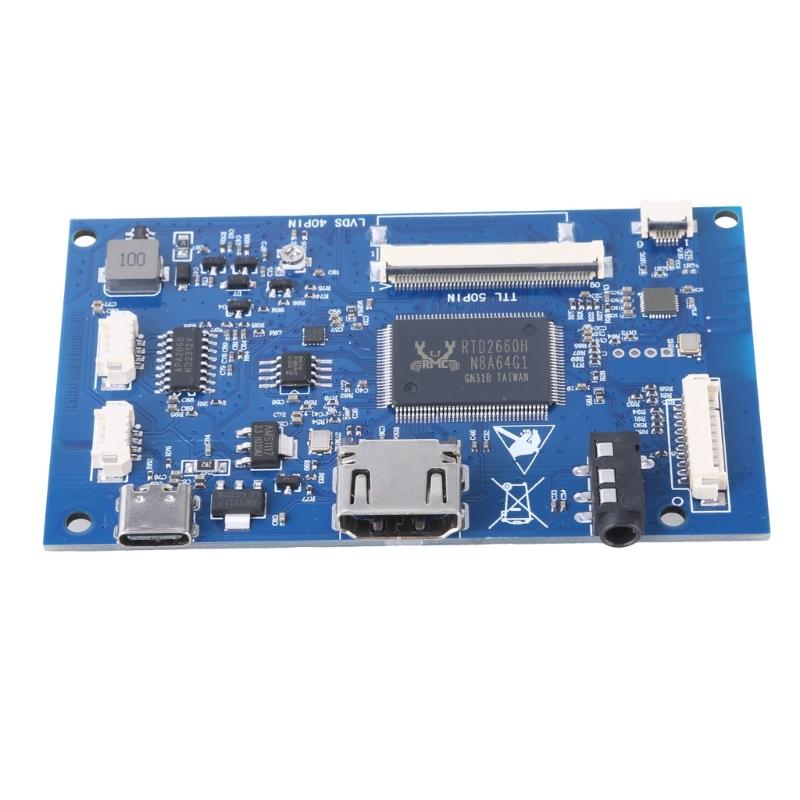

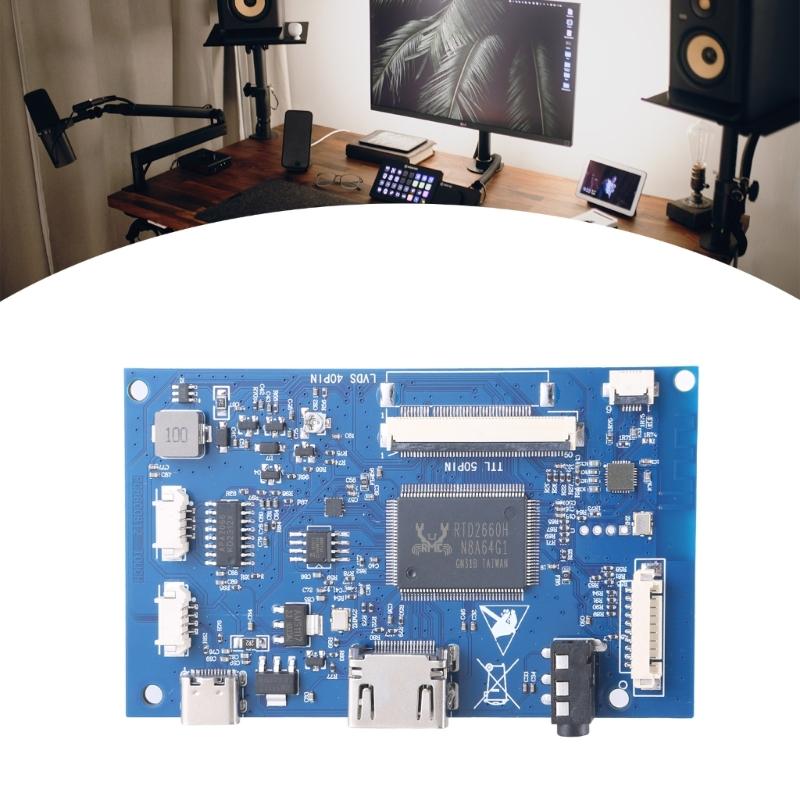

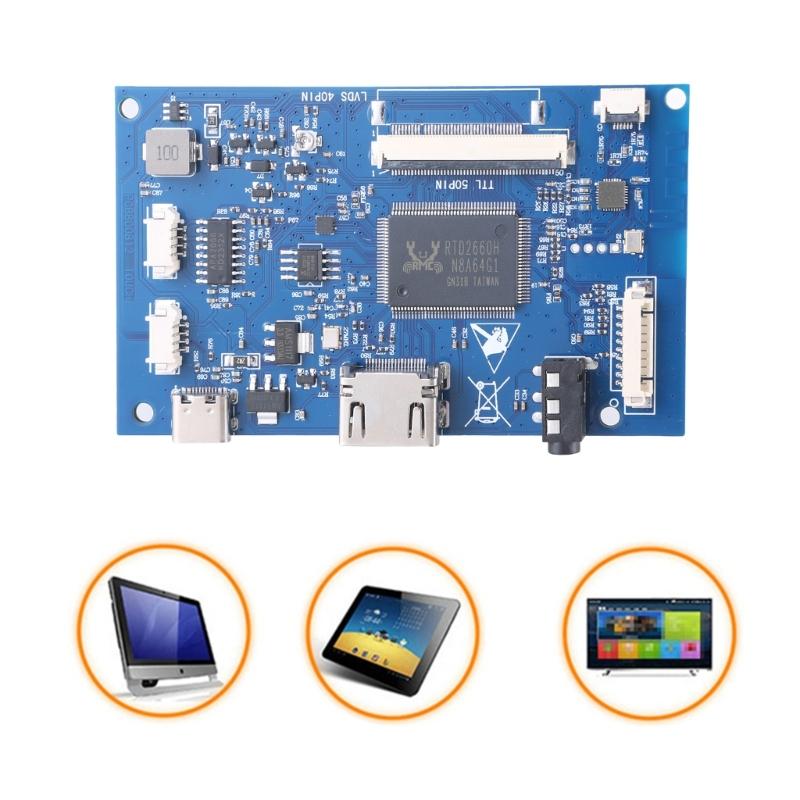

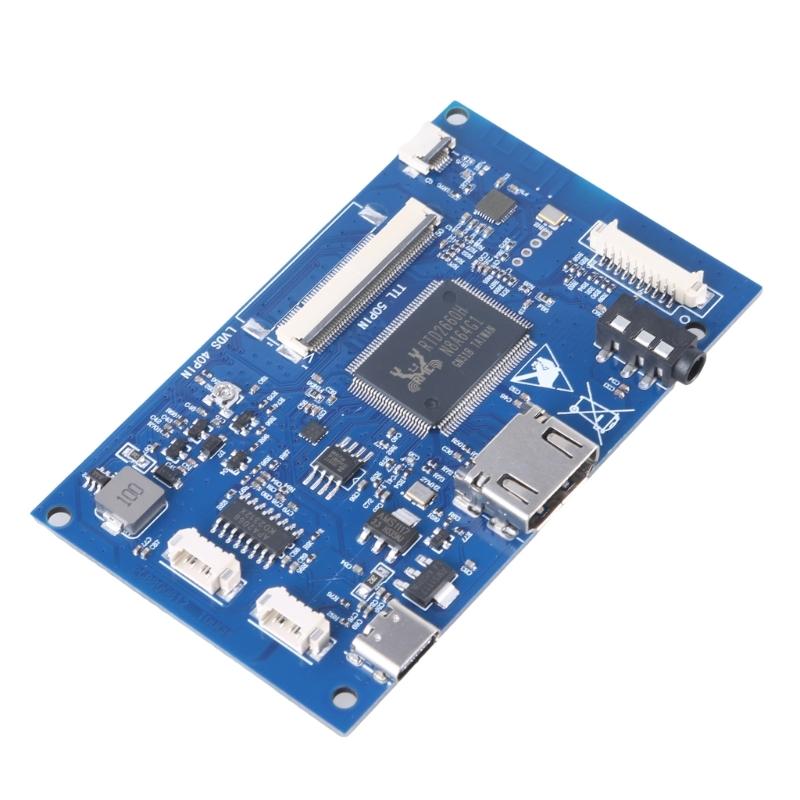

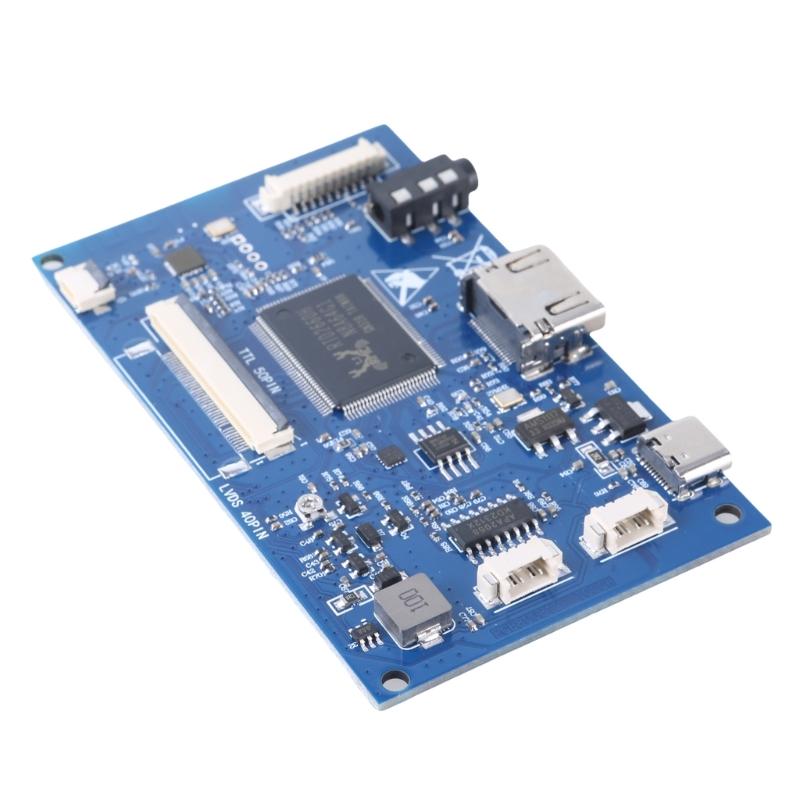

Features: 1CH, supports touch function, integrated touch chip, 6P definition, supports GT911-928 and other top capacitor chips.

The screen interface adopts quality 40PIN or 50PIN rear flip double-sided FPC socket.

Supports amplifier output, 8ohm 2W/4ohm 2W.

The driver board adopts a special circuit design, which can drive LED backlight of about 10V and support current output of up to 200mA.

Support TTL-50P standard interface 50PIN reference AT070TN92.

Standard 5-key keyboard interface and support two color LED indicator light display.

Supports LVDS signal output, individual screens rualequire adapter boards.

50PIN-TTL can support AT065TN14, AT070TN92, AT080TN52, AT090TN10, etc.

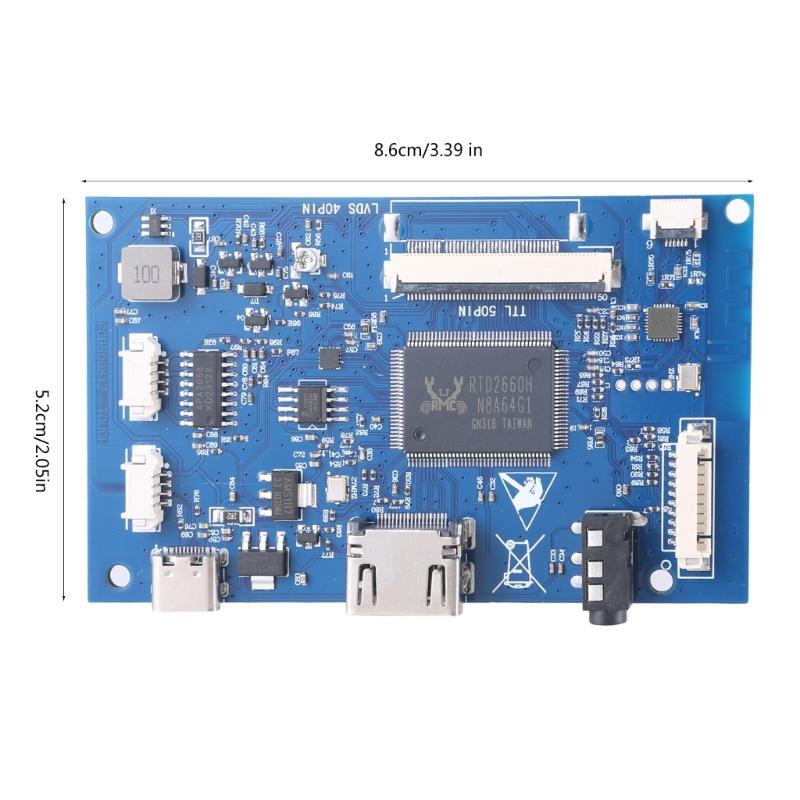

Specifications: Material: ABS+Metal Size: about 8.6x5.2cm/3.39x2.05inch Power: Type C 5V Need ＞1.5A Resolution: 800x480

Package Includes: 1x Driver Board

note: Please allow 1-2cm errors due to manual measurement. Please allow for slight color differences due to different display resolution.
