DIGITEN LCD Digital 0-99999 Counter 5 Digits Plus UP Gauge + Magnetic Proximity Switch Sensor

Features Large 1.5-digit LCD screen for clear and clear display. 2. No external power supply required; uses standard AA 1.5V batteries, making battery replacement easy. 3. Press the PAUSE key to stop counting, then press the PAUSE key again to resume counting. 4. Input using normal contact signals to select the sensor is simple and convenient, resulting in accurate and reliable counting. 5. Resettable zero: can be used on both the panel and external. 6. Shock-resistant design effectively prevents data loss. 7. No mechanical wear, reliable operation, and long life.

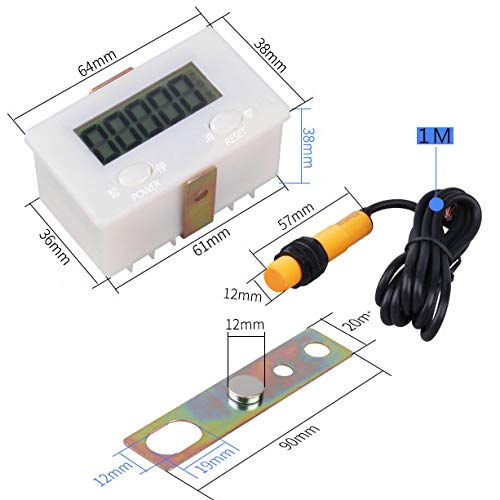

Specifications Power Supply: 1.5V AA battery (battery included) Count Range: 0 ---- 99999 Minimum Pulse Width Reset: 0.1 seconds Reset Method: Manual Panel/External Maximum Counting Frequency: 20Hz, or 20 times/second Working Temperature: -5 - 40°C Minimum Counting Pulse Width: 10ms Promixity Switch Sensor: 2 Wires, Length: 110mm, with Magnet Detection Distance: 15-18mm Size: 63 x 38 x 30mm Cavity Hole Size: 61 x 36mm Maximum Resistance when Connection Point is ON: ≤10KΩ Minimum Resistance when Connection Point is OFF: ≥500KΩ Net Weight: 0.05kg

Package Included 1 x Digital 5-Digit LCD Punch Counter 1 x Counter Bracket 1 x Proximity Switch 1 x Switch Bracket 1 x Powerful Magnet 5-Digit LCD Accurate Digital Counter with Proximity Switch and Magnet. Powered by a 1.5V AA battery. Easy to install. Measurement range: 0-99999, Counting frequency: 20Hz. Built-in reset and pause keys on the panel. Widely used in automated conveyor belt systems, winding machines, packaging machines, textile machinery, milling machines, etc.
