Label:Yes
Switching voltage (Max): 100V DC
Working current: 0.5 (A)
Color: Black
Material: SUS, PP, PVC, PVDF, etc
Breakdown voltage (Max): 220V DC
Switching current (Max): 0.5A
Brand new and high quality
Size: as shown
Quantity: 1Pcs
Temperature rating: -30 ~ +125 Celsius degree
Contract resistance (Max): 100O OHM
Carry current (Max): 1A
Contract rating (Max): 10W
Working voltage: 0-110(V)
Features:

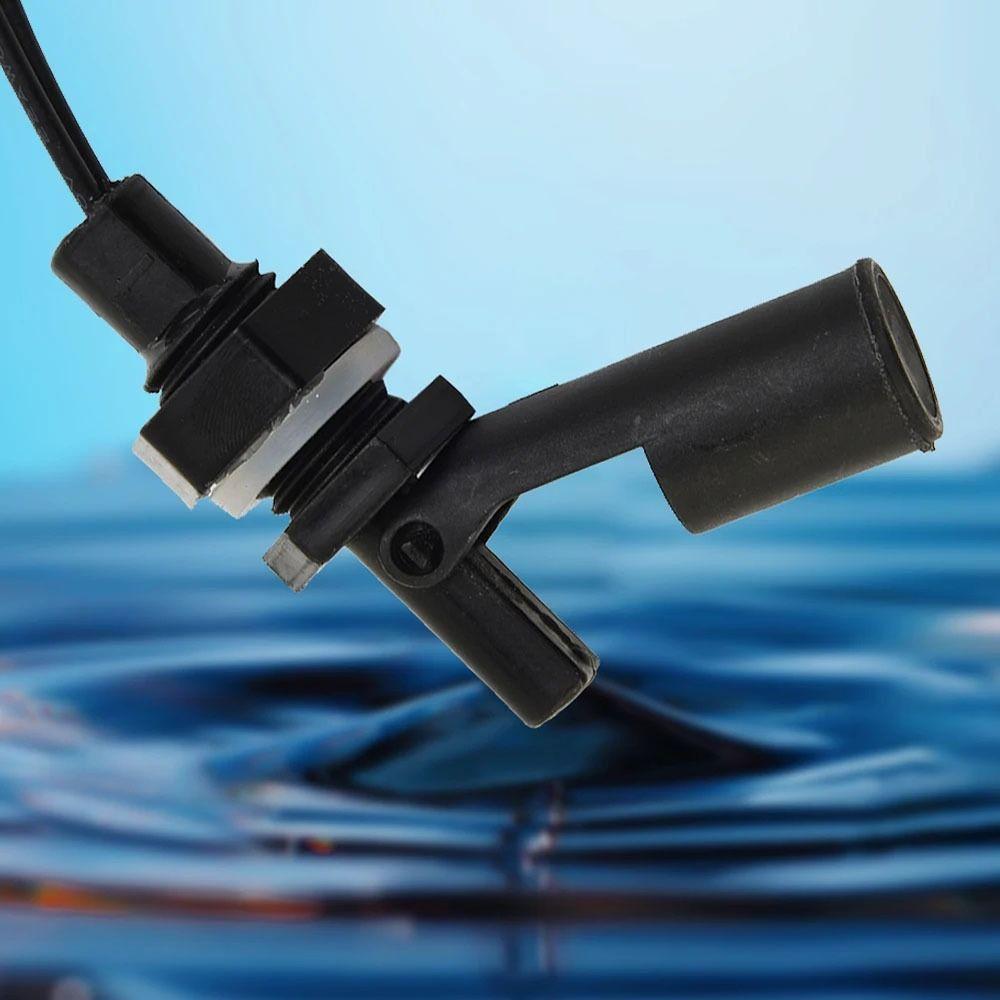

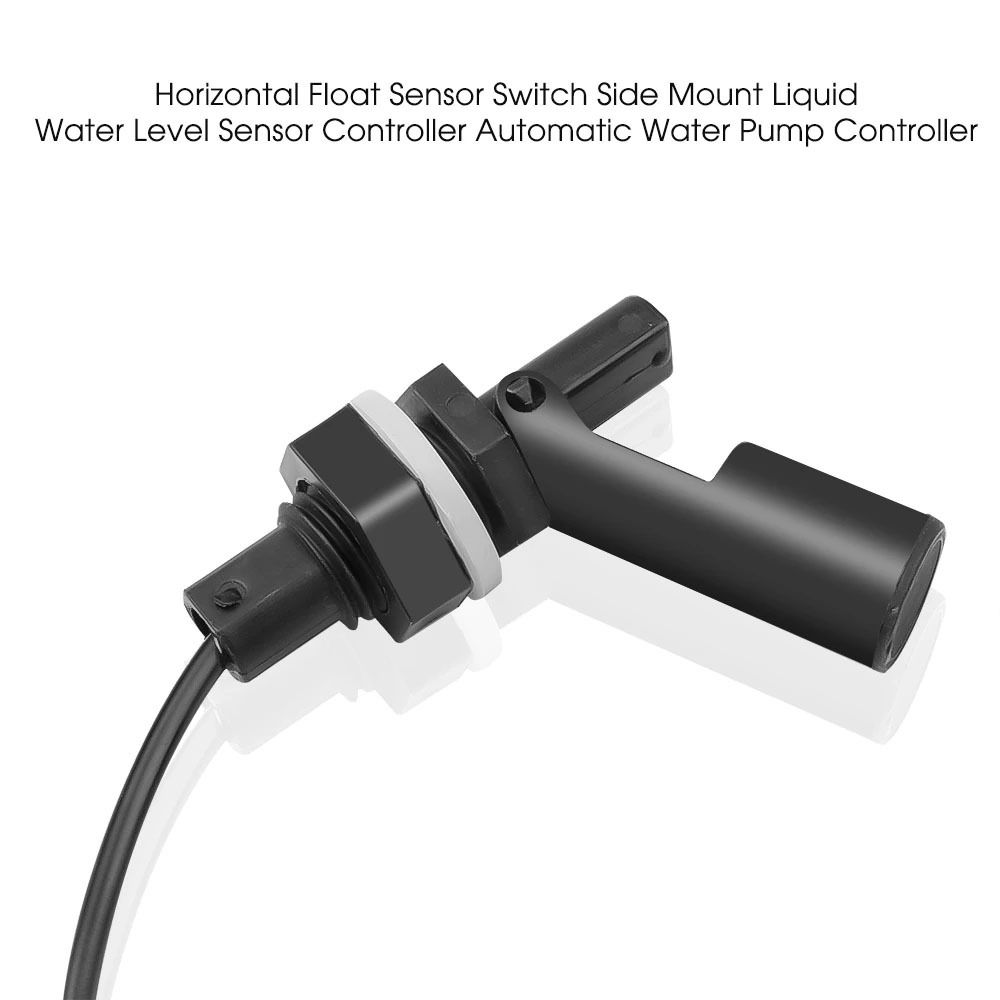

- A float switch is a device used to sense the level of liquid within a tank. It may actuate a pump, an indicator, an alarm, or other device.
- Use them with , saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating etc.
- All imported dry reed pipes are used, and the contact life can reach 1 million times;
- The reed switch and are completely isolated from the measured medium, and can be used reliably under high temperature and high pressure;
- Multiple installation methods: thread, flange, chuck, etc.,
- It can also meet the different needs of various environments;
- Apply to many fields: water treatment, food, medicine, industry, electronics, shipbuilding and other industries.
- Simple theory. Stable and reliable performance. Long working life;
Working theory:
- More reed tubes are mounted in a closed, non-permeable tube.
- Then the tube is passed through or more of the hollow and internally floating magnets.
- The rise or fall of the liquid level causes the floating ball to move together, thereby causing the reed switch in the non-permeable tube to be actuated to open or close and output a switching signal.
Notice:
1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data. Thank for your understanding.
3. 1cm=0.39''.
Package Included:
1x Water Level Switch
