Feature:
1. Polycrystalline silicon solar panel, up to 20percent high conversion rate and environmental PET film, safe, long service life.
2. Environmental conservation solar energy, bill free and user friendly.

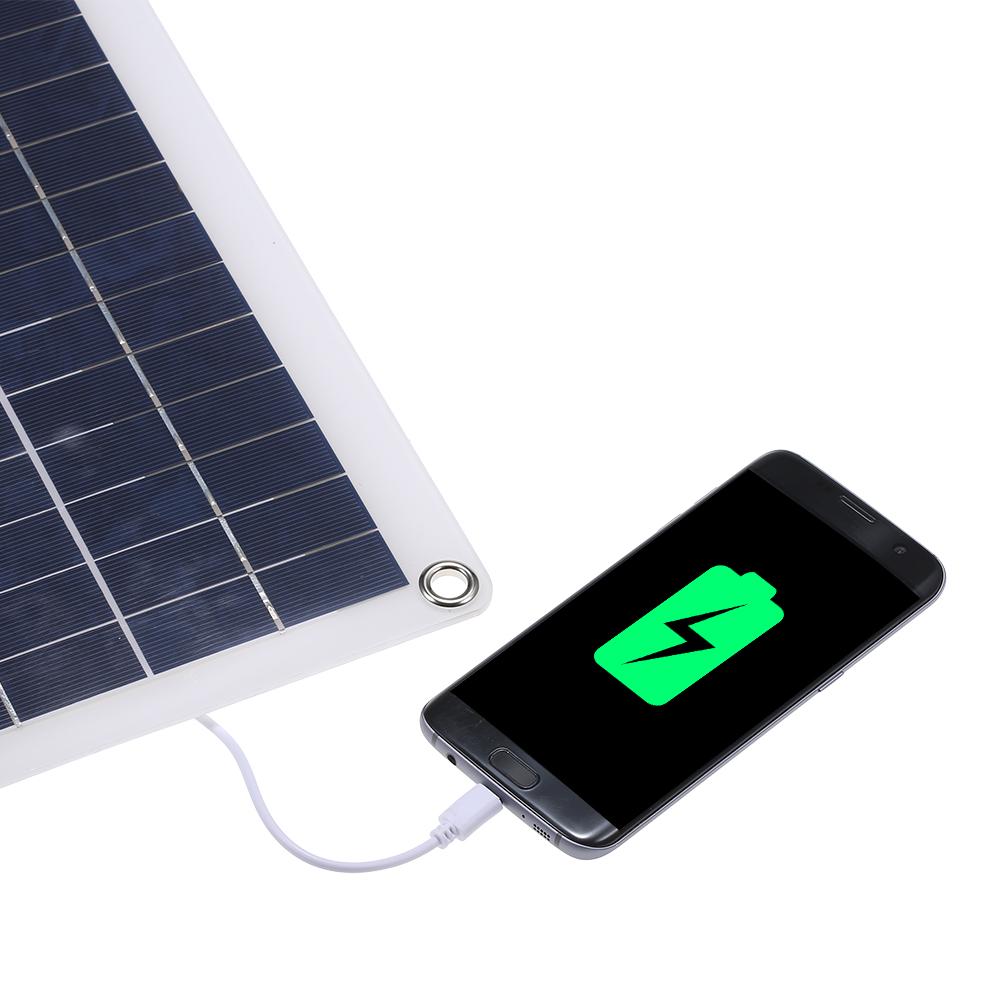

3. Two standard USB port, fits to be the power supplys for mobile phone and other portable digital devices.
4. Provide car charge for car charging and the clip can be used to charge the 18V batterys.
5. Controller provides short circuit conservation,open circuit conservation, reverse conservation, overload conservation.
6. Solar controller can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration.
7. Is perfect for acid batterys: OPEN, AGM, GEL, NOT for nickel hydride, lithium ions or other.
8. Adjustable floating charge voltage, discharge stop voltage and discharge reconnect voltage.
9. Perfect and safe to use in various applications, such as home, industrial, commercial etc
Specification:
The solar panel charge with DC 5V 18V output and IP65 water resistance perfect for various outdoor activities illuminating use like camping, hiking, riding, fishing and emergency.
With a controller to control the batterys voltage and turn on the circuit. Also, when the batterys voltage rises to a certain level, it will stop the charge for safety.
Features:
Polycrystalline silicon solar panel, up to 20percent high conversion rate and environmental PET film, safe, long service life.
Environmental conservation solar energy, bill free and user friendly.
Two standard USB port, fits to be the power supplys for mobile phone and other portable digital devices.
Provide car charge for car charging and the clip can be used to charge the 18V batterys.
Controller provides short circuit conservation,open circuit conservation, reverse conservation, overload conservation.
Solar controller can clearly indicate the status and data, it can be conveniently switched modes and parameter configuration.
Is perfect for acid batterys: OPEN, AGM, GEL, NOT for nickel hydride, lithium ions or other.
Adjustable floating charge voltage, discharge stop voltage and discharge reconnect voltage.
Perfect and safe to use in various applications, such as home, industrial, commercial etc
Specifications:
Types: 4 types(optioanl)
type 1: 20W solar panel + 10A controller
type 2: 20W solar panel + 20A controller
type 3: 20W solar panel + 30A controller
type 4: 20W solar panel + 40A controller
Solar Panel
Material: PET
Color: black & white
Panel: 36 * 0.55V 0.28W polycrystalline silicon solar panel
Output: 18V 1.15A & 5V 2A
Powers: 20W (max.)
Transformation efficiency: 20percent

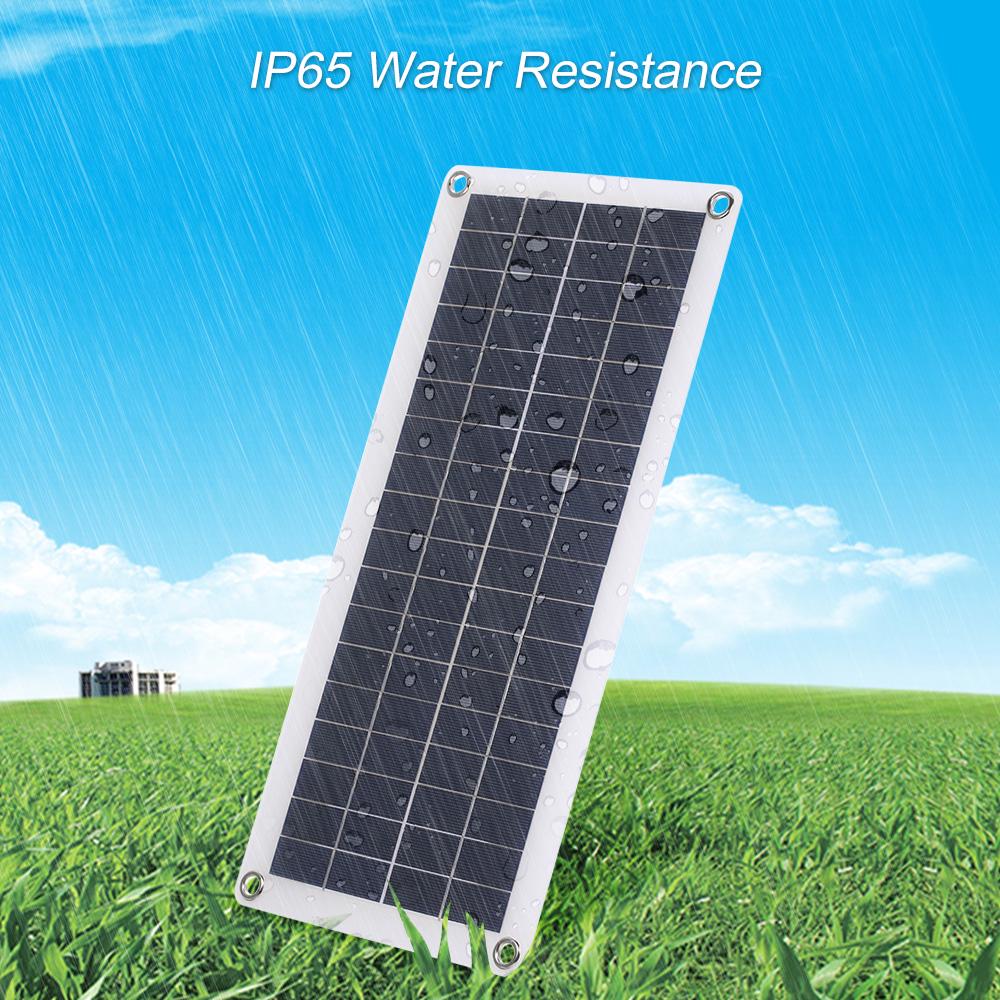

Proof rate: IP65
Item weight: 382g 13.47ounces
Panel size: 435 * 200 * 30mm 17.13 * 7.87 * 1.18in

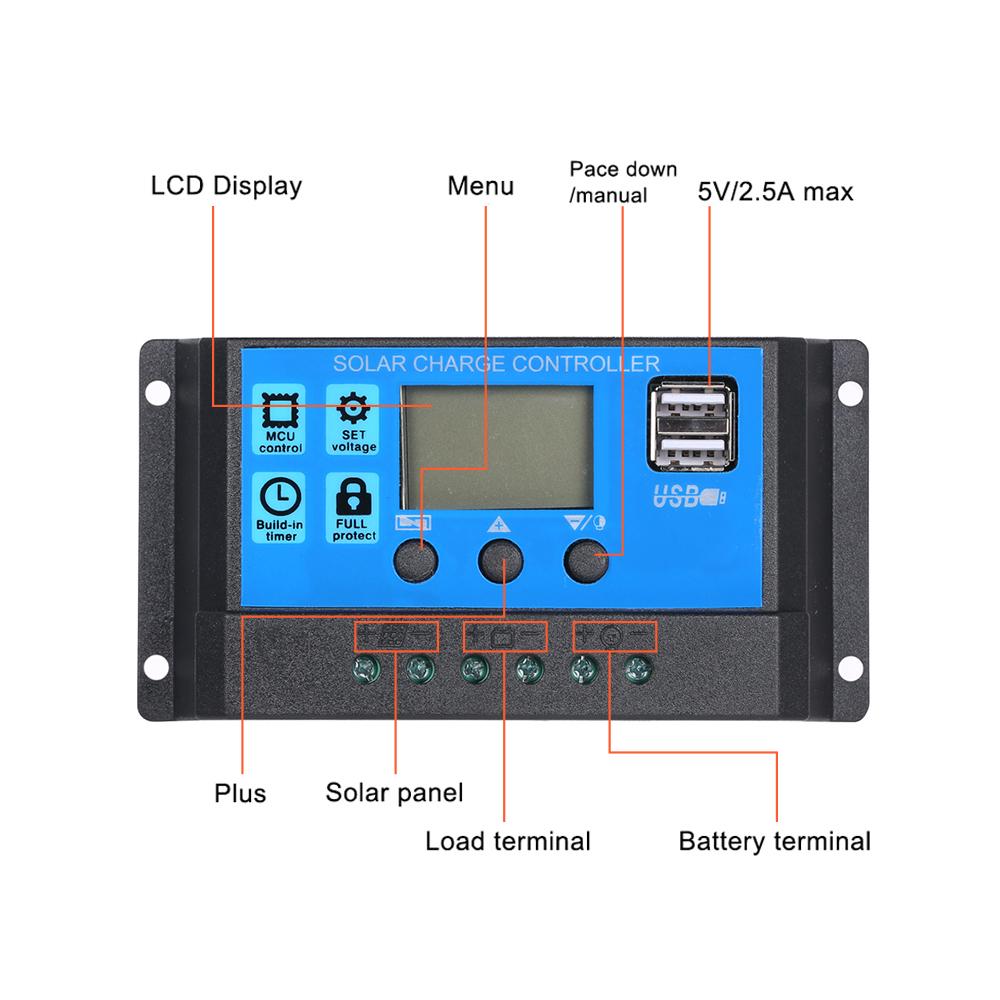

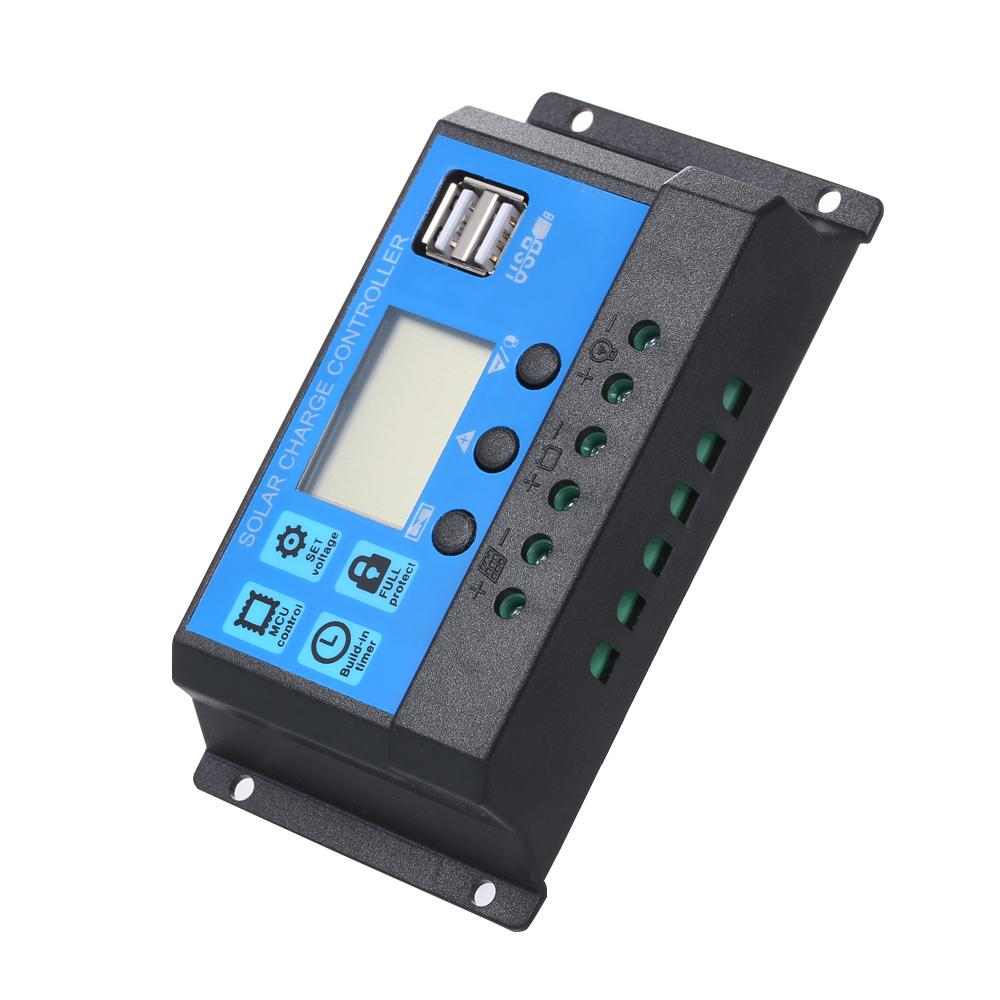

Controller
Material: ABS
Color: black & blue
Voltage: 12V 24V
Current: 10A; 20A; 30A; 40A(optioanl)
Max PV input: less than 50V
Max PV powers: 130W(12V), 260W (24V)
Floating charge voltage: 13.7V (defaul, adjustable)
Discharge stop voltage: 10.7V (defaul, adjustable)
Discharge reconnect voltage: 12.6V (defaul, adjustable)
Charge reconnect: 13V
Self consume: less than 10mA
USB output: 2 * 5V 2.5A USB ports
Operating temperature: 35 celsius to 60 celsius
Item weight: 128g 4.52ounce
Item size: 133 * 70 * 31mm 5.24 * 2.76 * 1.22in
Package Infor.
Package weight: 650g 1.43lb
Package size: 450 * 210 * 35mm 17.72 * 8.27 * 1.38in
Notes:
1. Do not scratch the surface of the solar panel.
2. place it in direct sunlight to ensure optimal charge.
3. the panel is water resistance, but keep the USB and DC interfaces away from water.
4. The regulator ONLY suit for acid batterys, not for nickel metal hydride, lithium ions or other batterys.
5. This controller can ONLY use photovoltaic panel as charge source.

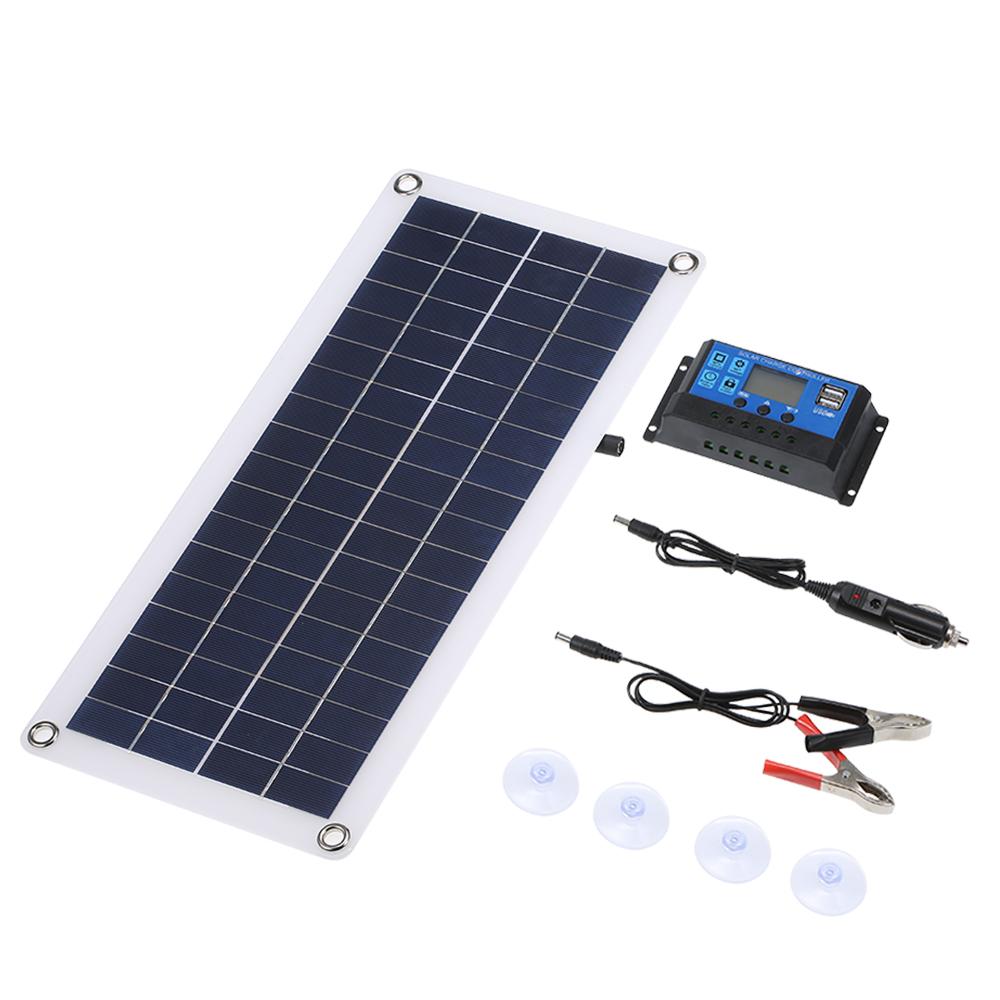

Package List:
1 * Solar Panel
1 * Controller
1 * Car Charge Cable
1 * Cable with Clip
4 * Suckers
1 * User Manual
Package List:
1 * Solar Panel
1 * Controller
1 * Car Charge Cable
1 * Cable with Clip
4 * Suckers
1 * User Manual
