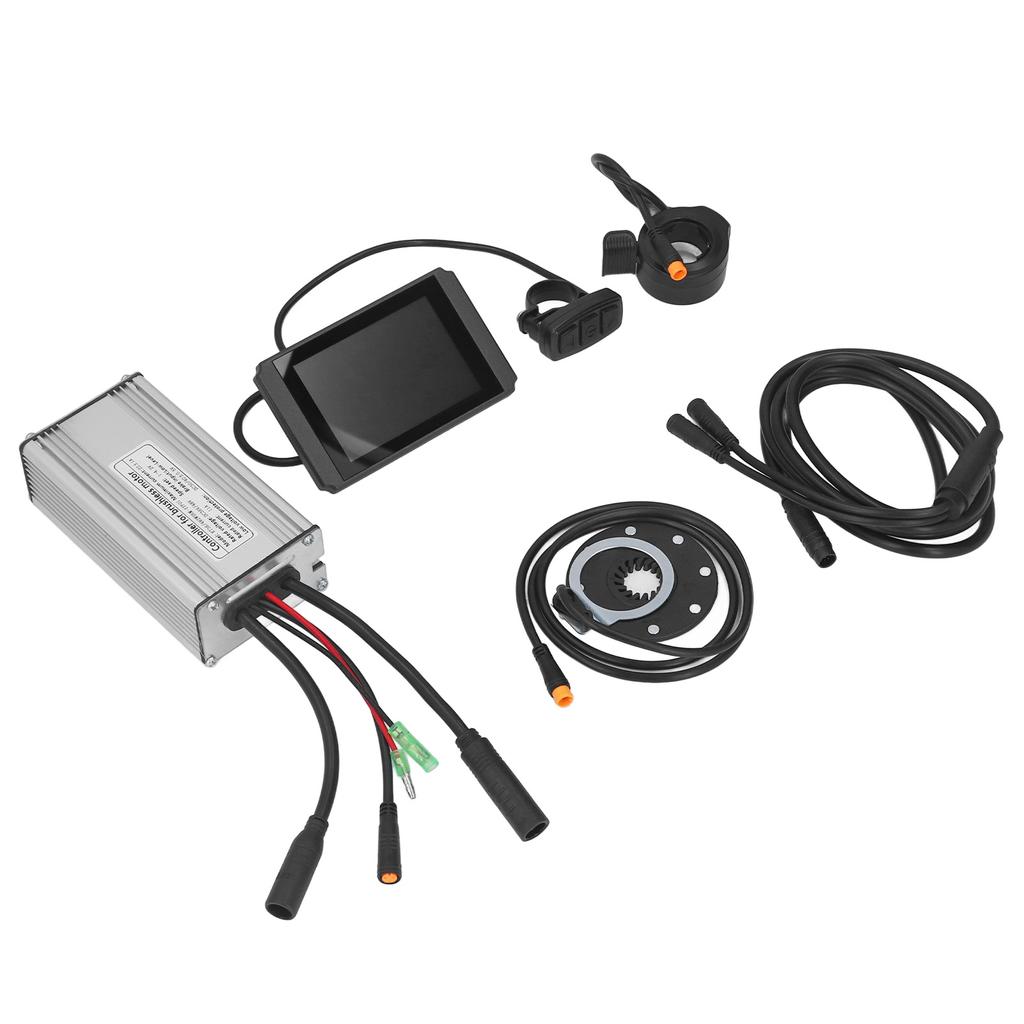

Electric Bicycle Modification Kit Waterproof 22A Controller and LCD8H Display Set for 500W Geared Motor

Feature: 1. Accessory Set: Electric bike conversion kit includes 22A controller, S6 instrument, 130X dial, 8C booster and 1 to 2 connecting line. 2. Selected Material: The controller housing is made of aluminum alloy with grooves designed to protect the internal circuitry from thermal overload due to good heat dissipation. 3. Waterproof Instrument: Constructed from ABS, the instrument provides better protection for the internal circuit and makes it more durable. 4. LCD8H Display Functions: Power, backligh , headlight, brake display, temperature, one way time, total travel time, current speed, average speed, maximum speed, total one way distance, 6KM H thrust assist. 5. Strong Compatiblity: Fits for controller kit for brushless 500W gear motor, DIY electric bike, electric bike, electric scooter, folding car, etc. Specification: Item Type: Bicycle Modified Kit Product Material: Aluminum alloy and ABS plastic Weight: Approx. 785g 27.69oz Product Size: Controller box Approx.120x65x40mm 4.72x2.56x1.57in, instrument Approx.107x67mm 4.21x1.64in Controller Rated Voltage: 36V DC 48V DC Controller Rated Current:11A Controller Maximum Current: 22+ 1A Controller Speed Setting:1 4.2V Controller Brake Input: Low Level Controller Low Voltage Protection: DC 30 40+ 0.5V Applicable Motor Power: 500W Joint Type: Fully waterproof joint 1 To 2 lines Description: an end is connected to the controller, and the other ends are connected to the instrument and dial Controller Lne Definition: 1. Red and Black Single Cable: Power cable 2. Black Single Large Wire (9PIN) : Motor wire 3. Black Single Wire (9PIN) : 1 to 2 wire 4. Black Single Wire (3pin) : Power assist sensor wire LCD8H Instrument Function: Up button, switch button, down button, power assist sensor mark, battery capacity indicator, operation sign, single trip time, total travel time, battery voltage, brake display, 6km h thrust assist, ride speed (metric), maximum speed, average speed, travel distance, total distance, backlight and headlight, ambient celsius, aAmbient fahrenheit. Package List: 1 x Controller1 x Instrument1x Instrument Mounting Frame4 x Instrument Mounting Frame Gasket2 x Instrument Mounting Frame Screw1 x Accelerator Thumb Shifter 1 x Booster Sensor Gasket1 x Instrument Specification 1 x 1 To 2 Connecting Line1 x Controller Wiring Specification Note: The modification kit must be fully waterproof.
