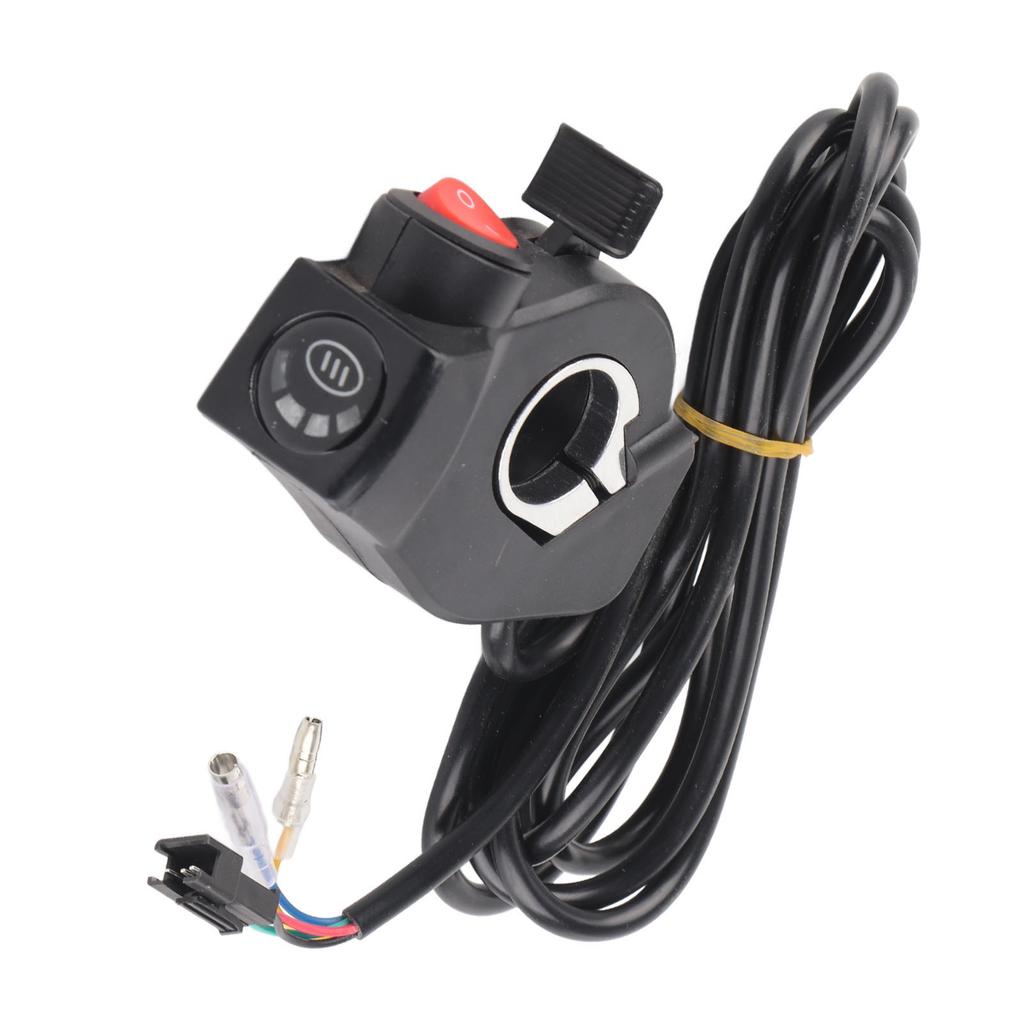

Feature:
1. No matter acid batteries, lithium batteries, water batteries, dry batteries.
2. All kinds of electric vehicle (12V to 99V) can be automatically identified and displayed in real time.
3. Eliminate analog power display (several small lights), real time voltage display, intuitive, convenient, can accurately judge the remaining power, mileage.
4. By turning the real time voltage value can accurately determine the amount of remaining power, convenient for you to drive.
5. The real time voltage value can accurately judge whether the lithium battery is damaged.
6. The quality of lithium battery can be judged by the value of turning voltage to facilitate the factory to purchase qualified lithium battery.
Specification:
Condition: 100percent Brand New
Item Type: E Bike Voltage Display
Material: plastic
Color: as picture shown
Model: S series (5V 99V automatic identification of electric vehicle voltage)
Efficiency: more than 98percent
Hall grade: linear hall, high quality rubber, imported LED display lamp
Working voltage: turn DC0.8V 4.2V
Power display: regardless of acid battery, lithium battery, regardless of voltage, can be automatically identified (12V, 24V,36V,48V,60V,72V electric vehicles can be directly used, some 84V electric vehicles can be used)
Quantity: 1 pcs
Specification: electric vehicle universal accessories
Terminal length: 2 m by default

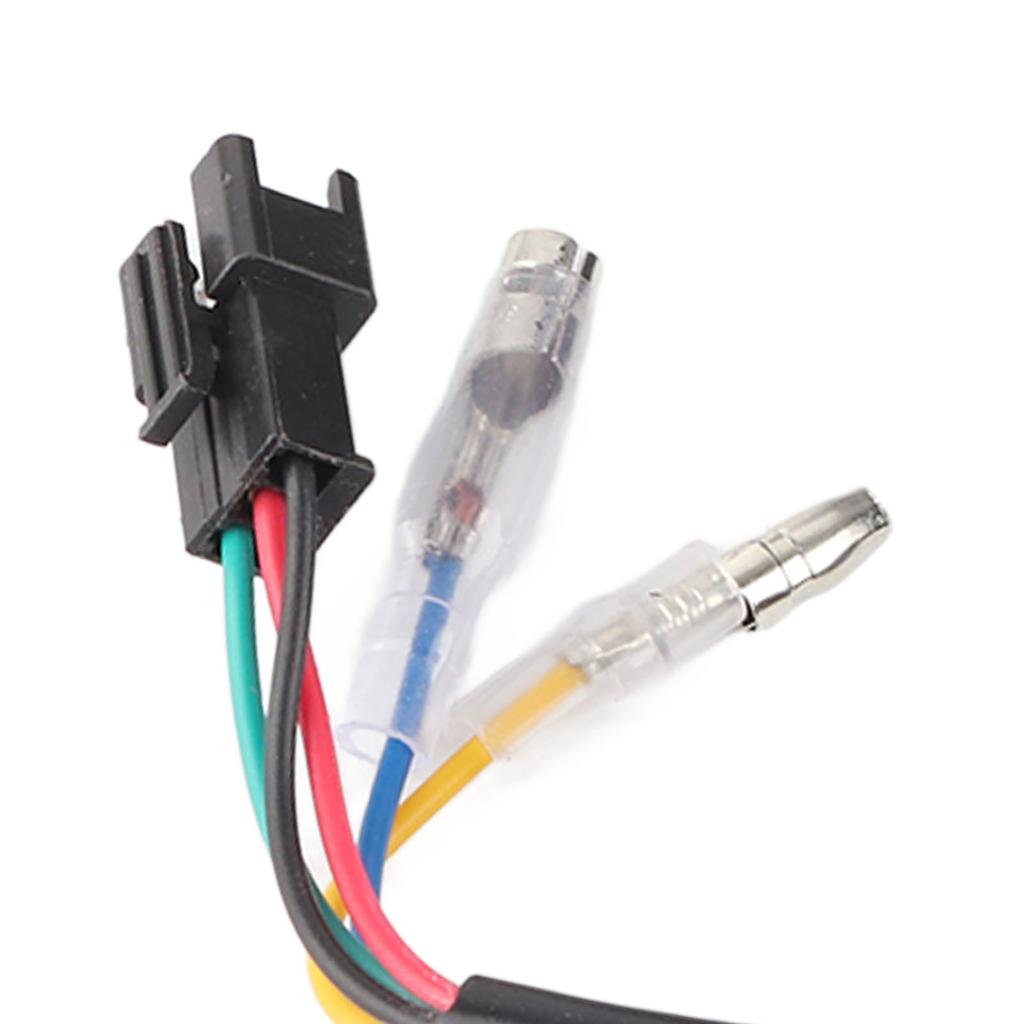

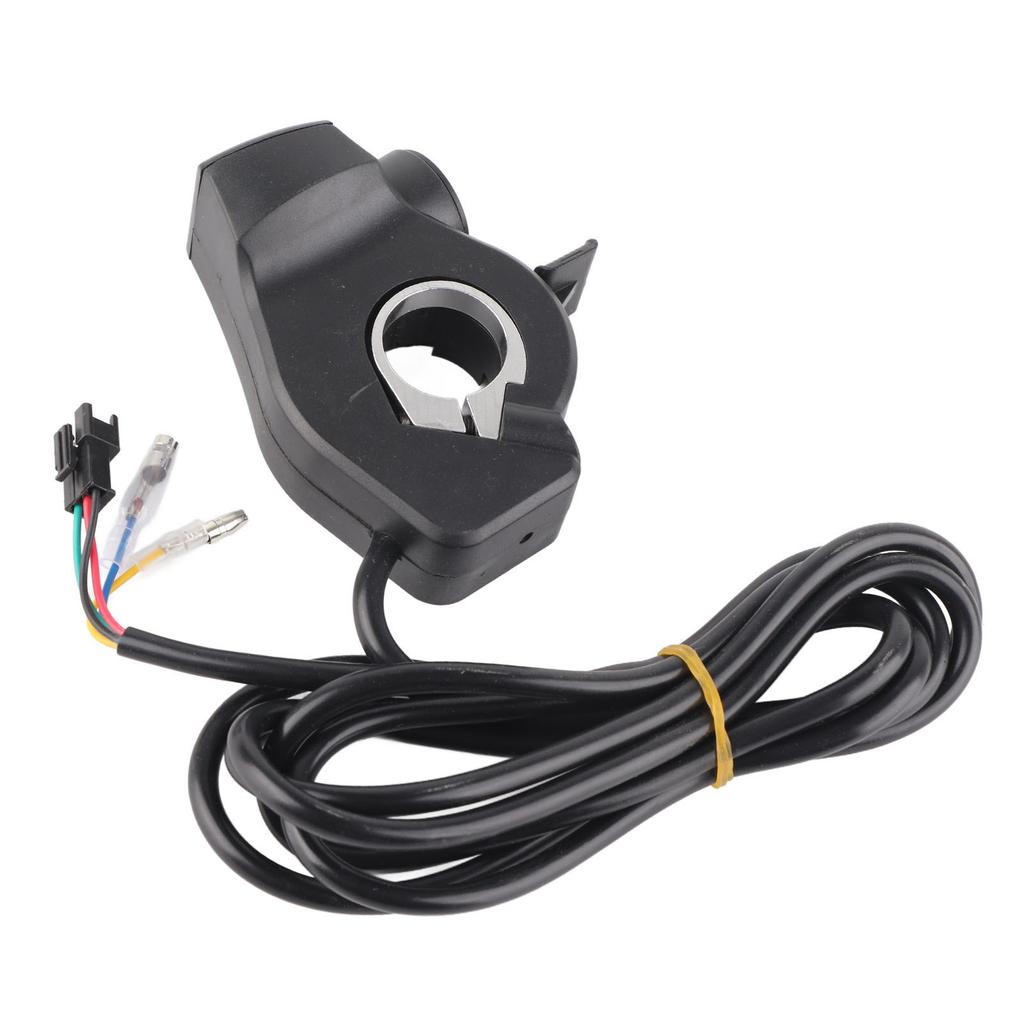

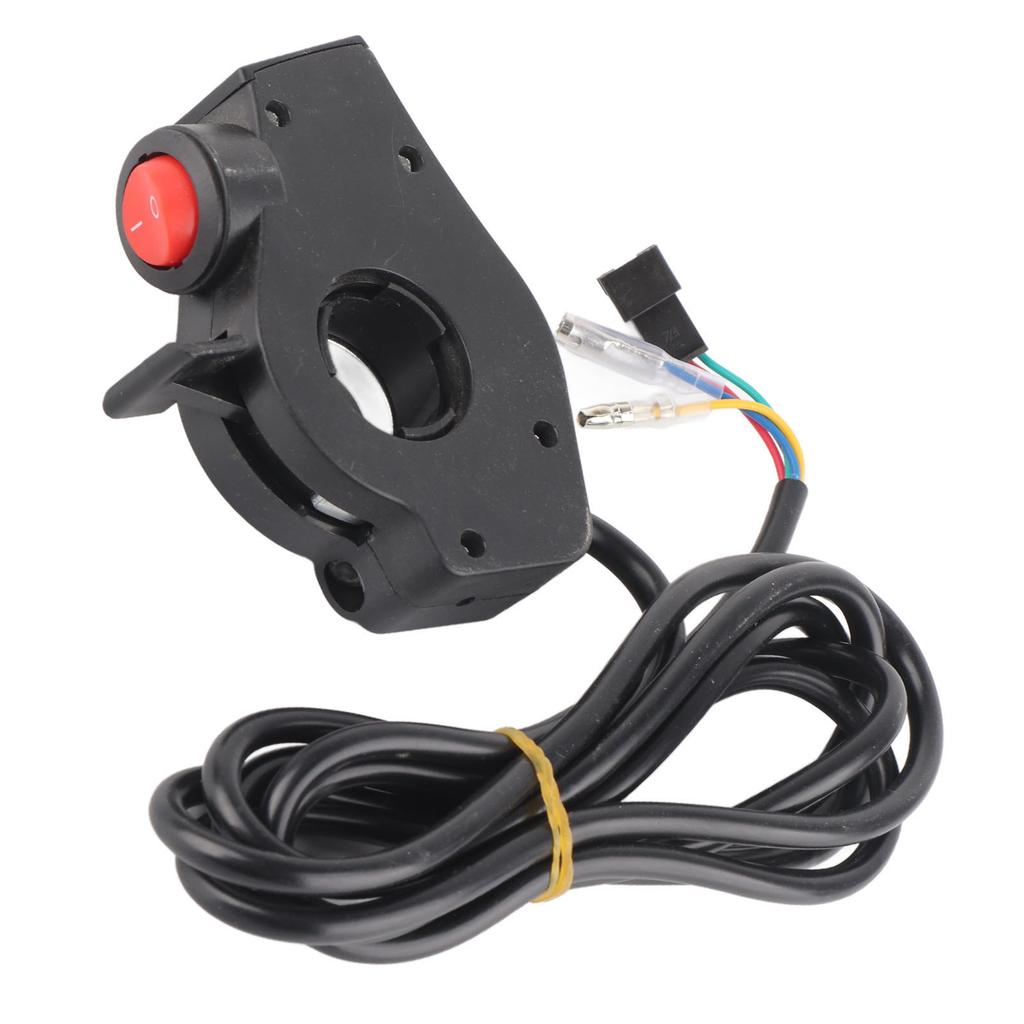

Green is for throttle hall signal, red wire is for throttle +5v, black is negative wire; please connect according to controller function wire, U can not just match same color wire, if wrong connected that will damage your controller and throttle.
4 wires : yellow is for voltage display wire, connect with electric bike power positive.
5 wires: blue wire connect with controller power lock output wire, yellow wire connected with controller electric switch input wire power positive,
6 wires ; yellow connected with power positive, blue wire and white is is function wire(can work as reverse switch, horn switch, cruise switch, power lock and so on)
7 wires: yellow connected with power positive, blue is share wire, middle gear for 3 gears , white is high gear, brown is low gear.
The above is common wiring way, if need made to order please connect with salesperson.
Battery common sense:
For this display Battery is measured by voltage. this throttle can work for any electric bike under 84v with acid battery, lithium battery, water battery, dry batter and so on. The throttle with automatically identify voltage. Due to the difference of battery material, battery conditions ( new or old, ),controller data , the battery voltage reaction will be different, so the data bellow will have deviation. Customers please check according to your battery to get your battery data.
For 12v electric bike, maximum voltage is about 12.6v, mini is about 9v or higher,
For 24 electric bike, maximum voltage is about 29.4v, mini is about 21v or higher,
For 36v electric bike, maximum voltage is about 42v, mini is about 29v or higher,
For 48v electric bike, maximum voltage is about 54.6v, 58.8v, mini is about 40v or higher,
For 60v electric bike, maximum voltage is about 72v, mini is about 49v or higher,
For 72v electric bike, maximum voltage is about 84v, mini is about 60v or higher,
For other electric bike with higher voltage there should be a voltmeter installed.
Installation method: 3 wires, red wire for positive, black wire for negative, green wire for signal, and yellow wire for power supply positive.
How to maintain the lithium battery:
Since lithium battery has different materials (The ternary lithium battery, lithium manganate battery, lithium iron phosphate battery) so we cannot give exact number to measure the balance battery level. Customers please measure the remaining battery level according to your battery indication and max voltage number. Usually please charge when there is 30percent left, and please finish charging when reach to 80percent of battery. This is best for battery. Any lithium battery has no memory, you can charge anytime, use anytime, that will not influence the life of battery. Please donot overcharge or overdischarge. Please totally charge and discharge for every two month, that will maintain the battery at maximum.
Package List:
1 x E Bike Four light Middle Thumb Switch
